Industrial power brushes

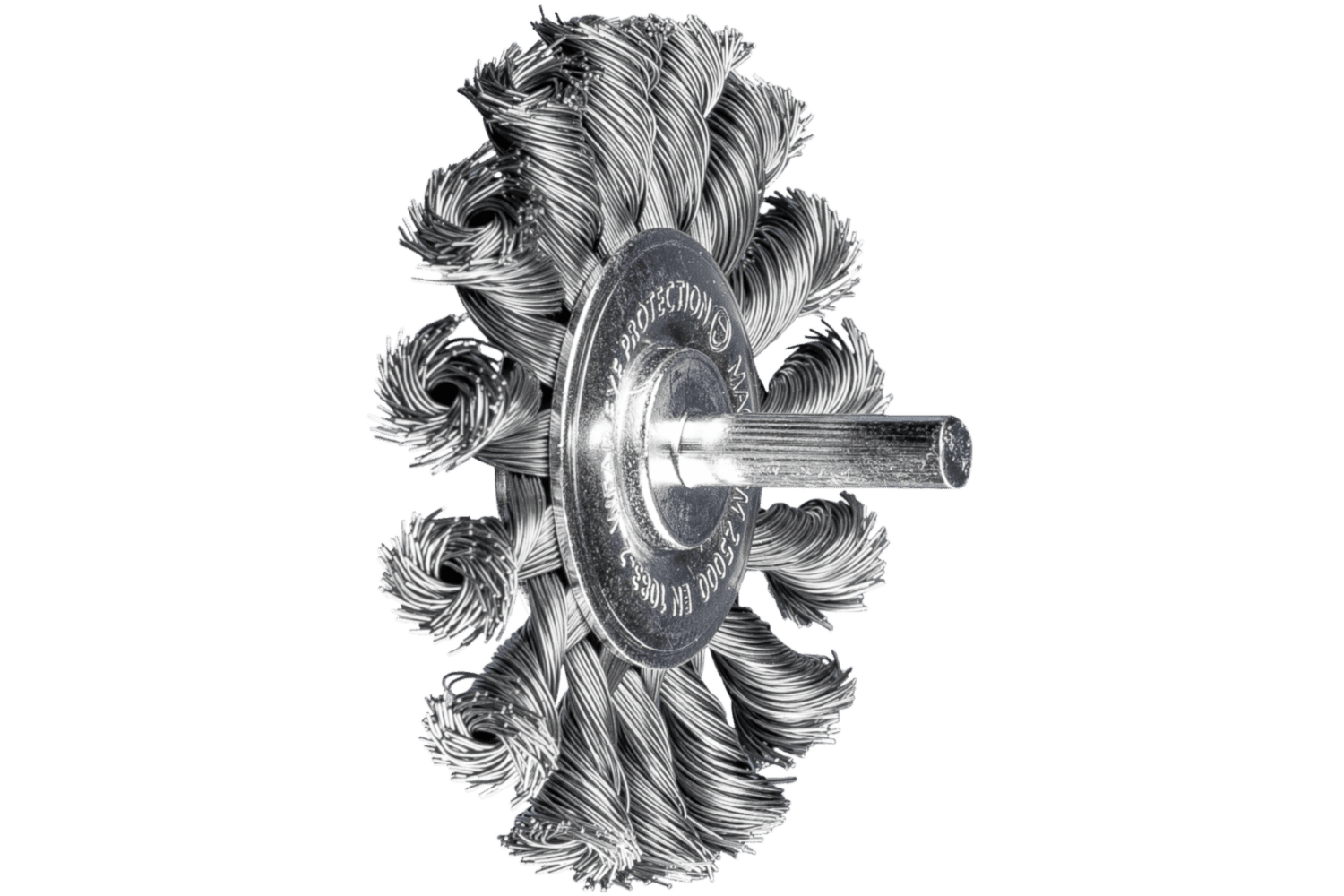

Mounted Knot Wire Wheel Brush PSF
Technical informationBrush Diameter3 InchFilament MaterialSteel wire (ST)Wire Diameter0.012 InchShank Diameter1/4 InchTrim Length3/4 InchMax. RPM25000 RPMPack Qty5Aggressive brush for cleaning, derusting and work on weld seams. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesOptimal access to hard-to-reach areas such as grooves and recesses.Packaged for retail.Aggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Mounted Wheel Brush
Technical informationBrush Diameter3/4 InchFilament MaterialBristle, blackWire Diameter0 InchShank Diameter1/8 InchTrim Length3/16 InchMax. RPM25000 RPMPack Qty36Designed for light brushing such as deburring, cleaning and polishing. PFERD offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders. Brushes with natural bristles (animal hair) are designed for light cleaning and dust removal, as well as for polishing (in combination with polishing pastes). These bristles are harder and less flexible than other natural bristle types. Natural bristles are temperature-resistant up to 300°F.AdvantagesMaximum precision and efficiency on delicate workpieces.Precise handling in hard-to-reach areas.ApplicationsCleaningPolishingMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)Steel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)TitaniumTitanium alloysZincAluminumBrassDrive TypesFlexible shaft driveStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Pencil End Brush Crimped Wire Coated Cup End Brush
Technical informationBrush Diameter3/16 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.012 InchShank Diameter1/4 InchTrim Length3/8 InchMax. RPM8000 RPMPack Qty10For cleaning blind holes and small crevices. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe metal tube can be cut back before starting work in order to achieve a large spreading diameter or to access hard-to-reach areas.Cutting back the metal tube exposes the rest of the filament so that all of it can be used.Optimal access to hard-to-reach areas.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Pilot End Brush
Technical informationBrush Diameter1/2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.005 InchShank Diameter1/4 InchTrim Length1/8 InchMax. RPM20000 RPMPack Qty10Excellent for cleaning rivets in the aviation sector. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe centering pin enables precise brushing.Tailored to the standard diameters in the aviation industry.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

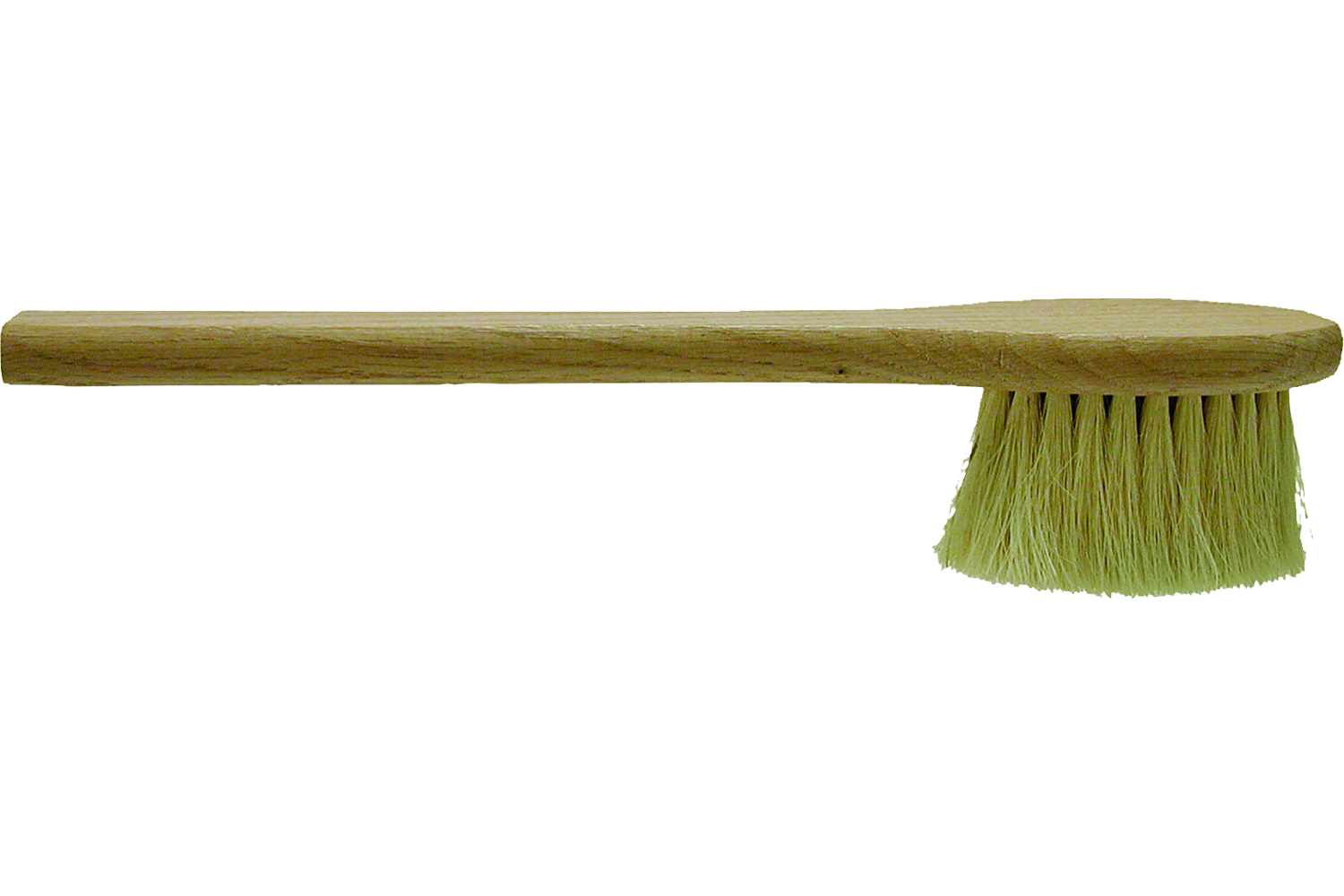

Pipeline Dauber Brush 5x10 Rows White Tampico Fill
Technical informationFilament MaterialTampicoTrim Length2 1/4 InchPack Qty12Oval-head tampico brushes for hand-applying pipe coatings.AdvantagesHigh retention improves productivity.ApplicationsApplicationCleaningDrive TypesManual application

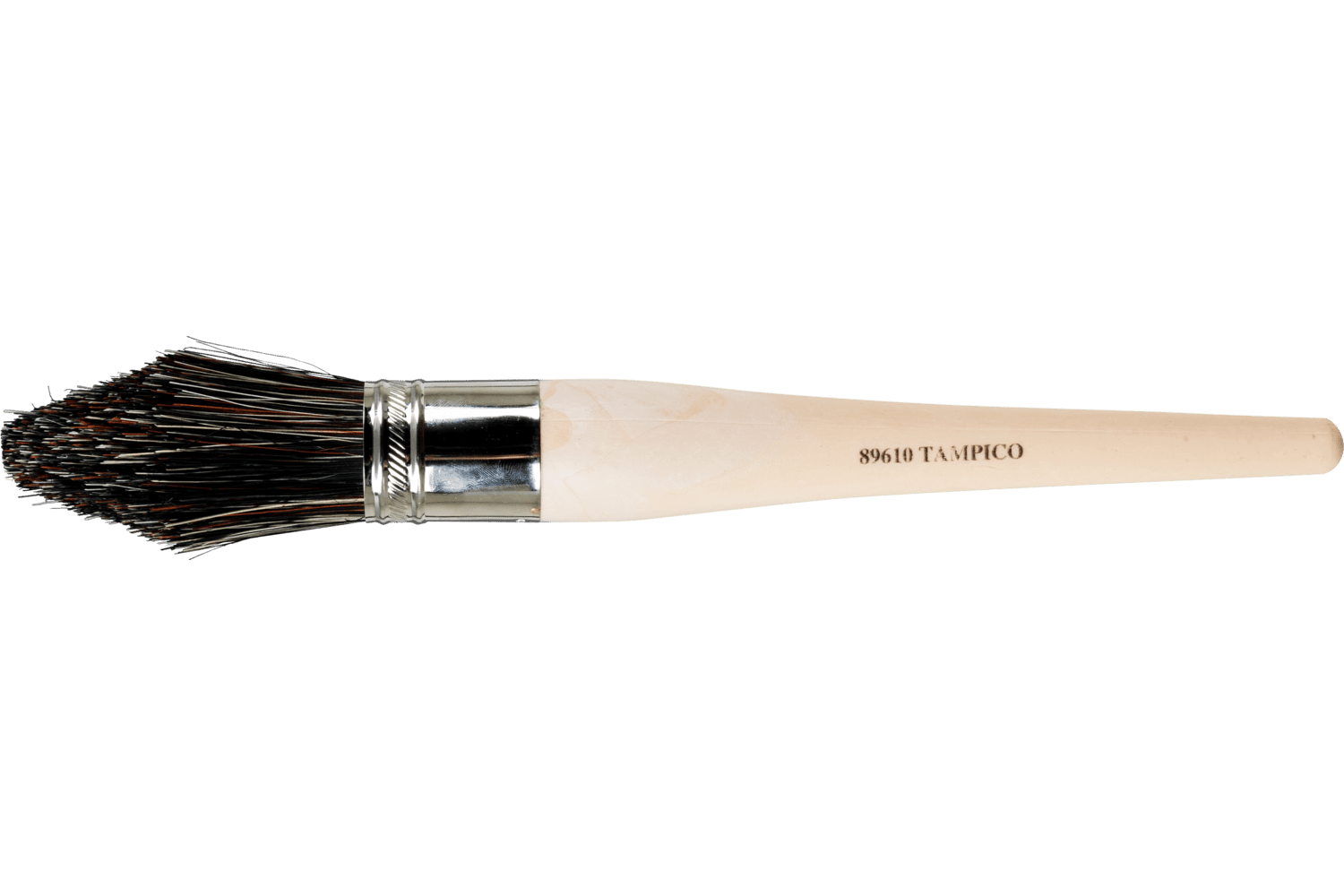

Pointed End Parts Cleaning Brush
Technical informationBrush Diameter1 1/4 InchFilament MaterialTampicoPack Qty12Pointed-end brushes for removing dust and debris. Synthetic tapered handle.AdvantagesEasy reach into confined areas.Tampico filament provides high solvent absorption with gentle cleaning action.ApplicationsCleaningDrive TypesManual application
Power Tube Brush
Technical informationBrush Diameter3/8 InchFilament MaterialBrass wire (MES)Wire Diameter0.005 InchShank Diameter5/32 InchMax. RPM2500 RPMPack Qty36For light cleaning and deburring work on threaded holes or recesses, e.g. keyways. Brass wire filament brushes are designed for applications like surface finishing on copper or brass workpieces. Compared to steel wire, brass wire is softer and more flexible. For all brushes with brass wire, PFERD uses wire quality CuZn37. Brass wire is temperature-resistant up to 350°F.AdvantagesHighly flexible, enabling optimal adaptation to the workpiece contour.Longer service life due to the design of the stem.In tube brushes with a short eyelet, the filament reaches up to the tip of the brush.The bent end of the wire does not have any sharp edges, which prevents delicate surfaces from getting scratched.Low-sparking.Creates fine surfaces.ApplicationsCleaningDeburringRemoving oxide layersMaterials that can be workedZincBrassCopperOther non-ferrous metalsDrive TypesFlexible shaft driveManual applicationPower drillSafetyFor safe use, guide the brush into the workpiece before beginning work. When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Power Tube Brush
Technical informationBrush Diameter1/2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.004 InchShank Diameter5/32 InchMax. RPM2500 RPMPack Qty10The high-performance tube brush is highly designed for deburring cross holes and for cleaning threads. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesLong tool life due to high filament density and double spirals.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft driveManual applicationPower drillSafetyFor safe use, guide the brush into the workpiece before beginning work. When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

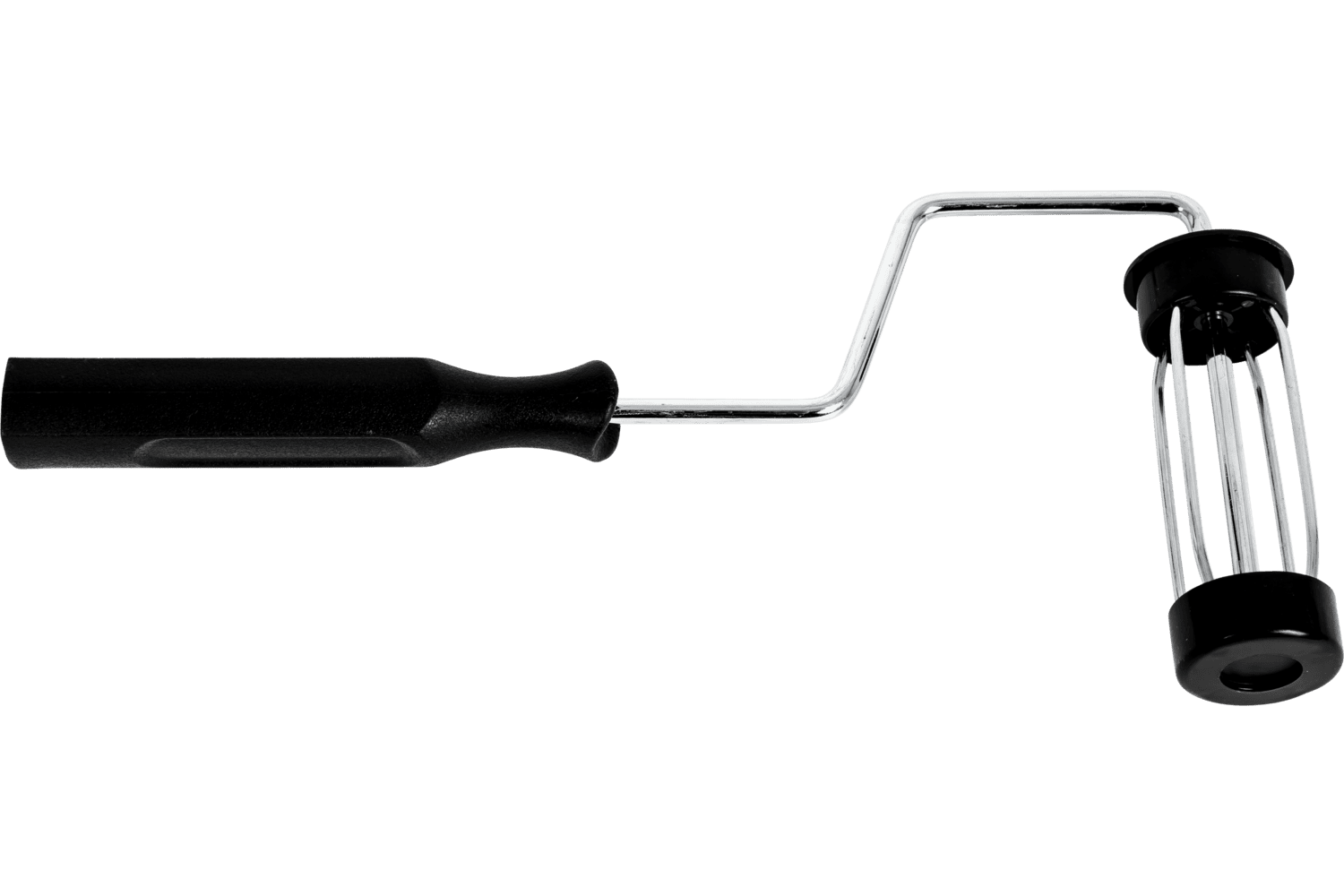

Roller Cage Frame
Technical informationBrush Diameter1 1/2 InchPack Qty24For use with general-purpose trim rollers (3“-4“).AdvantagesHandle features internal thread for use with handle extension pole.ApplicationsPainting
Roller Refill
Technical informationFilament MaterialPolyester/fabricTrim Length3/8 InchPack Qty30Paint rollers with PVC core for cost-efficient application.ApplicationsPaintingDrive TypesManual application
Roller Refill
Technical informationFilament MaterialPolyester/nylon mixTrim Length1/4 InchPack Qty25For use with semi-gloss and high-gloss paints on smooth surfaces.AdvantagesShed-resistant roller will not contaminate surface finish on smooth surfaces.ApplicationsPaintingDrive TypesManual application
Roller Refill
Technical informationFilament MaterialClothTrim Length7/16 InchPack Qty100Woven fabric rollers for painting in tight spots. Ideal for quick painting jobs on most surfaces.AdvantagesSmall diameter gets into tight spots and corners.Great surface finish.ApplicationsPaintingDrive TypesManual application

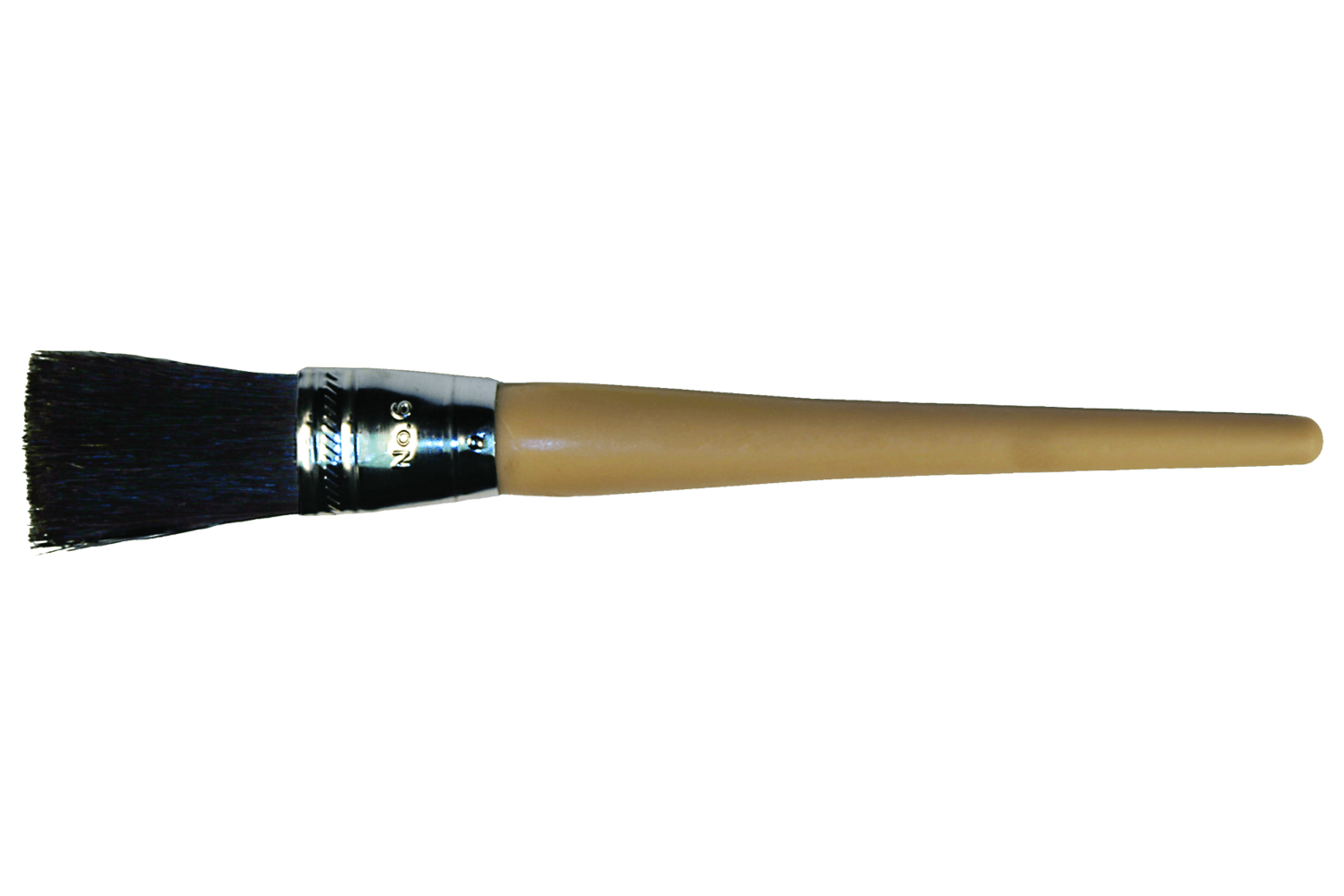

Round Sash Brush
Technical informationBrush Diameter7/8 InchFilament MaterialNatural bristlesTrim Length2 1/8 InchPack Qty12Brush with natural bristles for painting, cleaning, and applying coatings.AdvantagesVersatile brush for cost-efficient use.ApplicationsPaintingDrive TypesManual application
Round Wire Flue Brush Double Spiral
Technical informationBrush Diameter3/4 InchFilament MaterialSteel wire (ST)Wire Diameter0.01 InchPack Qty1Double stem, double spiral brushes with internal threaded end for handle attachment. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.AdvantagesLoop end for easy use.Long service life through use of PFERD special wire.ApplicationsCleaningDrive TypesManual application

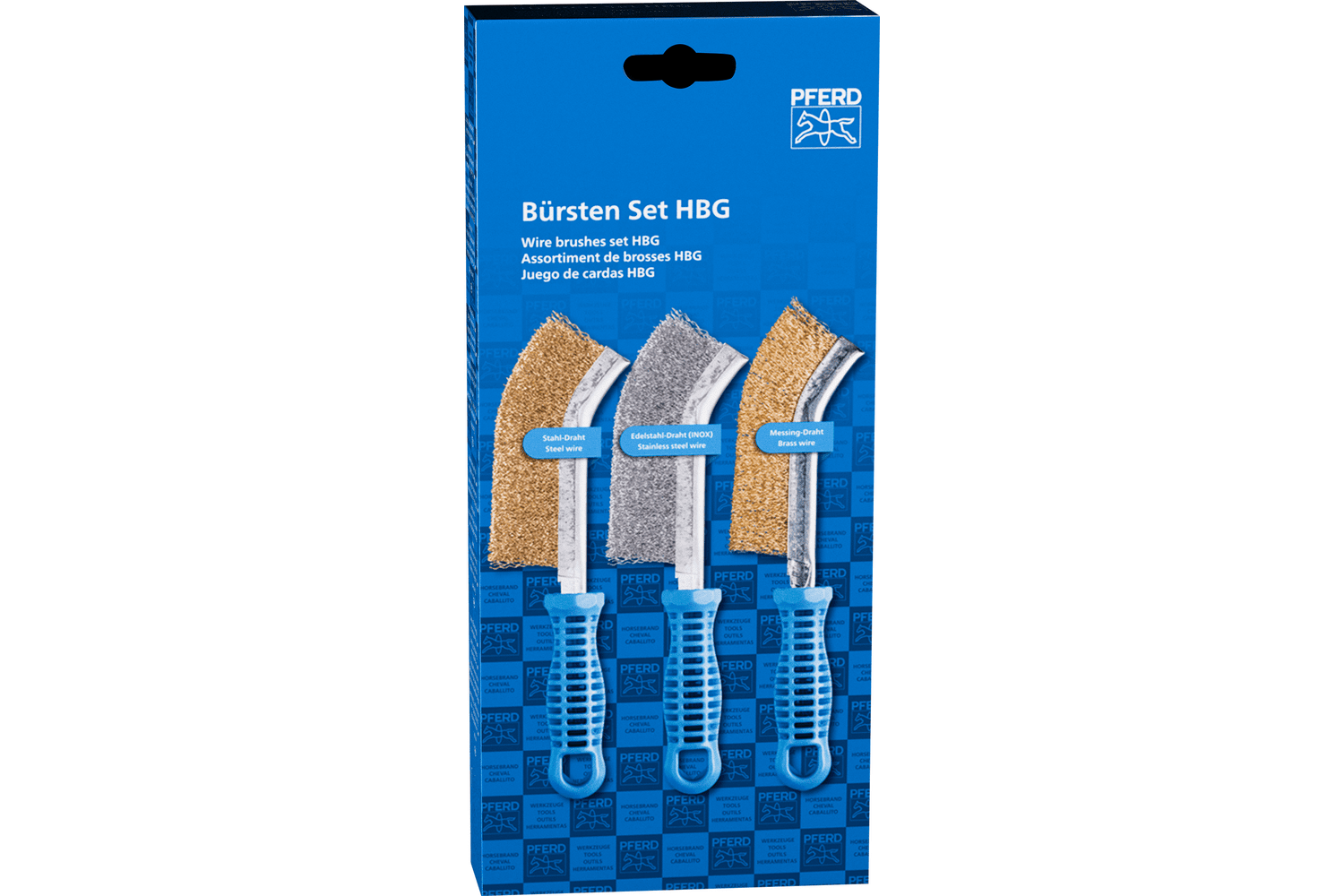

Scratch Brush PSF
Technical informationPack Qty1Excellent for cleaning in hard-to-reach areas, e.g. angles, corners and pipes. Contains one each of the following scratch brushes: filament material steel wire (brass-plated steel wire), stainless steel wire and brass wire.AdvantagesBrass-plated steel wire is less prone to corrosion.ApplicationsCleaningDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningWork on weld seamsMaterials that can be workedSoft woodStainless steel (INOX)SteelSteel, cast steelWoodAluminumBrassCast ironCast steelCopperDrive TypesManual application
Scratch Brush PSF
Technical informationFilament MaterialStainless steel wire (INOX)Wire Diameter0.012 InchTrim Length1 1/4 InchNumber of Rows1Pack Qty10PFERD has a wide range of maintenance brushes. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesVery corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesManual application
Scratch brushes, for files
Technical informationPFERD File Card Fine Wire BrushItem number12601000EDP no.17146Length9.125 InchPackaging unit5 EACHPFERD offers an extensive range of scratch brushes in various shapes and filament materials. The file brush easily cleans chips from a loaded file. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. The brush has a robust wooden handle with wear-resistant steel wire filament.Special featuresEasy to clean.Long service life through use of PFERD special wire.Workpiece materialsSteelApplicationsCleaningCompatible power toolsManual application

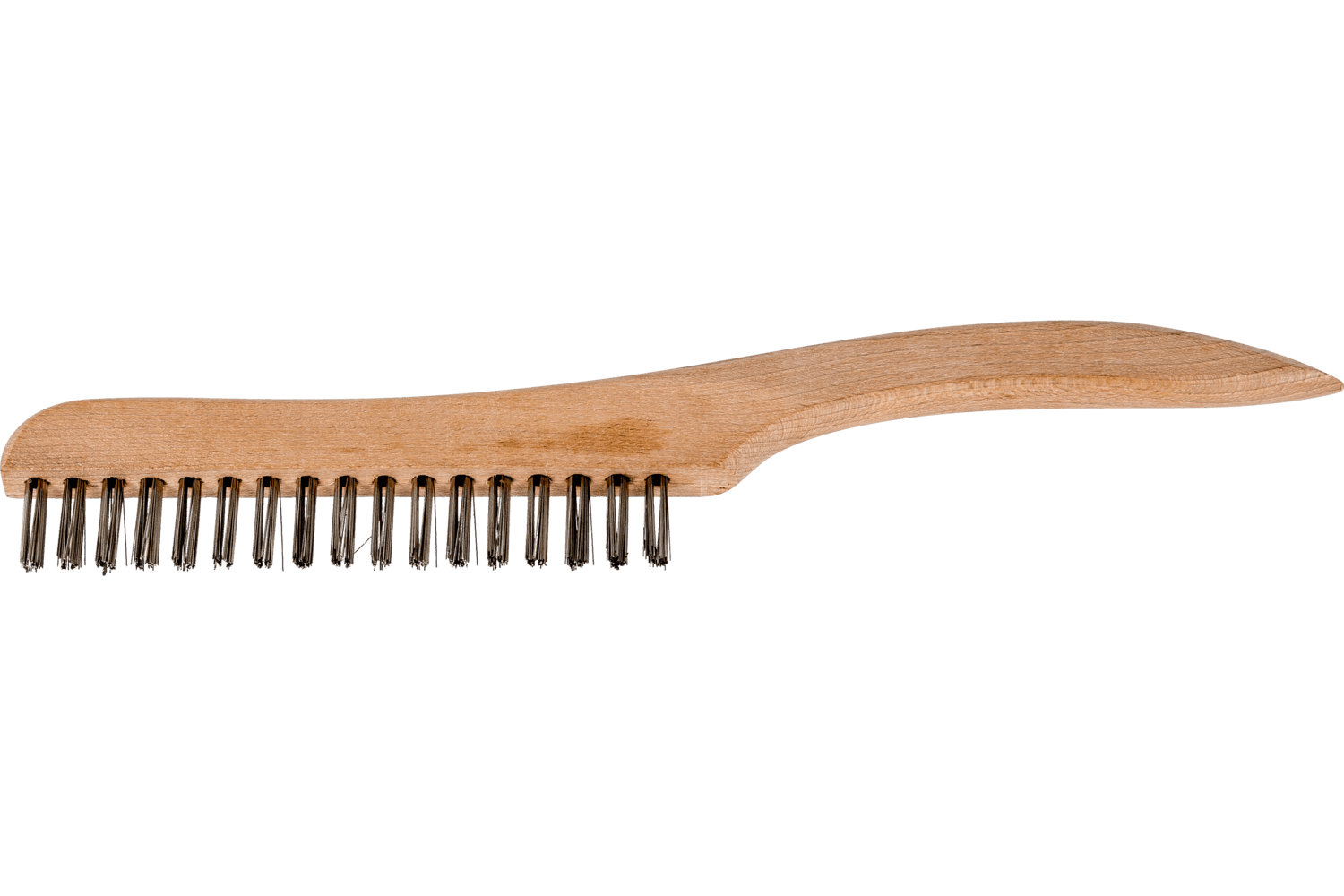

Shoe Handle Platers Brush 1 Row
Technical informationFilament MaterialStainless steel wire (INOX)Wire Diameter0.006 InchTrim Length3/4 InchNumber of Rows1Pack Qty12Fine filament, curved handle brushes designed for gentle brushing action. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion.AdvantagesLight brushing action, removes excess coating in plating applications without altering surface finish.Ideal for cleaning narrow grooves.Ergonomic curved handle.ApplicationsCleaningRemoving heat discolourationRougheningMaterials that can be workedStainless steel (INOX)AluminumBronzeCobalt-based alloysOther non-ferrous metalsDrive TypesManual application
Shoe Handle Scratch Brush 4x16 Rows
Technical informationFilament MaterialBronzeWire Diameter0.01 InchTrim Length1 3/16 InchNumber of Rows4Pack Qty12PFERD offers an extensive range of scratch brushes in various shapes and filament materials. Designed for all light cleaning and derusting work.AdvantagesSecure anchoring of filament material through the use of hardwood.ApplicationsCleaningMaterials that can be workedOther non-ferrous metalsDrive TypesManual application
Shoe Handle Scratch Brush 4x16 Rows
Technical informationFilament MaterialSteel wire (ST)Wire Diameter0.012 InchTrim Length1 3/16 InchNumber of Rows4Pack Qty12PFERD offers an extensive range of scratch brushes in various shapes and filament materials. Designed for all light cleaning and derusting work. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.AdvantagesSecure anchoring of filament material through the use of hardwood.Ergonomic curved handle.Long service life through use of PFERD special wire.ApplicationsCleaningDerustingRemoving oxide layersPaint strippingRougheningDrive TypesManual application
Shoe Handle Scratch Brush 4x16 Rows
Technical informationFilament MaterialStainless steel wire (INOX)Wire Diameter0.012 InchTrim Length1 3/16 InchNumber of Rows4Pack Qty12PFERD offers an extensive range of scratch brushes in various shapes and filament materials. Designed for all light cleaning and derusting work. Specially developed for semi-professional use for DIY'ers and craftsmen. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion.AdvantagesErgonomic curved handle.ApplicationsCleaningRemoving heat discolourationRougheningMaterials that can be workedStainless steel (INOX)AluminumBronzeCobalt-based alloysOther non-ferrous metalsDrive TypesManual application
Shoe Handle Scratch Brush 4x16 Rows
Technical informationFilament MaterialStainless steel wire (INOX)Wire Diameter0.012 InchTrim Length1 3/16 InchNumber of Rows4Pack Qty12PFERD offers an extensive range of scratch brushes in various shapes and filament materials. Designed for all light cleaning and derusting work. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion.AdvantagesSynthetic block will not splinter, crack, or rot.Ergonomic curved handle.ApplicationsCleaningRemoving heat discolourationRougheningMaterials that can be workedStainless steel (INOX)AluminumBronzeCobalt-based alloysOther non-ferrous metalsDrive TypesManual application
Shoe Handle Scratch Brush
Technical informationFilament MaterialStainless steel wire (INOX)Wire Diameter0.012 InchTrim Length1 3/16 InchNumber of Rows2Pack Qty12PFERD offers an extensive range of scratch brushes in various shapes and filament materials. Designed for all light cleaning and derusting work. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion.AdvantagesSecure anchoring of filament material through the use of hardwood.Ergonomic curved handle.ApplicationsCleaningDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedStainless steel (INOX)AluminumBronzeCobalt-based alloysOther non-ferrous metalsDrive TypesManual application

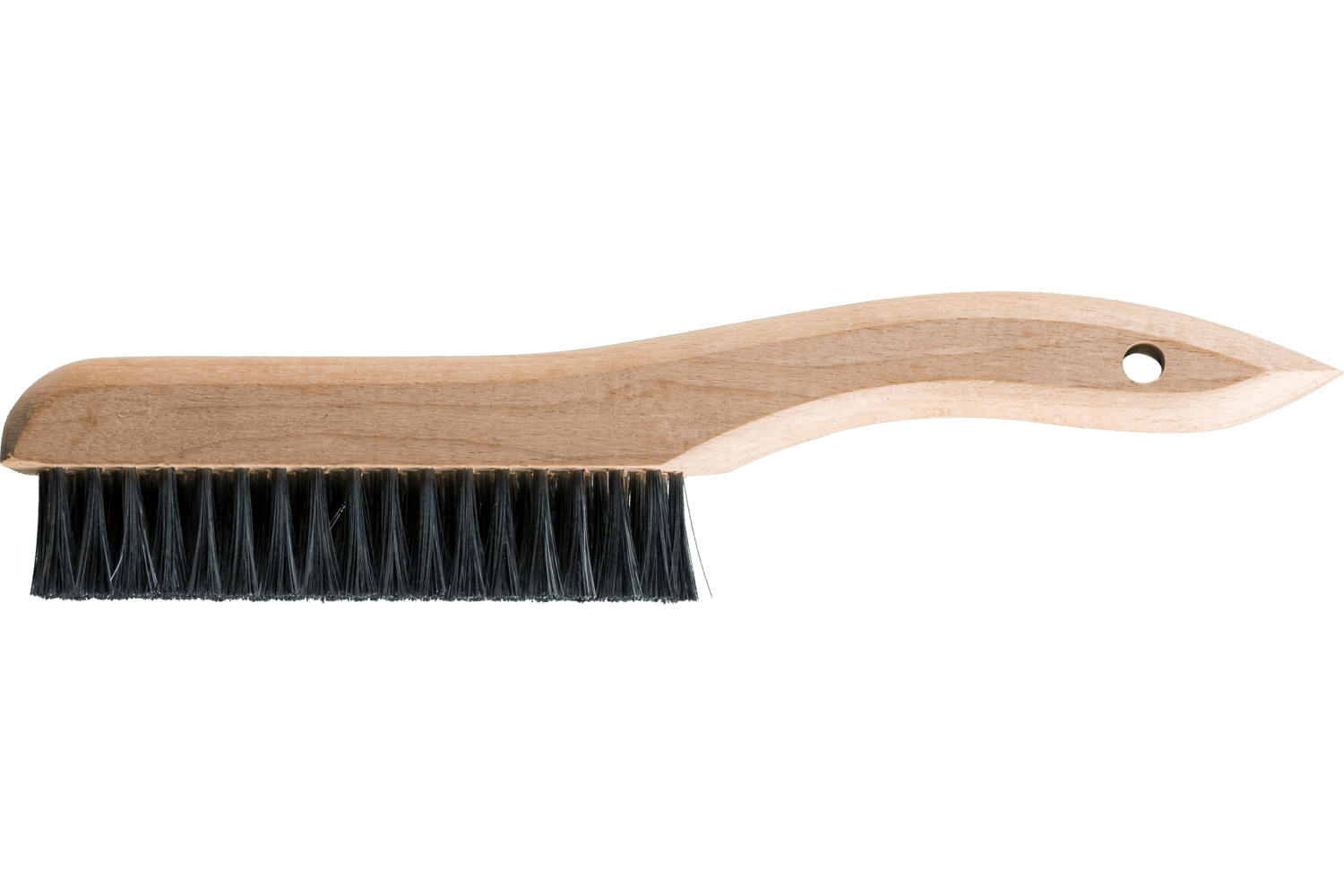

Shoe Handle
Technical informationFilament MaterialSteel wire (ST)Wire Diameter0.005 InchTrim Length1 InchNumber of Rows3Pack Qty12Fine filament, curved handle brushes designed for gentle brushing action. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.AdvantagesLight brushing action, removes excess coating in plating applications without altering surface finish.Ergonomic curved handle.Long service life through use of PFERD special wire.ApplicationsCleaningRougheningDrive TypesManual application
