Milled tooth files

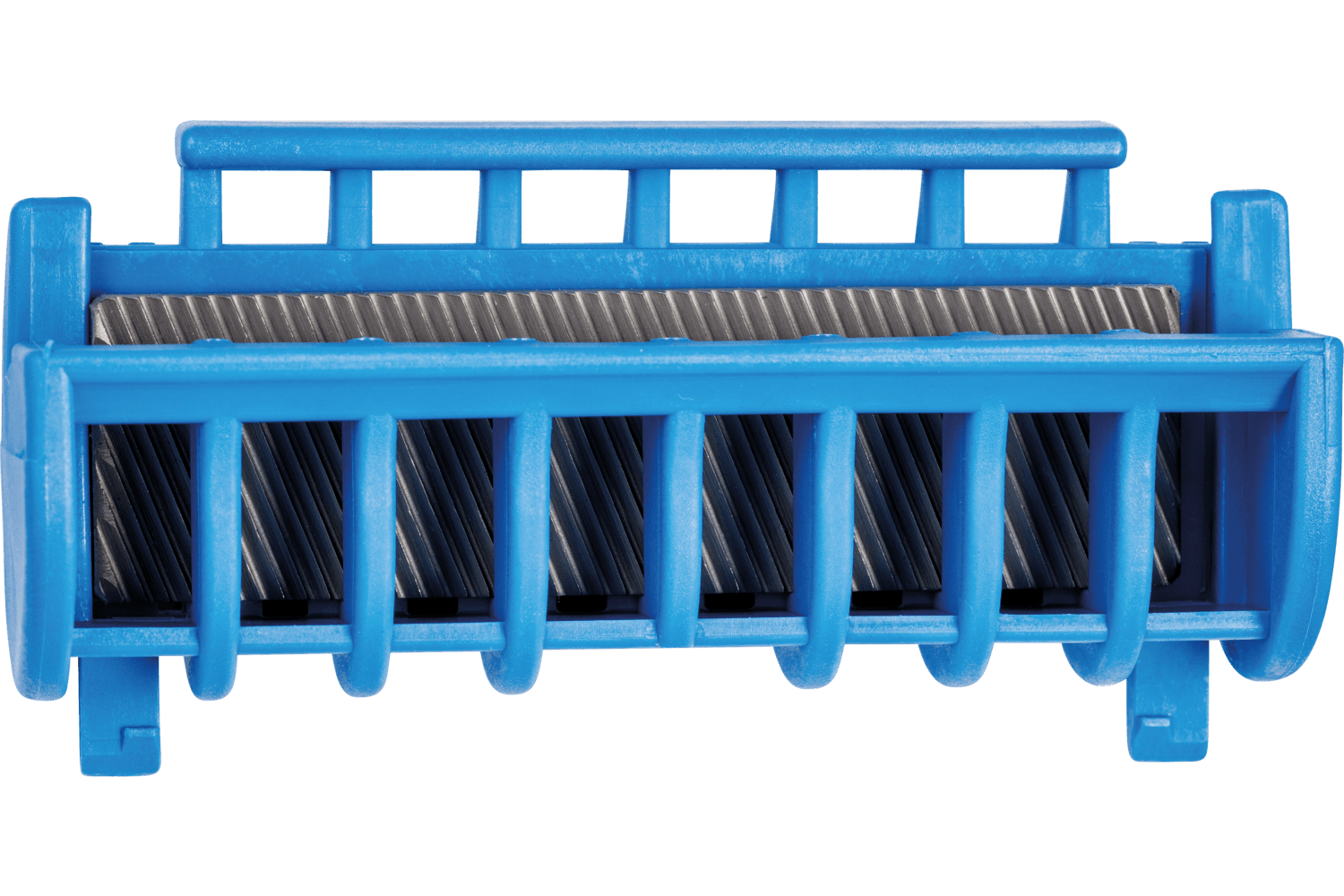

Edge Sharpener
Technical informationPFERD Universal Edge Sharpener 4-1/2"Item number13217110Cut2Cut files typeSecondEDP no.13025Length4.5 InchPFERD TOOLS typeUKFPackaging unit1 EACHRectangular file in a special plastic holder, straight cut on two sides. Ideal for easy and fast repair and for deburring on the bars of chain saws. Regular maintenance extends the service life of the bar and saw chain. Increases cutting precision and safety.Special featuresThe special holder enables easy tool control and exact, right-angled positioning of the chamfer file on the workpiece.Also excellent for sharpening ski edges.Ordering notesThe Universal chamfer file includes a file blade.Workpiece materialsSteels up to 370 HV (< 38 HRC)AluminumGrey/nodular cast iron (GG/GJL, GGG/GJS)ApplicationsDeburringWorking on edgesCompatible power toolsManual application

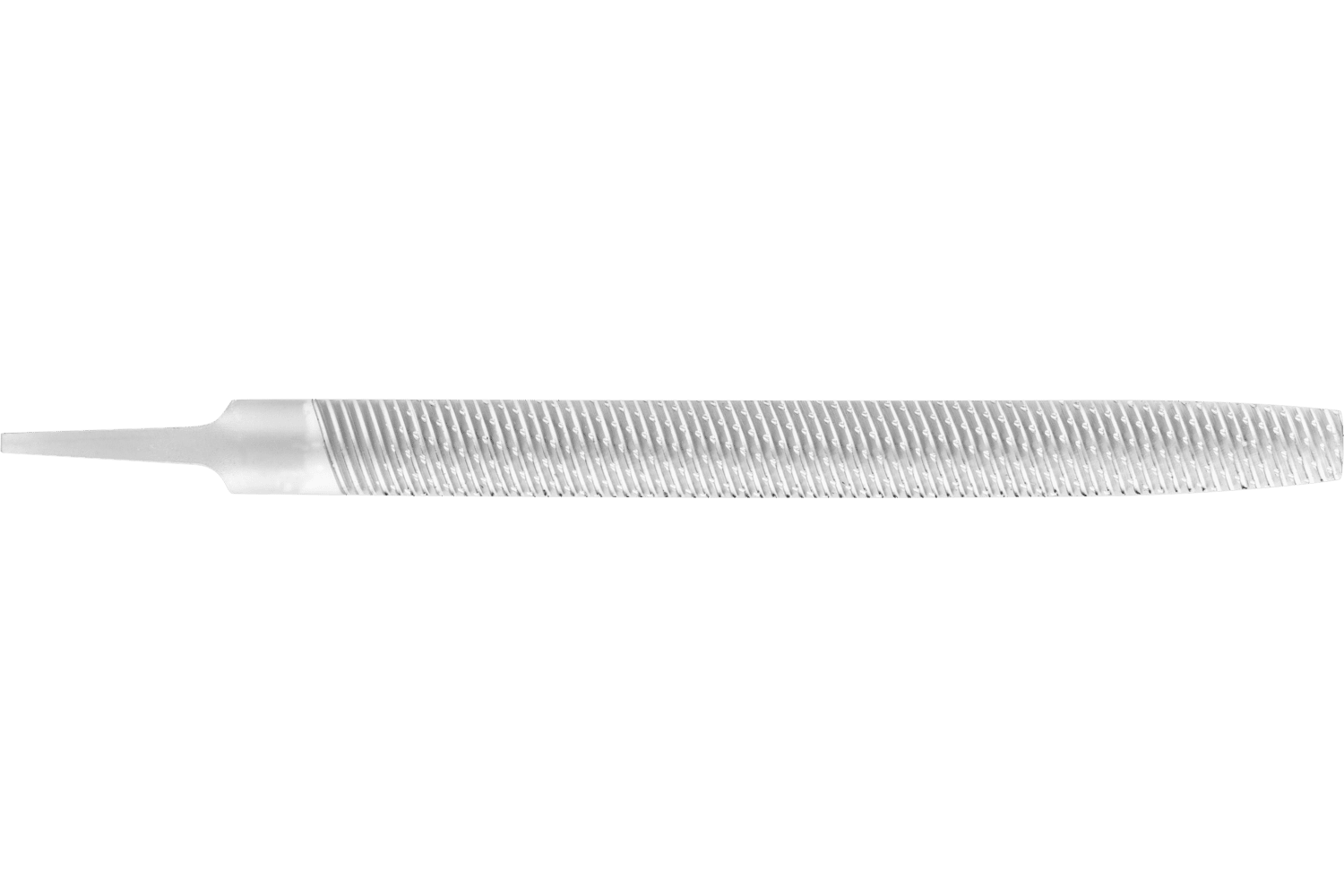

Milled tooth files tanged half-round
Technical informationPFERD Milled Tooth Half Round File 10" Coarse CutItem number13103251Cut1Cut files typeBastardEDP no.13009Height9/32 InchLength10 InchPFERD TOOLS type295Width7/8 InchPackaging unit10 EACHMilled tooth files from PFERD are particularly designed for coarse stock removal. The highly abrasive milled tooth geometry with large flutes prevents loading. Half-round file, hollow and tapered. Tanged version. With chip breaker on the half-round side, angled cut on one side. Suitable for work on radii and for filing of half-round shapes. Bastard cut for coarse stock removal on soft metals. Milled tooth shape with large flutes prevents teeth from loading. These milled file blades come in industrial packaging.Special featuresVery aggressive.Large flutes prevent loading.Recommendations for useFor coarse stock removal, use cut 1 with 8 teeth per inch.Workpiece materialsSteel, cast steelSteels up to 370 HV (< 38 HRC)AluminumBrassCast steelCopperGrey/nodular cast iron (GG/GJL, GGG/GJS)Soft non-ferrous metalApplicationsChamferingDeburringLevelingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

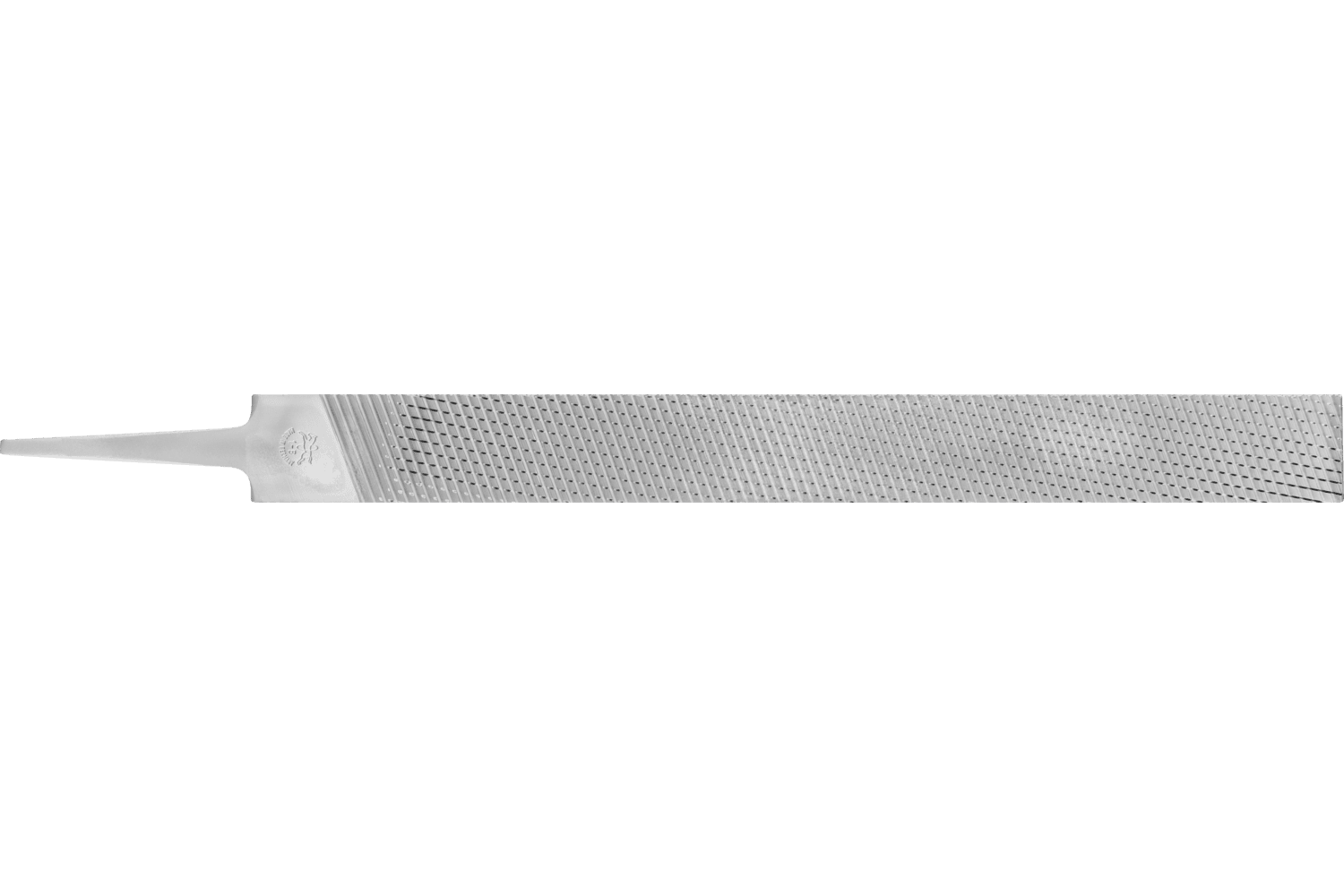

Milled tooth files tanged hand
Technical informationPFERD Milled Tooth Hand File 12" Coarse CutItem number13101301Cut1Cut files typeBastardEDP no.13003Height5/16 InchLength12 InchPFERD TOOLS type290Width1.21875 InchPackaging unit5 EACHMilled tooth files from PFERD are particularly designed for coarse stock removal. The highly abrasive milled tooth geometry with large flutes prevents loading. Rectangular file with cuts on three sides. Tanged version. Angled cut with chip breaker on the flat sides, straight cut on the high edge. Designed for work on rectangular surfaces. Bastard cut for coarse stock removal on soft metals. Milled tooth shape with large flutes prevents teeth from loading. These milled file blades come in industrial packaging.Special featuresVery aggressive.Large flutes prevent loading.Recommendations for useFor coarse stock removal, use cut 1 with 8 teeth per inch.Workpiece materialsSteel, cast steelSteels up to 370 HV (< 38 HRC)AluminumBrassCast steelCopperGrey/nodular cast iron (GG/GJL, GGG/GJS)Soft non-ferrous metalApplicationsChamferingDeburringLevelingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application
