Tube brushes
Condenser Pipe Brush Double Spiral
Technical informationBrush Diameter1/2 InchFilament MaterialSteel wire (ST)Wire Diameter0.01 InchPack Qty1Double stem, double spiral brushes with internal threaded end for handle attachment. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.AdvantagesLoop end for easy use.Long service life through use of PFERD special wire.ApplicationsCleaningDrive TypesManual application

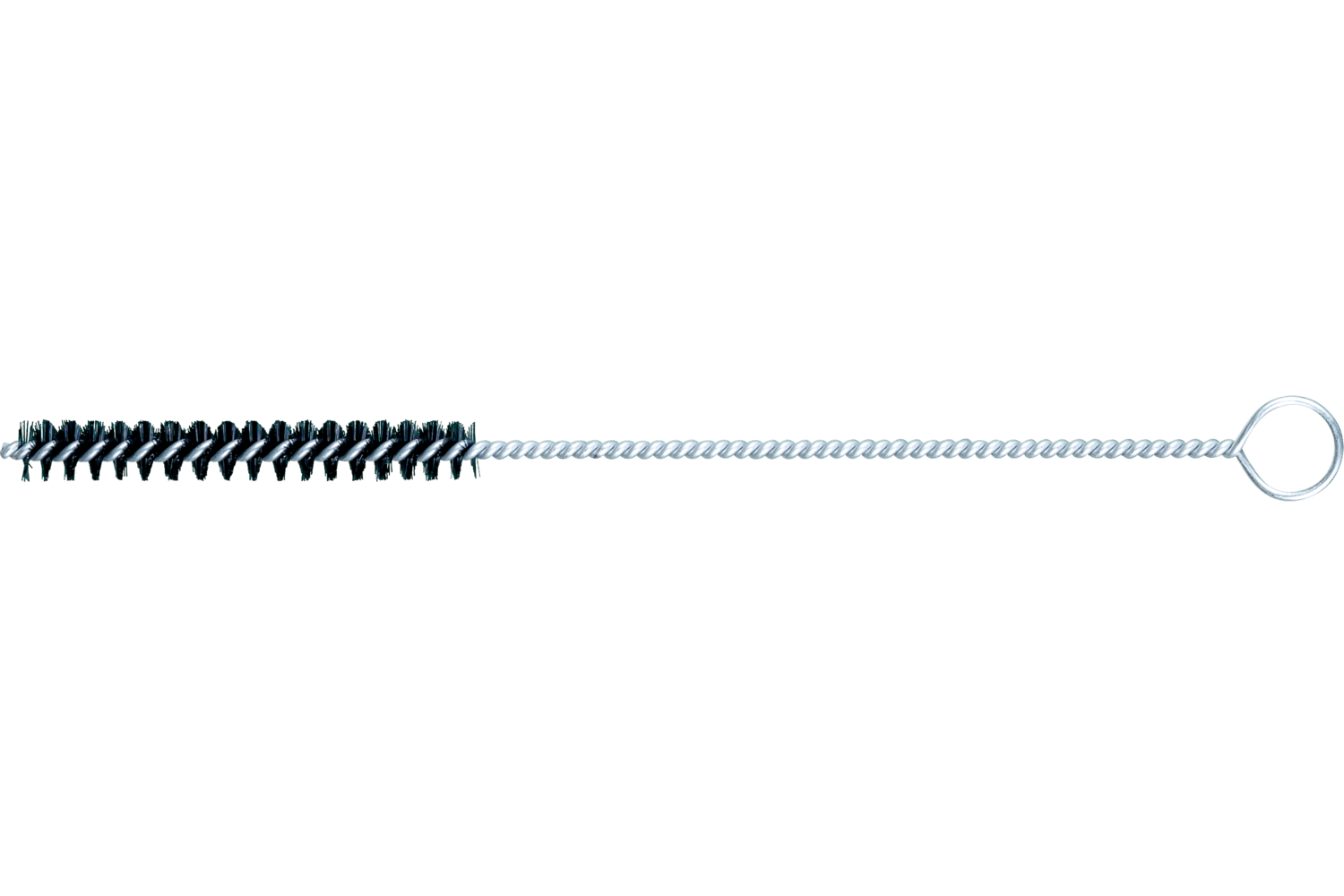

Hand Tube Brush
Technical informationBrush Diameter1/4 InchFilament MaterialNylonShapestraightPack Qty12Designed for manual use. Nylon filament brushes are designed for working on materials that would otherwise be scratched or damaged, e.g. soft plastics. Plastic filaments are temperature-resistant up to 410°F.AdvantagesMaximum precision and efficiency when working on delicate workpieces.Optimal access to hard-to-reach areas such as the inner surfaces of pipes and drilled holes.ApplicationsCleaningDrive TypesManual application

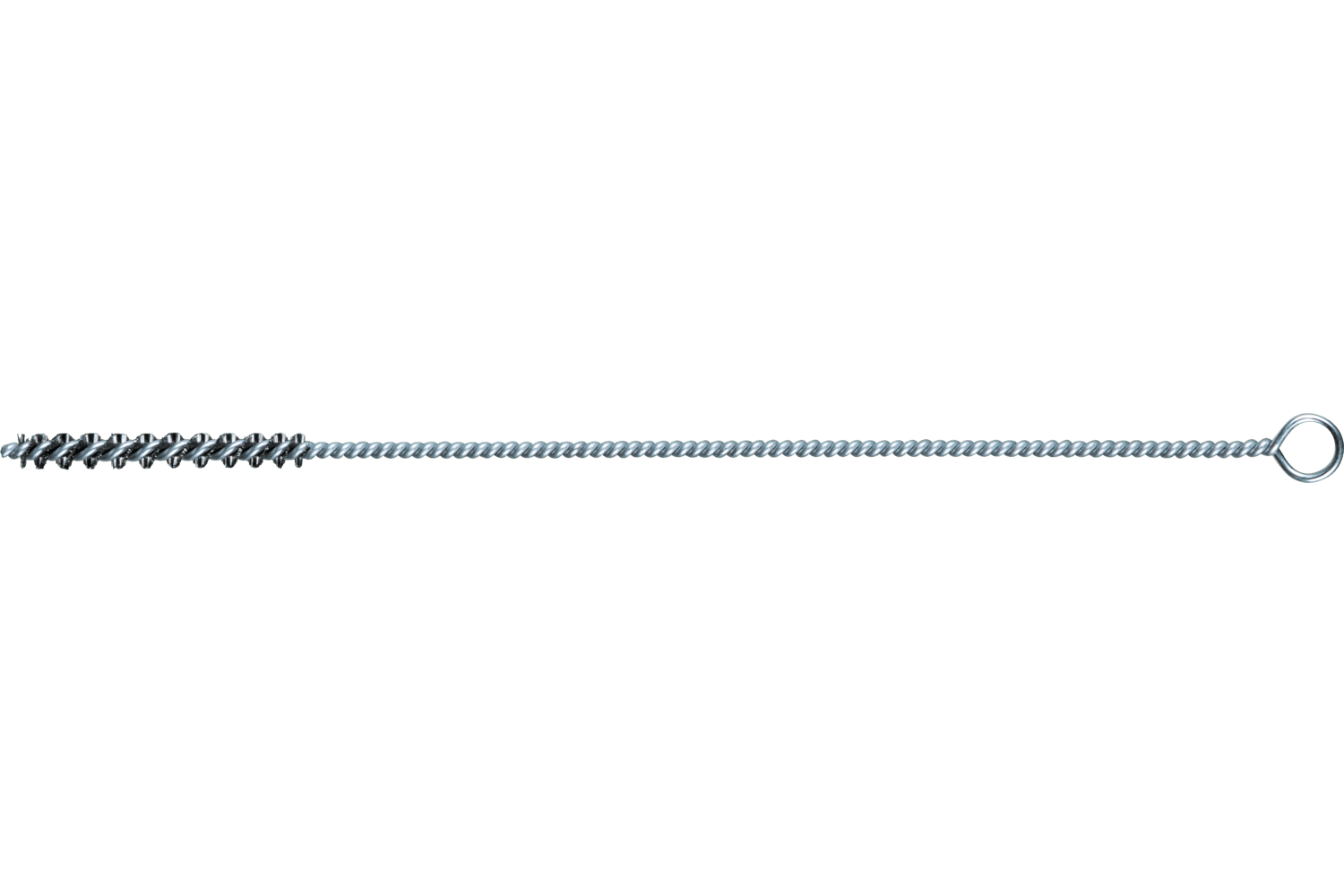

Hand Tube Brush
Technical informationBrush Diameter3/16 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.006 InchShank Diameter0.09 InchMax. RPM2500 RPMPack Qty12Designed for manual use. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion.AdvantagesMaximum precision and efficiency when working on delicate workpieces.Optimal access to hard-to-reach areas such as the inner surfaces of pipes and drilled holes.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersRougheningMaterials that can be workedStainless steel (INOX)AluminumBronzeCobalt-based alloysOther non-ferrous metalsDrive TypesManual applicationSafetyTo ensure secure operation, make sure that the brush head is inserted into the workpiece before use.

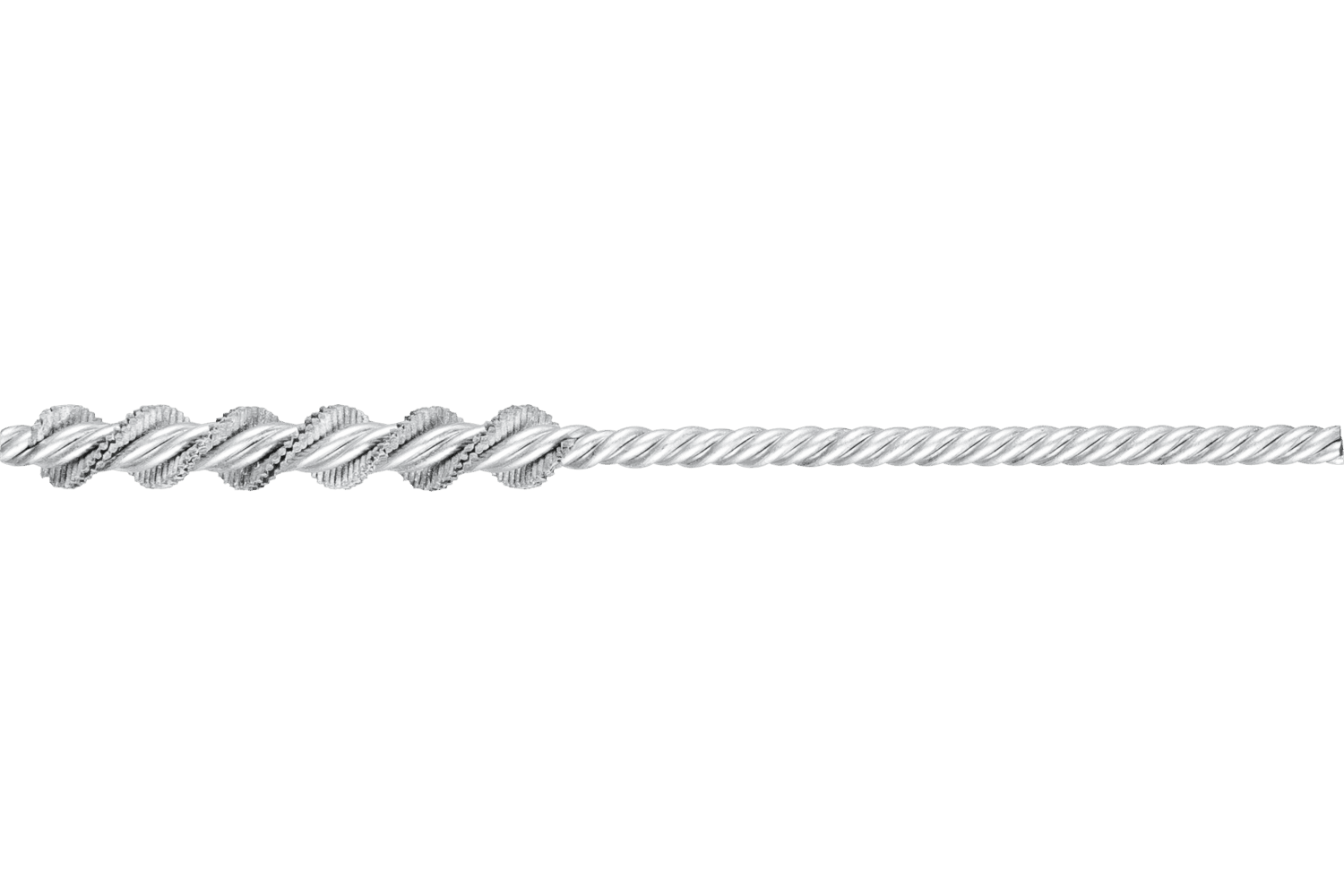

M-BRAD® Power Tube Brush
Technical informationBrush Diameter5/16 InchFilament MaterialSilicon carbide (SiC)Wire Diameter0.022 InchGrit Size320Shank Diameter5/32 InchMax. RPM1500 RPMPack Qty10High-performance tube brush for deburring and cleaning threads, holes and cross holes. Silicon carbide (SiC) filament brushes are designed for deburring work and surface improvement. Plastic filaments are temperature-resistant up to 410°F.AdvantagesHighly flexible, enabling optimal adaptation to the workpiece contour.The dimensional accuracy of the workpieces remains unchanged.Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.ApplicationsCleaningDeburringRougheningStructuring (matt finishing, brush matting and satin finishing)Materials that can be workedStainless steel (INOX)Steel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodAluminumBronzeCast ironCast steelDrive TypesFlexible shaft driveManual applicationPower drillSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm. When using tube brushes inside pipes, bores, grooves, etc., consult PFERD about deviations from the specified maximum permitted rotational speed. For safe use, guide the brush into the workpiece before beginning work.

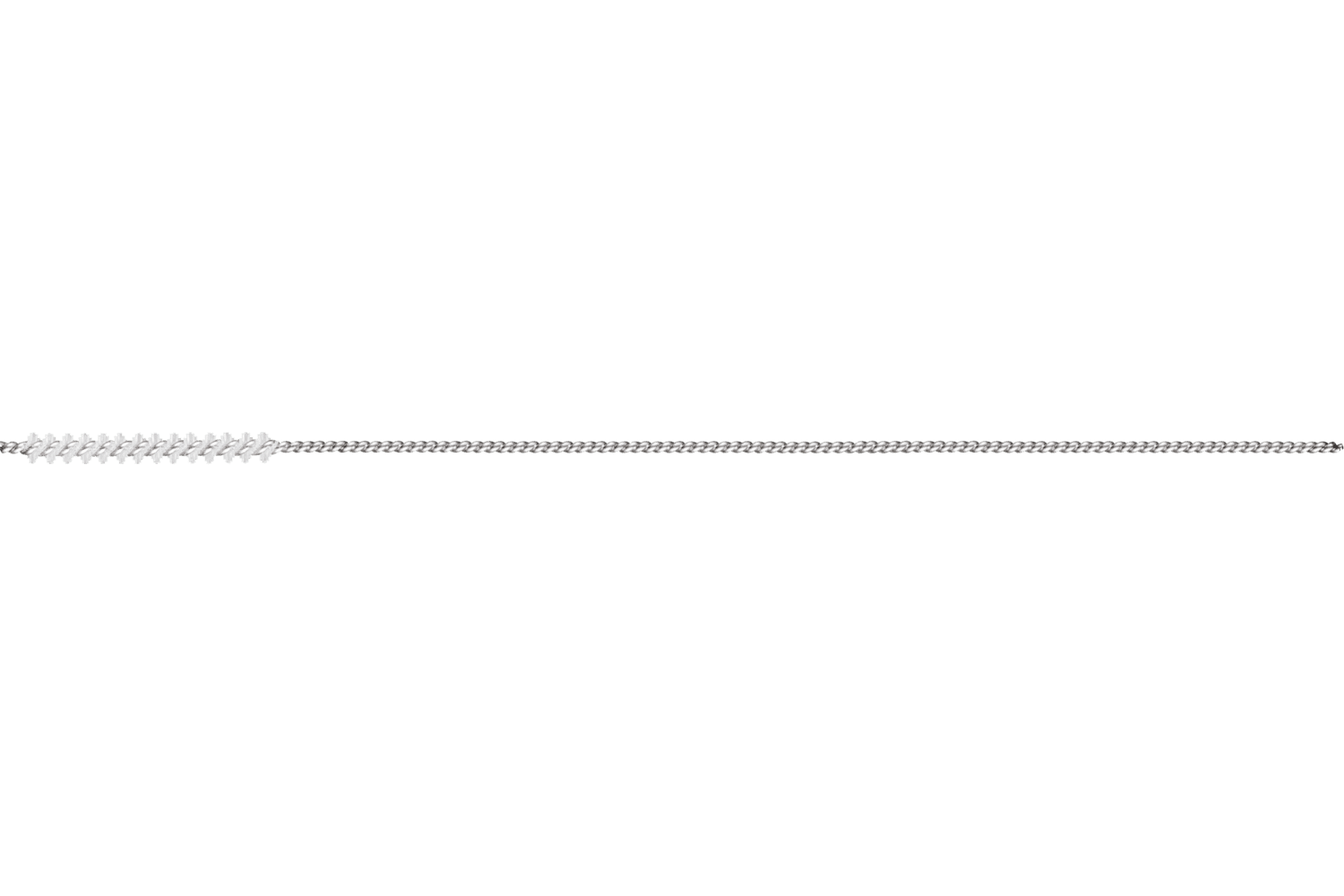

Microabrasive Silicate Tube Brush
Technical informationBrush Diameter0.03 InchFilament MaterialSilicon carbide (SiC)Wire Diameter0.006 InchGrit Size2000Shank Diameter0.015 InchMax. RPM1000 RPMPack Qty10For light deburring, cleaning of holes and cross holes and for work on surfaces. Silicon carbide (SiC) filament brushes are designed for deburring work and surface improvement. Plastic filaments are temperature-resistant up to 410°F.AdvantagesMaximum precision and efficiency when working on delicate workpieces.Highly flexible, enabling optimal adaptation to the workpiece contour.The dimensional accuracy of the workpieces remains unchanged.In tube brushes with a short eyelet, the filament reaches up to the tip of the brush.The bent end of the wire does not have any sharp edges, which prevents delicate surfaces from getting scratched.Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.ApplicationsCleaningDeburringRougheningStructuring (matt finishing, brush matting and satin finishing)Materials that can be workedStainless steel (INOX)Steel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodAluminumBronzeCast ironCast steelDrive TypesFlexible shaft driveManual applicationPower drillSafetyFor safe use, guide the brush into the workpiece before beginning work. When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

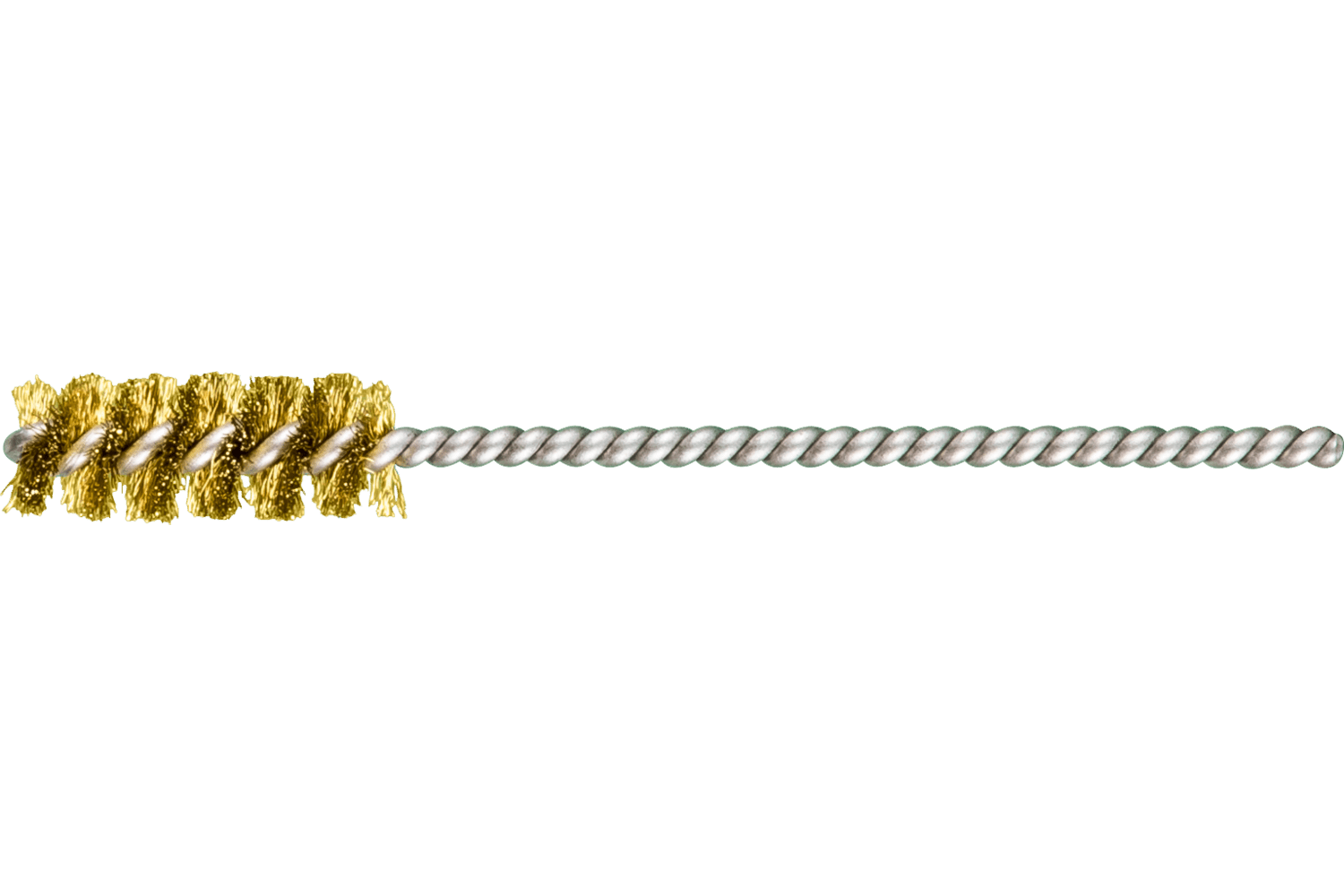

Power Tube Brush
Technical informationBrush Diameter3/8 InchFilament MaterialBrass wire (MES)Wire Diameter0.005 InchShank Diameter5/32 InchMax. RPM2500 RPMPack Qty36For light cleaning and deburring work on threaded holes or recesses, e.g. keyways. Brass wire filament brushes are designed for applications like surface finishing on copper or brass workpieces. Compared to steel wire, brass wire is softer and more flexible. For all brushes with brass wire, PFERD uses wire quality CuZn37. Brass wire is temperature-resistant up to 350°F.AdvantagesHighly flexible, enabling optimal adaptation to the workpiece contour.Longer service life due to the design of the stem.In tube brushes with a short eyelet, the filament reaches up to the tip of the brush.The bent end of the wire does not have any sharp edges, which prevents delicate surfaces from getting scratched.Low-sparking.Creates fine surfaces.ApplicationsCleaningDeburringRemoving oxide layersMaterials that can be workedZincBrassCopperOther non-ferrous metalsDrive TypesFlexible shaft driveManual applicationPower drillSafetyFor safe use, guide the brush into the workpiece before beginning work. When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

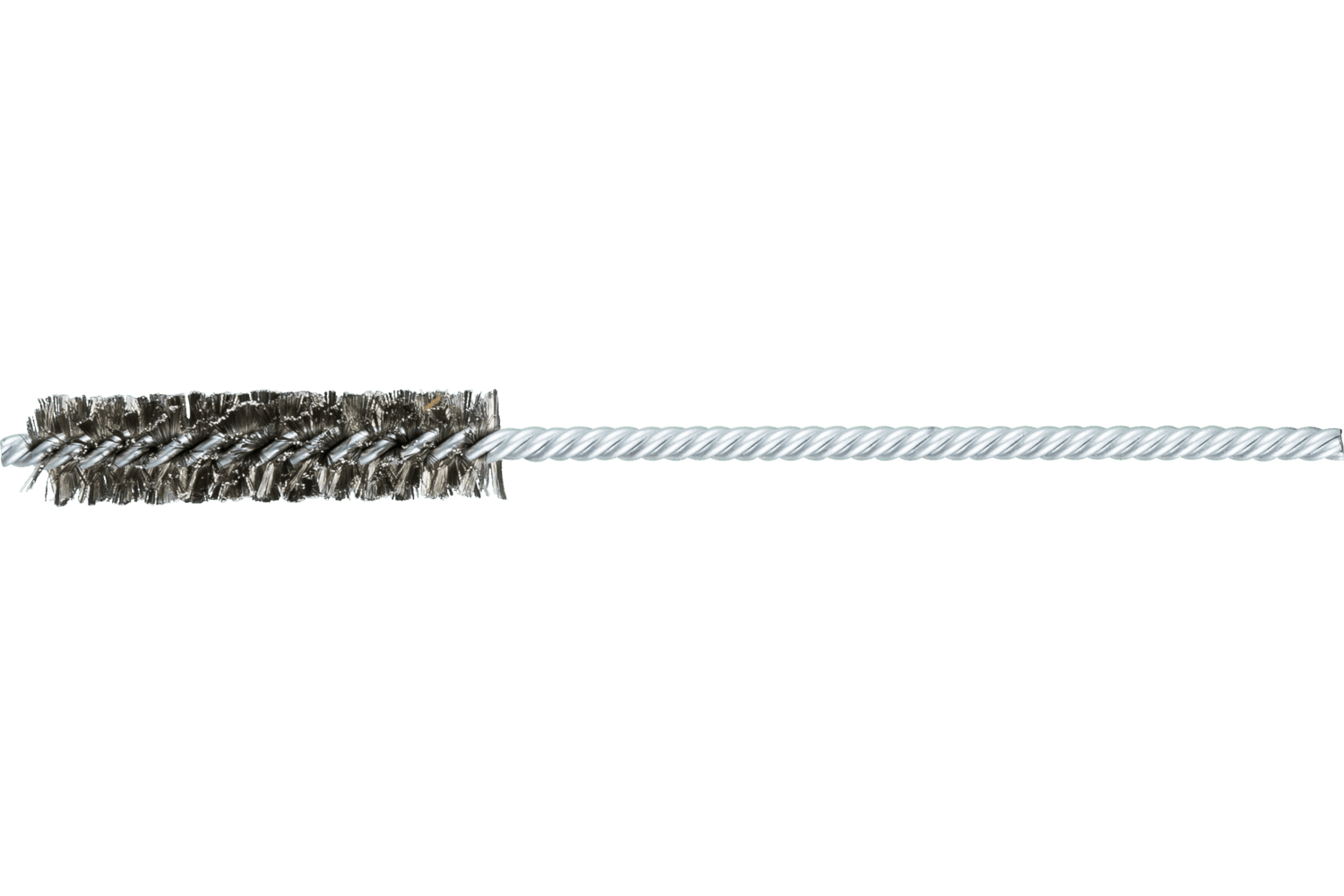

Power Tube Brush
Technical informationBrush Diameter1/2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.004 InchShank Diameter5/32 InchMax. RPM2500 RPMPack Qty10The high-performance tube brush is highly designed for deburring cross holes and for cleaning threads. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesLong tool life due to high filament density and double spirals.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft driveManual applicationPower drillSafetyFor safe use, guide the brush into the workpiece before beginning work. When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

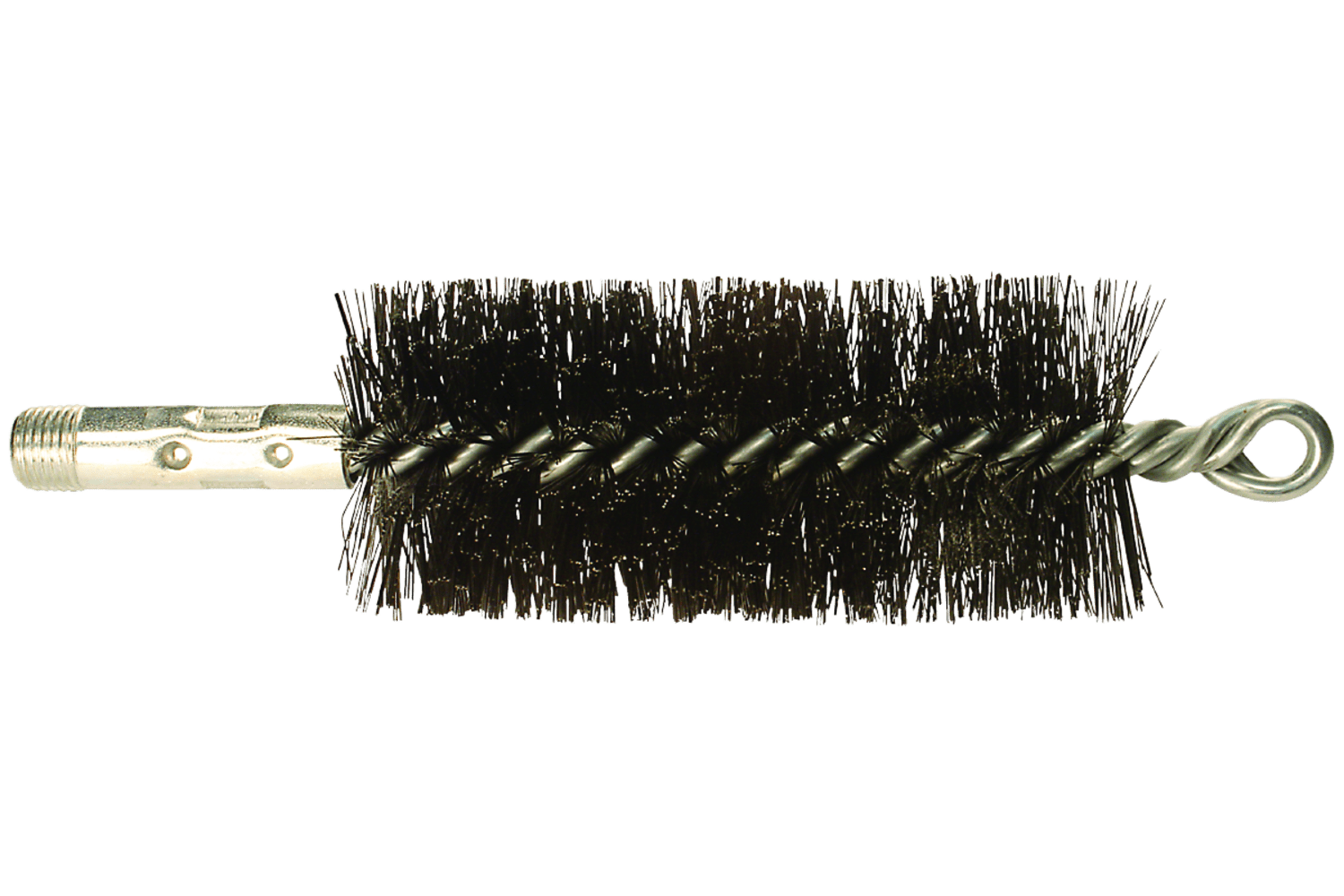

Round Wire Flue Brush Double Spiral
Technical informationBrush Diameter3/4 InchFilament MaterialSteel wire (ST)Wire Diameter0.01 InchPack Qty1Double stem, double spiral brushes with internal threaded end for handle attachment. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.AdvantagesLoop end for easy use.Long service life through use of PFERD special wire.ApplicationsCleaningDrive TypesManual application

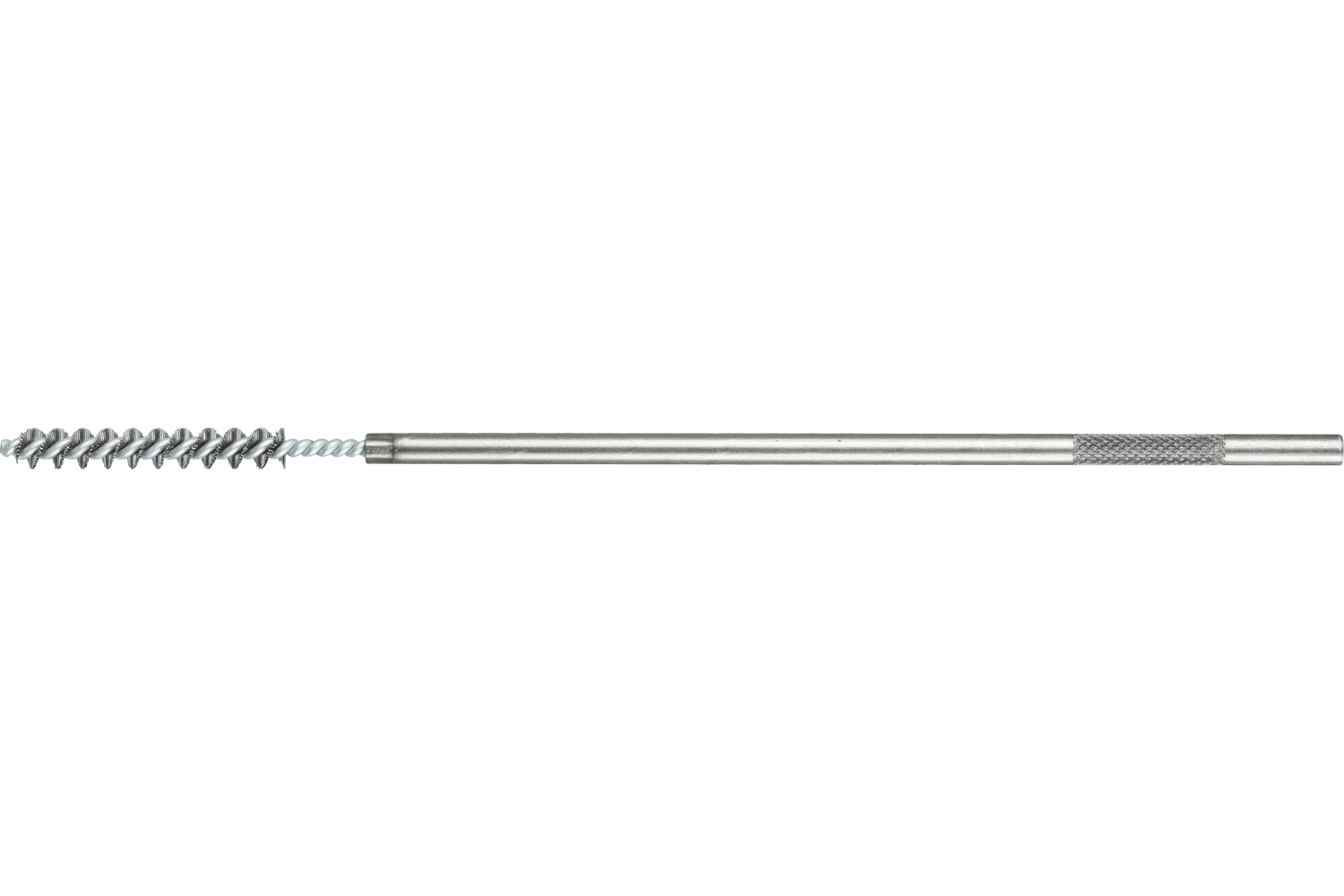

Valve Guide Brush
Technical informationBrush Diameter5/16 InchFilament MaterialSteel wire (ST)Wire Diameter0.006 InchShank Diameter1/4 InchMax. RPM2500 RPMPack Qty10Brush for brushing valve guides. High brush stiffness for aggressive cleaning. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesThe metal sleeve construction enables stable operation without bending.Includes knurled handle for manual use.Long service life through use of PFERD special wire.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving oxide layersPaint strippingRougheningMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodCast ironCast steelThermosetting plasticsDrive TypesFlexible shaft driveManual applicationPower drillSafetyFor safe use, guide the brush into the workpiece before beginning work. When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
