Industrial power brushes
SINGLETWIST® Knot End Brush
Technical informationBrush Diameter1/4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.006 InchShank Diameter1/4 InchTrim Length1 1/8 InchNumber of Knots1Max. RPM20000 RPMPack Qty10Innovative and flexible single-knot brush for special applications. End brush with plastic-covered brush body. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe brush is degreased and does not leave any oil residue on the workpiece.Optimal access to hard-to-reach areas such as inside corners, as the knot is less likely to unravel.The plastic covering prevents the risk of corrosion.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
SINGLETWIST® Knot
Technical informationBrush Diameter1/4 InchFilament MaterialSteel wire (ST)Wire Diameter0.006 InchShank Diameter1/4 InchTrim Length1 1/8 InchNumber of Knots1Max. RPM20000 RPMPack Qty10Innovative and flexible single-knot brush for special applications. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesOptimal access to hard-to-reach areas such as inside corners, as the knot is less likely to unravel.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Small Cleaning Brush 2x9 Rows
Technical informationFilament MaterialStainless steel wire (INOX)Wire Diameter0.006 InchTrim Length1/2 InchNumber of Rows2Pack Qty36PFERD offers an extensive range of scratch brushes in various shapes and filament materials. Ideal for cleaning spark plugs, small workpieces and tools. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion.AdvantagesIdeal for cleaning small weld seams and fillet welds due to narrow filament width.ApplicationsCleaningDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningWork on weld seamsMaterials that can be workedStainless steel (INOX)AluminumBronzeCobalt-based alloysOther non-ferrous metalsDrive TypesManual application
Small Cleaning Brush 2x9 Rows
Technical informationFilament MaterialBrass wire (MES)Wire Diameter0.008 InchTrim Length1/2 InchNumber of Rows2Pack Qty36PFERD offers an extensive range of scratch brushes in various shapes and filament materials. Ideal for cleaning spark plugs, small workpieces and tools. Brass wire filament brushes are designed for applications like surface finishing on copper or brass workpieces. Compared to steel wire, brass wire is softer and more flexible. For all brushes with brass wire, PFERD uses wire quality CuZn37. Brass wire is temperature-resistant up to 350°F.AdvantagesIdeal for cleaning small weld seams and fillet welds due to narrow filament width.ApplicationsCleaningRemoving oxide layersMaterials that can be workedBrassCopperOther non-ferrous metalsDrive TypesManual application

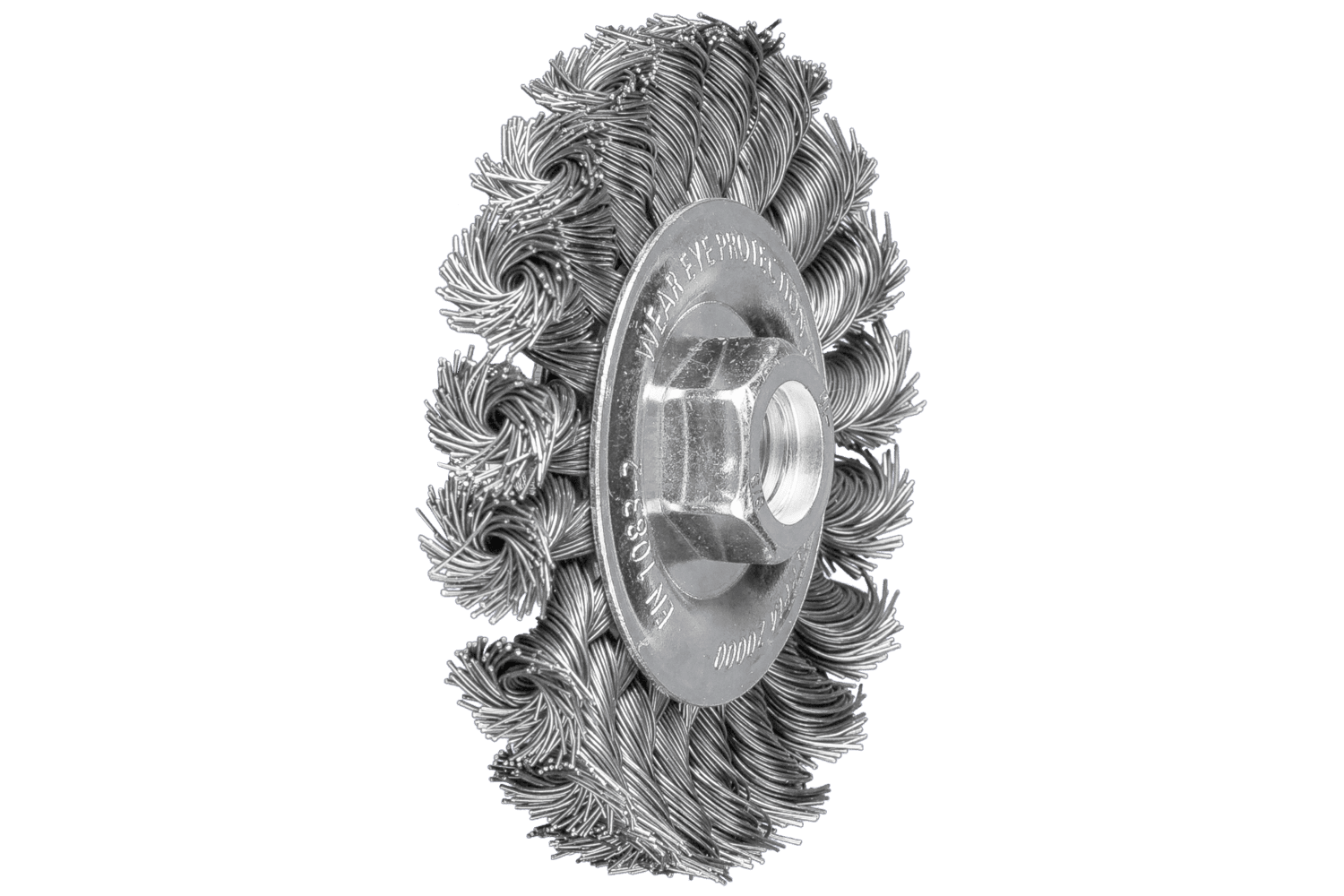

Standard Twist Knot Wire Wheel Brush PSF
Technical informationBrush Diameter4 InchFilament MaterialSteel wire (ST)Wire Diameter0.02 InchThread / Arbor5/8-11Trim Length3/4 InchMax. RPM20000 RPMPack Qty5Aggressive brush. Designed for heavy-duty brushing in metalwork such as descaling, derusting, deburring, cleaning of weld seams, removal of adhesive residues and spatter. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesPackaged for retail.Aggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder
Standard Twist Knot Wire Wheel Brush
Technical informationBrush Diameter3 InchFace Width7/16 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.012 InchArbor Hole3/8 InchTrim Length3/4 InchNumber of Knots18Max. RPM25000 RPMPack Qty10The brush knots are knotted to 75% of the length. The brush is designed for brushing large areas and for heavy-duty brushwork, such as deburring, cleaning, derusting and descaling, as well as removing spatter. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesOptimal ratio of aggressiveness and flexibility.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinder

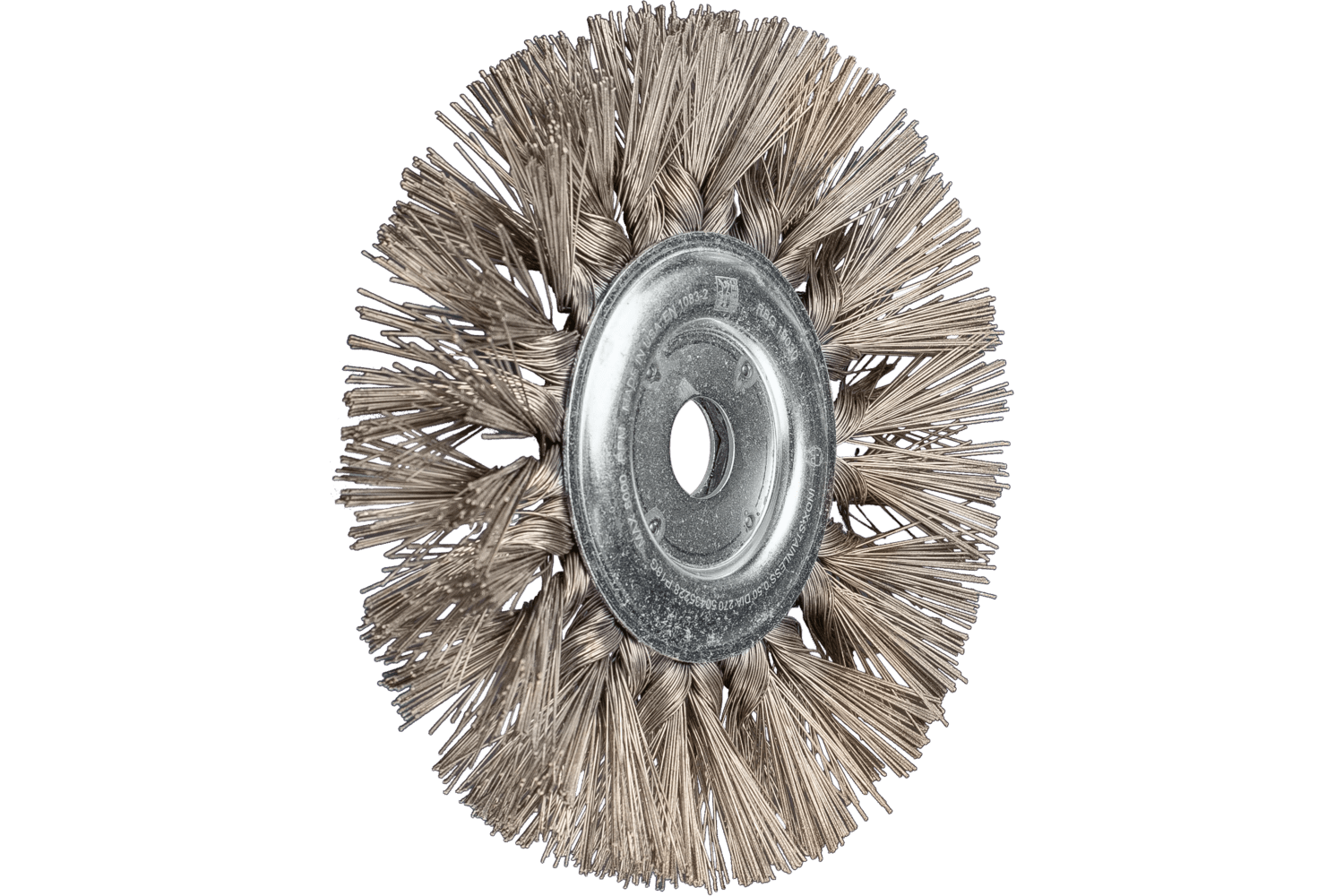

Standard Twist Knot Wire Wheel Brush
Technical informationBrush Diameter7 1/2 InchFilament MaterialStainless steel wire (INOX) diamond (DIA)Wire Diameter0.02 InchGrit Size270Arbor Hole1 1/4 InchTrim Length2 InchNumber of Knots24Max. RPM8000 RPMPack Qty1The brush knots are knotted to 50% of the length. The brush achieves a better surface quality on uneven surfaces when compared to knotted brushes. INOX DIA filament brushes are designed for particularly demanding applications that require an aggressive brush. They are primarily used on extremely hard materials. Stainless steel wire (INOX) diamond (DIA) is temperature-resistant up to 850 °F.AdvantagesOptimal ratio of aggressiveness and flexibility.ApplicationsCleaningDeburringDescalingRemoving oxide layersMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysTungsten carbideWear-resistant coatings (powder metal alloys and hardfacing alloys)AluminumBronzeCobalt-based alloysHard non-ferrous metalDrive TypesStationary machines
Standard Twist Knot Wire Wheel Brush
Technical informationBrush Diameter4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchThread / Arbor5/8-11Trim Length7/8 InchNumber of Knots22Max. RPM20000 RPMPack Qty10The brush knots are knotted to 75% of the length. The brush is designed for brushing large areas and for heavy-duty brushwork, such as deburring, cleaning, derusting and descaling, as well as removing spatter. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesOptimal ratio of aggressiveness and flexibility.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinder

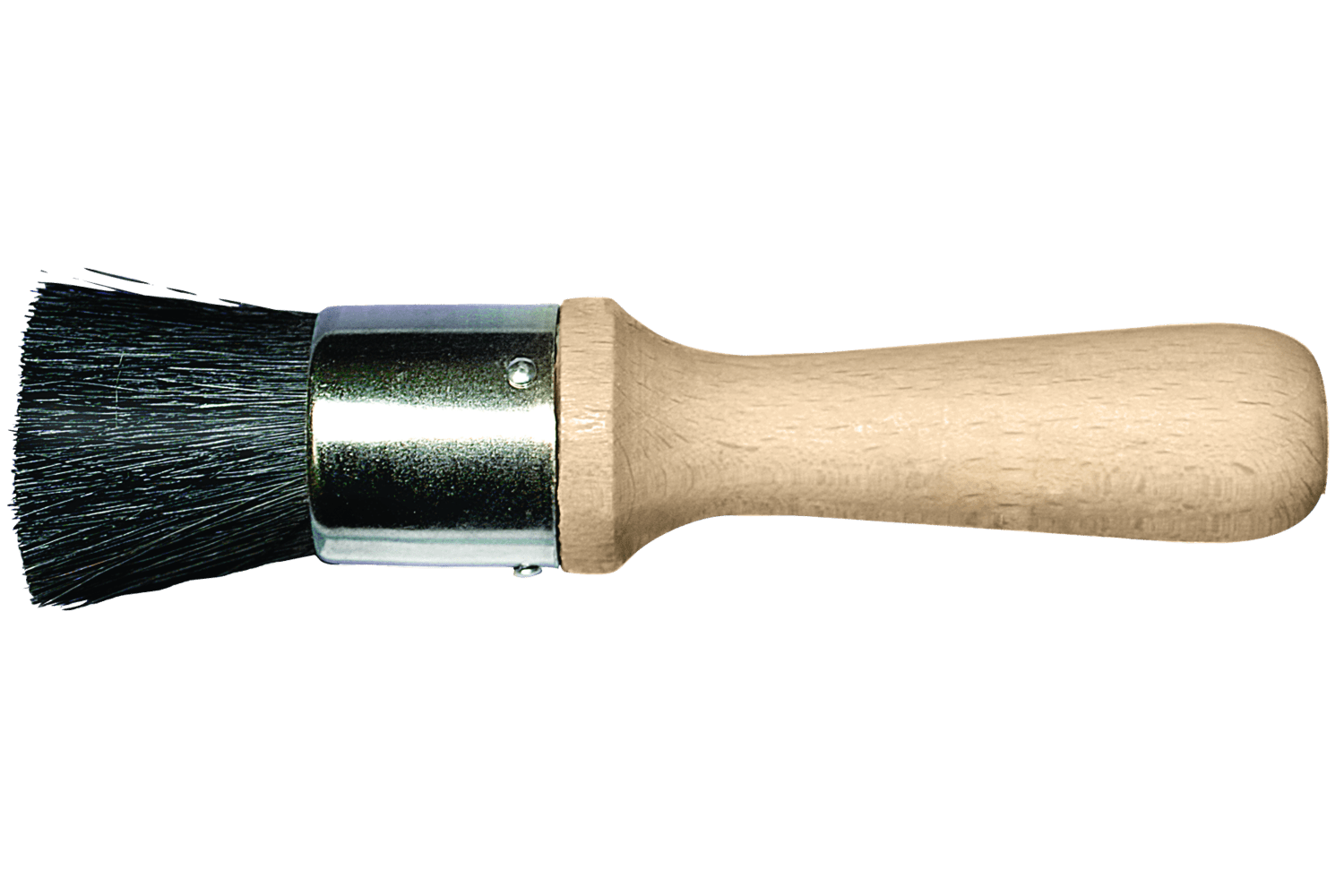

Stencil Brush
Technical informationBrush Diameter1 InchFilament MaterialBristle, blackTrim Length1 1/8 InchPack Qty12Stenciling brush for the even application of paint through a stencil.AdvantagesThe high filament density and the short, stiff filament prevents color from running under the stencil edges.ApplicationsPaintingDrive TypesManual application

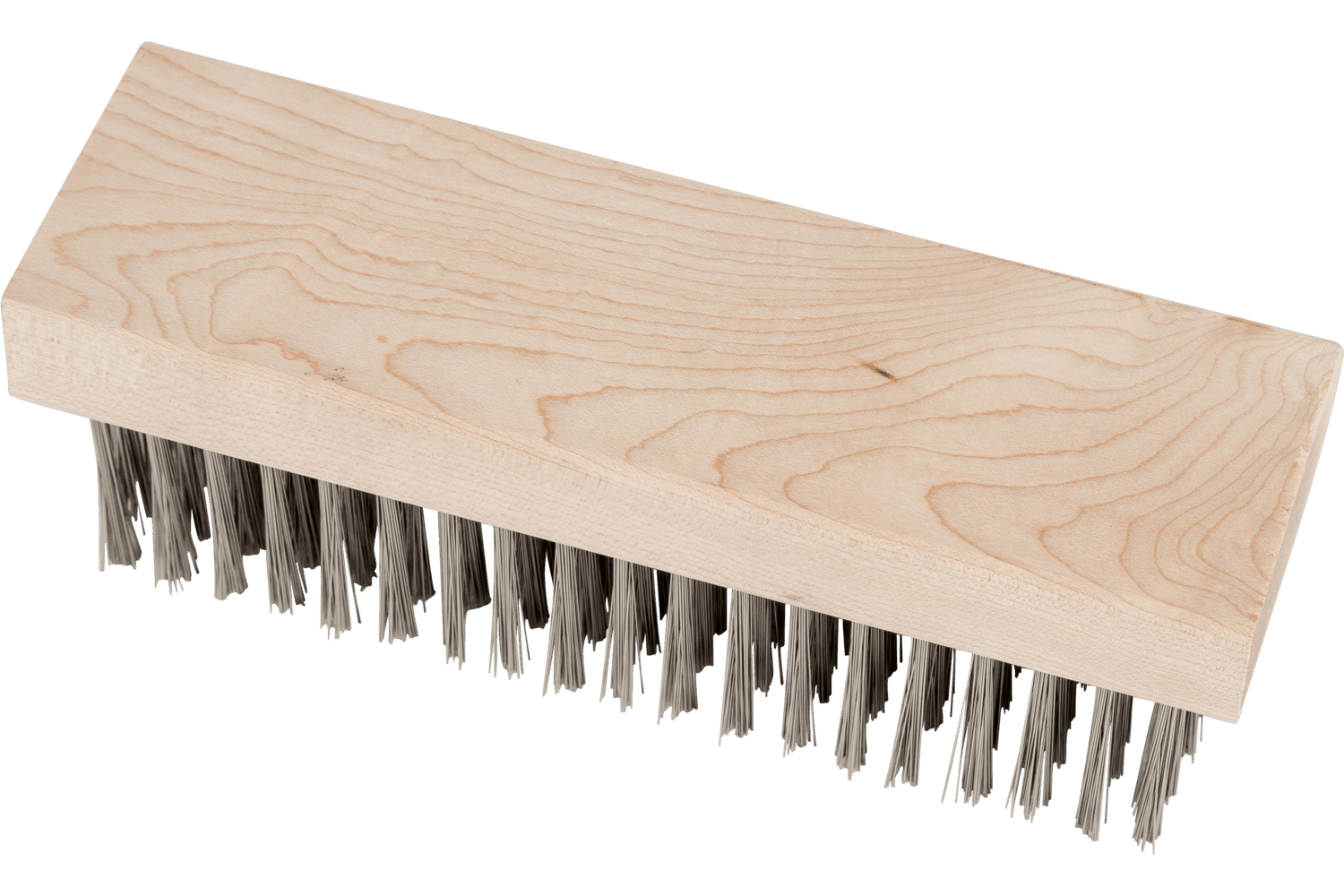

Straight Back Block Brush 6x19 Rows
Technical informationFilament MaterialStainless steel wire (INOX)Wire Diameter0.012 InchTrim Length1 3/4 InchNumber of Rows6Pack Qty12Robust block brush made from wood for heavy-duty cleaning work. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion.AdvantagesExcellent for cleaning concrete forms.Ergonomic curved handle.ApplicationsCleaningDerustingRemoving heat discolourationRemoving oxide layersRougheningMaterials that can be workedStainless steel (INOX)AluminumBronzeCobalt-based alloysOther non-ferrous metalsDrive TypesManual application
Stringer Bead Wheel Brush
Technical informationBrush Diameter4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.02 InchThread / Arbor5/8-11Trim Length3/4 InchNumber of Knots32Max. RPM20000 RPMPack Qty10Aggressive and robust brush that is able to withstand high mechanical loads. Ideal for heavy-duty brushing in pipeline and container construction. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesAggressive brushing action due to tightly-twisted wire knots.Extra-slim design allows access to hard-to-reach areas such as root weld seams.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinder
Strip Broom - Medium Sweep
Technical informationFilament MaterialSynthetic filamentTrim Length3 1/4 InchPack Qty12Value-priced metal frame broom for fine sweeping. Broom with metal frame and high-quality, robust synthetic bristles.AdvantagesHigh-quality synthetic bristles for a long service life.ApplicationsCleaningSweepingDrive TypesManual application

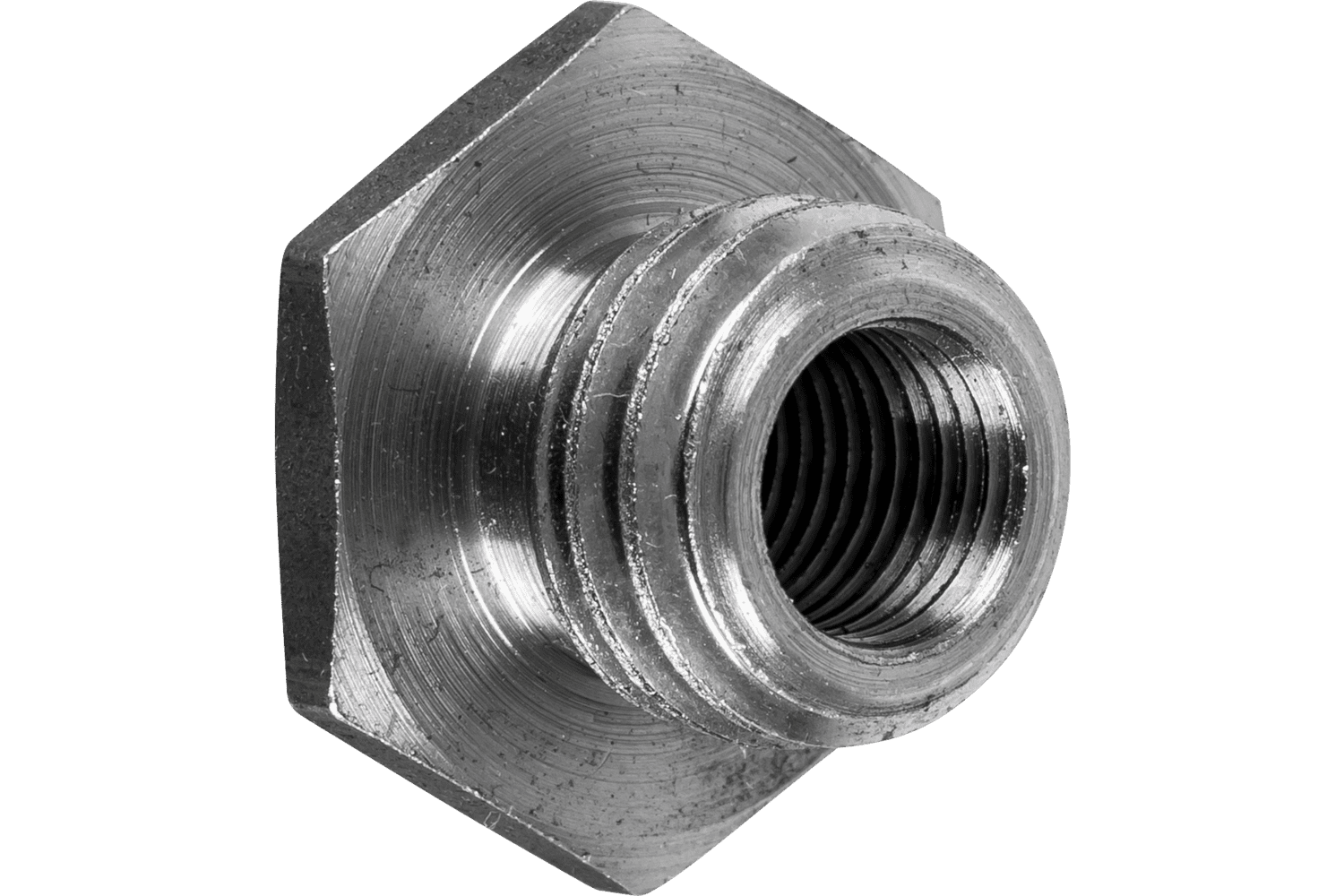

Thread Adapter
Technical informationThread / Arbor5/8-11Pack Qty5Machined metal components for accurate fit.AdvantagesAllows threaded brushes to be adapted to common thread sizes.
Thread Adaptor
Technical informationShapeArbor adapterThread / Arbor5/8-11Pack Qty5Machined metal components for accurate fit.AdvantagesAllows threaded brushes to be adapted to common thread sizes.
Track Broom With Chisel End Handle
Technical informationFilament MaterialBassine filamentPack Qty6Traditional-style brooms used for general cleaning. Handle with chiseled end. Track brooms feature a narrow face for aggressive sweeping. This broom has a steel chisel handle end for tough-to-remove debris like chewing gum. One reinforcing wire band.AdvantagesAvailable in a variety of natural fibers.ApplicationsCleaningSweepingDrive TypesManual application
Trim Refill
Technical informationFilament MaterialPolyester/fabricTrim Length1/4 InchPack Qty20Knitted roller refills available in a wide range of pile heights.AdvantagesProvide great coverage with a good surface finish.Versatile rollers for a wide range of surface roughnesses.ApplicationsPaintingDrive TypesManual application
Tube Center Wire Wheel Brush
Technical informationBrush Diameter1 1/4 InchFace Width7/32 InchFilament MaterialSteel wire (ST)Wire Diameter0.008 InchArbor Hole1/4 InchTrim Length3/8 InchMax. RPM20000 RPMPack Qty10Designed for cleaning, derusting, smoothing, cleaning of weld seams, light deburring, and removal of corrosion and paint. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesHighly flexible, enabling optimal adaptation to the workpiece contour.The special design enables several brushes to be packaged in a row to create wide gapless rollers.Long service life through use of PFERD special wire.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving oxide layersPaint strippingRougheningMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodCast ironCast steelThermosetting plasticsElastomersDrive TypesFlexible shaft drivePower drillStraight grinder

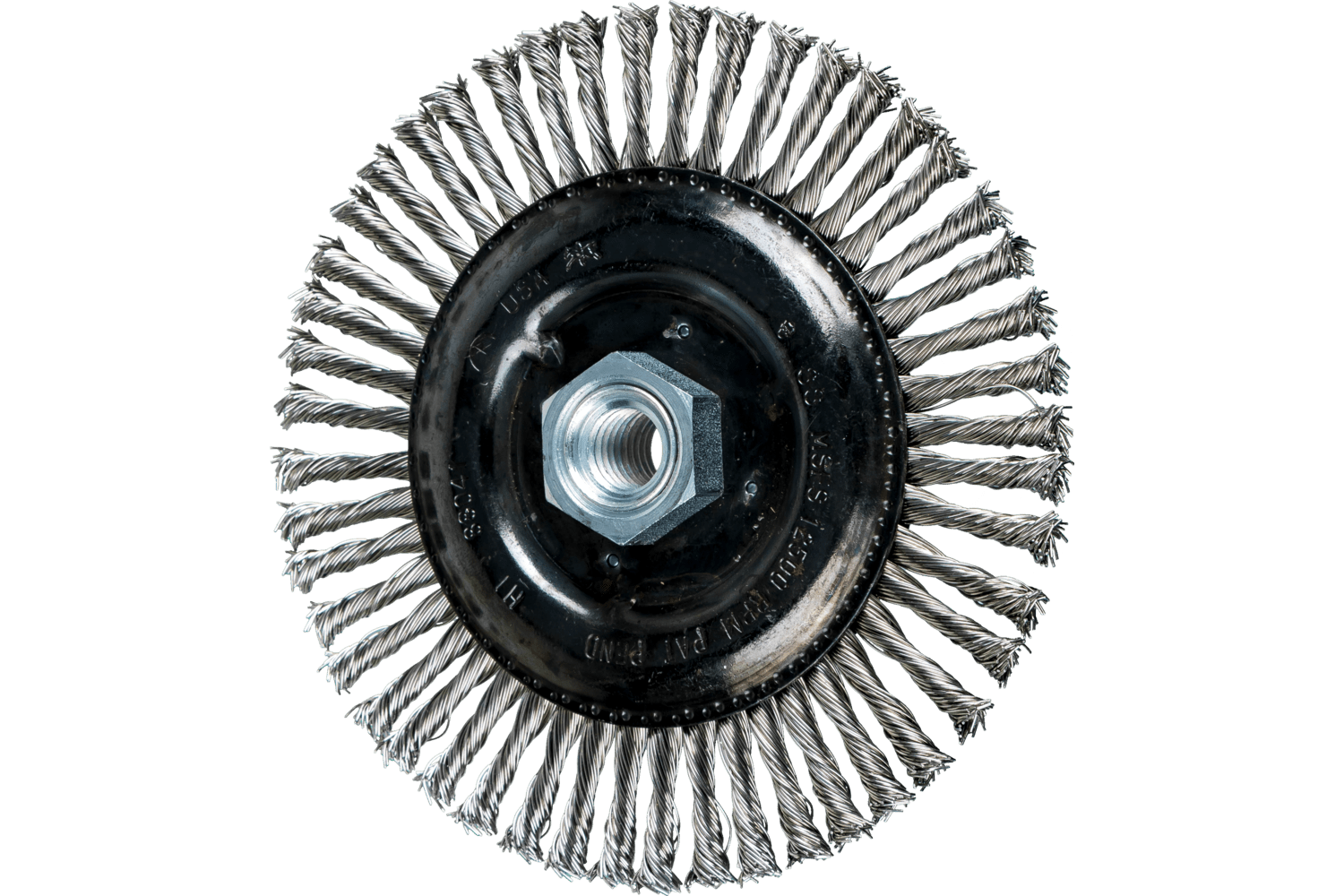

TWIN NUT Stringer Bead Wheel Brush
Technical informationBrush Diameter6 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.02 InchThread / Arbor5/8-11Trim Length1 1/8 InchNumber of Knots48Max. RPM12500 RPMPack Qty10Aggressive and robust brush that is able to withstand high mechanical loads. Ideal for heavy-duty brushing in pipeline and container construction. The patented thread design prevents the brush from coming into contact with the protective cover of the angle grinder. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe change of knot twist direction gives the brush a longer service life and aggressive properties.Aggressive brushing action due to tightly-twisted wire knots.Extra-slim design allows access to hard-to-reach areas such as root weld seams.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinder
TWIN NUT
Technical informationBrush Diameter4 7/8 InchFilament MaterialSteel wire (ST)Wire Diameter0.02 InchThread / Arbor5/8-11Trim Length3/4 InchNumber of Knots48Max. RPM12500 RPMPack Qty5Very aggressive and robust brush that is able to withstand high mechanical loads. Perfect for heavy-duty brushing in pipeline and container construction. The patented thread design prevents the brush from coming into contact with the protective cover of the angle grinder. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesThe change of knot twist direction gives the brush a longer service life and aggressive properties.Extra-slim design allows access to hard-to-reach areas such as root weld seams.Maximum economic efficiency due to maximum service life and stock removal rate.Brush runs smoothly due to it's flawless balance.Designed for work on corners and edges as the knots are less likely to unravel.Aggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder
Upright Corn Broom
Technical informationFilament MaterialCorn filamentPack Qty12Traditional-style brooms used for general cleaning. Selected corn filament for light sweeping on smooth floors. Compact broom with three twine sews and one wire band for long life. Three stitched rows.AdvantagesAvailable in a variety of natural fibers.ApplicationsCleaningSweepingDrive TypesManual application
Valve Guide Brush
Technical informationBrush Diameter5/16 InchFilament MaterialSteel wire (ST)Wire Diameter0.006 InchShank Diameter1/4 InchMax. RPM2500 RPMPack Qty10Brush for brushing valve guides. High brush stiffness for aggressive cleaning. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesThe metal sleeve construction enables stable operation without bending.Includes knurled handle for manual use.Long service life through use of PFERD special wire.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving oxide layersPaint strippingRougheningMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodCast ironCast steelThermosetting plasticsDrive TypesFlexible shaft driveManual applicationPower drillSafetyFor safe use, guide the brush into the workpiece before beginning work. When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

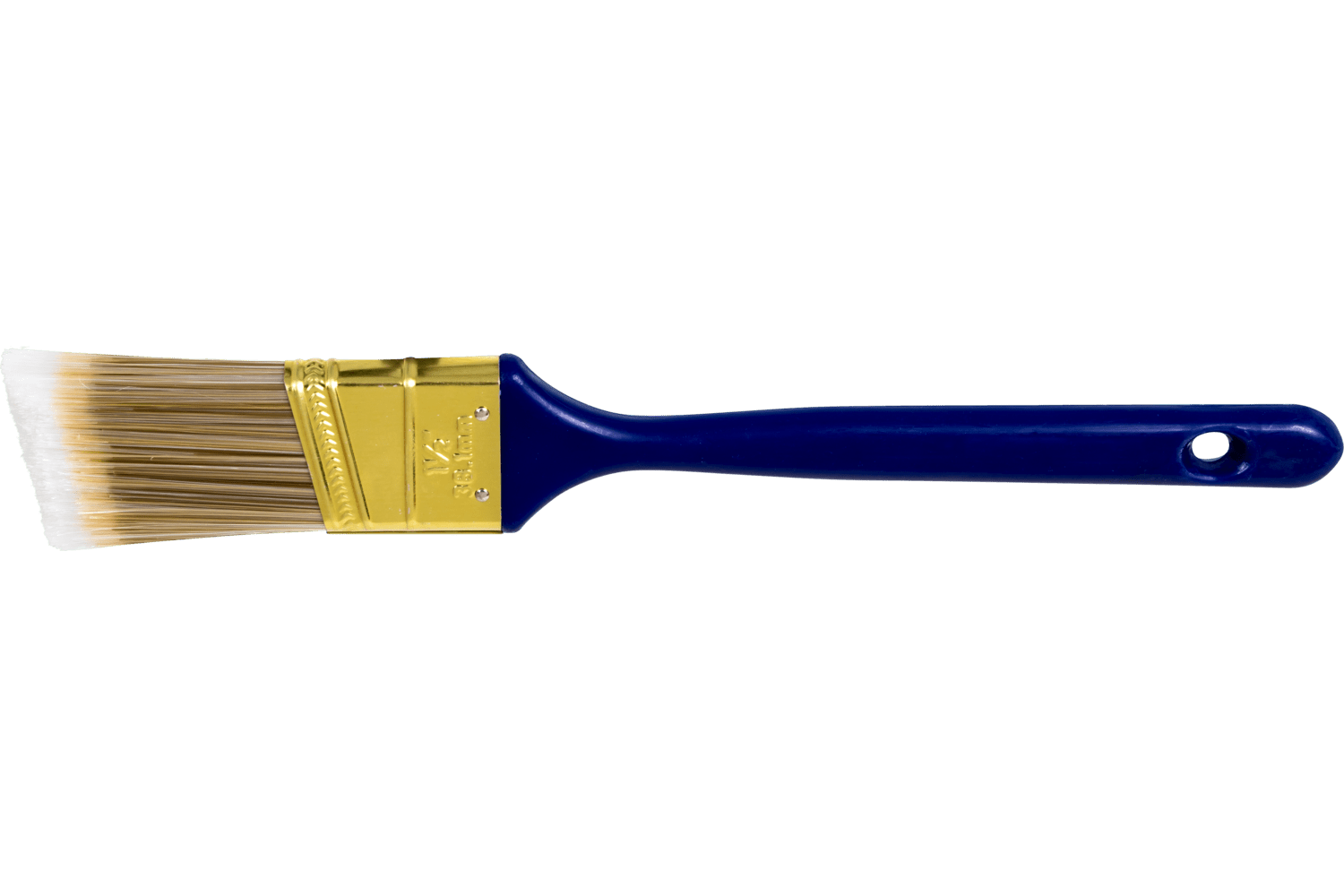

Wall Brush
Technical informationFilament MaterialPolyester/nylon mixTrim Length2 1/8 InchPack Qty10Angled trim designed for “cutting in“ when painting corners and edges.AdvantagesSynthetic bristles provide long, durable service life and easy cleaning.ApplicationsPaintingDrive TypesManual application
Wall Brush
Technical informationFilament MaterialSynthetic filamentTrim Length1 3/4 InchPack Qty20Polyester bristle wall brushes for use with synthetic paints and coatings such as latex paint.AdvantagesSynthetic bristles provide long, durable service life and easy cleaning.ApplicationsPaintingDrive TypesManual application
Welders Toothbrush 3x7 Rows
Technical informationFilament MaterialBrass wire (MES)Wire Diameter0.006 InchTrim Length1/2 InchNumber of Rows3Pack Qty36PFERD offers an extensive range of scratch brushes in various shapes and filament materials. Ideal for cleaning spark plugs, small workpieces and tools. Double-headed version contains one sidewith nylon filament, and one with wire filament. Brass wire filament brushes are designed for applications like surface finishing on copper or brass workpieces. Compared to steel wire, brass wire is softer and more flexible. For all brushes with brass wire, PFERD uses wire quality CuZn37.AdvantagesExcellent for spot-cleaning small welds and molds.Synthetic block will not splinter, crack, or rot.ApplicationsCleaningRemoving oxide layersWork on weld seamsMaterials that can be workedBrassCopperOther non-ferrous metalsDrive TypesManual application
