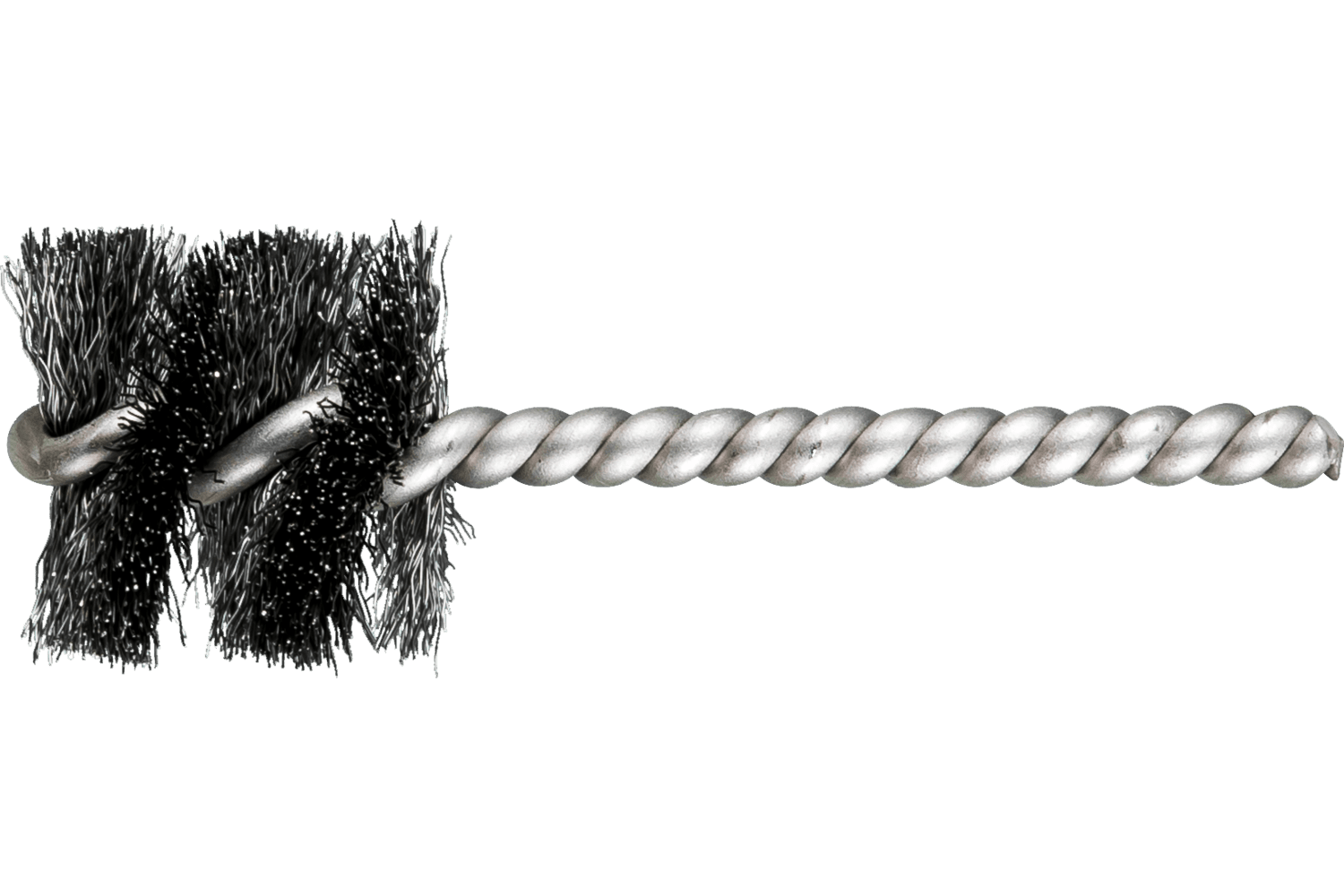

Power Tube Brush, 1 1/8 Inch / Steel wire (ST), 79183374
$0.00
Product information "Power Tube Brush, 1 1/8 Inch / Steel wire (ST), 79183374"
Technical information
1 1/8 Inch / Steel wire (ST), 79183374
| Brush Diameter | 1 1/8 Inch |
| Filament Material | Steel wire (ST) |
| Wire Diameter | 0.008 Inch |
| Shank Diameter | 1/4 Inch |
| Max. RPM | 2500 RPM |
| Pack Qty | 36 |
For light cleaning and deburring work on threaded holes or recesses, e.g. keyways. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.
Advantages
- Highly flexible, enabling optimal adaptation to the workpiece contour.
- Longer service life due to the design of the stem.
- In tube brushes with a short eyelet, the filament reaches up to the tip of the brush.
- The bent end of the wire does not have any sharp edges, which prevents delicate surfaces from getting scratched.
- Long service life through use of PFERD special wire.
- Creates fine surfaces.
Applications
- Cleaning
- Deburring
- Derusting
- Removing oxide layers
- Paint stripping
- Roughening
Materials that can be worked
- Steel, cast steel
- Steel materials with a hardness > 54 HRC
- Steels up to 370 HV (< 38 HRC)
- Thermoplastics
- Wood
- Cast iron
- Cast steel
- Thermosetting plastics
Drive Types
- Flexible shaft drive
- Manual application
- Power drill
Safety
For safe use, guide the brush into the workpiece before beginning work. When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
| Drive Type: | Flexible shaft drive, Manual application, Power drill |
|---|---|
| Filament Material: | Steel wire (ST) |
| Max. RPM: | 2500 RPM |
| Pack Qty: | 36 |
| Wire Diameter: | 0.008 Inch |
