CC-GRIND® grinding discs

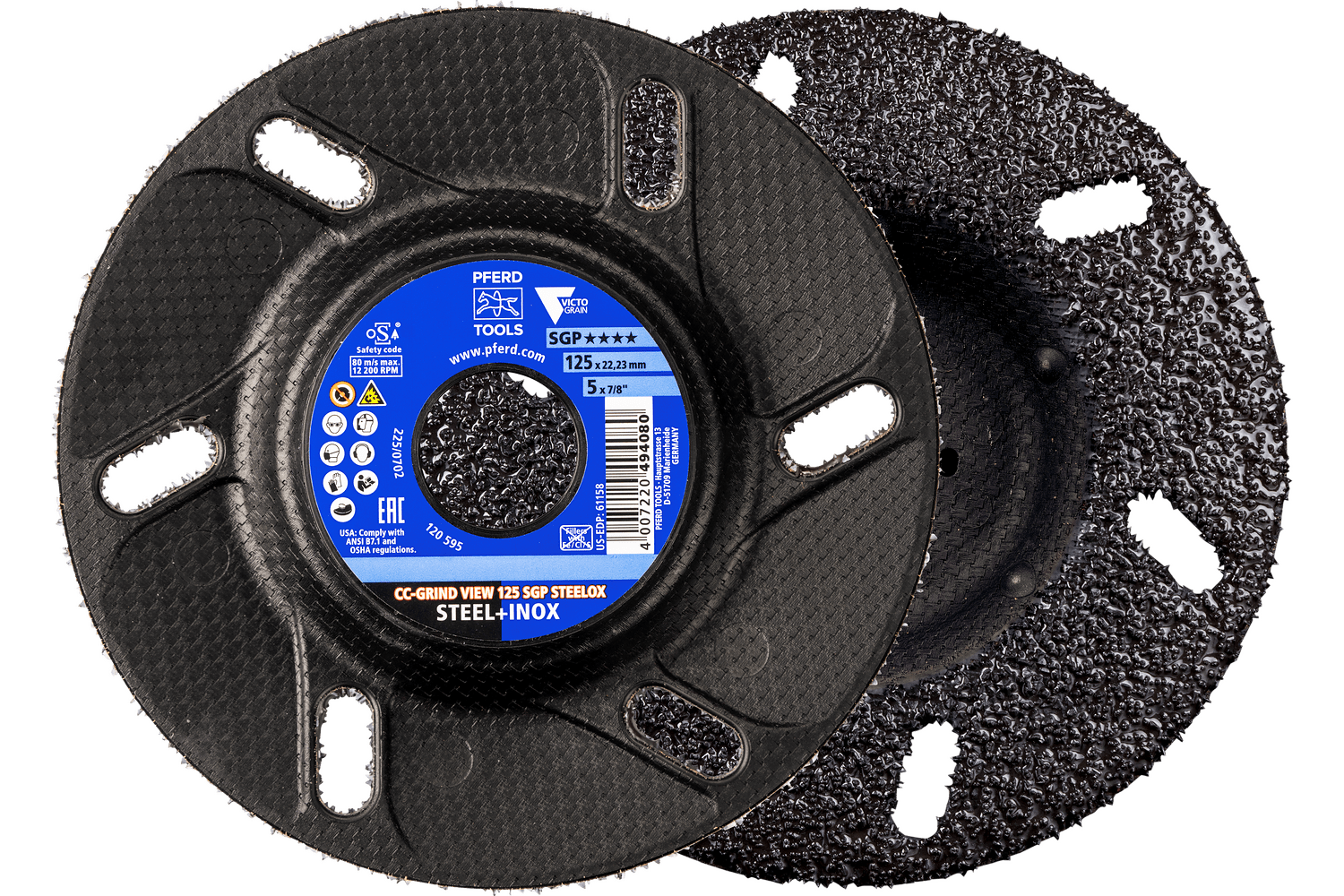

Grinding disc, CC-GRIND® VIEW, 5" x 7/8, SGP STEELOX VICTOGRAIN®, Ceramic
ShapeCC-GRIND®-ROBUSTAbrasiveVICTOGRAINDrive typeAngle grinder, Cordless angle grinder, RobotMax. RPM12200Pack qty10CC-GRIND® VIEWSpecial Line SGP tools are specially developed for specific tasks and offer users key advantages over conventional products. In addition, the Special Line SGP includes tools that deliver maximum cost efficiency thanks to their exceptionally high performance in use. With the CC-GRIND®-ROBUST, PFERD TOOLS provides a modern, high-performance, and ergonomic alternative to grinding wheels, flap discs, and fiber discs. PFERD TOOLS’ CC-GRIND®-ROBUST is patented in many countries worldwide. Grinding disc with precision-molded, triangular high-performance abrasive VICTOGRAIN® for steel and stainless steel (INOX), offering maximum grinding performance and outstanding tool life. VICTOGRAIN products are among the most effective grinding tools in the world. The triangular, precision-formed abrasive grain from PFERD TOOLS delivers an exceptionally high level of abrasive performance. The VICTOGRAIN® abrasive grit triangles are uniform in shape and size, and their cutting edges engage the workpiece at the optimum angle, requiring very little energy to penetrate. This gives the user an efficient grinding process with fast material removal, long tool life, reduced heat input into the workpiece, and lower power demand on the tool drive. The VICTOGRAIN® abrasive grain triangles are bonded to the backing on one side, keeping them securely in place. Together with their slim design, this creates very large chip clearance, further improving grinding efficiency. The triangular VICTOGRAIN® structure has also been specifically engineered to maximize results. The tiny crystals inside the triangles ensure ideal wear characteristics, as sharp cutting edges are continually exposed while only minimal amounts of abrasive grain or triangle segments break off. By combining all these properties, users benefit from consistent, optimal performance in cool grinding, extremely long tool life, and uniform workpiece surface finish.AdvantagesThe viewing panes on the CC-GRIND® VIEW provide a clear view of the grinding process for maximum control during grinding.Users can ensure an optimal contact angle based on the sparking in the middle of the viewing pane.Significantly more ergonomic than a grinding wheel: Noise, vibrations and dust are significantly reduced.Glass-fiber-reinforced plastic backing pad guarantees a robust, reliable application.The ultimate in aggressive performance for the fastest work progress.In contrast to flap discs, they can achieve flat surfaces thanks to their dimensional stability.In contrast to fiber discs, CC-GRIND® VIEW does not deform, even under extreme climatic conditions, and is considerably more robust in heavy-duty use.ApplicationsChamferingDeburringStep-by-step fine grindingLevelingSurface grindingSurface workWork on weld seamsWorking on edgesWorking on edges (chamfering, rounding)Materials that can be workedStainless steel (INOX)SteelTool steelsWoodCase-hardened steelsRecommendations for useFor optimum results, use with a flat contact angle.Only use the face of the disc, not suitable for peripheral grinding (on edge).

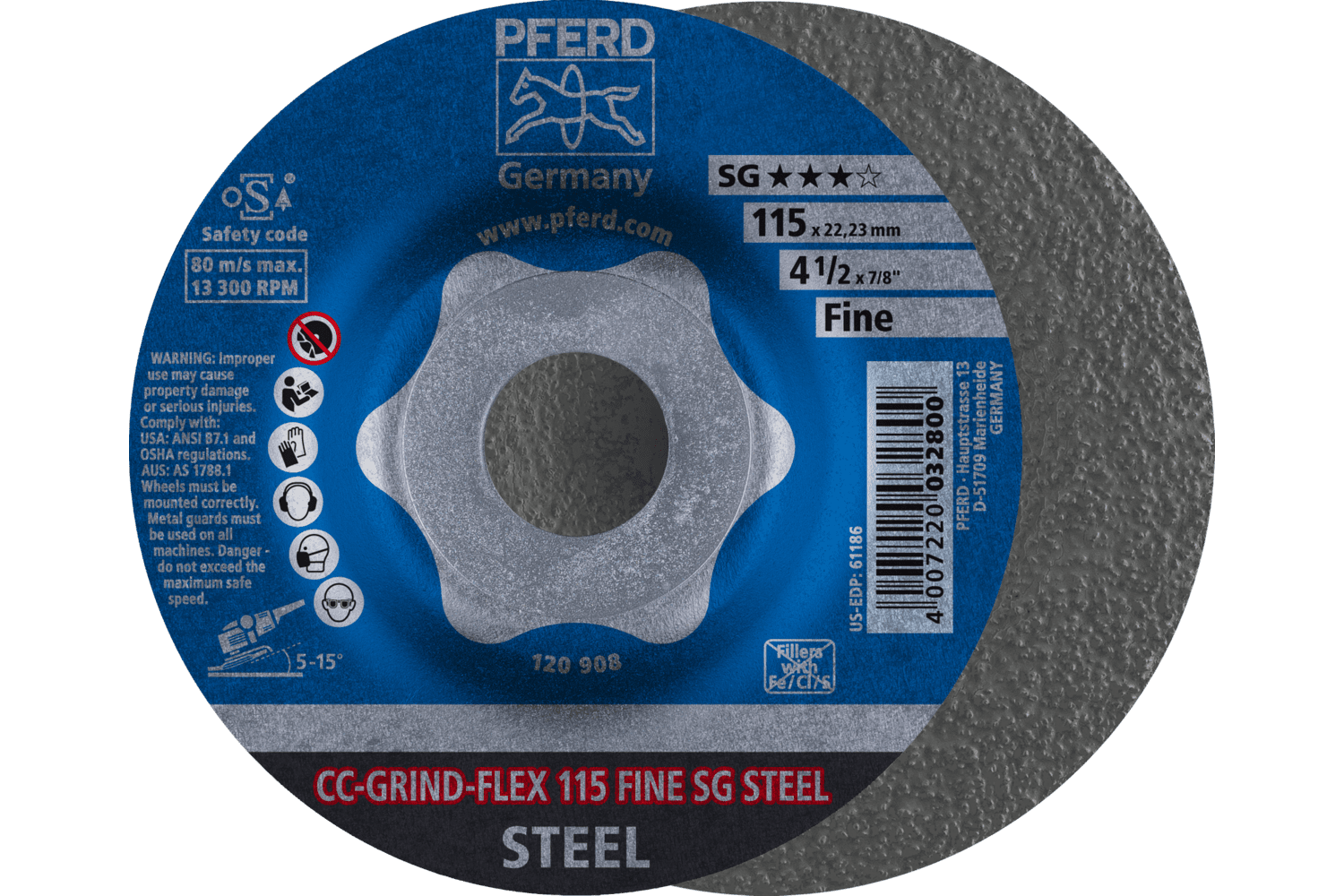

Grinding disc, CC-GRIND®-FLEX
ShapeCC-GRIND®-FLEXAbrasiveCO-COOLGritFINEDrive typeAngle grinderMax. RPM13300Pack qty10CC-GRIND®-FLEXThe wide range Performance Line SG offers high-performance solutions for every application and material. Performance Line SG products achieve optimum results with excellent economic efficiency. The CC-GRIND®-FLEX is the semi-flexible addition to the CC-GRIND® family. It was specially developed for work on weld seams. Butt welds can be smoothed completely flat. This gets rid of any dents and bumps that are visible, particularly after painting or varnishing. Semi-flexible grinding disc for steel. High grinding performance and maximum service life.AdvantagesHighly aggressive abrasive produces fast results.Significantly more ergonomic than a conventional grinding wheel: noise and vibrations are reduced by 50%, dust by 80%.Layered structure of the fibreglass backing pad facilitates use that is just as durable and safe as with a grinding wheel.Complete smoothing of butt welds – without dents or bumps.Superior surface finish compared to conventional grinding wheels.ApplicationsStep-by-step fine grindingSurface grindingWork on weld seamsMaterials that can be workedSteelRecommendations for useOnly use the face of the disc, not suitable for peripheral grinding (on edge).For optimal results, use with a flat contact angle and the SFS CC-GRIND® clamping flange set.

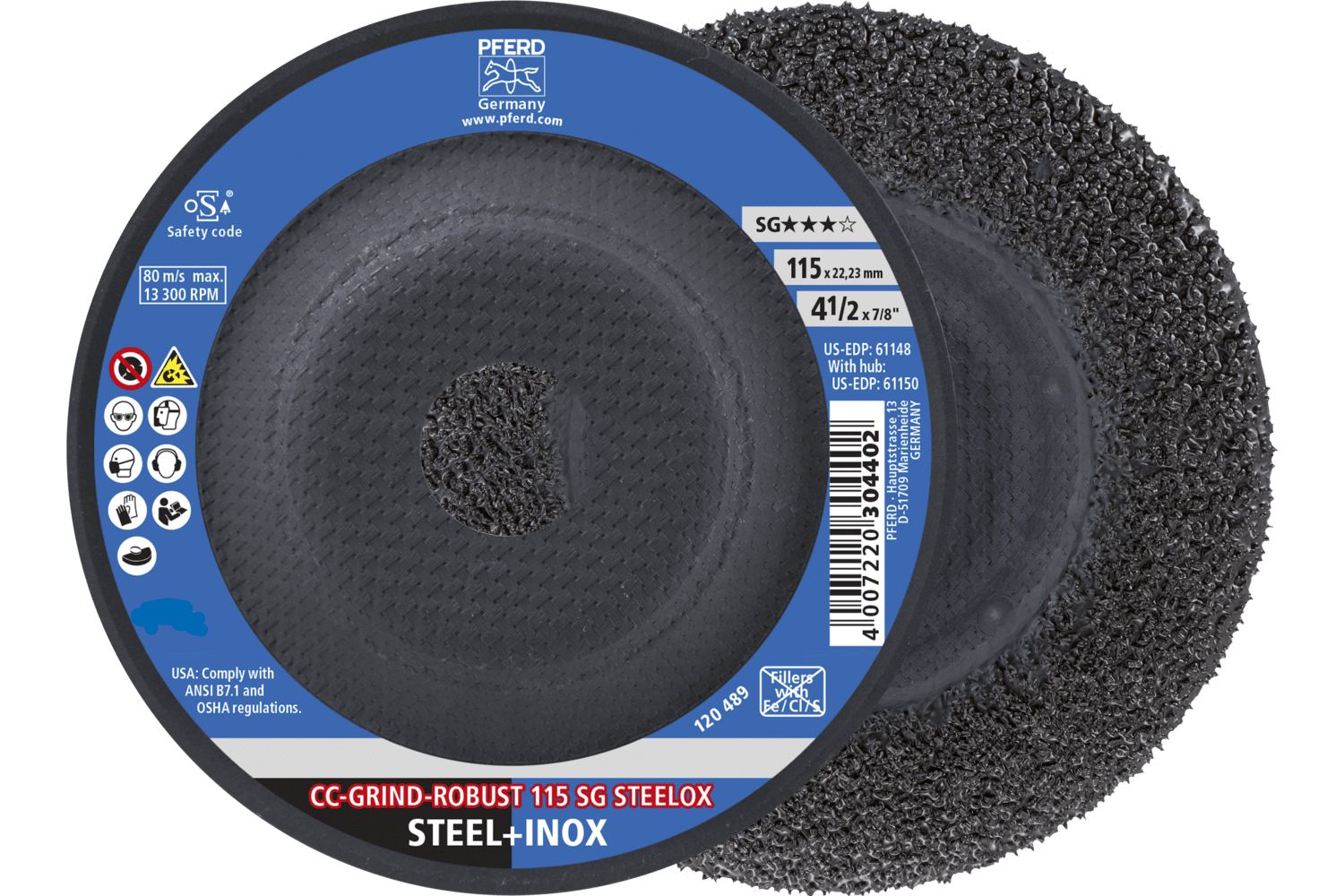

Grinding disc, CC-GRIND®-ROBUST, SG STEELOX
ShapeCC-GRIND®-ROBUSTAbrasiveCeramic CODrive typeAngle grinderMax. RPM13300Pack qty10CC-GRIND®-ROBUSTThe wide range Performance Line SG offers high-performance solutions for every application and material. Performance Line SG products achieve optimum results with excellent economic efficiency. With the CC-GRIND®-ROBUST, PFERD offers a modern, high-performance and ergonomic alternative to conventional grinding wheels, flap and fiber discs. Grinding disc for steel and stainless steel (INOX). High grinding performance and maximum tool life.AdvantagesHighly aggressive abrasive produces fast results.Fiberglass-reinforced plastic backing pad facilitates a robust, reliable application.Significantly more ergonomic than a conventional grinding wheel: Noise, vibrations and dust are significantly reduced. A considerably superior surface quality is also produced.In contrast to flap discs, they can achieve flat surfaces due to their dimensional stability.In contrast to conventional fibre discs, CC-GRIND®-ROBUST does not deform, even in extreme climates, and is considerably more robust in heavy-duty use.The use of a special clamping flange set is not necessary due to the design.Easily trimmable product.ApplicationsChamferingDeburringStep-by-step fine grindingSurface grindingWork on weld seamsMaterials that can be workedStainless steel (INOX)SteelRecommendations for useTrim the CC-GRIND®-ROBUST on sharp metal edges, files, or with cutting inserts.Trimming should only be done at a 45° contact angle of.Press the disc carefully on to the workpiece and increase the pressure until a chip is formed. Keep the pressure until the disc has been trimmed to the desired dimension.For optimum results, use with a flat contact angle.Only use the face of the disc, not suitable for peripheral grinding (on edge).Choose the CC-GRIND®-ROBUST SG STEELOX for deburring.
Grinding disc, CC-GRIND®-ROBUST, SGP STEELOX VICTOGRAIN®
ShapeCC-GRIND®-ROBUSTAbrasiveVICTOGRAINDrive typeAngle grinderMax. RPM13300Pack qty10CC-GRIND®-ROBUSTSpecial Line SGP tools are specially developed for specific tasks and offer users key advantages over conventional products. In addition, the Special Line SGP includes tools that deliver maximum cost efficiency thanks to their exceptionally high performance in use. With the CC-GRIND®-ROBUST, PFERD TOOLS provides a modern, high-performance, and ergonomic alternative to grinding wheels, flap discs, and fiber discs. PFERD TOOLS’ CC-GRIND®-ROBUST is patented in many countries worldwide. Grinding disc with precision-molded, triangular high-performance abrasive VICTOGRAIN® for steel and stainless steel (INOX), offering maximum grinding performance and outstanding tool life. VICTOGRAIN products are among the most effective grinding tools in the world. The triangular, precision-formed abrasive grain from PFERD TOOLS delivers an exceptionally high level of abrasive performance. The VICTOGRAIN® abrasive grit triangles are uniform in shape and size, and their cutting edges engage the workpiece at the optimum angle, requiring very little energy to penetrate. This gives the user an efficient grinding process with fast material removal, long tool life, reduced heat input into the workpiece, and lower power demand on the tool drive. The VICTOGRAIN® abrasive grain triangles are bonded to the backing on one side, keeping them securely in place. Together with their slim design, this creates very large chip clearance, further improving grinding efficiency. The triangular VICTOGRAIN® structure has also been specifically engineered to maximize results. The tiny crystals inside the triangles ensure ideal wear characteristics, as sharp cutting edges are continually exposed while only minimal amounts of abrasive grain or triangle segments break off. By combining all these properties, users benefit from consistent, optimal performance in cool grinding, extremely long tool life, and uniform workpiece surface finish.AdvantagesUltimate aggressive performance for fast results.Fiberglass-reinforced plastic backing pad facilitates a robust, reliable application.Significantly more ergonomic than a conventional grinding wheel: Noise, vibrations and dust are significantly reduced. A considerably superior surface quality is also produced.In contrast to flap discs, they can achieve flat surfaces due to their dimensional stability.In contrast to conventional fibre discs, CC-GRIND®-ROBUST does not deform, even in extreme climates, and is considerably more robust in heavy-duty use.The use of a special clamping flange set is not necessary due to the design.Easily trimmable product.Although the VICTOGRAIN products only come with a single coating of abrasive grit, they offer an outstanding service life which exceeds that of conventional grinding wheels and many flap discs.ApplicationsChamferingDeburringStep-by-step fine grindingSurface grindingWork on weld seamsMaterials that can be workedStainless steel (INOX)SteelRecommendations for useTrim the CC-GRIND®-ROBUST on sharp metal edges, files, or with cutting inserts.Trimming should only be done at a 45° contact angle of.Press the disc carefully on to the workpiece and increase the pressure until a chip is formed. Keep the pressure until the disc has been trimmed to the desired dimension.For optimum results, use with a flat contact angle.Only use the face of the disc, not suitable for peripheral grinding (on edge).Choose the CC-GRIND®-ROBUST SGP STEELOX for fast results.

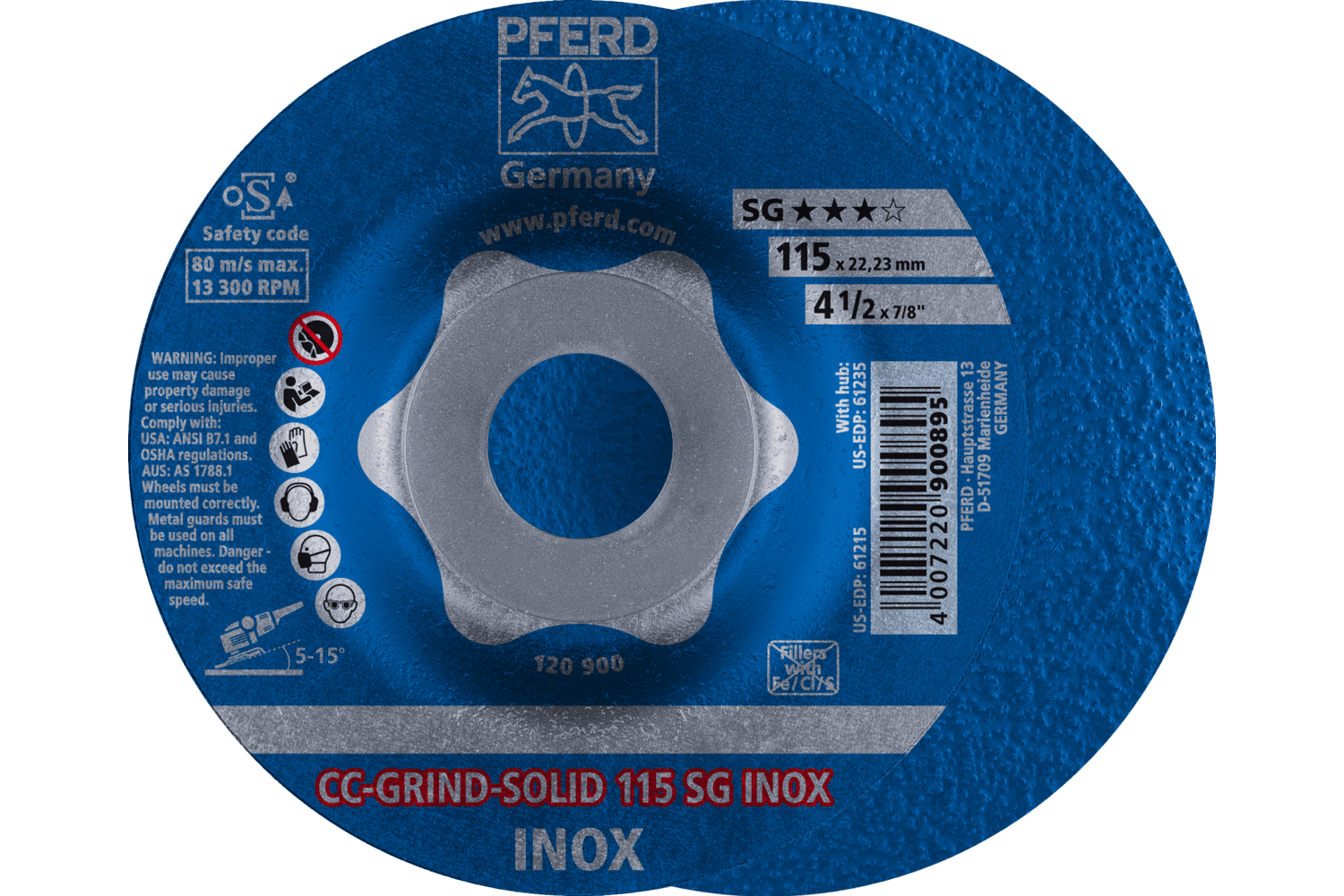

Grinding disc, CC-GRIND®-SOLID, SG INOX
ShapeCC-GRIND®-SOLIDAbrasiveCO-COOLDrive typeAngle grinderMax. RPM13300Pack qty10CC-GRIND®-SOLIDThe wide range Performance Line SG offers high-performance solutions for every application and material. Performance Line SG products achieve optimum results with excellent economic efficiency. With the CC-GRIND®-SOLID, PFERD offers a modern, high-performance and ergonomic alternative to conventional grinding wheels. Grinding disc for stainless steel (INOX). High grinding performance and maximum tool life.AdvantagesHighly aggressive abrasive produces fast results.Significantly more ergonomic than a conventional grinding wheel: noise and vibrations are reduced by 50%, dust by 80%.Layered structure of the fibreglass backing pad facilitates use that is just as durable and safe as with a grinding wheel.Superior surface finish compared to conventional grinding wheels.ApplicationsChamferingDeburringWork on weld seamsMaterials that can be workedStainless steel (INOX)Recommendations for useOnly use the face of the disc, not suitable for peripheral grinding (on edge).For optimal results, use with a flat contact angle and the SFS CC-GRIND® clamping flange set.

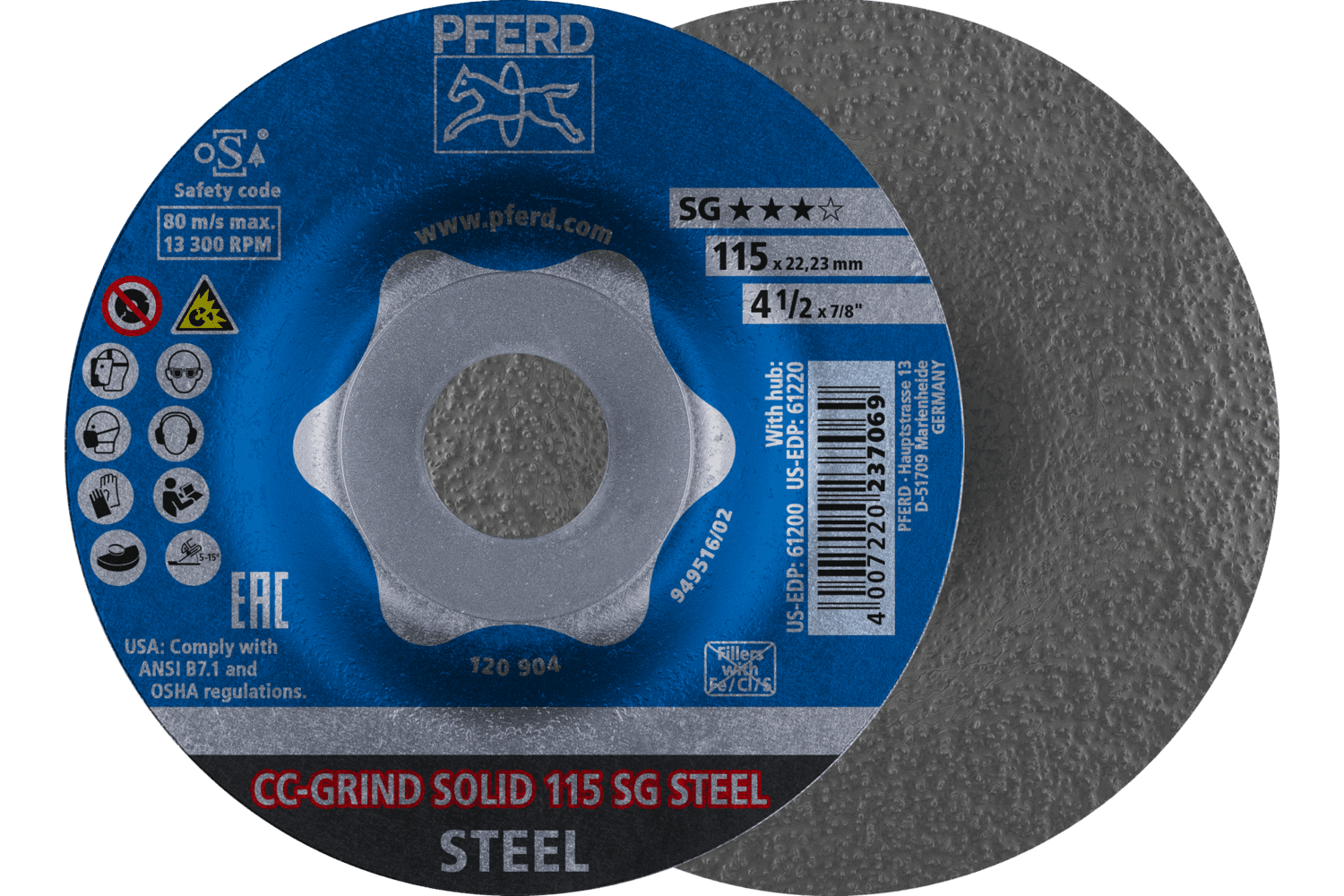

Grinding disc, CC-GRIND®-SOLID, SG STEEL
ShapeCC-GRIND®-SOLIDAbrasiveCO-COOLDrive typeAngle grinderMax. RPM13300Pack qty10CC-GRIND®-SOLIDThe wide range Performance Line SG offers high-performance solutions for every application and material. Performance Line SG products achieve optimum results with excellent economic efficiency. With the CC-GRIND®-SOLID, PFERD offers a modern, high-performance and ergonomic alternative to conventional grinding wheels. Grinding disc for steel. High grinding performance and maximum tool life.AdvantagesHighly aggressive abrasive produces fast results.Significantly more ergonomic than a conventional grinding wheel: noise and vibrations are reduced by 50%, dust by 80%.Layered structure of the fibreglass backing pad facilitates use that is just as durable and safe as with a grinding wheel.Superior surface finish compared to conventional grinding wheels.ApplicationsChamferingDeburringStep-by-step fine grindingSurface grindingWork on weld seamsMaterials that can be workedStainless steel (INOX)SteelRecommendations for useOnly use the face of the disc, not suitable for peripheral grinding (on edge).For optimal results, use with a flat contact angle and the SFS CC-GRIND® clamping flange set.
Grinding disc, CC-GRIND®-SOLID, SGP INOX VICTOGRAIN®-COOL
ShapeCC-GRIND®-SOLIDAbrasiveVICTOGRAINDrive typeAngle grinderMax. RPM13300Pack qty10CC-GRIND®-SOLIDSpecial Line SGP includes products engineered for specific tasks that offer the user key advantages over conventional products. This quality line also includes products that, due to their particularly high performance, offer ultimate economic efficiency. With the CC-GRIND®-SOLID, PFERD offers a modern, high-performance and ergonomic alternative to conventional grinding wheels. Grinding disc with precision-molded, triangular high-performance abrasive VICTOGRAIN for stainless steel (INOX). Maximum grinding performance and outstanding service life. VICTOGRAIN abrasive material is used to make some of the most effective grinding products in the world. PFERD’s triangular, precision-formed grain achieves ultimate performance. The VICTOGRAIN abrasive grain triangles are identical in shape and size and their cutting edges are applied to the workpiece at the optimum angle, meaning the grain needs very little energy to penetrate the workpiece. As a result, the user experiences superior productivity due to: extremely high stock removal, a long service life, and reduced heat build-up in the workpiece. Each VICTOGRAIN abrasive grain triangle is firmly fixed on one of its sides to the backing material. Due to the slim design, VICTOGRAIN offers an extremely large chip space for maximum cutting efficiency. The structure of the triangular VICTOGRAIN is specially engineered to maximize results. The very fine crystalline structure ensures optimal wear characteristics as sharp cutting edges are always exposed, with the minimum amount of abrasive breaking off from the triangle. By combining all these properties together, users benefit from optimal, consistent performance, cool grinding and an extremely long service life with uniform workpiece surface roughness.AdvantagesUltimate aggressive performance for fast results.Significantly more ergonomic than a conventional grinding wheel: noise and vibrations are reduced by 50%, dust by 80%.Layered structure of the fibreglass backing pad facilitates use that is just as durable and safe as with a grinding wheel.Superior surface finish compared to conventional grinding wheels.Although the VICTOGRAIN products only come with a single coating of abrasive grit, they offer an outstanding service life which exceeds that of conventional grinding wheels and many flap discs.ApplicationsChamferingDeburringWork on weld seamsMaterials that can be workedStainless steel (INOX)Recommendations for useOnly use the face of the disc, not suitable for peripheral grinding (on edge).For optimal results, use with a flat contact angle and the SFS CC-GRIND® clamping flange set.

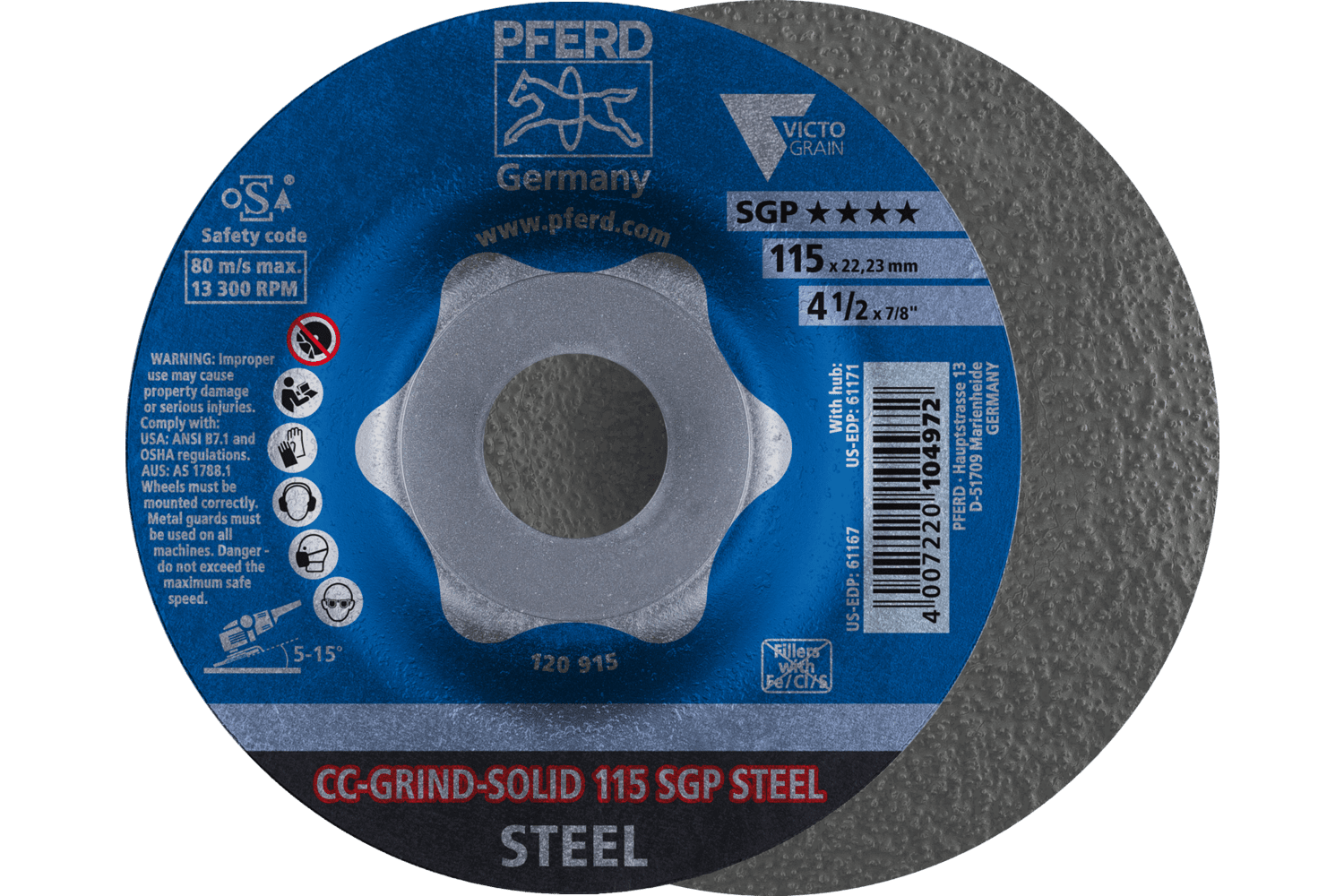

Grinding disc, CC-GRIND®-SOLID, SGP STEEL VICTOGRAIN®
ShapeCC-GRIND®-SOLIDAbrasiveVICTOGRAINDrive typeAngle grinderMax. RPM13300Pack qty10CC-GRIND®-SOLIDSpecial Line SGP includes products engineered for specific tasks that offer the user key advantages over conventional products. This quality line also includes products that, due to their particularly high performance, offer ultimate economic efficiency. With the CC-GRIND®-SOLID, PFERD offers a modern, high-performance and ergonomic alternative to conventional grinding wheels. Grinding disc with precision-molded, triangular high-performance abrasive VICTOGRAIN for steel. Maximum grinding performance and outstanding service life. VICTOGRAIN abrasive material is used to make some of the most effective grinding products in the world. PFERD’s triangular, precision-formed grain achieves ultimate performance. The VICTOGRAIN abrasive grain triangles are identical in shape and size and their cutting edges are applied to the workpiece at the optimum angle, meaning the grain needs very little energy to penetrate the workpiece. As a result, the user experiences superior productivity due to: extremely high stock removal, a long service life, and reduced heat build-up in the workpiece. Each VICTOGRAIN abrasive grain triangle is firmly fixed on one of its sides to the backing material. Due to the slim design, VICTOGRAIN offers an extremely large chip space for maximum cutting efficiency. The structure of the triangular VICTOGRAIN is specially engineered to maximize results. The very fine crystalline structure ensures optimal wear characteristics as sharp cutting edges are always exposed, with the minimum amount of abrasive breaking off from the triangle. By combining all these properties together, users benefit from optimal, consistent performance, cool grinding and an extremely long service life with uniform workpiece surface roughness.AdvantagesUltimate aggressive performance for fast results.Significantly more ergonomic than a conventional grinding wheel: noise and vibrations are reduced by 50%, dust by 80%.Layered structure of the fibreglass backing pad facilitates use that is just as durable and safe as with a grinding wheel.Superior surface finish compared to conventional grinding wheels.Although the VICTOGRAIN products only come with a single coating of abrasive grit, they offer an outstanding service life which exceeds that of conventional grinding wheels and many flap discs.ApplicationsChamferingDeburringStep-by-step fine grindingSurface grindingWork on weld seamsMaterials that can be workedStainless steel (INOX)SteelRecommendations for useOnly use the face of the disc, not suitable for peripheral grinding (on edge).For optimal results, use with a flat contact angle and the SFS CC-GRIND® clamping flange set.

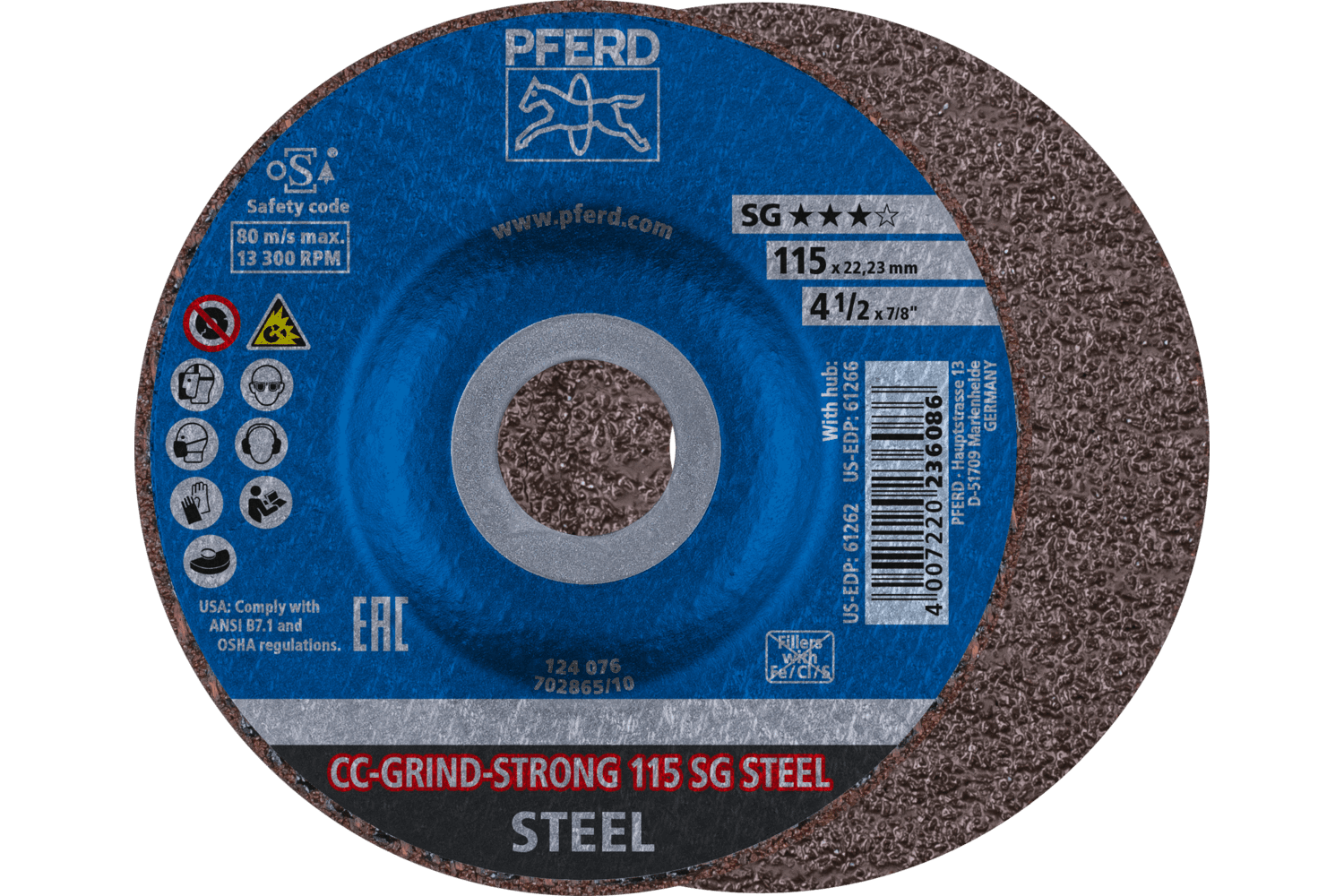

Grinding disc, CC-GRIND®-STRONG
ShapeCC-GRIND®-STRONGAbrasiveCeramic CODrive typeAngle grinderMax. RPM13300Pack qty10CC-GRIND®-STRONGThe wide range Performance Line SG offers high-performance solutions for every application and material. Performance Line SG products achieve optimum results with excellent economic efficiency. The CC-GRIND®-STRONG bridges the gap between conventional grinding wheels and the modern alternative CC-GRIND®-SOLID. It combines the fast, ergonomic grinding of a CC-GRIND®-SOLID with a resin bonded abrasive as a backer. The bonded portion of the disc not only serves as a supporting backer, but is also used during grinding. Grinding disc for steel. Maximum grinding performance and excellent service life.AdvantagesThree times the service life compared to CC-GRIND®-SOLID SG STEEL due to the unique combination of stacked coated discs with a bonded abrasive support.Highly aggressive abrasive produces fast results.Significantly more ergonomic than a conventional grinding wheel: noise and vibrations are reduced by 50%, dust by 70%.Superior surface finish compared to conventional grinding wheels.ApplicationsChamferingDeburringStep-by-step fine grindingSurface grindingWork on weld seamsMaterials that can be workedSteelMill scaleScale
