Bevel brushes

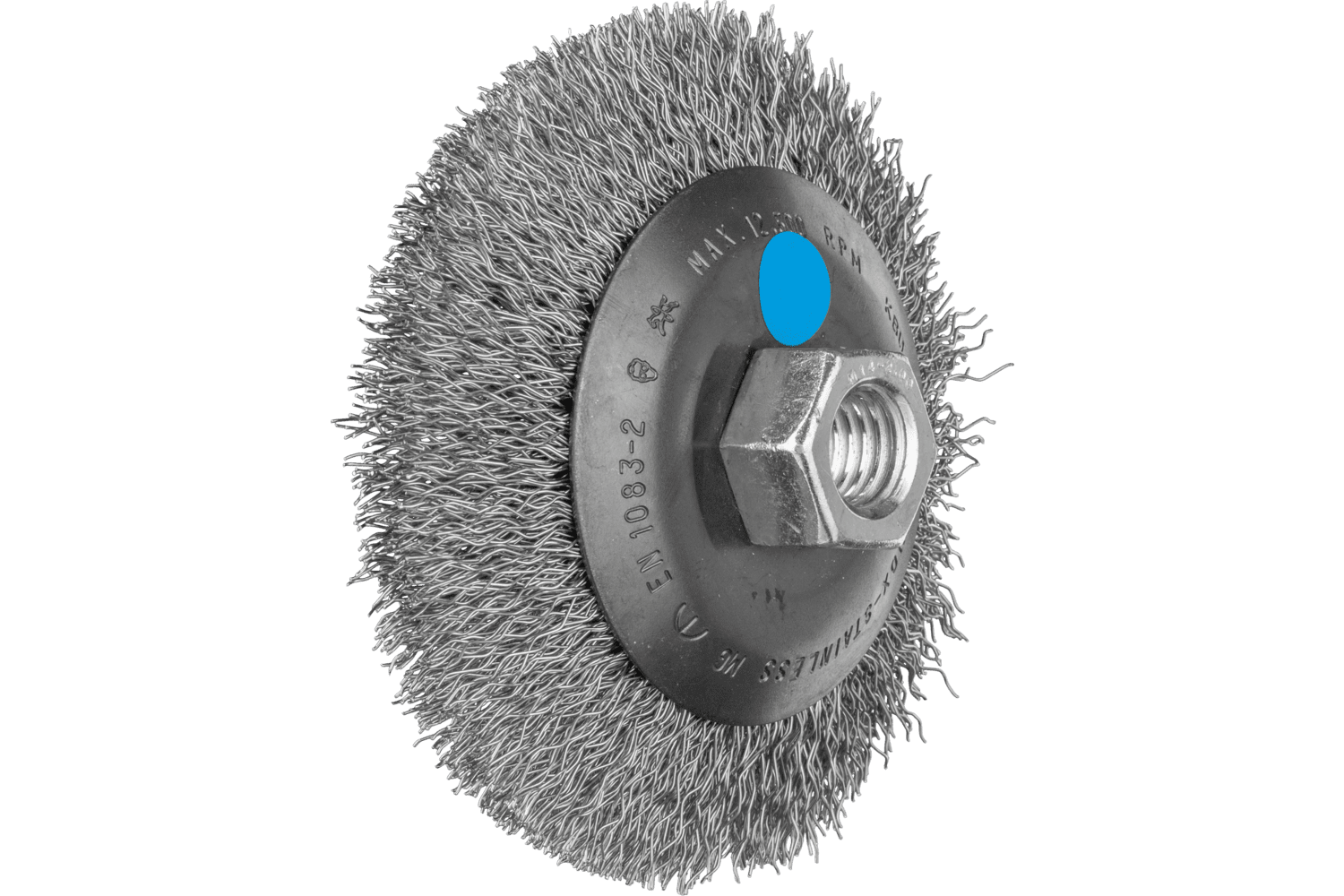

Crimped Wire Bevel Brush
Technical informationBrush Diameter4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchThread / Arbor5/8-11Trim Length3/4 InchMax. RPM12500 RPMPack Qty5Excellent for medium-duty brushing such as deburring, cleaning, and derusting. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesDesigned for use on angle grinders up to 15,800 SFPM.Highly flexible, enabling optimal adaptation to the workpiece contour.Ideal for cleaning narrow or hard-to-reach areas such as grooves, fillets, and inside edges.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinderCordless angle grinder

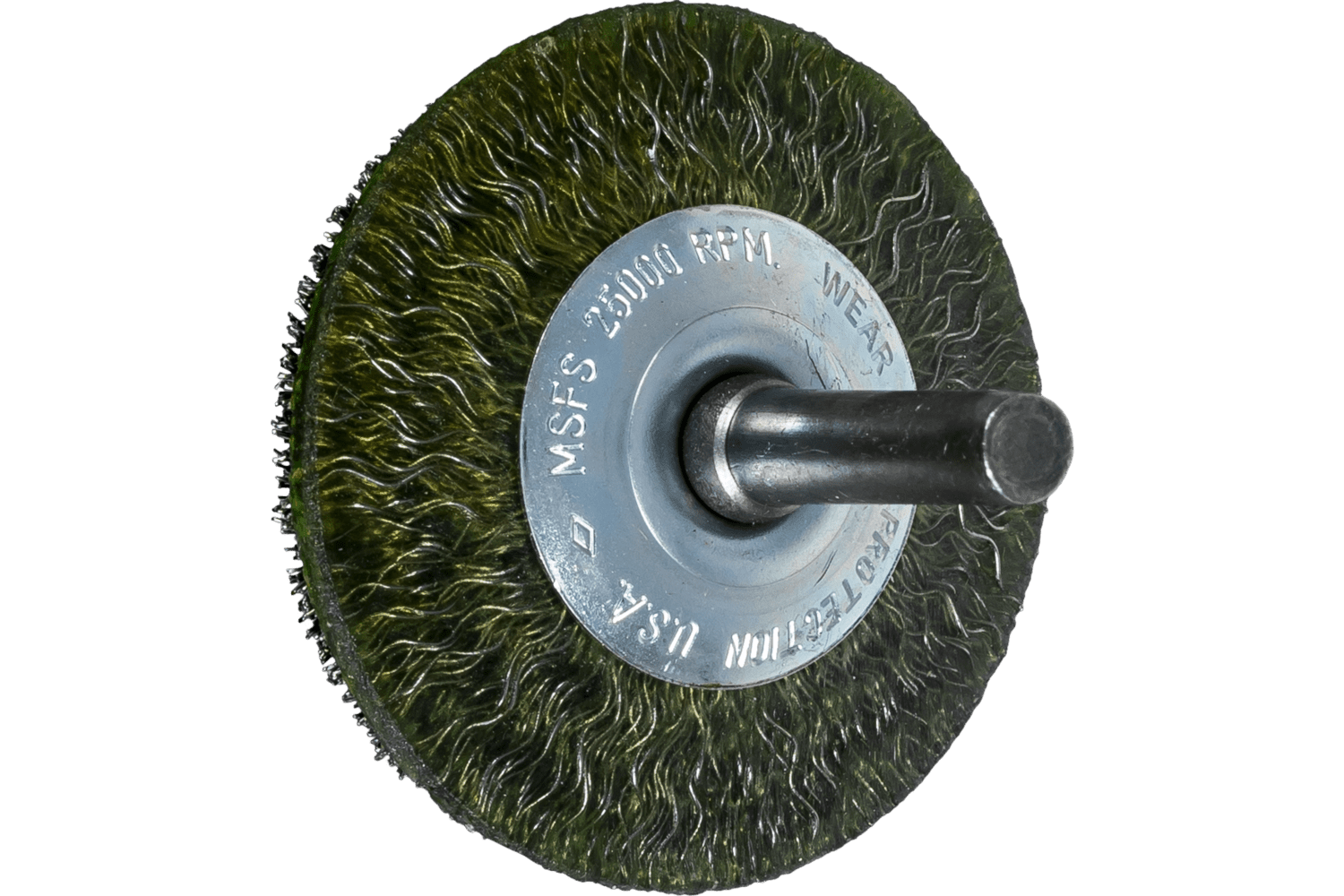

Encapsulated Crimped Wire Wheel Brush
Technical informationBrush Diameter2 InchFilament MaterialSteel wire (ST)Wire Diameter0.02 InchShank Diameter1/4 InchTrim Length7/16 InchMax. RPM17000 RPMPack Qty150Extremely aggressive brushing action, ideal for heavy-duty brushing. Wire is bonded in a synthetic elastomer material which firmly supports the wire filaments, providing precisely controlled brush face, longer brush life and very aggressive removal rates. Limited flexibility. Brushes with encapsulated steel wire are available in different hardness grades. For general use. Aggressive enough for most applications. This brush is made with brass-plated steel wire. Color: green.AdvantagesMaximum service life as premature wire breakage is prevented.Precise handling due to high dimensional stability.Ideal for cleaning narrow or hard-to-reach areas such as grooves, fillets, and inside edges.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

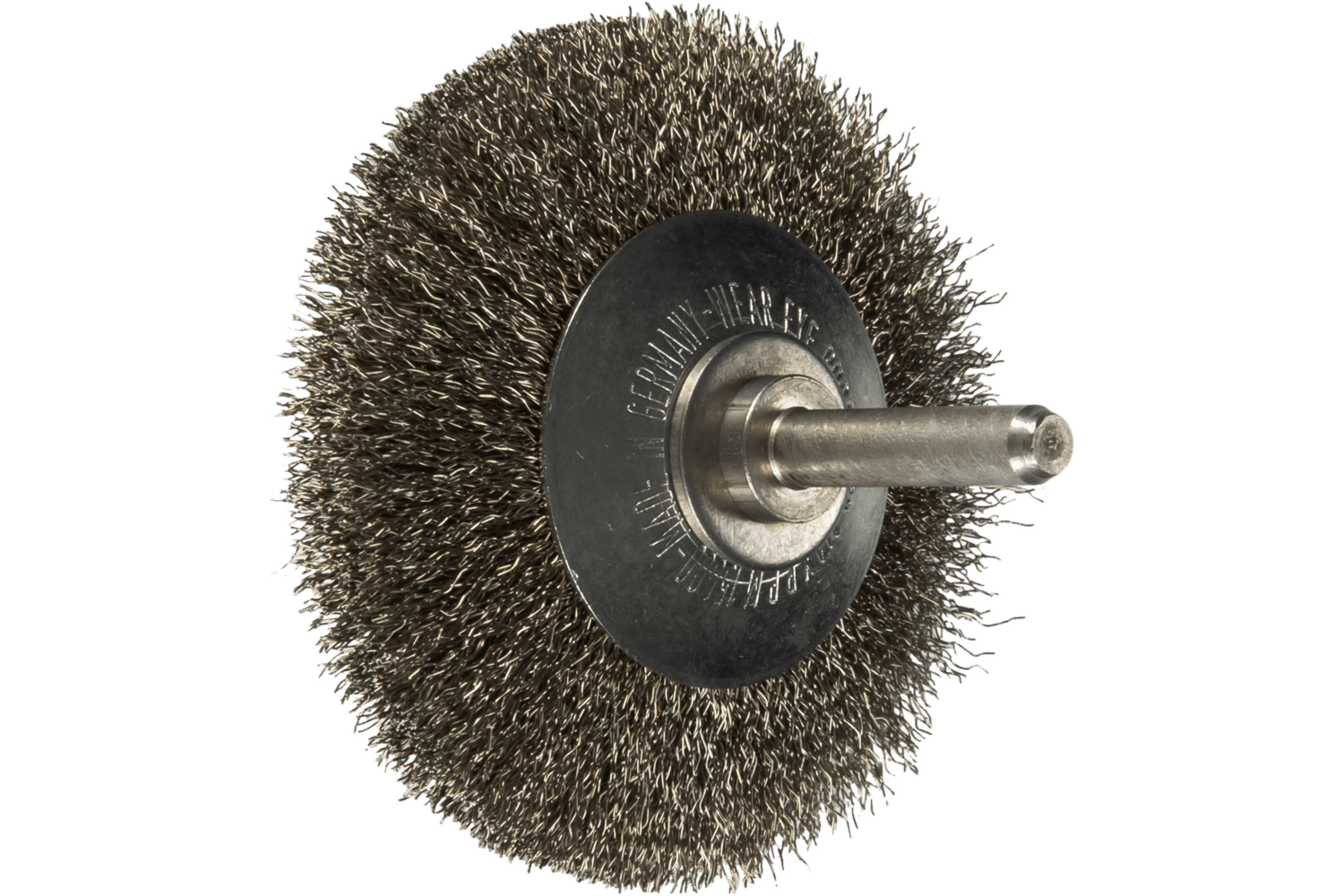

INOX-TOTAL Crimped Wire Bevel Brush
Technical informationBrush Diameter2 3/4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.008 InchShank Diameter1/4 InchTrim Length5/8 InchMax. RPM12000 RPMPack Qty10Excellent for medium-duty brushing such as deburring, cleaning, and removal of heat discoloration. In addition to brushes with a stainless steel filament, PFERD also offers brushes of the INOX-TOTAL type for work on stainless steel (INOX). It is particularly well suited to use in critical environments. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe brush is degreased and does not leave any oil residue on the workpiece.Maximum protection against corrosion as all components are produced from stainless steel (INOX) of quality 1.4310 (V2A).Highly flexible, enabling optimal adaptation to the workpiece contour.Ideal for cleaning narrow or hard-to-reach areas such as grooves, fillets, and inside edges.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

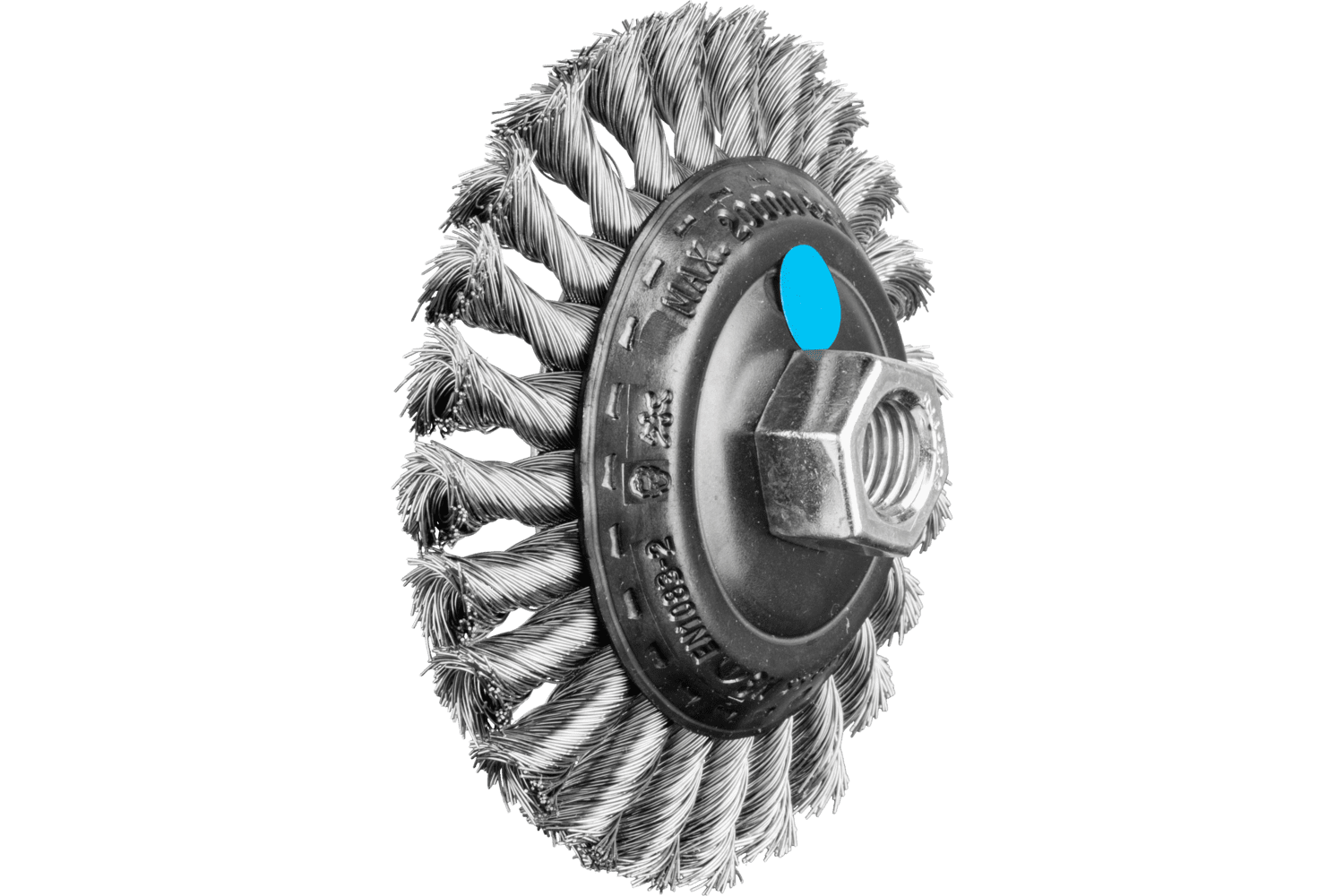

Knot Wire Bevel Brush
Technical informationBrush Diameter4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchThread / Arbor5/8-11Trim Length3/4 InchNumber of Knots22Max. RPM20000 RPMPack Qty5Aggressive brush. Excellent for heavy-duty brushing such as deburring, cleaning, derusting and descaling and removal of spatter. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesAggressive brushing action due to tightly-twisted wire knots.Ideal for cleaning narrow or hard-to-reach areas such as grooves, fillets, and inside edges.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinder

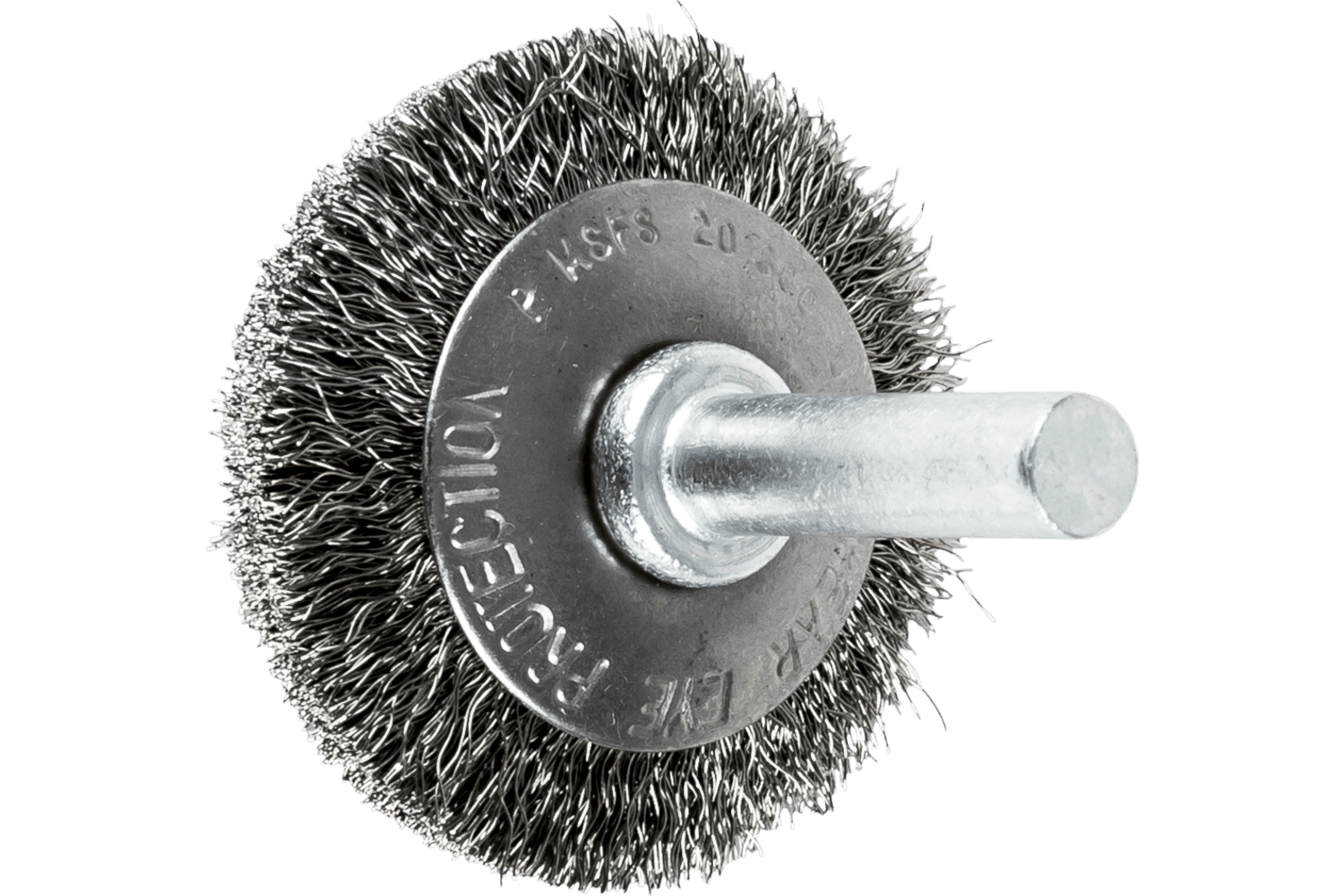

Mounted Flared Cup Brush
Technical informationBrush Diameter1 1/2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.006 InchShank Diameter1/4 InchTrim Length5/16 InchMax. RPM20000 RPMPack Qty10Excellent for medium-duty brushing such as deburring, cleaning, and derusting. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesHighly flexible, enabling optimal adaptation to the workpiece contour.Ideal for cleaning narrow or hard-to-reach areas such as grooves, fillets, and inside edges.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
