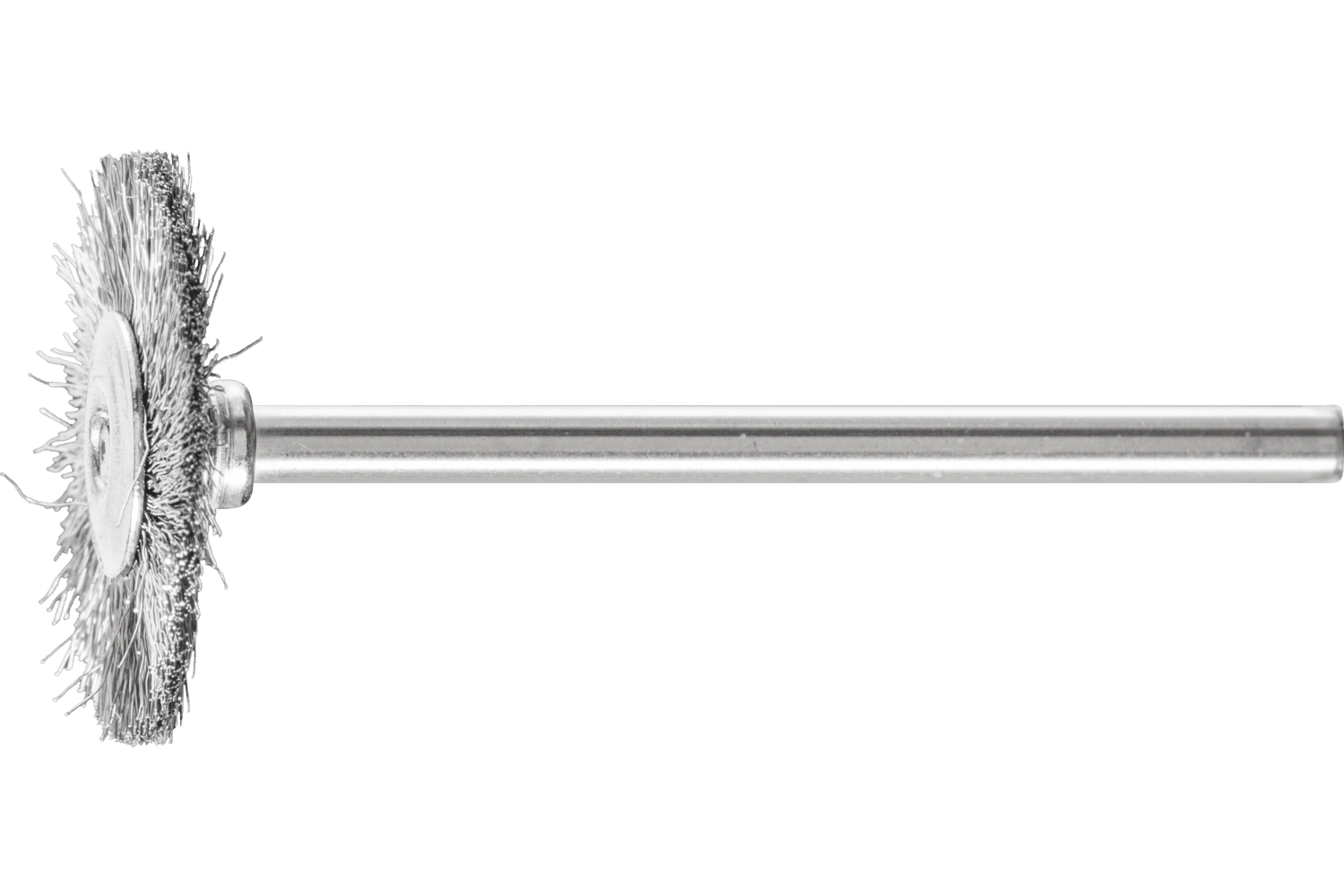

Mounted Wheel Brush, 1 Inch / Stainless steel wire (INOX)
$0.00
Product information "Mounted Wheel Brush, 1 Inch / Stainless steel wire (INOX)"
Technical information
1 Inch / Stainless steel wire (INOX)
| Brush Diameter | 1 Inch |
| Filament Material | Stainless steel wire (INOX) |
| Wire Diameter | 0.005 Inch |
| Shank Diameter | 1/8 Inch |
| Trim Length | 1/4 Inch |
| Max. RPM | 25000 RPM |
| Pack Qty | 36 |
Designed for light brushing such as deburring, cleaning and polishing. PFERD offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.
Advantages
- Maximum precision and efficiency on delicate workpieces.
- Precise handling in hard-to-reach areas.
- Very corrosion-resistant.
- Creates fine surfaces.
Applications
- Cleaning
- Deburring
- Derusting
- Removing heat discolouration
- Removing oxide layers
- Paint stripping
- Roughening
Materials that can be worked
- Soft titanium alloys (tensile strength 500 N/mm²)
- Stainless steel (INOX)
- Titanium
- Titanium alloys
- Aluminum
- Bronze
- Cobalt-based alloys
- Hard non-ferrous metal
- High-temperature-resistant materials
- Nickel-based alloys (e.g. Inconell and Hastelloy)
Drive Types
- Flexible shaft drive
- Straight grinder
Safety
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
| Drive Type: | Flexible shaft drive, Straight grinder |
|---|---|
| Filament Material: | Stainless steel wire (INOX) |
| Max. RPM: | 25000 RPM |
| Pack Qty: | 36 |
| Trim Length: | 1/4 Inch |
| Wire Diameter: | 0.005 Inch |
