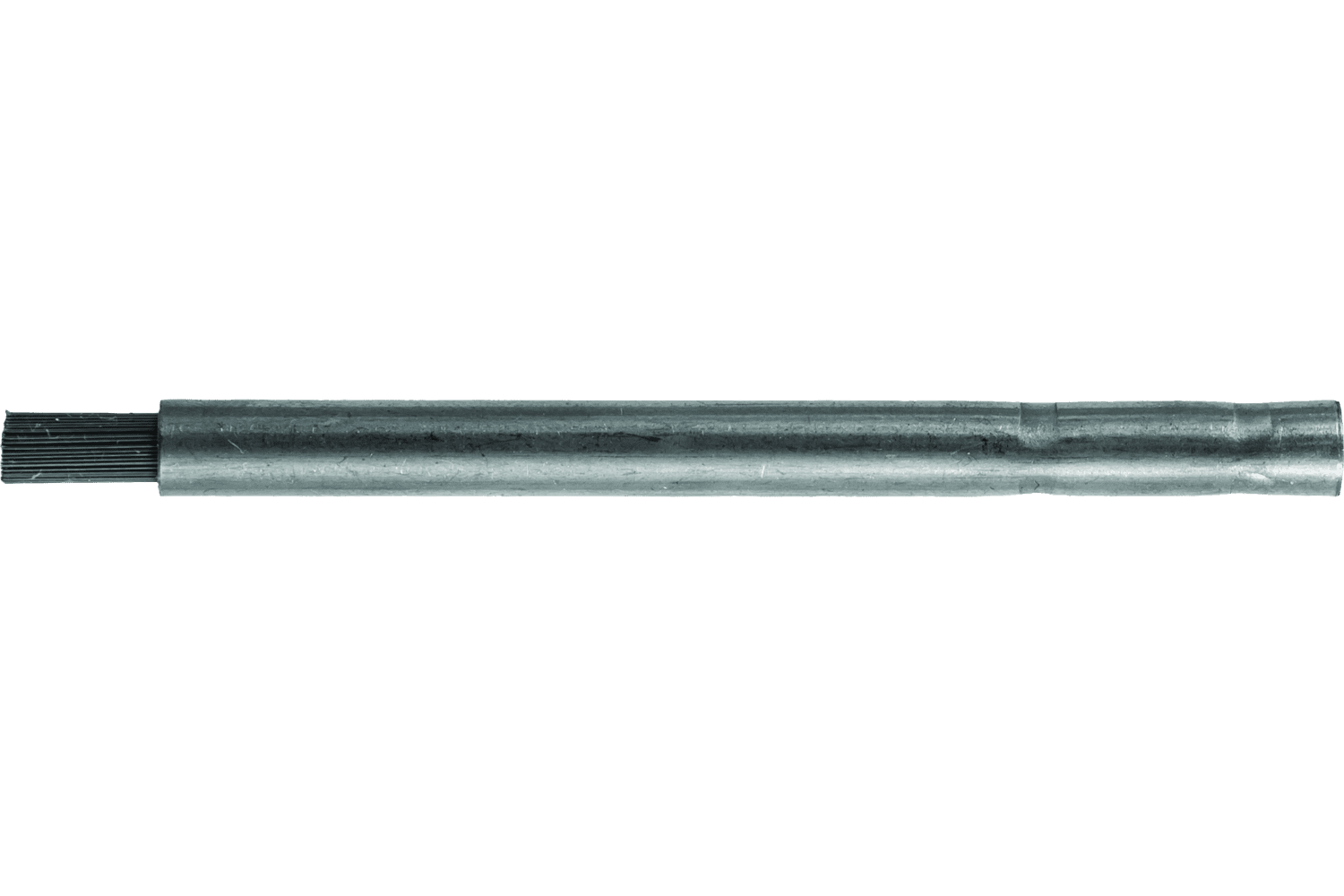

Pencil End Brush Crimped Wire Coated Cup End Brush, Steel wire (ST)
$0.00
Product information "Pencil End Brush Crimped Wire Coated Cup End Brush, Steel wire (ST)"
Technical information
Steel wire (ST)
| Brush Diameter | 3/16 Inch |
| Filament Material | Steel wire (ST) |
| Wire Diameter | 0.01 Inch |
| Shank Diameter | 1/4 Inch |
| Trim Length | 3/8 Inch |
| Max. RPM | 8000 RPM |
| Pack Qty | 10 |
For cleaning blind holes and small crevices. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.
Advantages
- The metal tube can be cut back before starting work in order to achieve a large spreading diameter or to access hard-to-reach areas.
- Cutting back the metal tube exposes the rest of the filament so that all of it can be used.
- Optimal access to hard-to-reach areas.
- Long service life through use of PFERD special wire.
- Creates fine surfaces.
Applications
- Cleaning
- Deburring
- Derusting
- Removing oxide layers
- Paint stripping
- Roughening
Materials that can be worked
- Steel, cast steel
- Steel materials with a hardness > 54 HRC
- Steels up to 370 HV (< 38 HRC)
- Wood
- Cast iron
- Cast steel
Drive Types
- Flexible shaft drive
- Power drill
- Straight grinder
Safety
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
| Brush Diameter: | 3/16 Inch |
|---|---|
| Drive Type: | Flexible shaft drive, Power drill, Straight grinder |
| Max. RPM: | 8000 RPM |
| Pack Qty: | 10 |
| Trim Length: | 3/8 Inch |
| Wire Diameter: | 0.01 Inch |
