End brushes
Circular Mounted End Brush
Technical informationBrush Diameter1 1/2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.008 InchShank Diameter1/4 InchMax. RPM14000 RPMPack Qty10Excellent for light to medium-duty cleaning and deburring work on uneven surfaces. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe brush is degreased and does not leave any oil residue on the workpiece.Highly flexible, enabling optimal adaptation to the workpiece contour.The special arrangement of the filament material means it can be used for face-side and radial brushwork at the same time.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Coil Spring Brush
Technical informationBrush Diameter3/8 InchFilament MaterialSteel wire (ST)Wire Diameter0.014 InchShank Diameter1/4 InchTrim Length1 InchMax. RPM1800 RPMPack Qty10For cleaning deep cavities, tubing, and more. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesParticularly long trim length for optimal access to hard-to-reach areas.Long service life through use of PFERD special wire.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving oxide layersPaint strippingRougheningMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)WoodCast ironCast steelDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm. The maximum permissible rotational speed is 1,800 rpm and should not be exceeded.

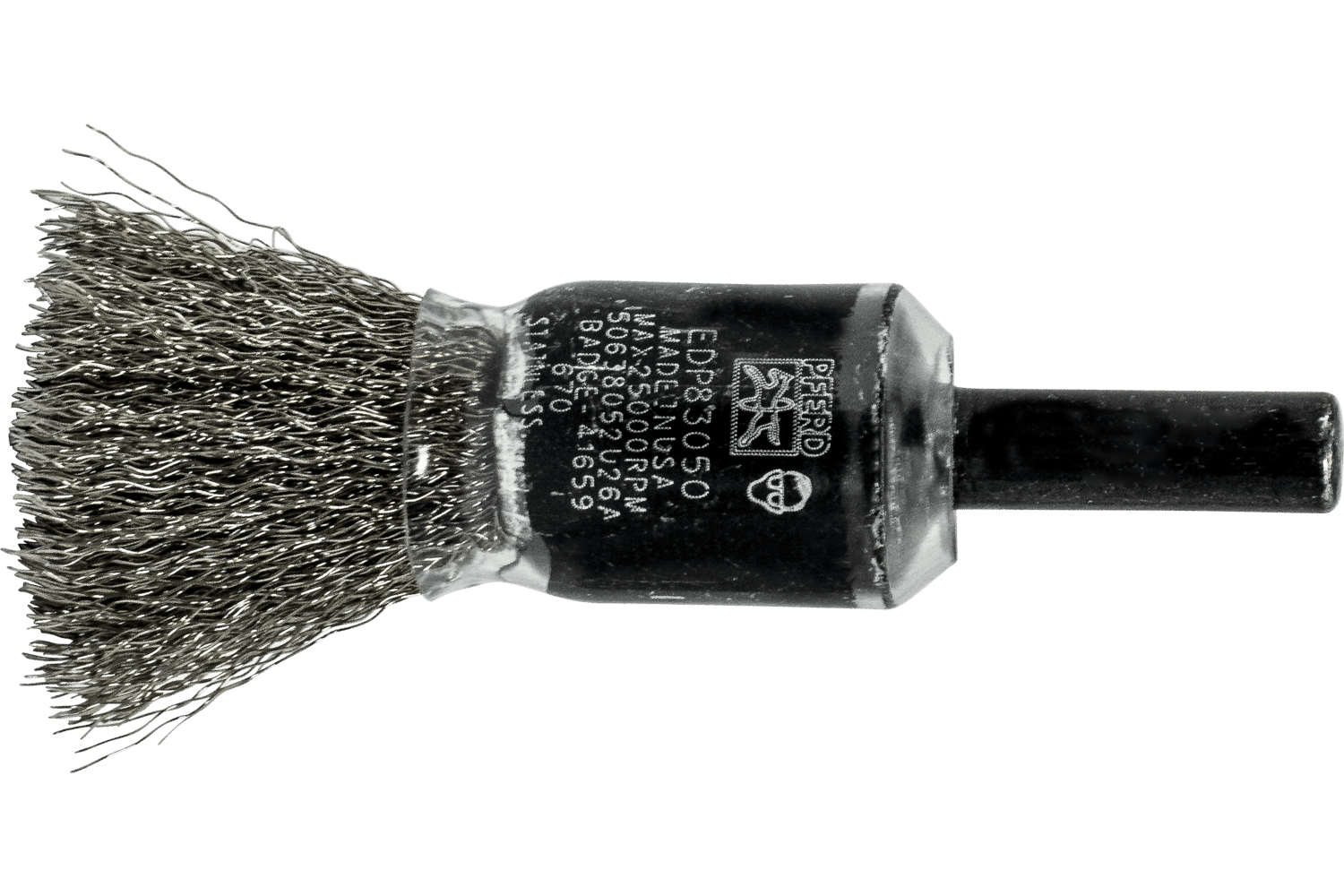

Crimped Wire Coated Cup End Brush
Technical informationBrush Diameter1/2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.006 InchShank Diameter1/4 InchTrim Length1 InchMax. RPM25000 RPMPack Qty10Designed for light brushing such as deburring, cleaning and derusting. End brush with plastic-covered brush body. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe brush is degreased and does not leave any oil residue on the workpiece.Optimal access to hard-to-reach areas, such as drilled holes and crevices, as the filament spreads out upon rotation.The plastic covering prevents the risk of corrosion.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

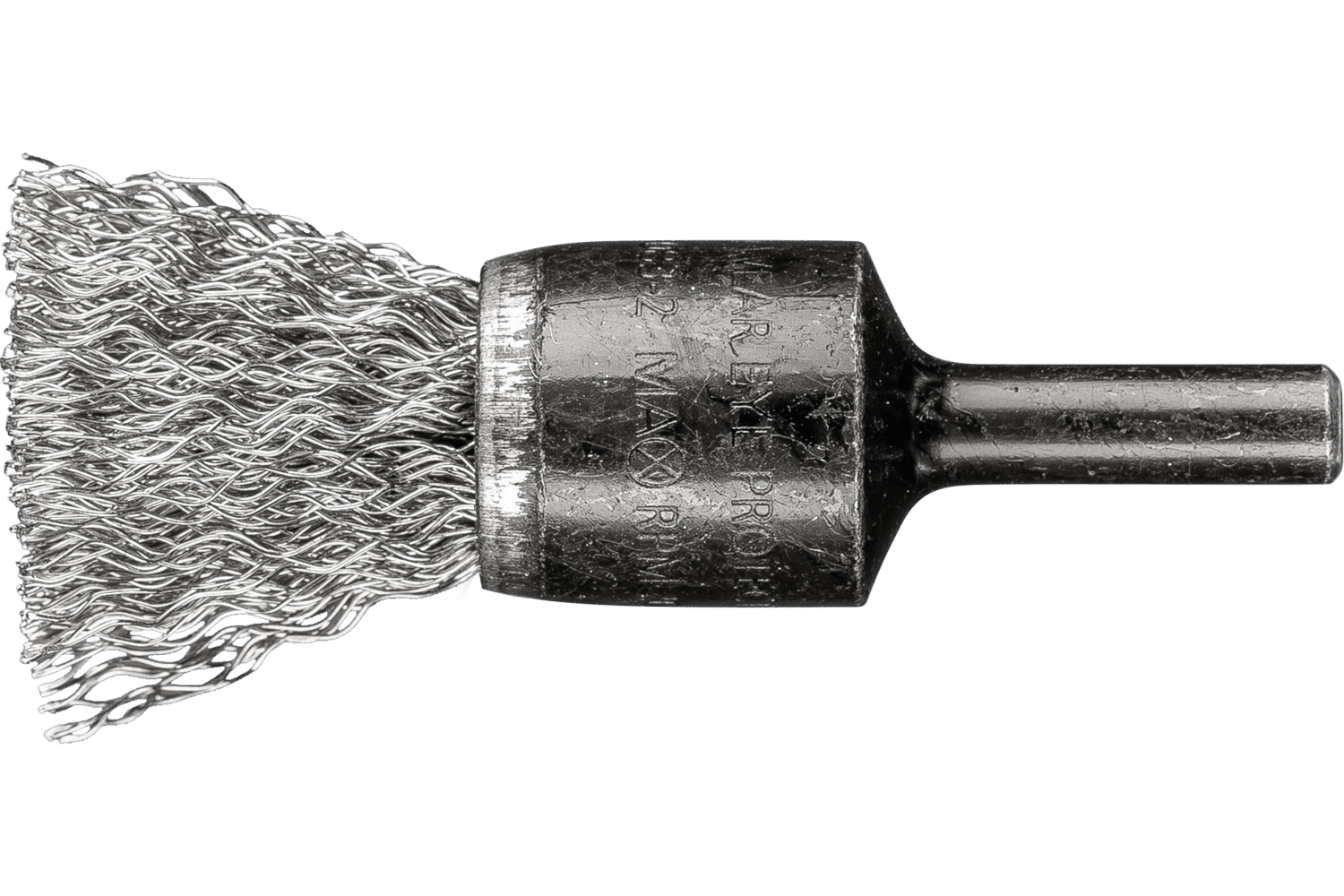

Crimped Wire End Brush PSF
Technical informationBrush Diameter3/4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.012 InchShank Diameter1/4 InchTrim Length1 InchMax. RPM20000 RPMPack Qty5Designed for light brushing such as deburring, cleaning and derusting. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesOptimal access to hard-to-reach areas, such as drilled holes and crevices, as the filament spreads out upon rotation.Packaged for retail.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

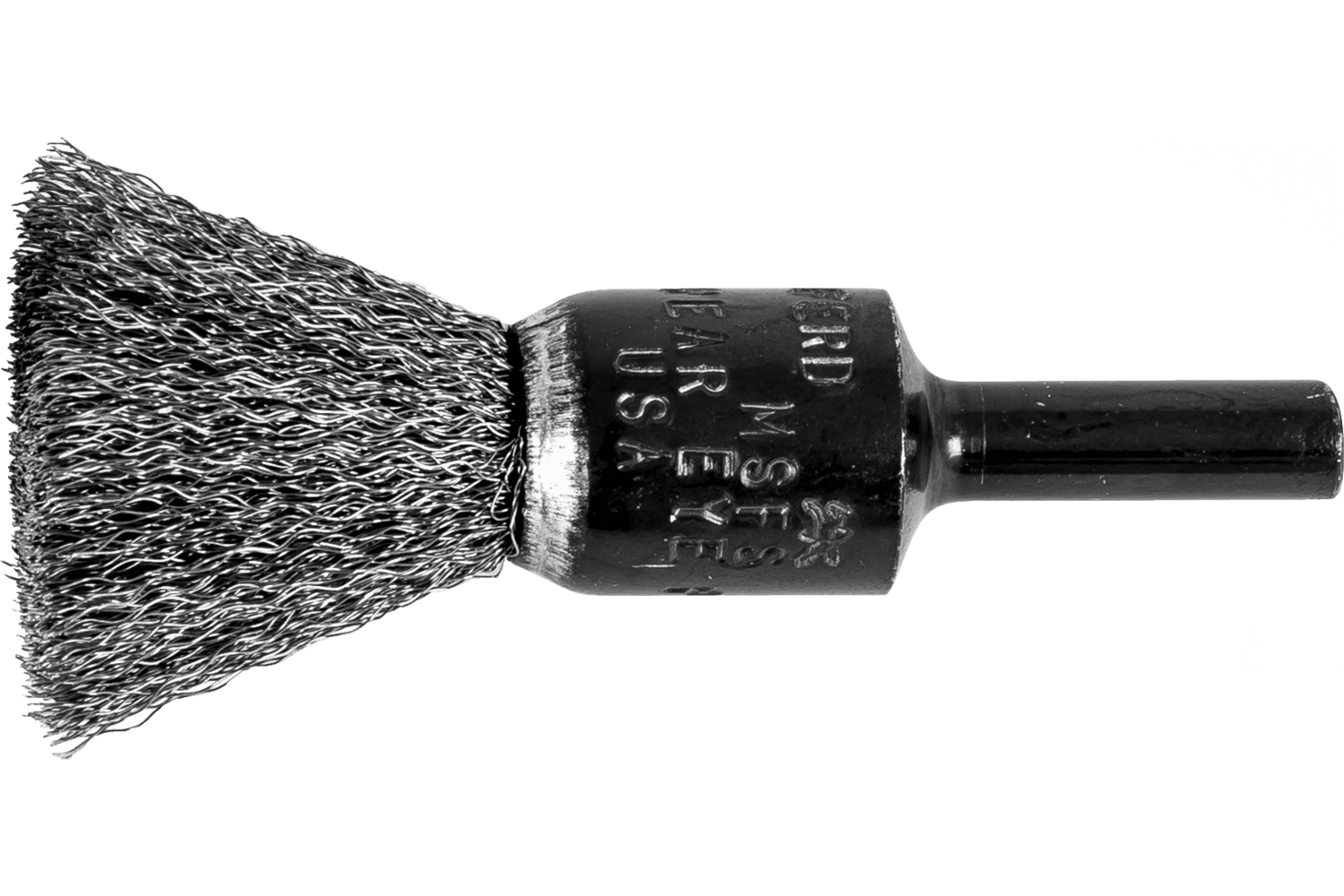

Crimped Wire End Brush
Technical informationBrush Diameter1/2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.006 InchShank Diameter1/4 InchTrim Length1 InchMax. RPM25000 RPMPack Qty10Designed for light brushing such as deburring, cleaning and derusting. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe brush is degreased and does not leave any oil residue on the workpiece.Optimal access to hard-to-reach areas, such as drilled holes and crevices, as the filament spreads out upon rotation.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

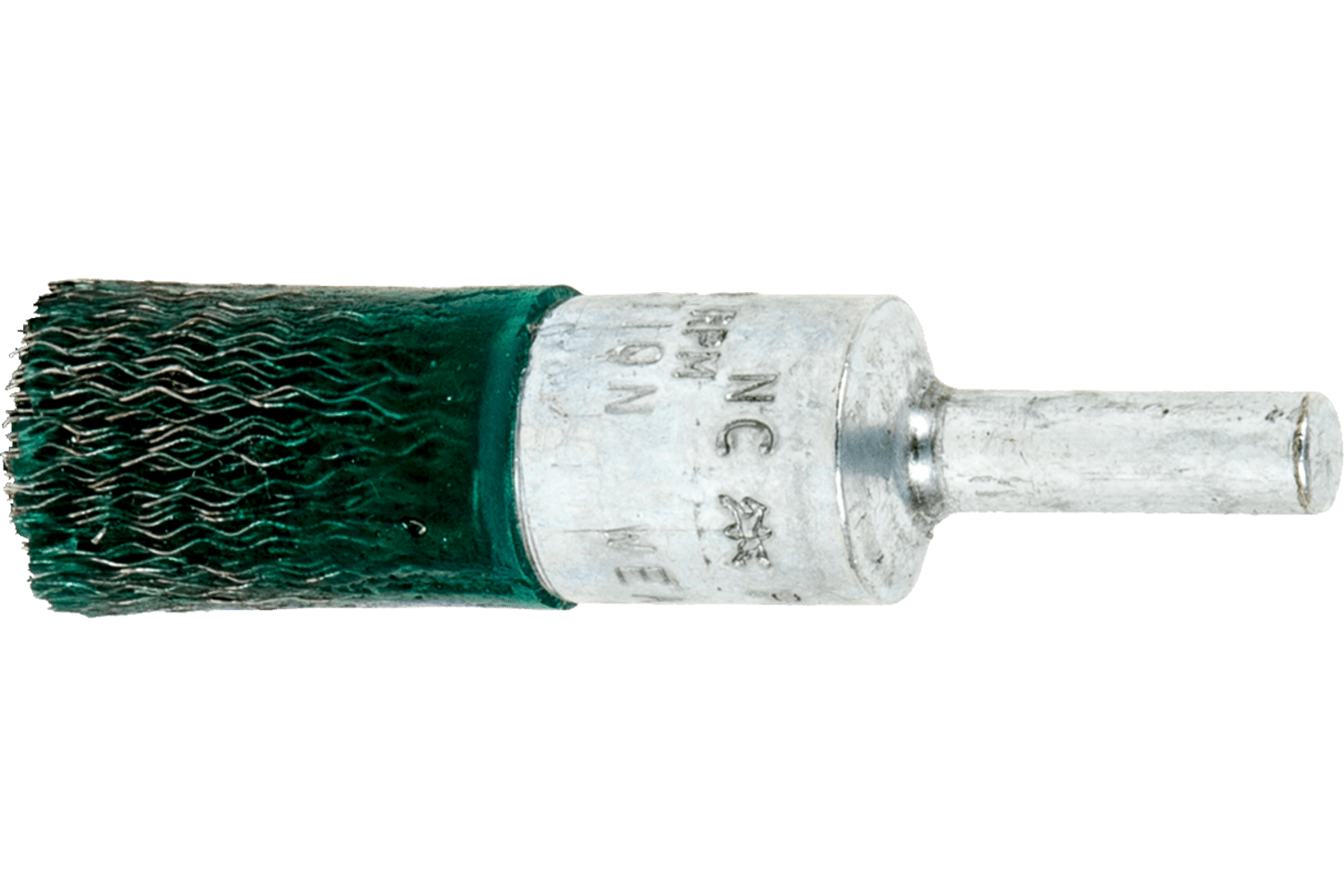

Encapsulated Crimped Wire End Brush
Technical informationBrush Diameter1/2 InchFilament MaterialSteel wire (ST)Wire Diameter0.01 InchShank Diameter1/4 InchTrim Length7/8 InchMax. RPM18000 RPMPack Qty150Extremely aggressive brushing action, ideal for heavy-duty brushing. Wire is bonded in a synthetic elastomer material which firmly supports the wire filaments, providing precisely controlled brush face, longer brush life and very aggressive removal rates. Limited flexibility. Brushes with encapsulated steel wire are available in different hardness grades. For general use. Aggressive enough for most applications. This brush is made with brass-plated steel wire. Color: green.AdvantagesPrecise handling due to high dimensional stability.Maximum service life as premature wire breakage is prevented.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

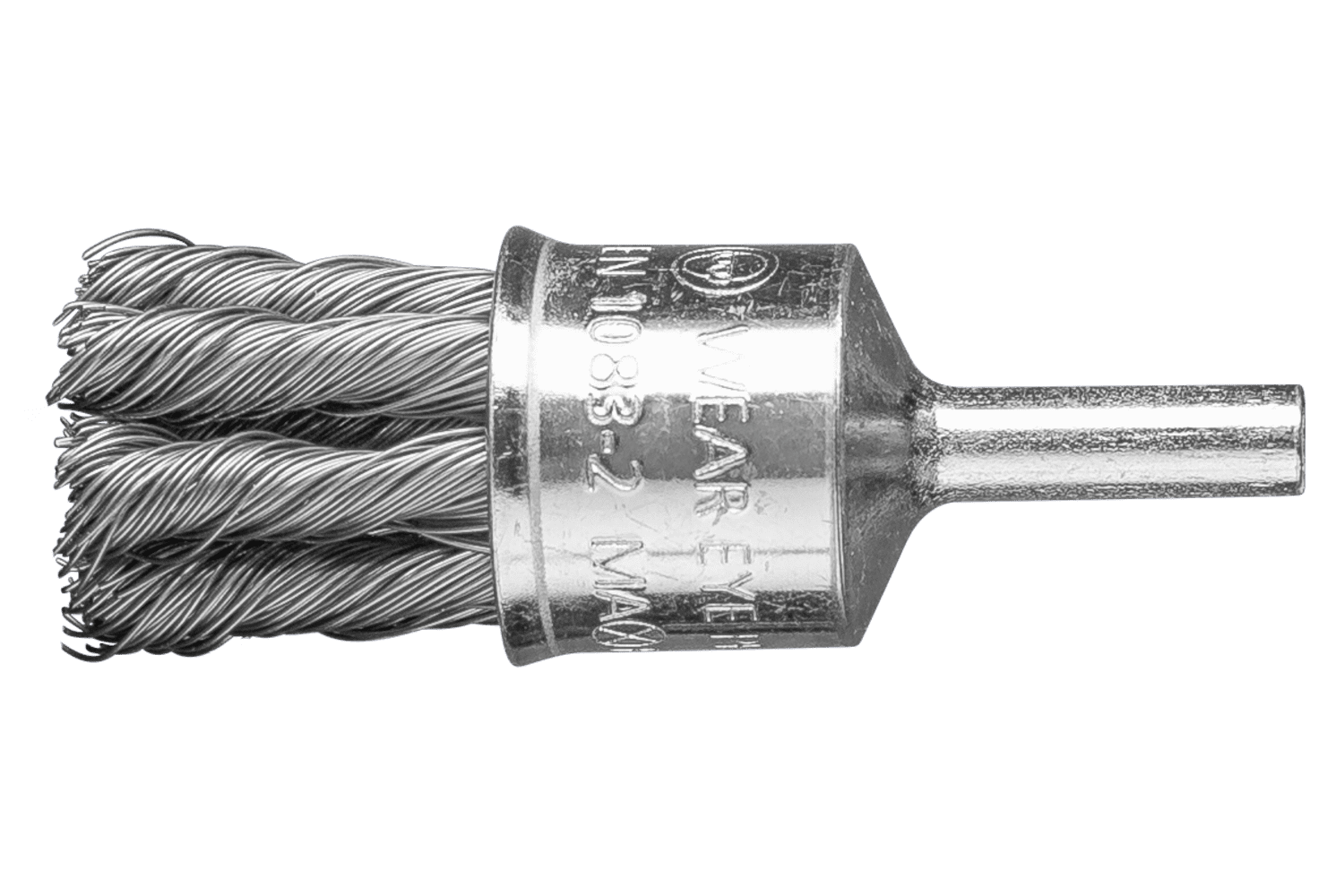

Knot Wire End Brush PSF
Technical informationBrush Diameter3/4 InchFilament MaterialSteel wire (ST)Wire Diameter0.014 InchShank Diameter1/4 InchTrim Length1 InchMax. RPM20000 RPMPack Qty5Aggressive brush. Designed for medium-duty brushing such as deburring, cleaning, derusting and descaling, as well as removing spatter. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesOptimal access to hard-to-reach areas such as recesses and drilled holes.Packaged for retail.Aggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

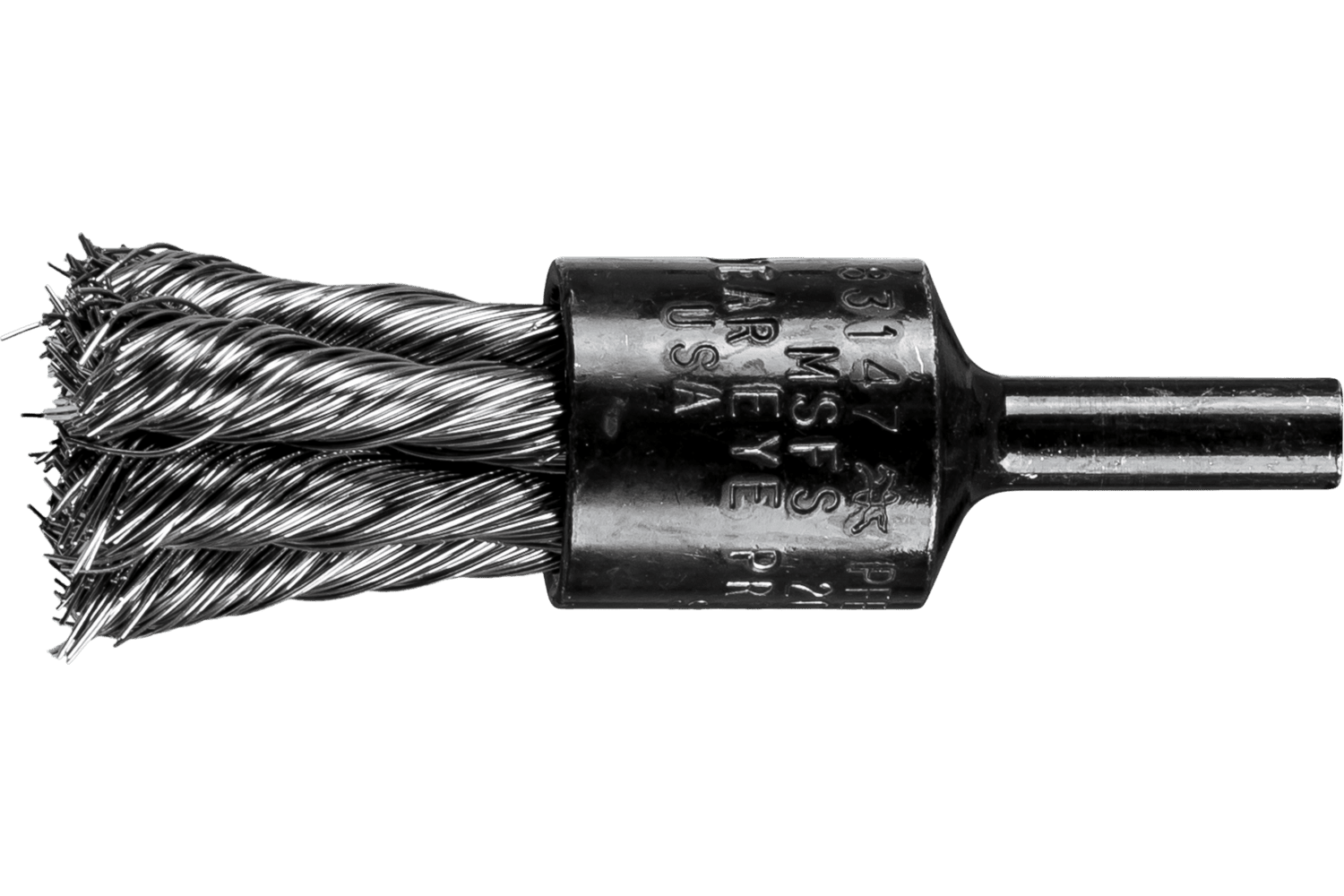

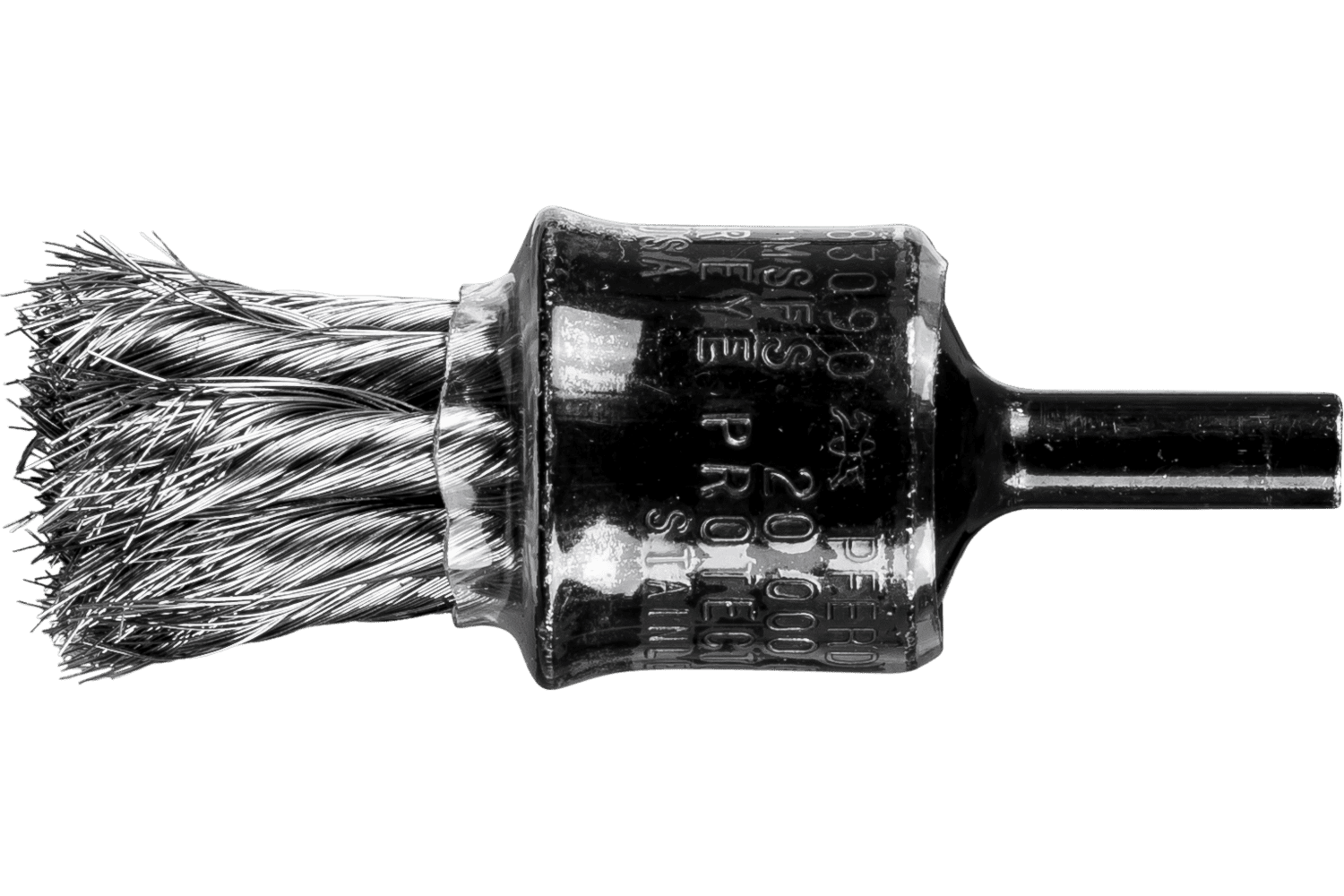

Knot Wire End Brush
Technical informationBrush Diameter3/4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.006 InchShank Diameter1/4 InchTrim Length1 InchNumber of Knots8Max. RPM20000 RPMPack Qty10Aggressive brush. Designed for medium-duty brushing such as deburring, cleaning, derusting and descaling, as well as removing spatter. End brush with plastic-covered brush body. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe brush is degreased and does not leave any oil residue on the workpiece.Optimal access to hard-to-reach areas such as recesses and drilled holes.The plastic covering prevents the risk of corrosion.Aggressive brushing action due to tightly-twisted wire knots.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Knot Wire End Brush
Technical informationBrush Diameter1/2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchShank Diameter1/4 InchTrim Length1 1/8 InchNumber of Knots6Max. RPM20000 RPMPack Qty10Aggressive brush. Designed for medium-duty brushing such as deburring, cleaning, derusting and descaling, as well as removing spatter. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F. The brush is degreased and does not leave any oil residue on the workpiece.AdvantagesAggressive brushing action due to tightly-twisted wire knots.Optimal access to hard-to-reach areas such as recesses and drilled holes.Reduced flare for more precise surface contact.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

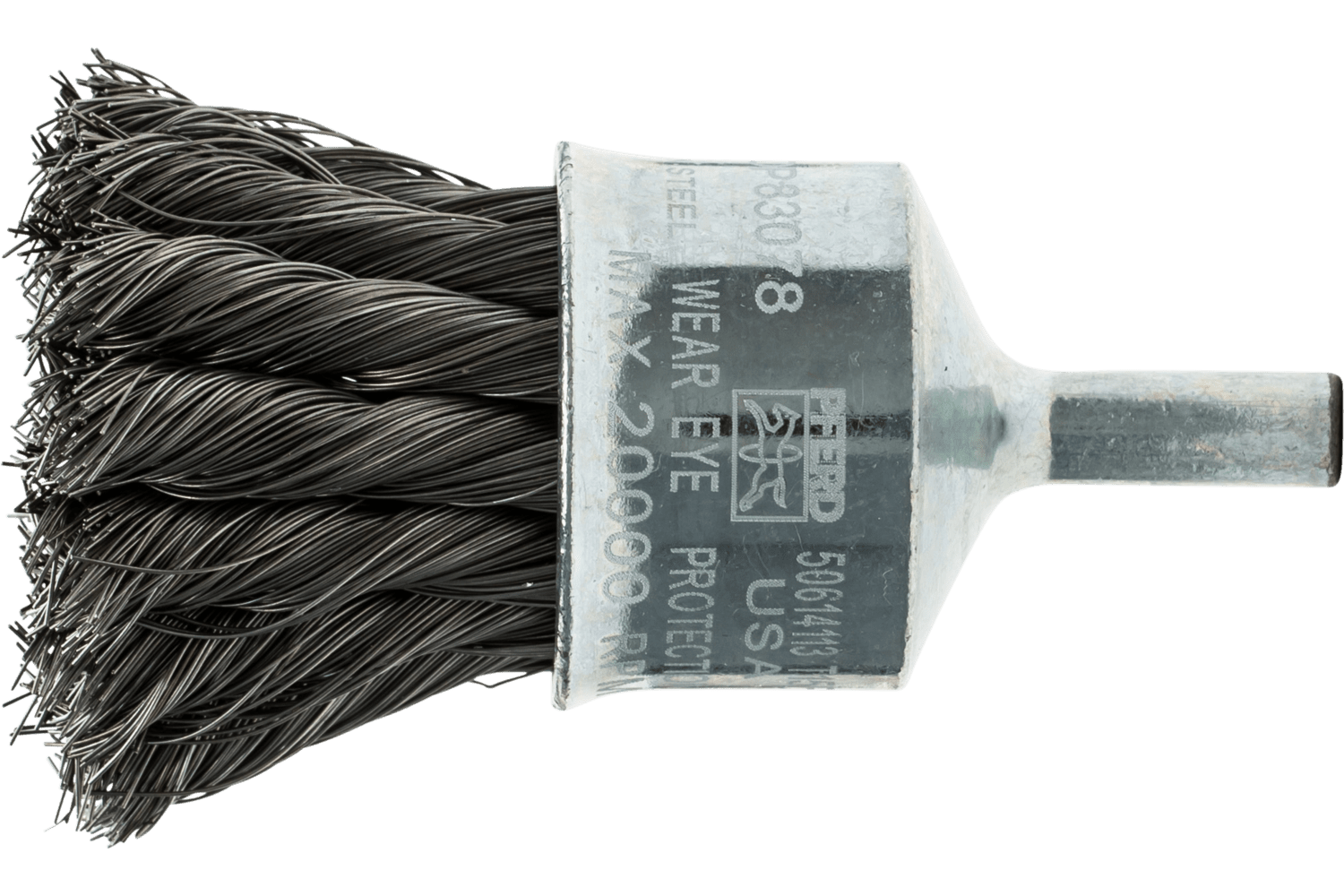

Knot Wire End Brush
Technical informationBrush Diameter1 InchFilament MaterialSteel wire (ST)Wire Diameter0.006 InchShank Diameter1/4 InchTrim Length1 InchNumber of Knots12Max. RPM20000 RPMPack Qty10Aggressive brush. Designed for medium-duty brushing such as deburring, cleaning, derusting and descaling, as well as removing spatter. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesOptimal access to hard-to-reach areas such as recesses and drilled holes.Aggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

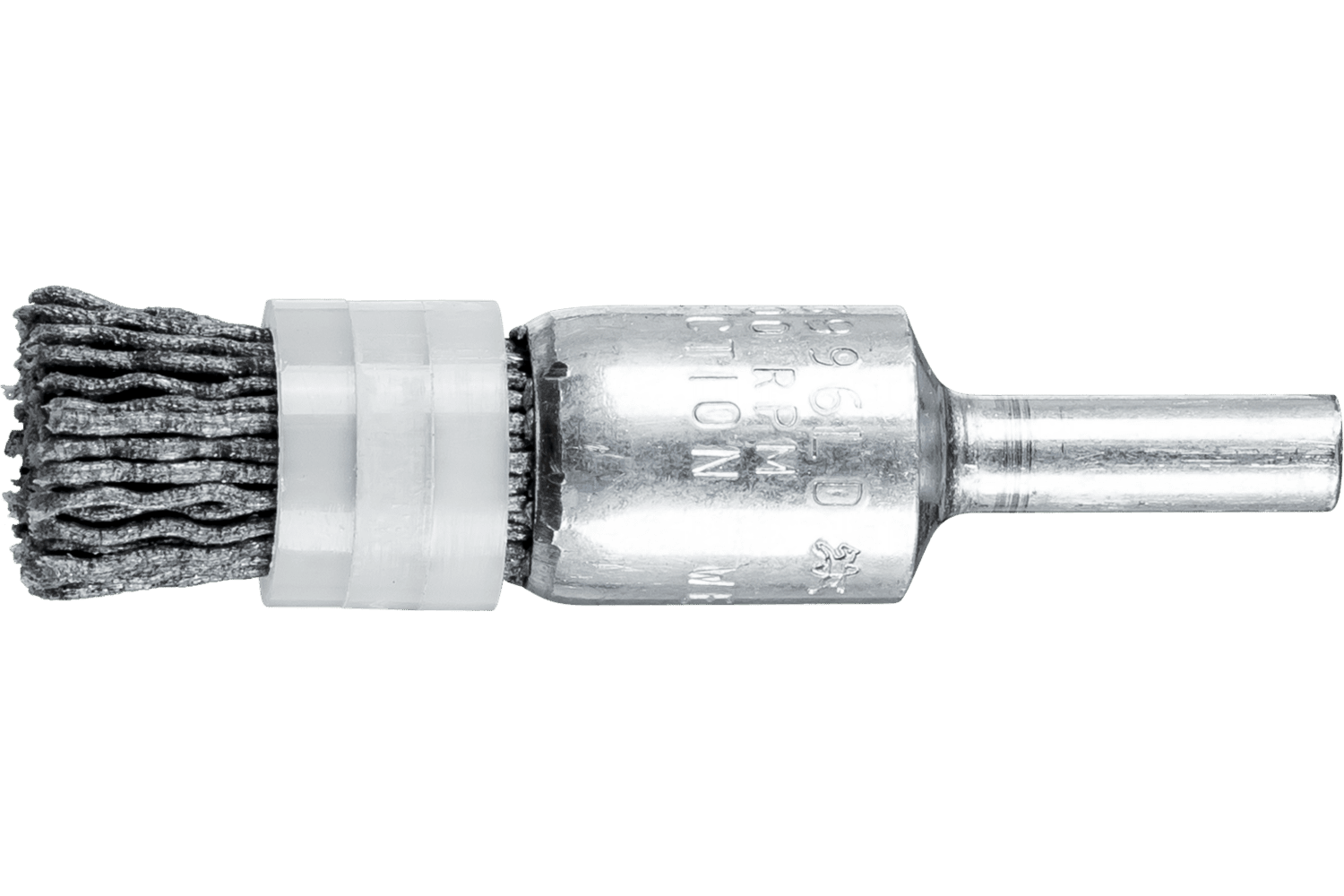

M-BRAD® End Brush - Banded
Technical informationBrush Diameter1/2 InchFilament MaterialSilicon carbide (SiC)Wire Diameter0.04 InchGrit Size120Shank Diameter1/4 InchTrim Length1 InchMax. RPM20000 RPMPack Qty10Designed for light brushing such as deburring, cleaning and derusting. Silicon carbide (SiC) filament brushes are designed for deburring work and surface improvement. Plastic filaments are temperature-resistant up to 410°F.AdvantagesThe bridle prevents the wires spreading out sideways.The bridle enables the spreading out and flexibility of the brush filament to be strictly controlled.Optimal access to hard-to-reach areas such as recesses and drilled holes.If the filament has worn away down to the bridle, it can be removed from the bridle for further use. This does not affect the brushing behavior.Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.ApplicationsCleaningDeburringRougheningStructuring (matt finishing, brush matting and satin finishing)Materials that can be workedStainless steel (INOX)Steel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodAluminumBronzeCast ironCast steelDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
M-BRAD® Mounted Disc Brush
Technical informationBrush Diameter1 InchFilament MaterialCeramic oxide grain (CO)Wire Diameter0.04 InchGrit Size80Shank Diameter1/4 InchTrim Length1 1/8 InchMax. RPM5000 RPMPack Qty1Ideal for deburring and work on surfaces on stationary machines. Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable mounting options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labor-intensive, manual work is reduced and repeatable results are achieved with short cycle times. Brushes with ceramic oxide grain (CO) offer good toughness and excellent sharpness. For high stock removal and aggressive brushing action. Plastic filaments are temperature-resistant up to 410°F.AdvantagesLong tool life and aggressive brushing action due to the high filament density.Extremely smooth operation due to evenly distributed filament material.Optimal access to hard-to-reach areas, such as drilled holes and crevices, as the filament spreads out upon rotation.The bridle prevents the wires spreading out sideways.If the filament has worn away down to the bridle, the bridle can be removed to extend the life of the brush. This does not affect the brushing behavior.The bridle enables the spreading out and flexibility of the brush filament to be controlled.Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.For particularly aggressive machining and for creating a high surface quality.ApplicationsCleaningDeburringStructuring (matt finishing, brush matting and satin finishing)Materials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Steel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)TitaniumTitanium alloysAluminumBronzeCast ironCast steelDrive TypesFlexible shaft driveTool machinePower drillRobotStationary machinesStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

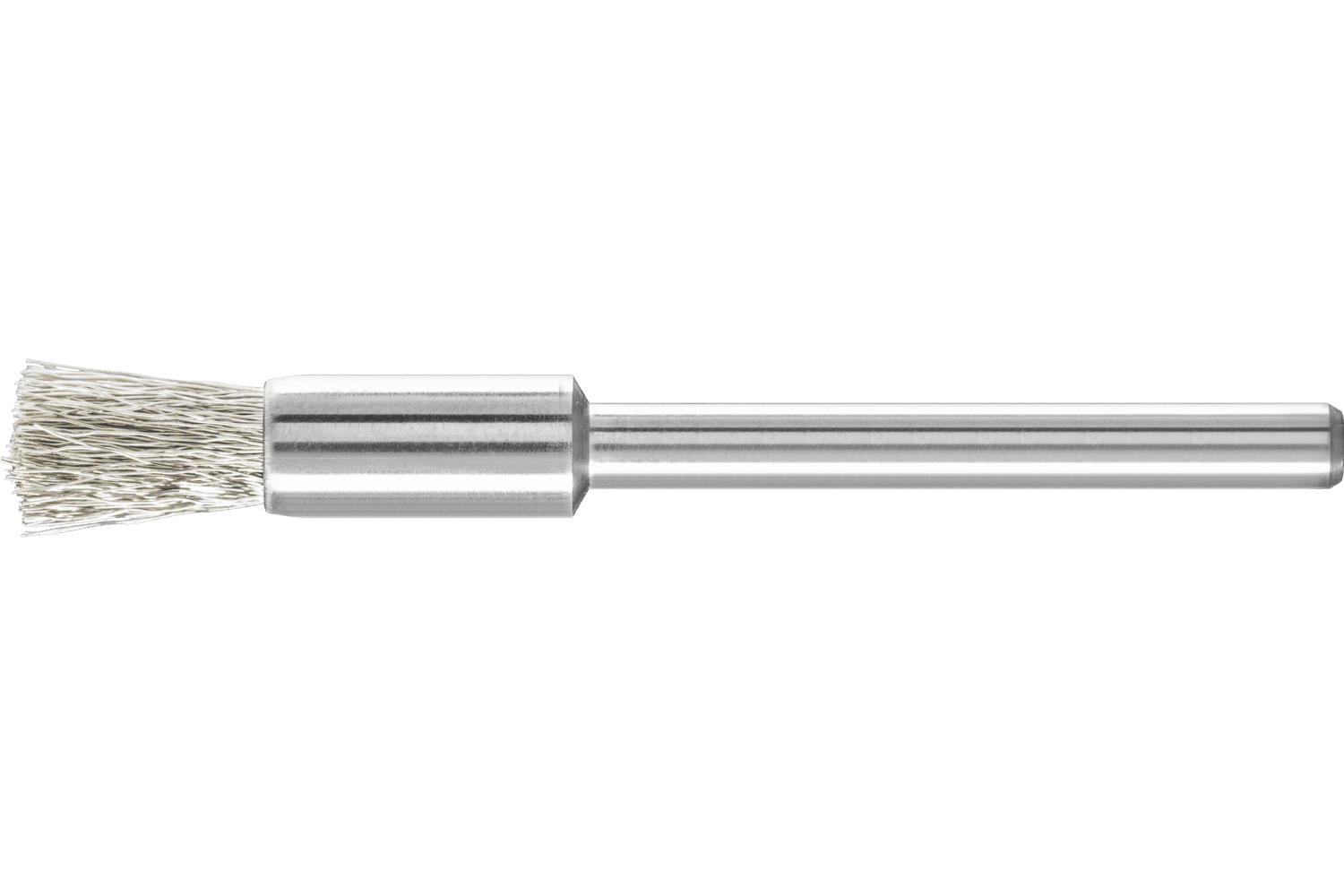

Miniature End Brush
Technical informationBrush Diameter1/4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.005 InchShank Diameter1/8 InchTrim Length7/16 InchMax. RPM25000 RPMPack Qty36Designed for light brushing such as deburring, cleaning and polishing. PFERD offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesMaximum precision and efficiency on delicate workpieces.Optimal access to hard-to-reach areas, such as drilled holes and crevices, as the filament spreads out upon rotation.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft driveStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

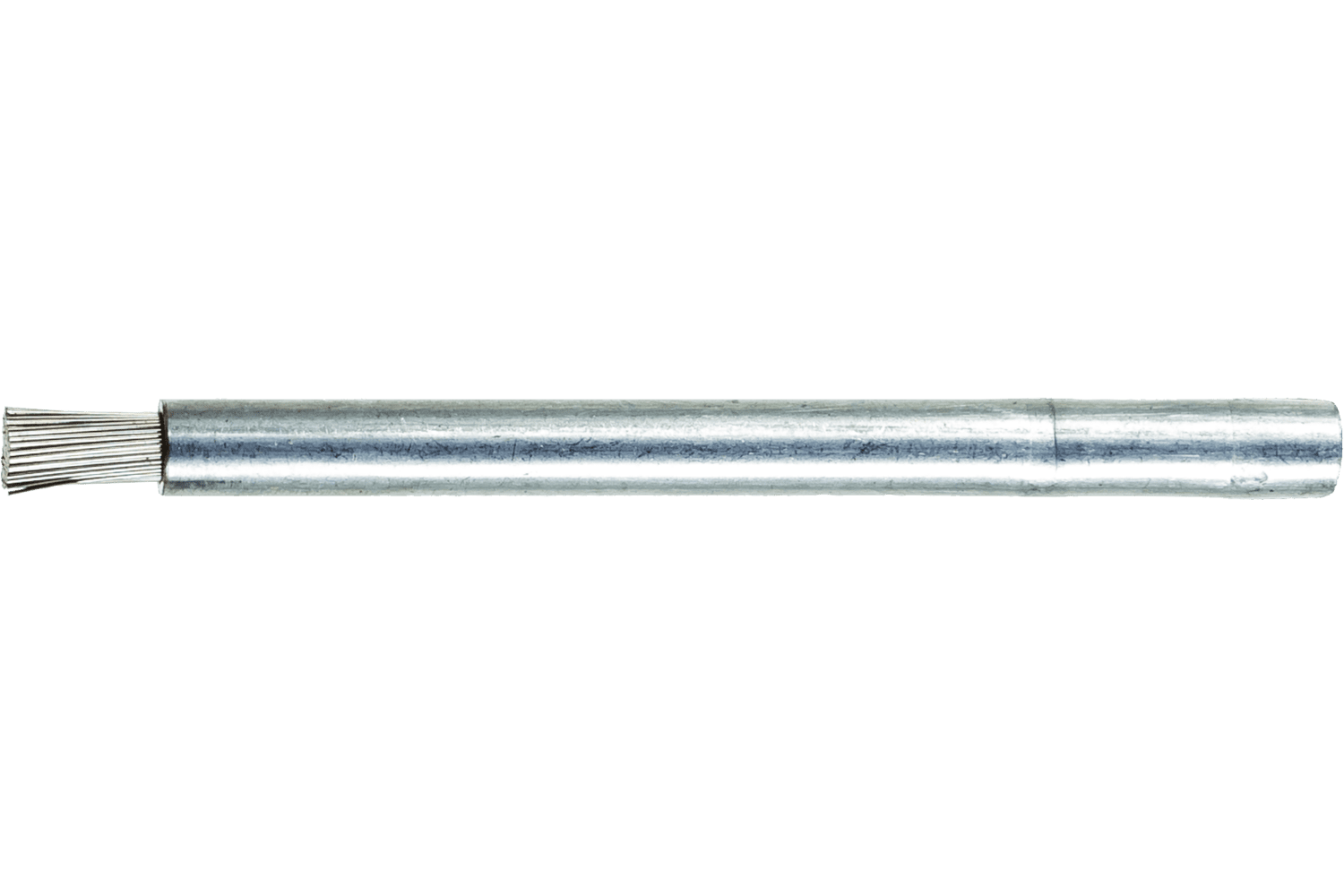

Pencil End Brush Crimped Wire Coated Cup End Brush
Technical informationBrush Diameter3/16 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.012 InchShank Diameter1/4 InchTrim Length3/8 InchMax. RPM8000 RPMPack Qty10For cleaning blind holes and small crevices. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe metal tube can be cut back before starting work in order to achieve a large spreading diameter or to access hard-to-reach areas.Cutting back the metal tube exposes the rest of the filament so that all of it can be used.Optimal access to hard-to-reach areas.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

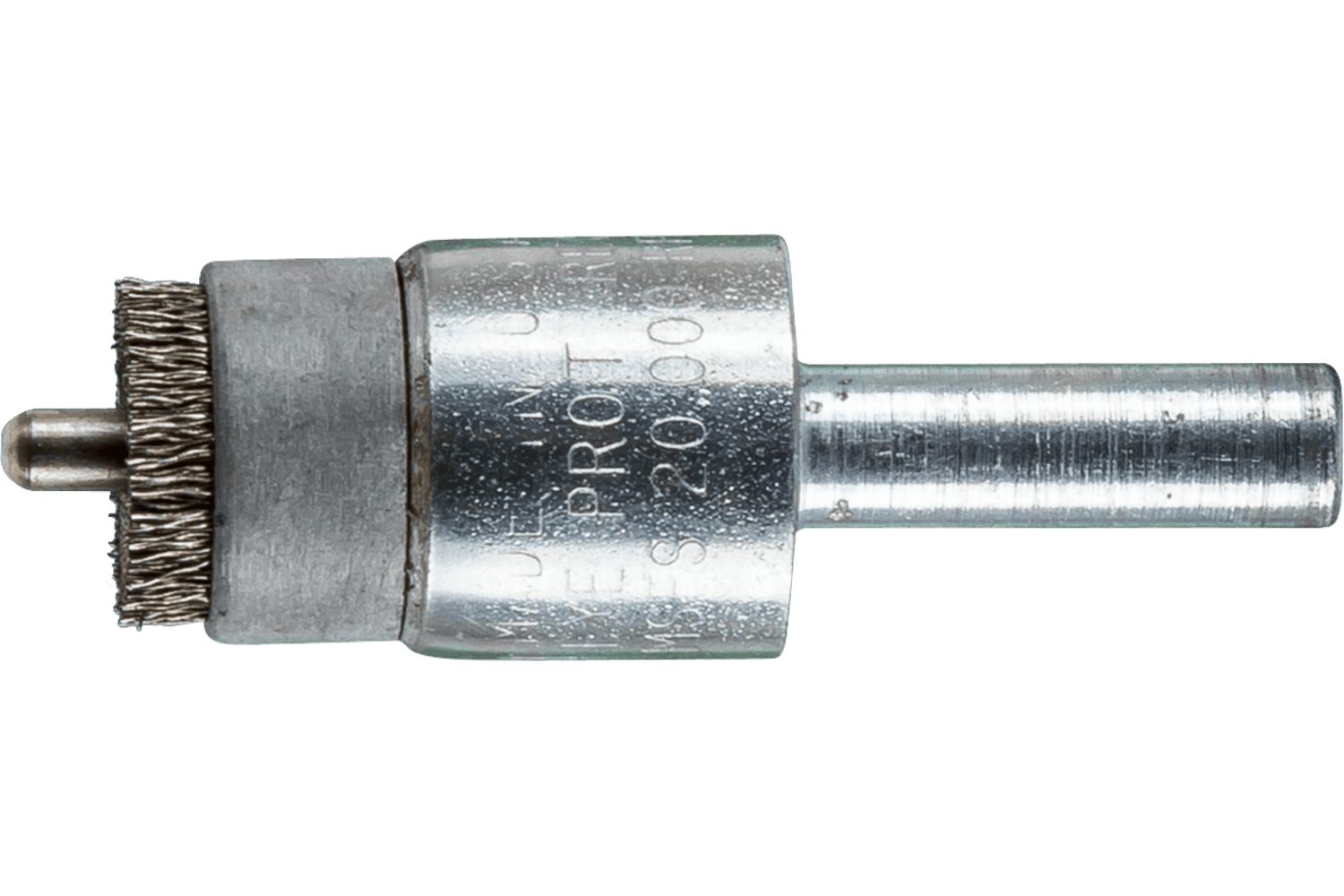

Pilot End Brush
Technical informationBrush Diameter1/2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.005 InchShank Diameter1/4 InchTrim Length1/8 InchMax. RPM20000 RPMPack Qty10Excellent for cleaning rivets in the aviation sector. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe centering pin enables precise brushing.Tailored to the standard diameters in the aviation industry.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

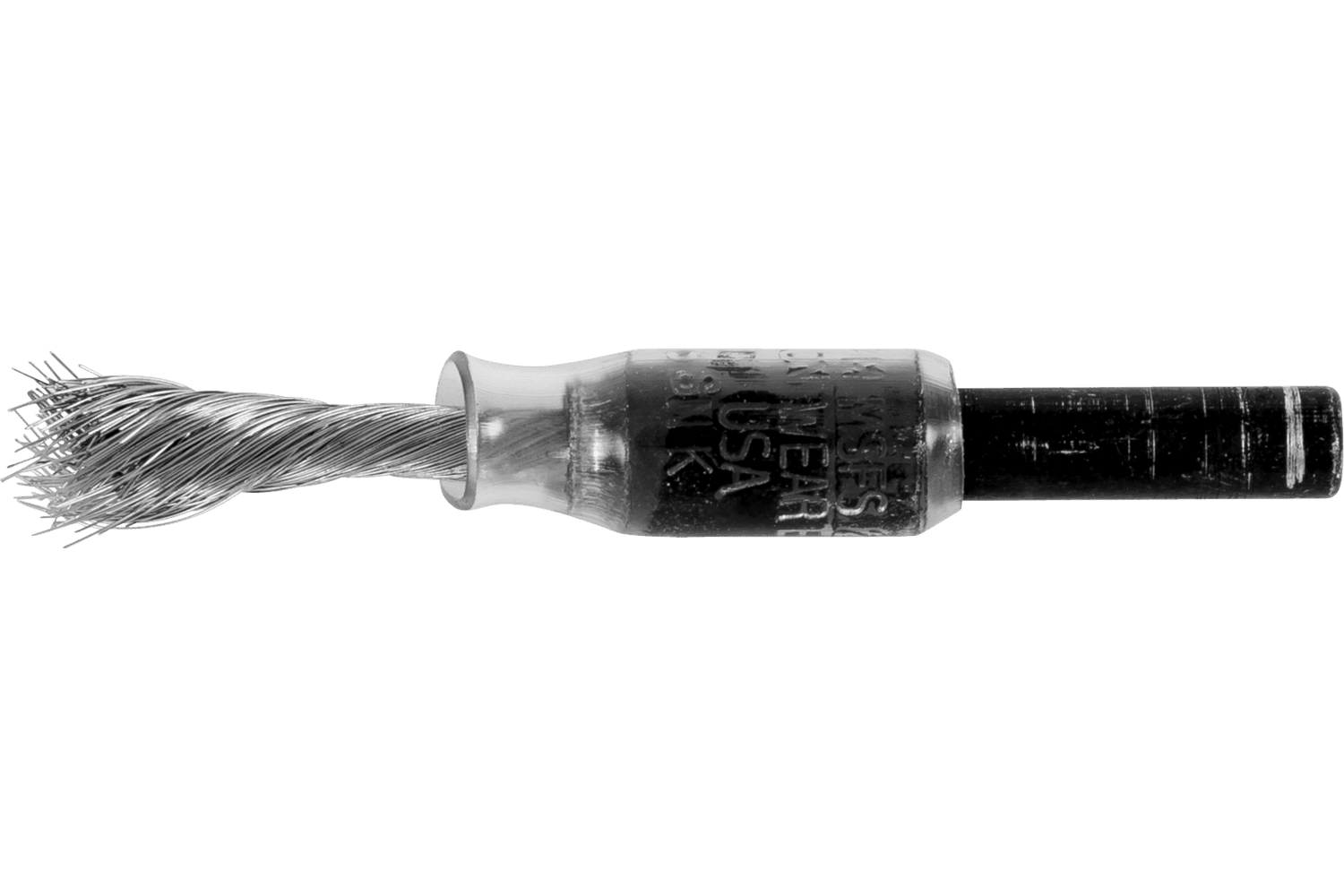

SINGLETWIST® Knot End Brush
Technical informationBrush Diameter1/4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.006 InchShank Diameter1/4 InchTrim Length1 1/8 InchNumber of Knots1Max. RPM20000 RPMPack Qty10Innovative and flexible single-knot brush for special applications. End brush with plastic-covered brush body. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe brush is degreased and does not leave any oil residue on the workpiece.Optimal access to hard-to-reach areas such as inside corners, as the knot is less likely to unravel.The plastic covering prevents the risk of corrosion.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

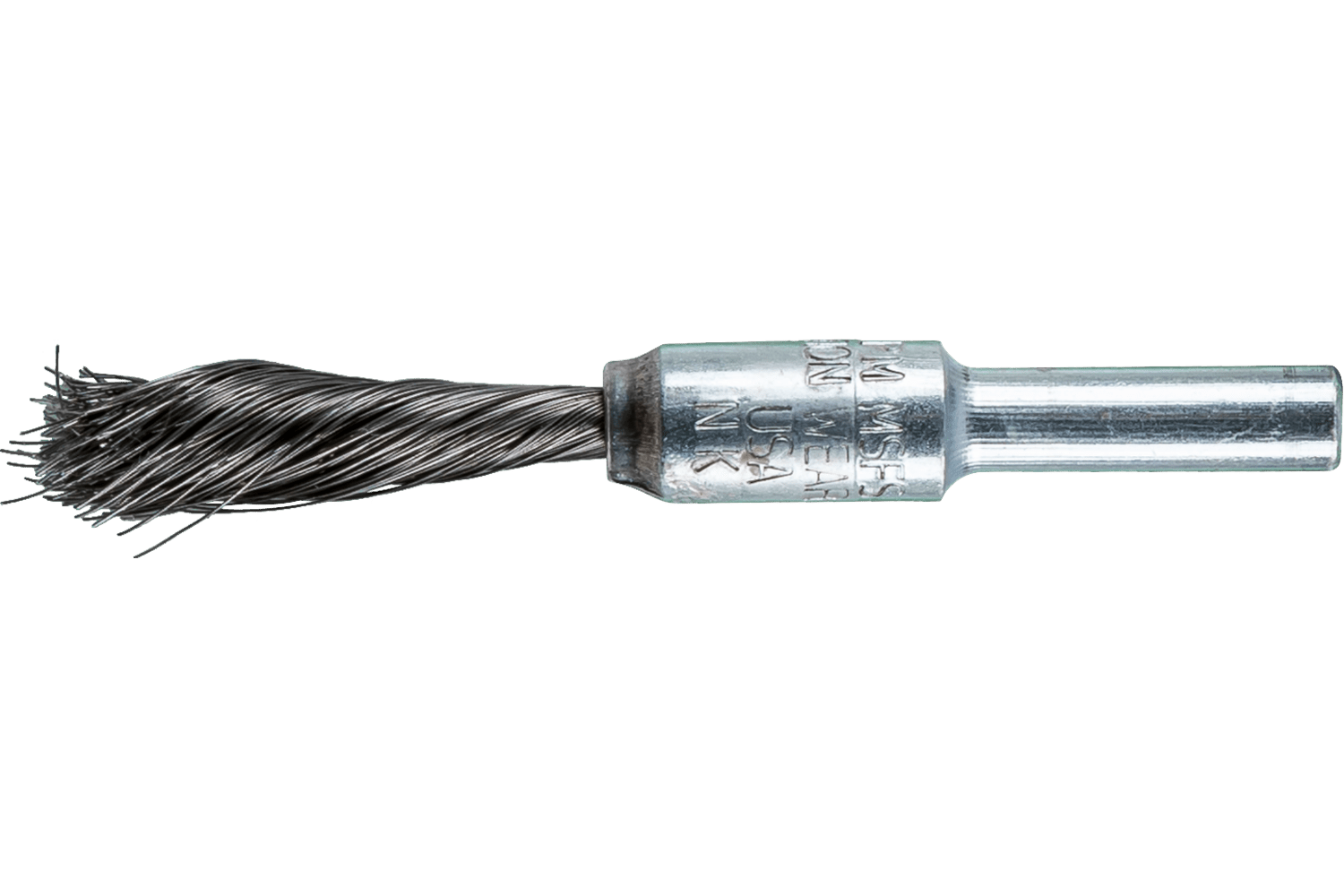

SINGLETWIST® Knot
Technical informationBrush Diameter1/4 InchFilament MaterialSteel wire (ST)Wire Diameter0.006 InchShank Diameter1/4 InchTrim Length1 1/8 InchNumber of Knots1Max. RPM20000 RPMPack Qty10Innovative and flexible single-knot brush for special applications. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesOptimal access to hard-to-reach areas such as inside corners, as the knot is less likely to unravel.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
