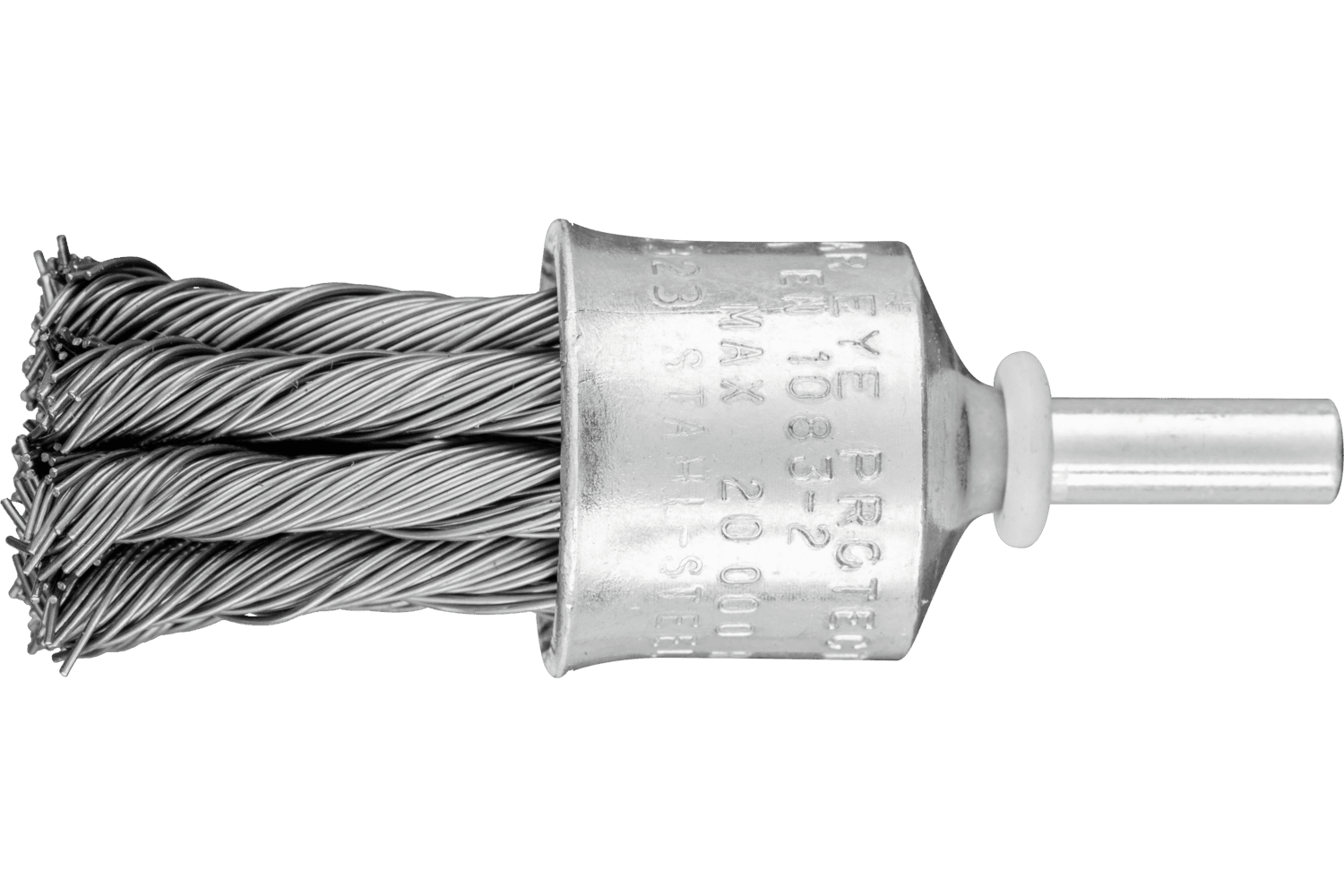

Knot Wire End Brush, 3/4 Inch / Steel wire (ST), 79183073
$0.00
Product information "Knot Wire End Brush, 3/4 Inch / Steel wire (ST), 79183073"
Technical information
3/4 Inch / Steel wire (ST), 79183073
| Brush Diameter | 3/4 Inch |
| Filament Material | Steel wire (ST) |
| Wire Diameter | 0.02 Inch |
| Shank Diameter | 1/4 Inch |
| Trim Length | 1 Inch |
| Number of Knots | 8 |
| Max. RPM | 20000 RPM |
| Pack Qty | 10 |

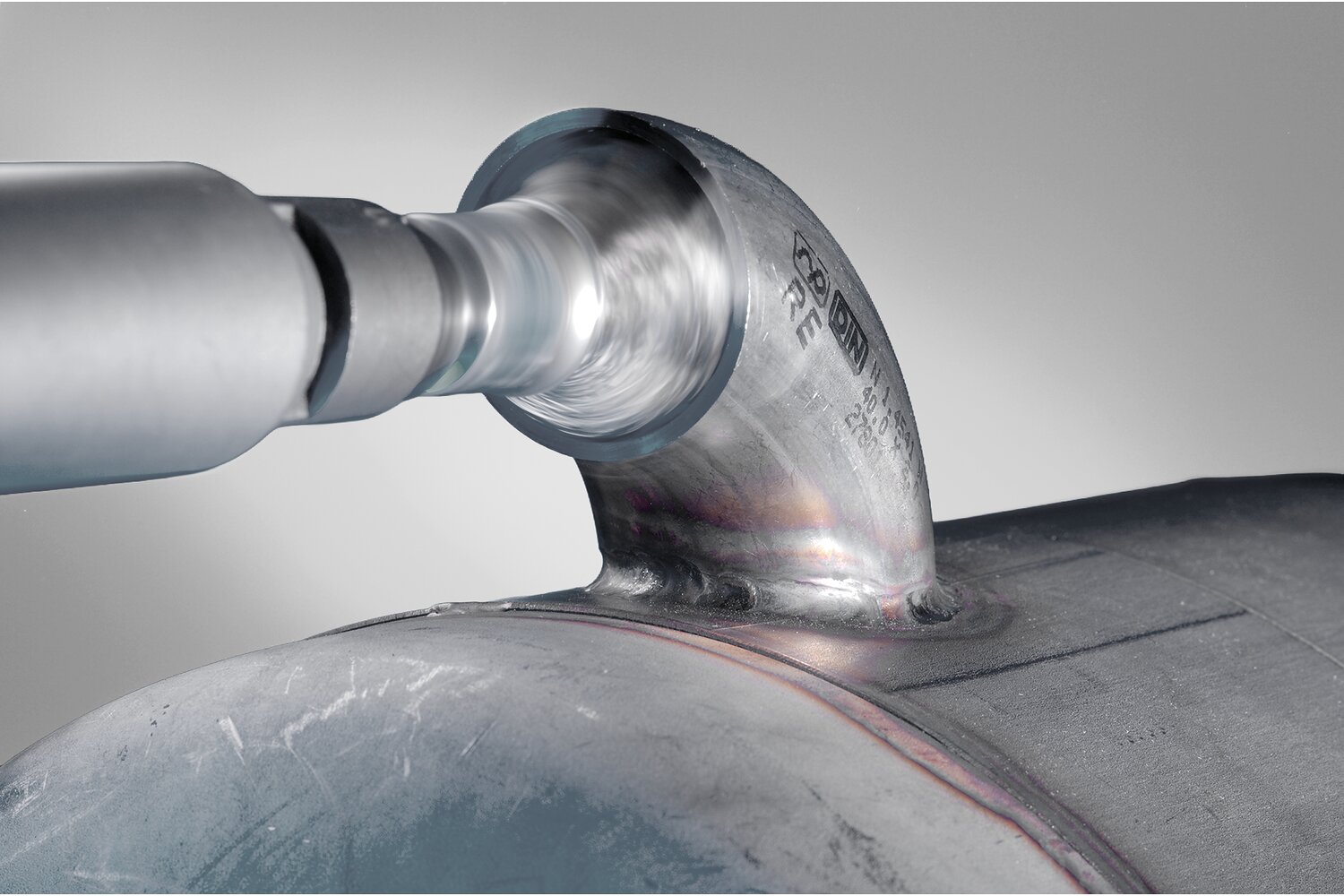

Aggressive brush. Designed for medium-duty brushing such as deburring, cleaning, derusting and descaling, as well as removing spatter. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.
Advantages
- Optimal access to hard-to-reach areas such as recesses and drilled holes.
- Aggressive brushing action due to tightly-twisted wire knots.
- Long service life through use of PFERD special wire.
Applications
- Cleaning
- Deburring
- Derusting
- Descaling
- Removing oxide layers
- Paint stripping
- Root seam processing
- Work on weld seams
- Work on fillet welds
Materials that can be worked
- Steel, cast steel
- Steel materials with a hardness > 54 HRC
- Steels up to 370 HV (< 38 HRC)
- Cast iron
- Cast steel
Drive Types
- Flexible shaft drive
- Power drill
- Straight grinder
Safety
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
| Drive Type: | Flexible shaft drive, Power drill, Straight grinder |
|---|---|
| Filament Material: | Steel wire (ST) |
| Max. RPM: | 20000 RPM |
| Pack Qty: | 10 |
| Trim Length: | 1 Inch |
| Wire Diameter: | 0.02 Inch |
