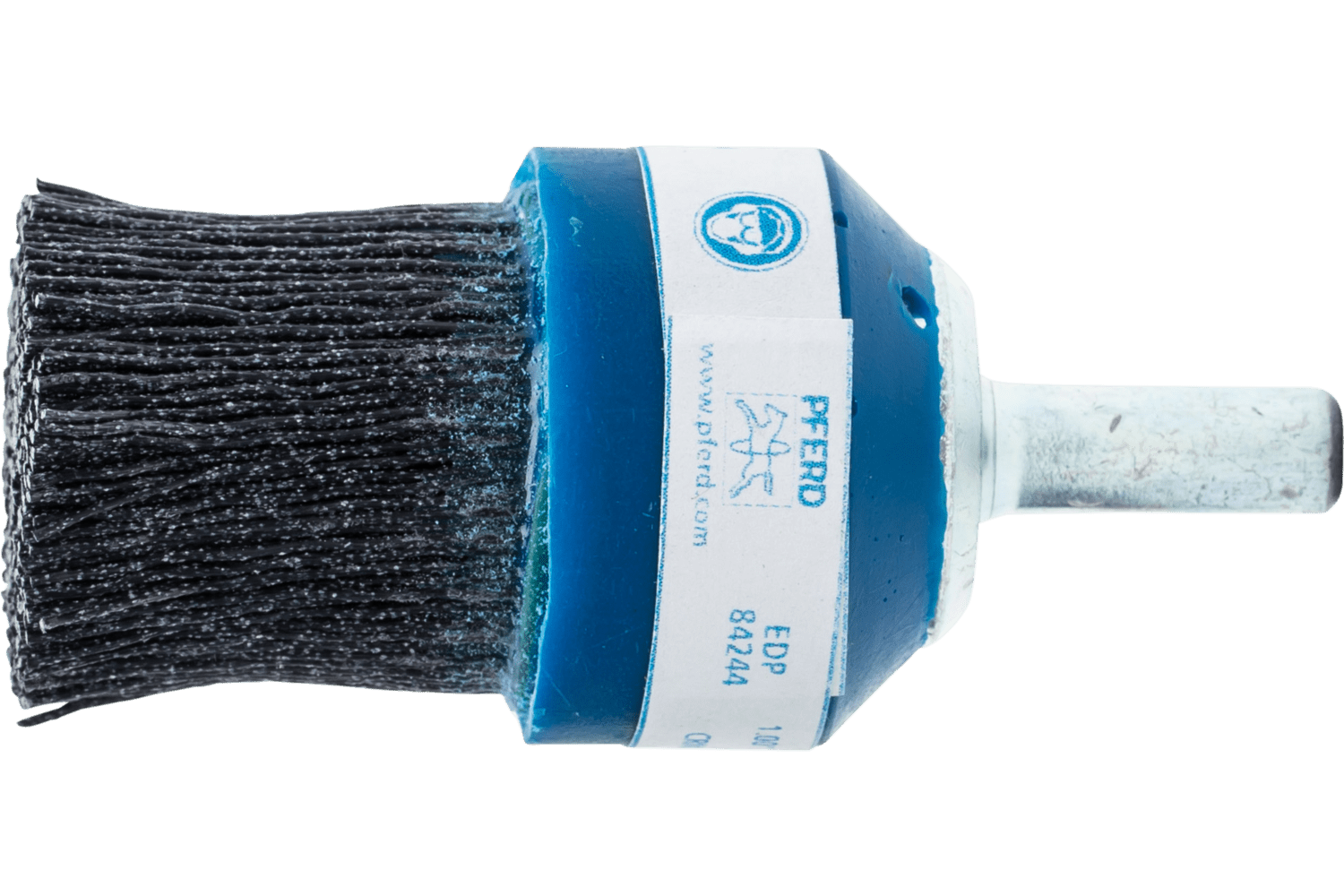

M-BRAD® Mounted Disc Brush, 0.022 Inch
$0.00
Product information "M-BRAD® Mounted Disc Brush, 0.022 Inch"
Technical information
0.022 Inch
| Brush Diameter | 1 Inch |
| Filament Material | Ceramic oxide grain (CO) |
| Wire Diameter | 0.022 Inch |
| Grit Size | 120 |
| Shank Diameter | 1/4 Inch |
| Trim Length | 1 1/8 Inch |
| Max. RPM | 5000 RPM |
| Pack Qty | 1 |

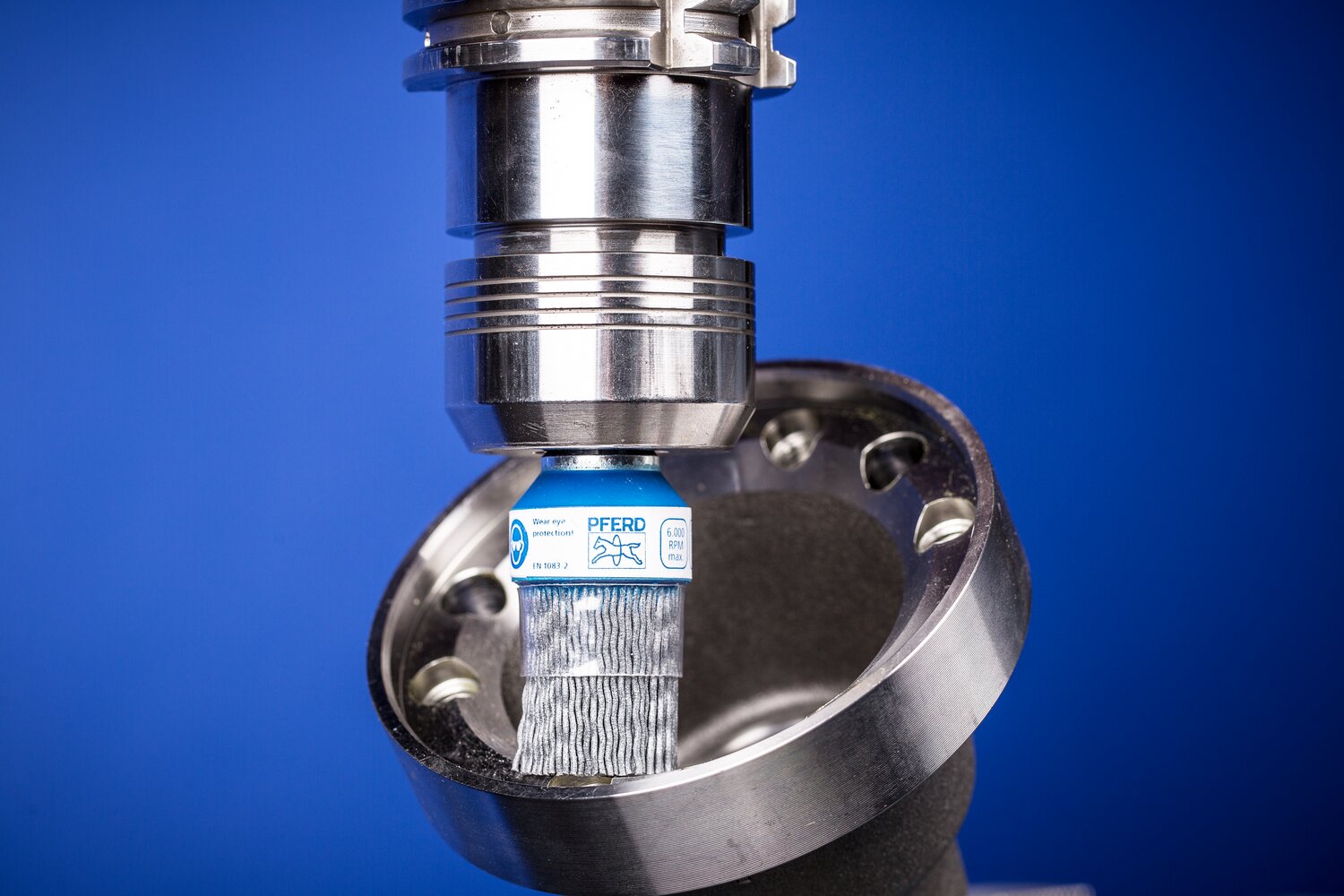

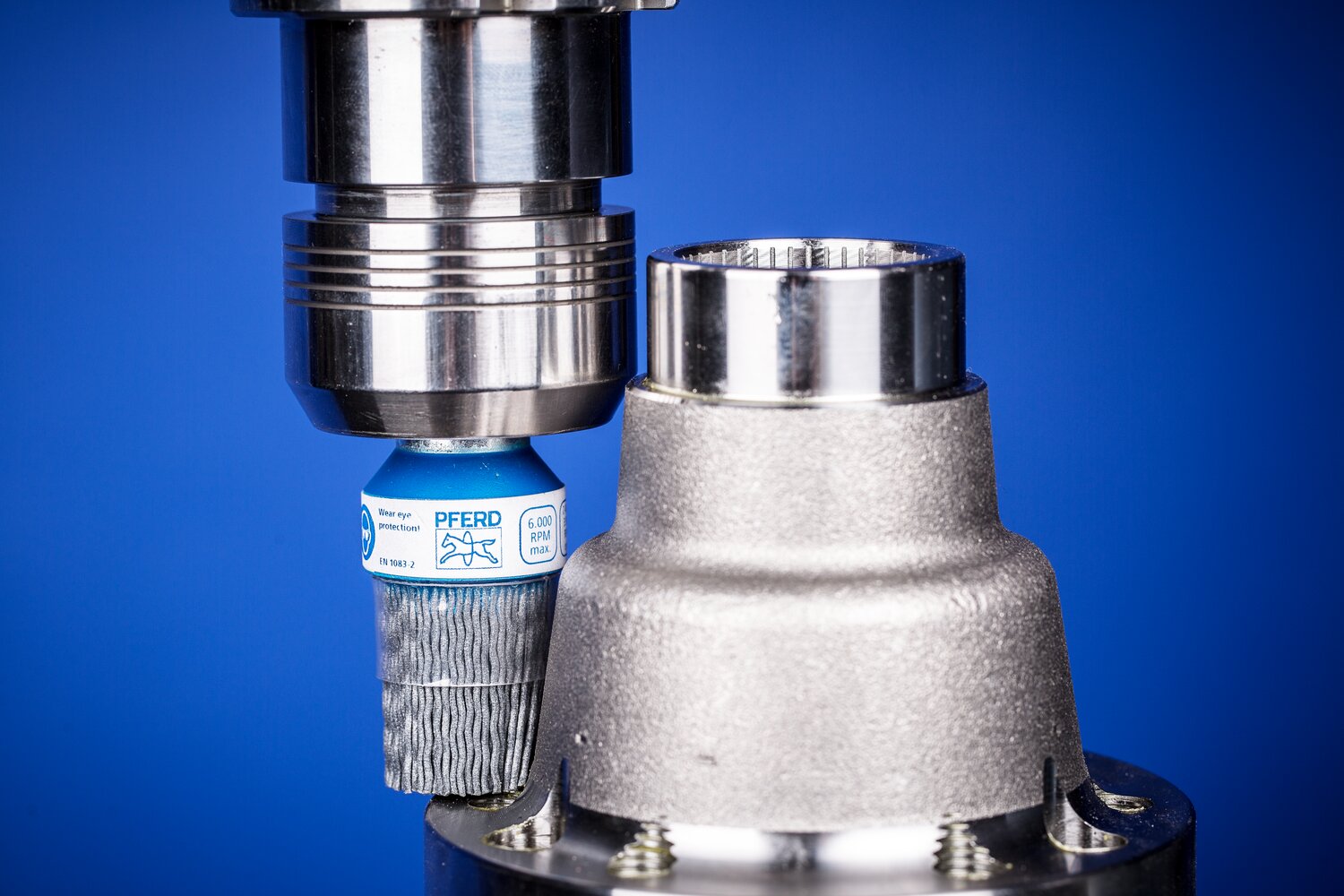

Ideal for deburring and work on surfaces on stationary machines. Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable mounting options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labor-intensive, manual work is reduced and repeatable results are achieved with short cycle times. Brushes with ceramic oxide grain (CO) offer good toughness and excellent sharpness. For high stock removal and aggressive brushing action. Plastic filaments are temperature-resistant up to 410°F.
Advantages
- Long tool life and aggressive brushing action due to the high filament density.
- Extremely smooth operation due to evenly distributed filament material.
- Optimal access to hard-to-reach areas, such as drilled holes and crevices, as the filament spreads out upon rotation.
- The bridle prevents the wires spreading out sideways.
- If the filament has worn away down to the bridle, the bridle can be removed to extend the life of the brush. This does not affect the brushing behavior.
- The bridle enables the spreading out and flexibility of the brush filament to be controlled.
- Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
- For particularly aggressive machining and for creating a high surface quality.
Applications
- Cleaning
- Deburring
- Structuring (matt finishing, brush matting and satin finishing)
Materials that can be worked
- Soft titanium alloys (tensile strength 500 N/mm²)
- Steel, cast steel
- Steel materials with a hardness > 54 HRC
- Steels up to 370 HV (< 38 HRC)
- Titanium
- Titanium alloys
- Aluminum
- Bronze
- Cast iron
- Cast steel
Drive Types
- Flexible shaft drive
- Tool machine
- Power drill
- Robot
- Stationary machines
- Straight grinder
Safety
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
| Brush Diameter: | 1 Inch |
|---|---|
| Drive Type: | Flexible shaft drive, Power drill, Robot, Stationary machines, Straight grinder, Tool machine |
| Filament Material: | Ceramic oxide grain (CO) |
| Grit Size: | 120 |
| Max. RPM: | 5000 RPM |
| Pack Qty: | 1 |
| Trim Length: | 1 1/8 Inch |
