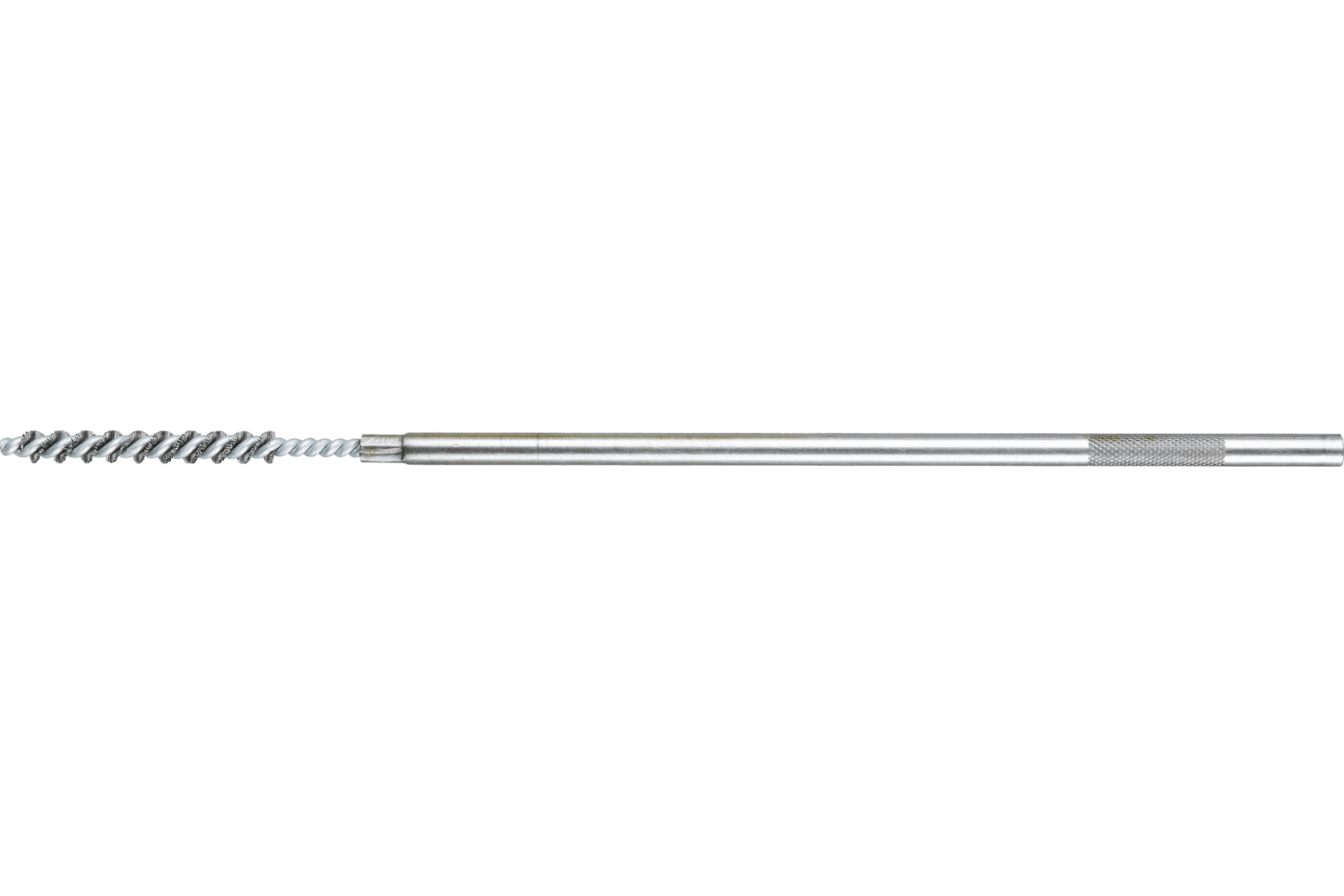

Valve Guide Brush, 1/4 Inch
$0.00
Product information "Valve Guide Brush, 1/4 Inch"
Technical information
1/4 Inch
| Brush Diameter | 1/4 Inch |
| Filament Material | Steel wire (ST) |
| Wire Diameter | 0.006 Inch |
| Shank Diameter | 1/4 Inch |
| Max. RPM | 2500 RPM |
| Pack Qty | 10 |
Brush for brushing valve guides. High brush stiffness for aggressive cleaning. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.
Advantages
- The metal sleeve construction enables stable operation without bending.
- Includes knurled handle for manual use.
- Long service life through use of PFERD special wire.
- Creates fine surfaces.
Applications
- Cleaning
- Deburring
- Derusting
- Removing oxide layers
- Paint stripping
- Roughening
Materials that can be worked
- Steel, cast steel
- Steel materials with a hardness > 54 HRC
- Steels up to 370 HV (< 38 HRC)
- Thermoplastics
- Wood
- Cast iron
- Cast steel
- Thermosetting plastics
Drive Types
- Flexible shaft drive
- Manual application
- Power drill
Safety
For safe use, guide the brush into the workpiece before beginning work. When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
| Drive Type: | Flexible shaft drive, Manual application, Power drill |
|---|---|
| Filament Material: | Steel wire (ST) |
| Max. RPM: | 2500 RPM |
| Pack Qty: | 10 |
| Wire Diameter: | 0.006 Inch |
