Wheel brushes
COMBITWIST® Knot Wire Wheel Brush
Technical informationBrush Diameter4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchThread / Arbor5/8-11Trim Length3/4 InchNumber of Knots22Max. RPM20000 RPMPack Qty10Very aggressive brush. Suitable for heavy-duty brushing in metalwork such as descaling, derusting, deburring, cleaning of weld seams and removal of adhesive residues and spatter. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesMaximum economic efficiency due to maximum service life and stock removal rate.Brush runs smoothly due to it's flawless balance.Designed for work on corners and edges as the knots are less likely to unravel.Aggressive brushing action due to tightly-twisted wire knots.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinder
COMBITWIST® Knot
Technical informationBrush Diameter4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchThread / Arbor5/8-11Trim Length7/8 InchNumber of Knots22Max. RPM20000 RPMPack Qty10The brush knots are knotted to 75% of the length. The brush is designed for brushing large areas and for heavy-duty brushwork, such as deburring, cleaning, derusting and descaling, as well as removing spatter. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesOptimal ratio of aggressiveness and flexibility.Maximum economic efficiency due to maximum service life and stock removal rate.Brush runs smoothly due to it's flawless balance.Designed for work on corners and edges as the knots are less likely to unravel.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinder
COMBITWIST® Stringer Bead Wheel Brush
Technical informationBrush Diameter4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.02 InchThread / Arbor5/8-11Trim Length3/4 InchNumber of Knots32Max. RPM20000 RPMPack Qty10Very aggressive and robust brush that is able to withstand high mechanical loads. Perfect for heavy-duty brushing in pipeline and container construction. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesExtra-slim design allows access to hard-to-reach areas such as root weld seams.Maximum economic efficiency due to maximum service life and stock removal rate.Brush runs smoothly due to it's flawless balance.Designed for work on corners and edges as the knots are less likely to unravel.Aggressive brushing action due to tightly-twisted wire knots.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinder
Crimped Mounted Wheel Brush
Technical informationBrush Diameter2 InchFilament MaterialBrass wire (MES)Wire Diameter0.008 InchShank Diameter1/4 InchTrim Length1/2 InchMax. RPM15000 RPMPack Qty10Designed for cleaning, derusting, smoothing, cleaning of weld seams, light deburring, and removal of corrosion and paint. Brass wire filament brushes are designed for applications like surface finishing on copper or brass workpieces. Compared to steel wire, brass wire is softer and more flexible. For all brushes with brass wire, PFERD uses wire quality CuZn37. Brass wire is temperature-resistant up to 350°F.AdvantagesHighly flexible, enabling optimal adaptation to the workpiece contour.Low-sparking.Creates fine surfaces.ApplicationsCleaningDeburringRemoving oxide layersMaterials that can be workedZincBrassCopperOther non-ferrous metalsDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Crimped Wire Wheel Brush PSF
Technical informationBrush Diameter4 InchFilament MaterialSteel wire (ST)Wire Diameter0.012 InchThread / Arbor5/8-11Trim Length7/8 InchMax. RPM12500 RPMPack Qty5Designed for medium-duty brushing such as derusting, cleaning of weld seams and light deburring work. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.AdvantagesDesigned for use on angle grinders up to 15,800 SFPM.Highly flexible, enabling optimal adaptation to the workpiece contour.Creates fine surfaces.Packaged for retail.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingRemoving oxide layersPaint strippingRougheningMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodCast ironCast steelThermosetting plasticsElastomersDrive TypesAngle grinderCordless angle grinder
Crimped Wire Wheel Brush PSF
Technical informationBrush Diameter6 InchFace Width1/2 InchFilament MaterialSteel wire (ST)Wire Diameter0.012 InchArbor Hole1/2 InchTrim Length1 1/4 InchMax. RPM6000 RPMPack Qty5Excellent for medium-duty hand-held or automated brushing of large workpieces. Can be used with all common stationary drive systems and bench grinders. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.AdvantagesThe special design enables several brushes to be attached in a row to create wide gapless rollers.Highly flexible, enabling optimal adaptation to the workpiece contour.Packaged for retail.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingRemoving oxide layersPaint strippingRougheningMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodCast ironCast steelThermosetting plasticsElastomersDrive TypesBench grinderStationary machines
Crimped Wire Wheel Brush PSF
Technical informationBrush Diameter6 InchFace Width1 InchFilament MaterialSteel wire (ST)Wire Diameter0.012 InchArbor Hole1 1/4 InchTrim Length1 1/4 InchMax. RPM6000 RPMPack Qty5Excellent for medium-duty hand-held or automated brushing of large workpieces. Designed for universal workshop use. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.AdvantagesCan be used with all common stationary drive systems and bench grinders.Packaged for retail.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingRemoving oxide layersPaint strippingRougheningMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodCast ironCast steelThermosetting plasticsElastomersDrive TypesBench grinderStationary machines
Crimped Wire Wheel Brush
Technical informationBrush Diameter6 InchFace Width13/16 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.006 InchArbor Hole1 1/4 InchTrim Length1 1/8 InchMax. RPM6000 RPMPack Qty1Excellent for medium-duty hand-held or automated brushing of large workpieces. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F. Developed specially for industrial use.AdvantagesDurability makes this cost-effective.The special design enables bunching to create wide gapless rollers. This enables a uniform surface finish to be achieved.Can be used with all common stationary drive systems and bench grinders.Highly flexible, enabling optimal adaptation to the workpiece contour.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesBench grinder
Crimped Wire Wheel Brush
Technical informationBrush Diameter4 InchFilament MaterialSteel wire (ST)Wire Diameter0.014 InchThread / Arbor5/8-11Trim Length11/16 InchMax. RPM12500 RPMPack Qty5Designed for medium-duty brushing such as derusting, cleaning of weld seams and light deburring work. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesHighly flexible, enabling optimal adaptation to the workpiece contour.Suitable for use on angle grinders.Long service life through use of PFERD special wire.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving oxide layersPaint strippingRougheningMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)WoodCast ironCast steelElastomersDrive TypesAngle grinderCordless angle grinder
Drum Brush
Technical informationBrush Diameter4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.008 InchArbor Hole3/4 InchTrim Length1 InchMax. RPM6000 RPMPack Qty1Excellent for surface structuring work on large workpieces. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesCan be used on all common burnishing machines due to keyed arbor hole.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningStructuring (matt finishing, brush matting and satin finishing)Materials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesDrum grinders
Encapsulated Bevel Stringer Bead Brush
Technical informationBrush Diameter5 InchFilament MaterialSteel wire (ST)Wire Diameter0.014 InchThread / Arbor5/8-11Trim Length1 1/4 InchMax. RPM15000 RPMPack Qty10Extremely aggressive brushing action, ideal for heavy-duty brushing. Designed for working on weld seams that are produced through automatic welding processes. Wire is bonded in a synthetic elastomer material which firmly supports the wire filaments, providing precisely controlled brush face, longer brush life and very aggressive removal rates. Limited flexibility. Brushes with encapsulated steel wire are available in different hardness grades. Designed for extremely aggressive use and high heat-resistance. Color: blackAdvantagesMaximum service life as premature wire breakage is prevented.Precise handling due to high dimensional stability.Extra-slim design allows access to hard-to-reach areas such as root weld seams.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder
Encapsulated Stringer Bead Brush
Technical informationBrush Diameter4 InchFilament MaterialSteel wire (ST)Wire Diameter0.02 InchThread / Arbor5/8-11Trim Length7/8 InchMax. RPM20000 RPMPack Qty10Extremely aggressive brushing action, ideal for heavy-duty brushing. For heavy-duty brushing in pipeline and container construction. Wire is bonded in a synthetic elastomer material which firmly supports the wire filaments, providing precisely controlled brush face, longer brush life and very aggressive removal rates. Limited flexibility. Brushes with encapsulated steel wire are available in different hardness grades. Designed for extremely aggressive use and high heat-resistance. Color: blackAdvantagesMaximum service life as premature wire breakage is prevented.Precise handling due to high dimensional stability.Extra-slim design allows access to hard-to-reach areas such as root weld seams.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder
Encapsulated Stringer Bead Brush
Technical informationBrush Diameter6 InchFilament MaterialSteel wire (ST)Wire Diameter0.014 InchThread / Arbor5/8-11Trim Length1 1/16 InchMax. RPM9000 RPMPack Qty10Extremely aggressive brushing action, ideal for heavy-duty brushing in pipeline and container construction. Wire is bonded in a synthetic elastomer material which firmly supports the wire filaments, providing precisely controlled brush face, longer brush life and very aggressive removal rates. Limited flexibility. Brushes with encapsulated steel wire are available in different hardness grades. Designed for extremely aggressive use and high heat-resistance. Color: blackAdvantagesMaximum service life as premature wire breakage is prevented.Precise handling due to high dimensional stability.Extra-slim design allows access to hard-to-reach areas such as root weld seams.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder
Expansion Joint Wire Brush
Technical informationBrush Diameter12 InchFace Width1/2 InchFilament MaterialSteel wire (ST)Wire Diameter0.035 InchArbor Hole1 InchTrim Length3 InchNumber of Knots40Max. RPM6000 RPMPack Qty2For brushing out loose and semi-solid substances, such as stone, grit and dross from joints and expansion joints in road and airport construction. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesExtra-slim design enables optimal access to hard-to-reach areas such as joints.Aggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steel
EZmount® Wire Wheel
Technical informationBrush Diameter6 InchFace Width3/4 InchFilament MaterialSteel wire (ST)Wire Diameter0.014 InchArbor Hole1 InchTrim Length7/8 InchMax. RPM6000 RPMPack Qty1Designed for light and medium-duty brushing in stationary application. Robust wheel brush with short, dense filament for universal application in the workshop. Variable bore diameters enable application on all standard stationary drive systems. Developed for use on bench grinders. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesHighly flexible, enabling optimal adaptation to the workpiece contour.Can be used with all common stationary drive systems and bench grinders.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingRemoving oxide layersPaint strippingRougheningMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)WoodCast ironCast steelElastomersDrive TypesBench grinderStationary machines

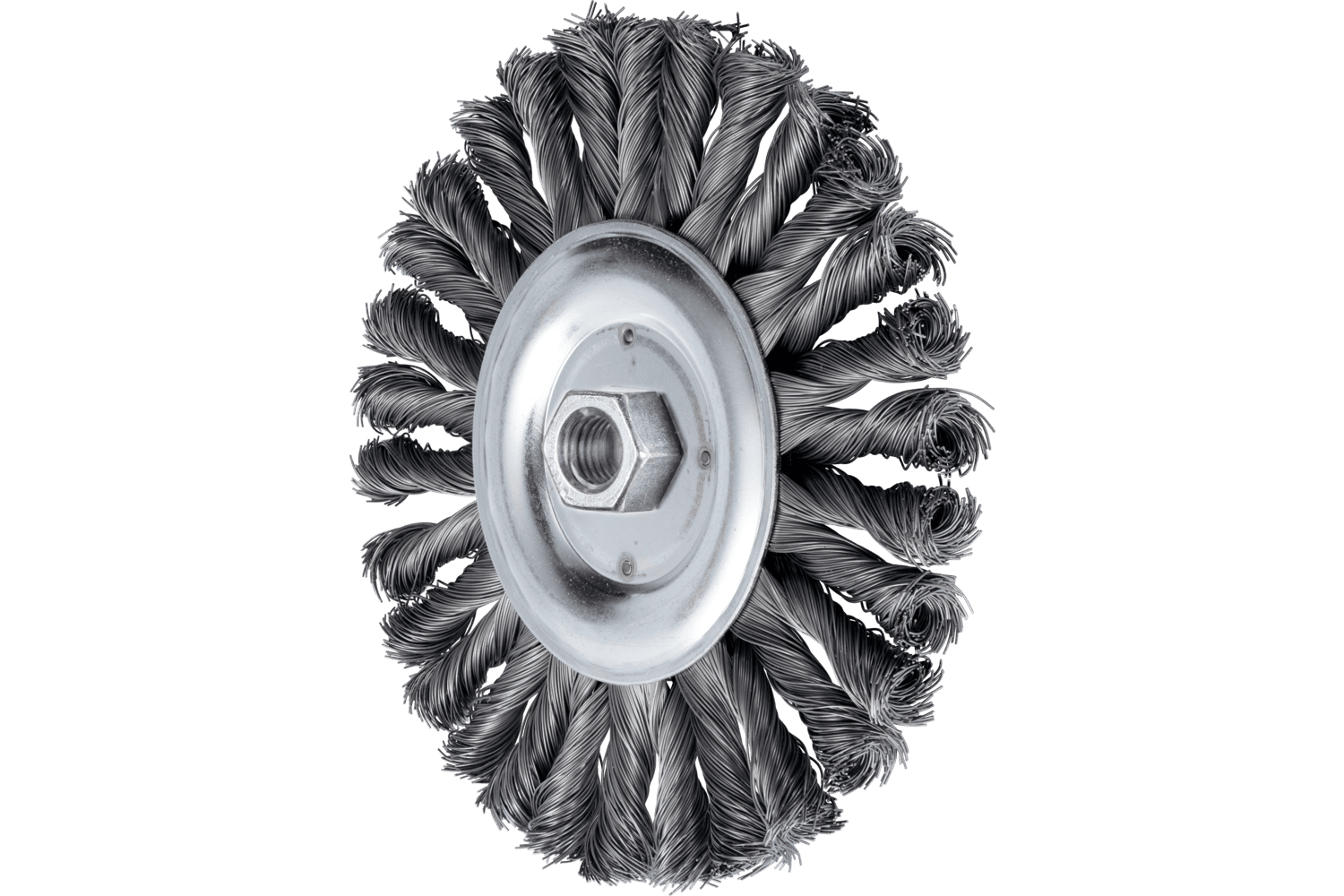

Full Cable Knot Wheel Brush COMBITWIST® HD
Technical informationBrush Diameter7Filament MaterialSteel wire (ST)Wire Diameter0.02 InchThread / Arbor5/8-11Trim Length1 5/8 InchNumber of Knots30Max. RPM9000 RPMPack Qty1Very aggressive brush. Suitable for heavy-duty brushing in metalwork such as descaling, derusting, deburring, cleaning of weld seams and removal of adhesive residues and spatter. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesExtremely high filament density for optimum tool life.Brush runs smoothly due to it's flawless balance.Designed for work on corners and edges as the knots are less likely to unravel.Aggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder
Full Cable Knot Wheel Brush
Technical informationBrush Diameter4 InchFilament MaterialSteel wire (ST)Wire Diameter0.014 InchThread / Arbor5/8-11Trim Length3/4 InchNumber of Knots22Max. RPM20000 RPMPack Qty5Aggressive brush. Designed for heavy-duty brushing in metalwork such as descaling, derusting, deburring, cleaning of weld seams, removal of adhesive residues and spatter. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesAggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder
INOX-TOTAL Crimped Wire Wheel Brush
Technical informationBrush Diameter2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.008 InchShank Diameter1/4 InchTrim Length3/4 InchMax. RPM12000 RPMPack Qty10Designed for cleaning, deburring, and removing heat discoloration. In addition to brushes with a stainless steel filament, PFERD also offers brushes of the INOX-TOTAL type for work on stainless steel (INOX). It is particularly well suited to use in critical environments. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe brush is degreased and does not leave any oil residue on the workpiece.Maximum protection against corrosion as all components are produced from stainless steel (INOX) of quality 1.4310 (V2A).Highly flexible, enabling optimal adaptation to the workpiece contour.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
INOX-TOTAL Crimped Wire Wheel Brush
Technical informationBrush Diameter3 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchShank Diameter1/4 InchTrim Length3/4 InchNumber of Knots18Max. RPM25000 RPMPack Qty10Designed for cleaning, deburring, and removing heat discoloration. In addition to brushes with a stainless steel filament, PFERD also offers brushes of the INOX-TOTAL type for work on stainless steel (INOX). It is particularly well suited to use in critical environments. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe brush is degreased and does not leave any oil residue on the workpiece.Maximum protection against corrosion as all components are produced from stainless steel (INOX) of quality 1.4310 (V2A).Aggressive brushing action due to tightly-twisted wire knots.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
INOX-TOTAL Knot Wire Wheel Brush
Technical informationBrush Diameter4 1/2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchArbor Hole7/8 InchTrim Length7/8 InchNumber of Knots24Max. RPM12500 RPMPack Qty1Very aggressive brush. Suitable for heavy-duty brushing such as removal of heat discoloration, deburring, cleaning of weld seams and removal of adhesive residues and spatter. In addition to brushes with a stainless steel filament, PFERD also offers brushes of the INOX-TOTAL type for work on stainless steel (INOX). It is particularly well suited to use in critical environments. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe brush is degreased and does not leave any oil residue on the workpiece.Maximum protection against corrosion as all components are produced from stainless steel (INOX) of quality 1.4310 (V2A).Maximum economic efficiency due to maximum service life and stock removal rate.Brush runs smoothly due to it's flawless balance.Designed for work on corners and edges as the knots are less likely to unravel.Aggressive brushing action due to tightly-twisted wire knots.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinderFlexible shaft driveStraight grinder
INOX-TOTAL Knot Wire Wheel Brush
Technical informationBrush Diameter4 1/2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchArbor Hole7/8 InchTrim Length7/8 InchNumber of Knots36Max. RPM12500 RPMPack Qty1Very aggressive and robust brush that is able to withstand high mechanical loads. Perfect for heavy-duty brushing in pipeline and container construction. In addition to brushes with a stainless steel filament, PFERD also offers brushes of the INOX-TOTAL type for work on stainless steel (INOX). It is particularly well suited to use in critical environments. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F. The brush is degreased and does not leave any oil residue on the workpiece.AdvantagesMaximum protection against corrosion as all components are produced from stainless steel (INOX) of quality 1.4310 (V2A).Extra-slim design allows access to hard-to-reach areas such as root weld seams.Maximum economic efficiency due to maximum service life and stock removal rate.Brush runs smoothly due to it's flawless balance.Designed for work on corners and edges as the knots are less likely to unravel.Aggressive brushing action due to tightly-twisted wire knots.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinderFlexible shaft driveStraight grinder
Knot Wire Wheel Brush
Technical informationBrush Diameter4 InchFace Width1 1/8 InchFilament MaterialSteel wire (ST)Wire Diameter0.014 InchArbor Hole1/2 InchTrim Length3/4 InchNumber of Knots44Max. RPM20000 RPMPack Qty5The brush knots are knotted to 50% of the length. The brush achieves a better surface quality on uneven surfaces when compared to knotted brushes. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesDouble-row design enables fast results due to larger filament width.Optimal ratio of aggressiveness and flexibility.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steel
M-BRAD® Composite Wheel Brush
Technical informationBrush Diameter8 InchFace Width1 InchFilament MaterialSilicon carbide (SiC)Wire Diameter0.045 InchGrit Size80Arbor Hole2 InchTrim Length2 1/4 InchMax. RPM3600 RPMPack Qty1Uniquely flexible brush. Its nylon filament makes this product ideal for deburring complicated components such as cylinder heads or gears. Developed specially for industrial use. Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable mounting options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labor-intensive, manual work is reduced and repeatable results are achieved with short cycle times. Silicon carbide (SiC) filament brushes are designed for deburring work and surface improvement. Rectangular filament [REC] is designed for particularly demanding applications that require an aggressive brush. The larger cross-section of the filaments means that these are more stiff than round filaments and provide a greater contact area with the workpiece. Plastic filaments are temperature-resistant up to 410°F.AdvantagesLong tool life and aggressive brushing action due to the high filament density.Extremely smooth operation due to evenly distributed filament material.Highly flexible, enabling optimal adjustment to the workpiece contour and less heat build-up.Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.For aggressive work due to rectangular filament (REC).ApplicationsCleaningDeburringRougheningStructuring (matt finishing, brush matting and satin finishing)Materials that can be workedStainless steel (INOX)Steel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodAluminumBronzeCast ironCast steelDrive TypesFlexible shaft driveTool machineRobotStationary machinesStraight grinder
M-BRAD® Composite Wheel Brush
Technical informationBrush Diameter6 InchFace Width1/2 InchFilament MaterialCeramic oxide grain (CO)Wire Diameter0.04 InchGrit Size80Arbor Hole2 InchTrim Length1 1/4 InchMax. RPM3600 RPMPack Qty1Impressively aggressive brush. Its nylon filament makes this product ideal for deburring complicated components such as cylinder heads or gears, as well as for working on surfaces. Developed specially for industrial use. Uniquely flexible brush. Its nylon filament makes this product ideal for deburring complicated components such as cylinder heads or gears. Developed specially for industrial use. Brushes with ceramic oxide grain (CO) offer good toughness and excellent sharpness. For high stock removal and aggressive brushing action. Plastic filaments are temperature-resistant up to 410°F.AdvantagesLong tool life and aggressive brushing action due to the high filament density.Extremely smooth operation due to evenly distributed filament material.Highly flexible, enabling optimal adjustment to the workpiece contour and less heat build-up.Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.For particularly aggressive machining and for creating a high surface quality.ApplicationsCleaningDeburringStructuring (matt finishing, brush matting and satin finishing)Materials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Steel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)TitaniumTitanium alloysAluminumBronzeCast ironCast steelDrive TypesFlexible shaft driveTool machineRobotStationary machinesStraight grinder
