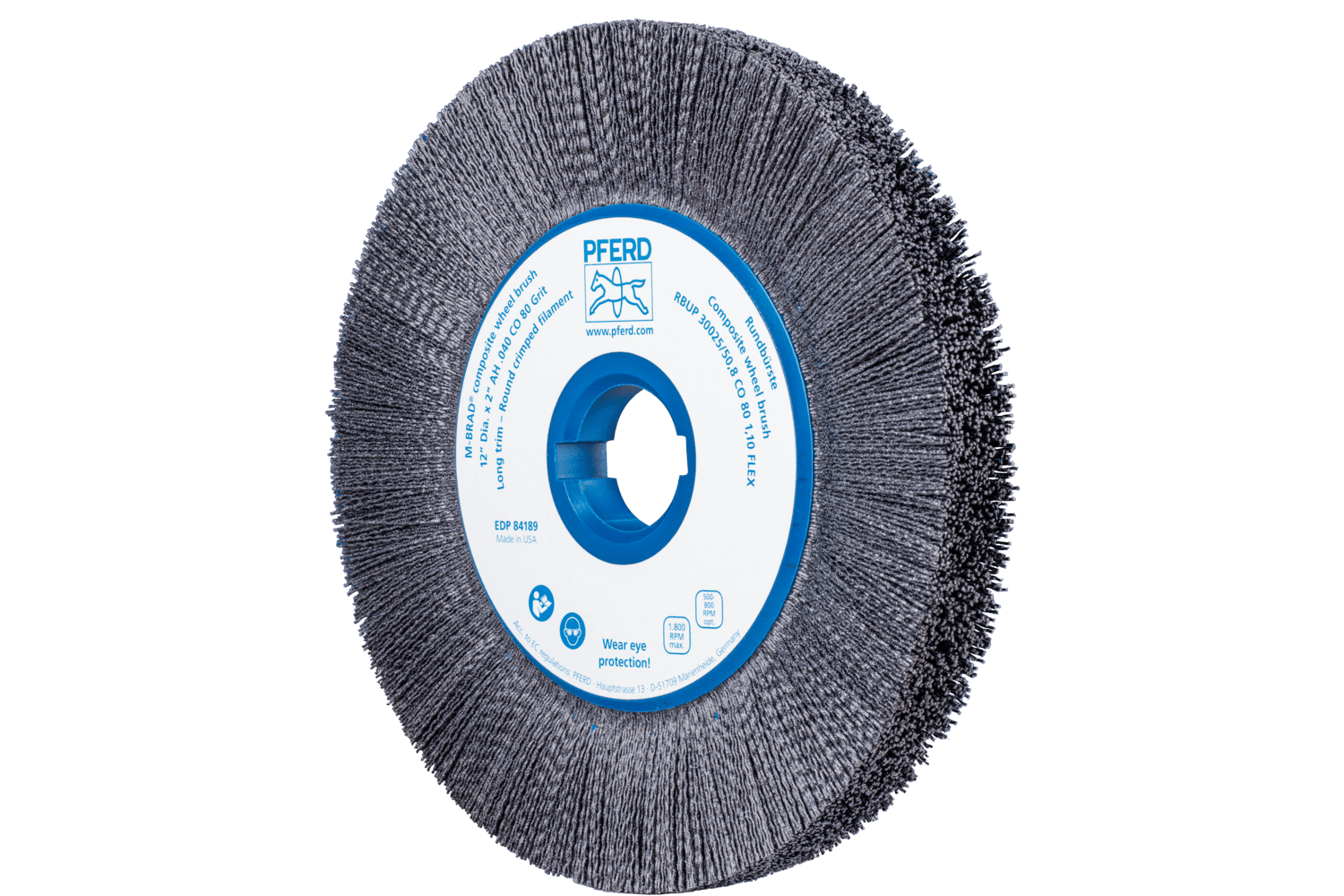

M-BRAD® Composite Wheel Brush, 14 Inch / Ceramic oxide grain (CO), 79184152
$0.00
Product information "M-BRAD® Composite Wheel Brush, 14 Inch / Ceramic oxide grain (CO), 79184152"
Technical information
14 Inch / Ceramic oxide grain (CO), 79184152
| Brush Diameter | 14 Inch |
| Face Width | 1/2 Inch |
| Filament Material | Ceramic oxide grain (CO) |
| Wire Diameter | 0.04 Inch |
| Grit Size | 120 |
| Arbor Hole | 2 Inch |
| Trim Length | 3 1/2 Inch |
| Max. RPM | 1800 RPM |
| Pack Qty | 1 |

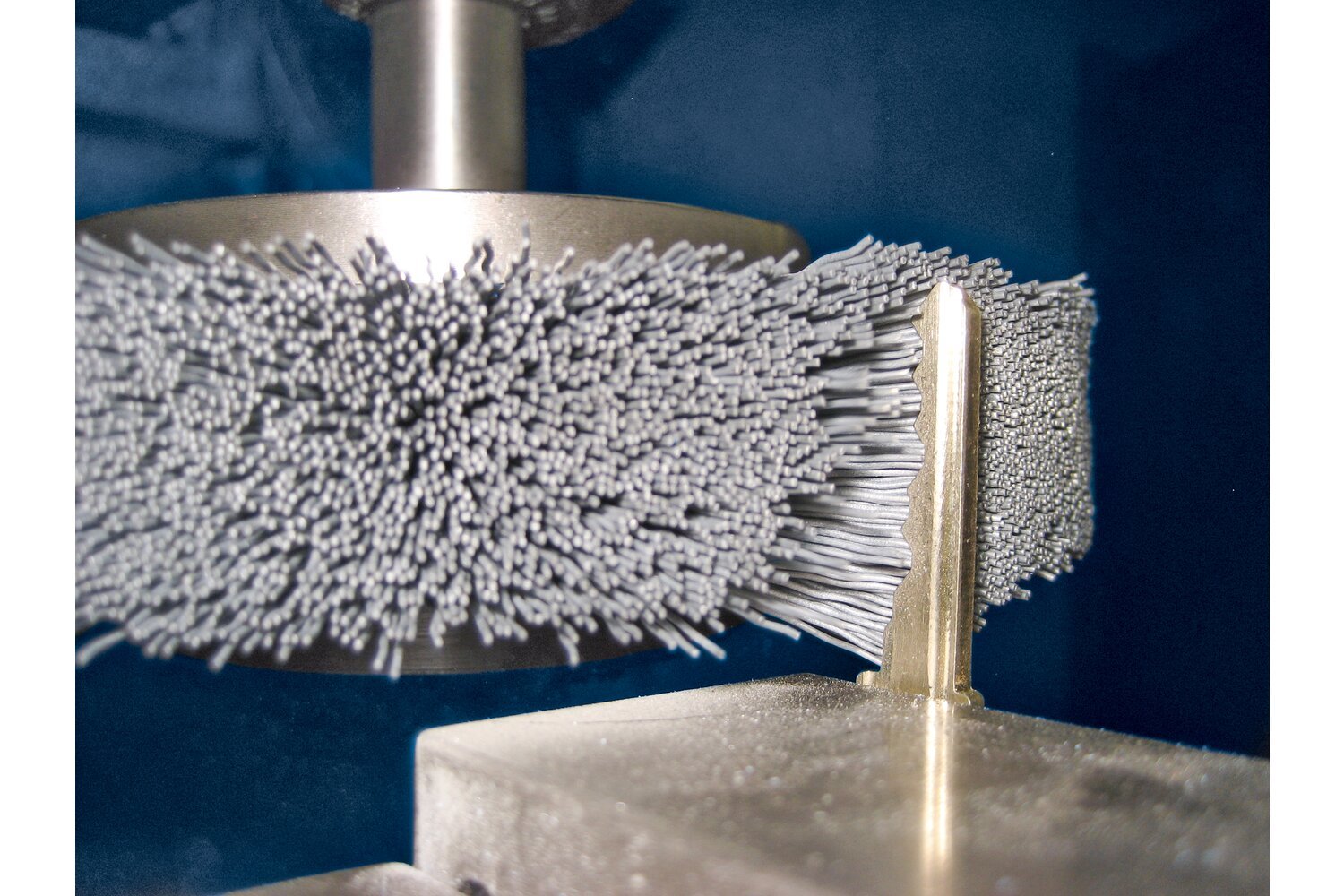

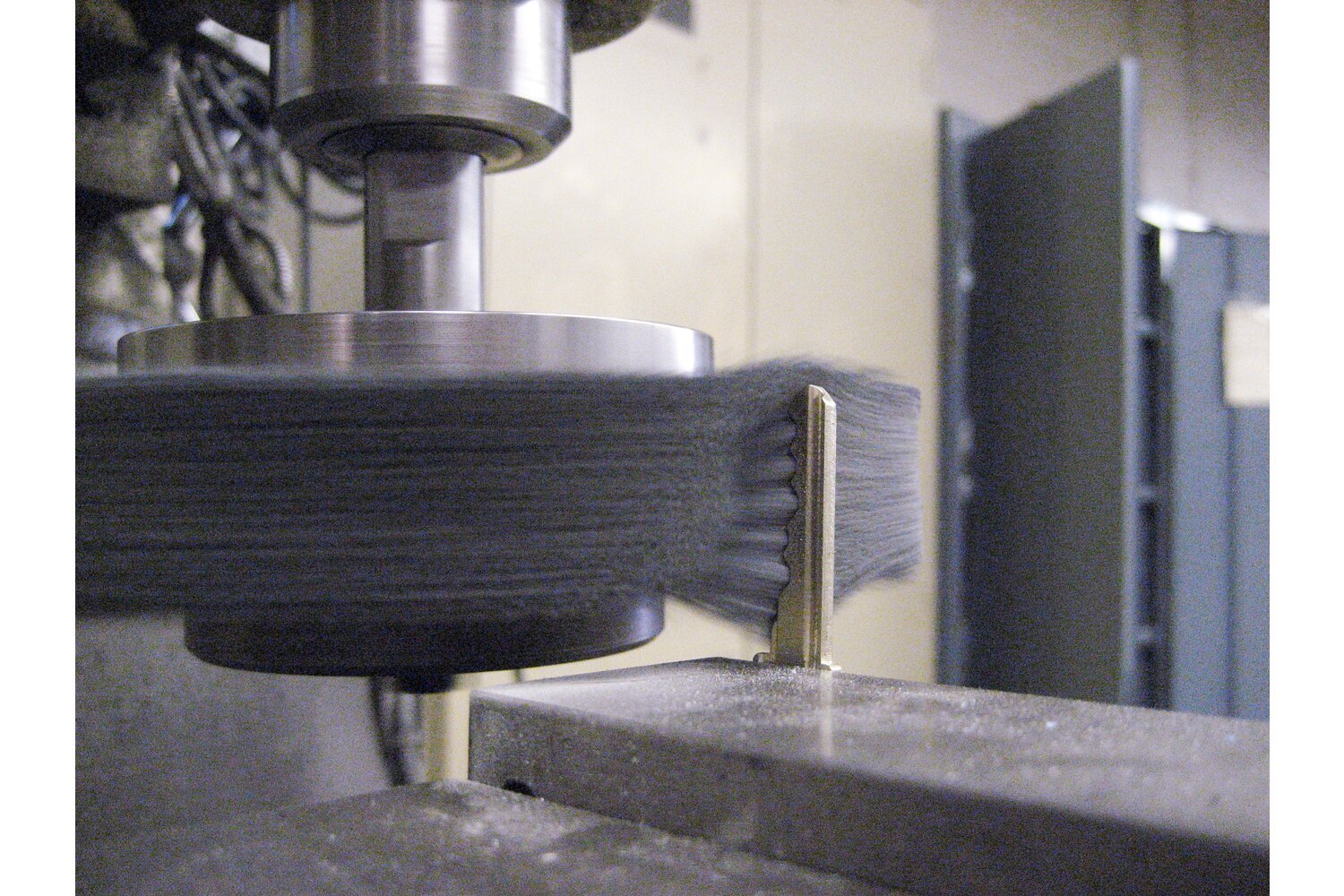

Uniquely flexible brush. Its nylon filament makes this product ideal for deburring complicated components such as cylinder heads or gears. Developed specially for industrial use. Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable mounting options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labor-intensive, manual work is reduced and repeatable results are achieved with short cycle times. Brushes with ceramic oxide grain (CO) offer good toughness and excellent sharpness. For high stock removal and aggressive brushing action. Plastic filaments are temperature-resistant up to 410°F.
Advantages
- Long tool life and aggressive brushing action due to the high filament density.
- Extremely smooth operation due to evenly distributed filament material.
- Highly flexible, enabling optimal adjustment to the workpiece contour and less heat build-up.
- Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
- For particularly aggressive machining and for creating a high surface quality.
Applications
- Cleaning
- Deburring
- Structuring (matt finishing, brush matting and satin finishing)
Materials that can be worked
- Soft titanium alloys (tensile strength 500 N/mm²)
- Steel, cast steel
- Steel materials with a hardness > 54 HRC
- Steels up to 370 HV (< 38 HRC)
- Titanium
- Titanium alloys
- Aluminum
- Bronze
- Cast iron
- Cast steel
Drive Types
- Tool machine
- Robot
- Stationary machines
| Arbor Hole Dia.: | 2 Inch |
|---|---|
| Drive Type: | Robot, Stationary machines, Tool machine |
| Filament Material: | Ceramic oxide grain (CO) |
| Grit Size: | 120 |
| Max. RPM: | 1800 RPM |
| Pack Qty: | 1 |
| Trim Length: | 3 1/2 Inch |
| Wire Diameter: | 0.04 Inch |
