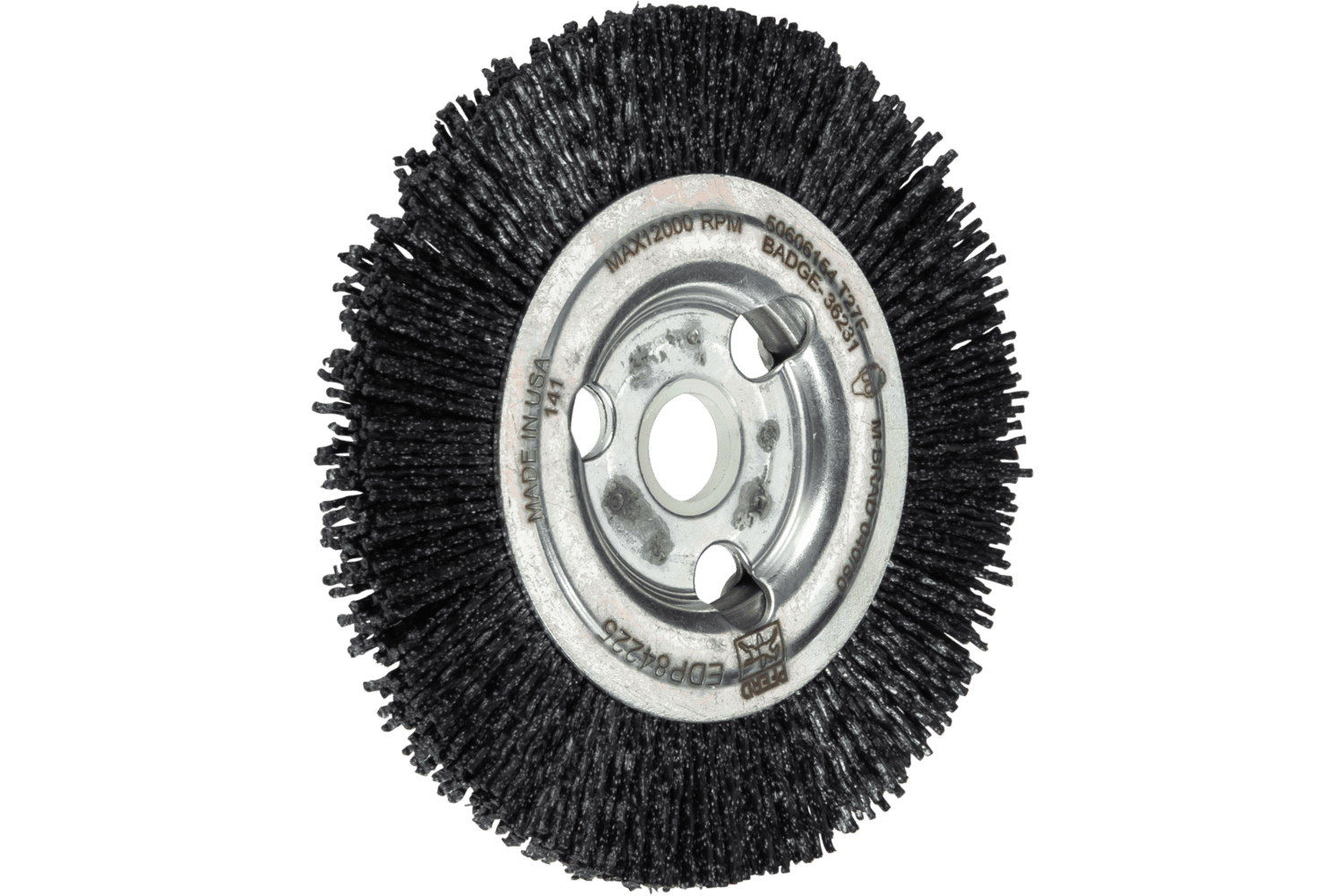

M-BRAD® Wheel Brush, 4 Inch / Ceramic oxide grain (CO), 79184225
PFERD TOOLS
$0.00
Product number:
79184225
Product information "M-BRAD® Wheel Brush, 4 Inch / Ceramic oxide grain (CO), 79184225"
Technical information
4 Inch / Ceramic oxide grain (CO), 79184225
| Brush Diameter | 4 Inch |
| Face Width | 3/4 Inch |
| Filament Material | Ceramic oxide grain (CO) |
| Wire Diameter | 0.04 Inch |
| Grit Size | 80 |
| Arbor Hole | 1/2 Inch |
| Trim Length | 3/4 Inch |
| Max. RPM | 12500 RPM |
| Pack Qty | 2 |
Brushes with ceramic oxide grain (CO) offer good toughness and excellent sharpness. For high stock removal and aggressive brushing action. Plastic filaments are temperature-resistant up to 410°F. Excellent for medium-duty hand-held or automated brushing of large workpieces.
Advantages
- Can be used with all common stationary drive systems and bench grinders.
- The special design enables bunching to create wide gapless rollers. This enables a uniform surface finish to be achieved.
- Highly flexible, enabling optimal adaptation to the workpiece contour.
- Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
Applications
- Cleaning
- Deburring
- Structuring (matt finishing, brush matting and satin finishing)
Materials that can be worked
- Soft titanium alloys (tensile strength 500 N/mm²)
- Steel, cast steel
- Steel materials with a hardness > 54 HRC
- Steels up to 370 HV (< 38 HRC)
- Titanium
- Titanium alloys
- Aluminum
- Bronze
- Cast iron
- Cast steel
Drive Types
- Bench grinder
- Flexible shaft drive
- Straight grinder
| Arbor Hole Dia.: | 1/2 Inch |
|---|---|
| Drive Type: | Bench grinder, Flexible shaft drive, Straight grinder |
| Filament Material: | Ceramic oxide grain (CO) |
| Grit Size: | 80 |
| Max. RPM: | 12500 RPM |
| Pack Qty: | 2 |
| Trim Length: | 3/4 Inch |
| Wire Diameter: | 0.04 Inch |
