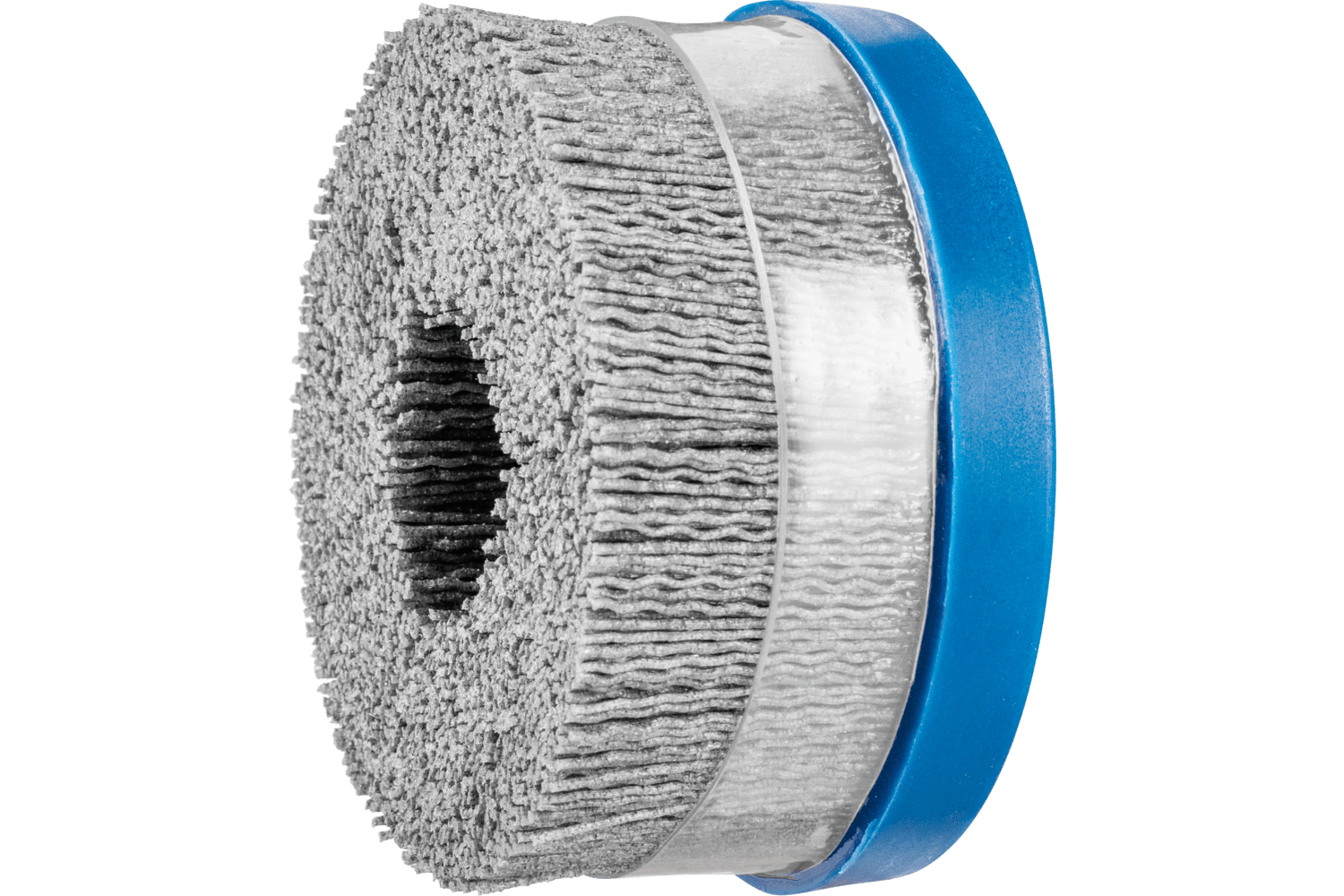

M-BRAD® Mounted Disc Brush, 4 Inch / Silicon carbide (SiC), 79184128
$0.00
Product information "M-BRAD® Mounted Disc Brush, 4 Inch / Silicon carbide (SiC), 79184128"
Technical information
4 Inch / Silicon carbide (SiC), 79184128
| Brush Diameter | 4 Inch |
| Filament Material | Silicon carbide (SiC) |
| Wire Diameter | 0.04 Inch |
| Grit Size | 80 |
| Arbor Hole | 7/8 Inch |
| Trim Length | 1 1/2 Inch |
| Max. RPM | 3500 RPM |
| Pack Qty | 1 |
Particularly aggressive brush with bridle. Ideal for deburring and work on surfaces on stationary machines. Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable mounting options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labor-intensive, manual work is reduced and repeatable results are achieved with short cycle times. Silicon carbide (SiC) filament brushes are designed for deburring work and surface improvement. Plastic filaments are temperature-resistant up to 410°F.
Advantages
- Long tool life and aggressive brushing action due to the high filament density.
- Extremely smooth operation due to evenly distributed filament material.
- The bridle prevents the wires spreading out sideways.
- If the filament has worn away down to the bridle, the bridle can be removed to extend the life of the brush. This does not affect the brushing behavior.
- The bridle enables the spreading out and flexibility of the brush filament to be controlled.
- Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
Applications
- Cleaning
- Deburring
- Roughening
- Structuring (matt finishing, brush matting and satin finishing)
Materials that can be worked
- Stainless steel (INOX)
- Steel, cast steel
- Steel materials with a hardness > 54 HRC
- Steels up to 370 HV (< 38 HRC)
- Thermoplastics
- Wood
- Aluminum
- Bronze
- Cast iron
- Cast steel
Drive Types
- Tool machine

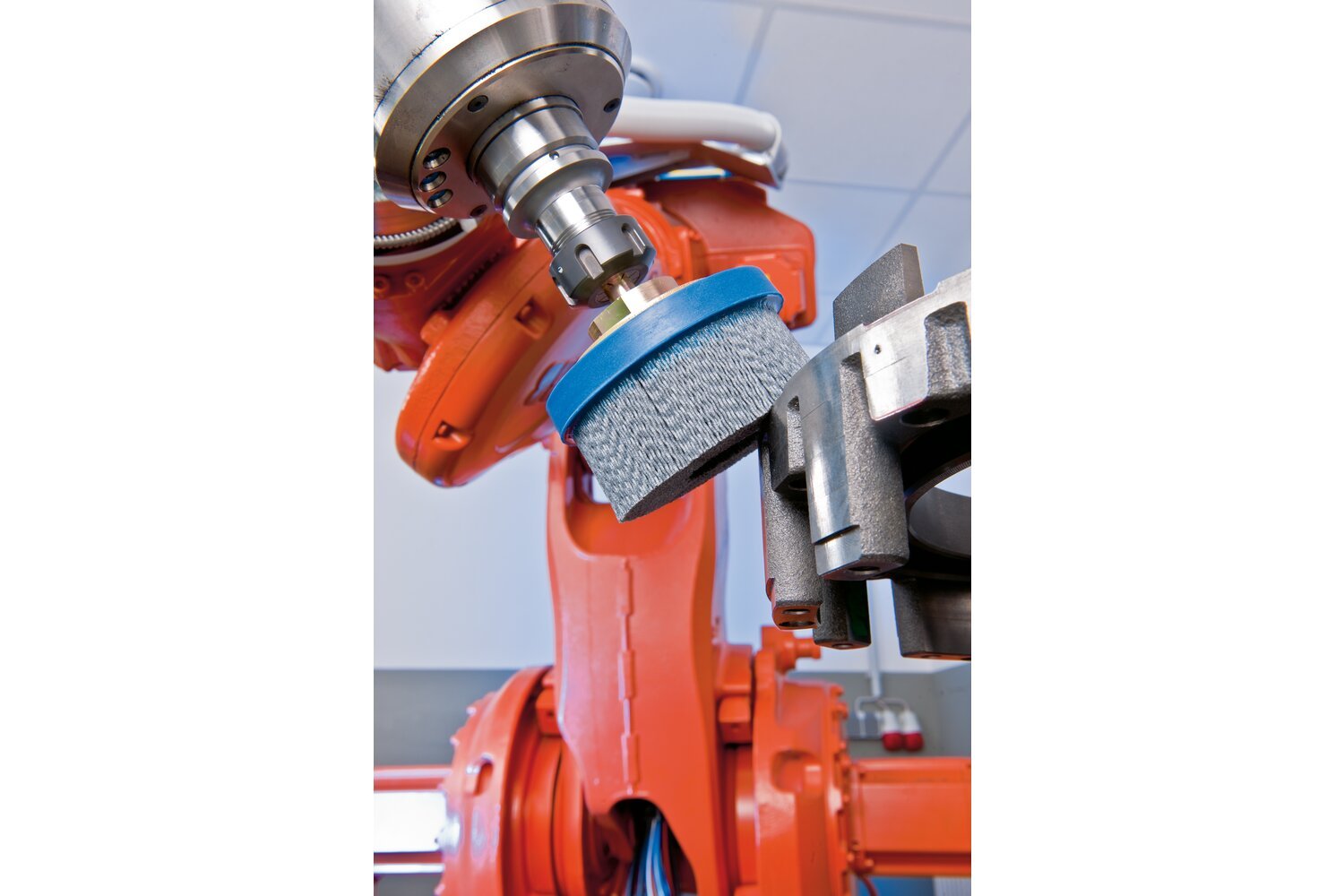

- Robot

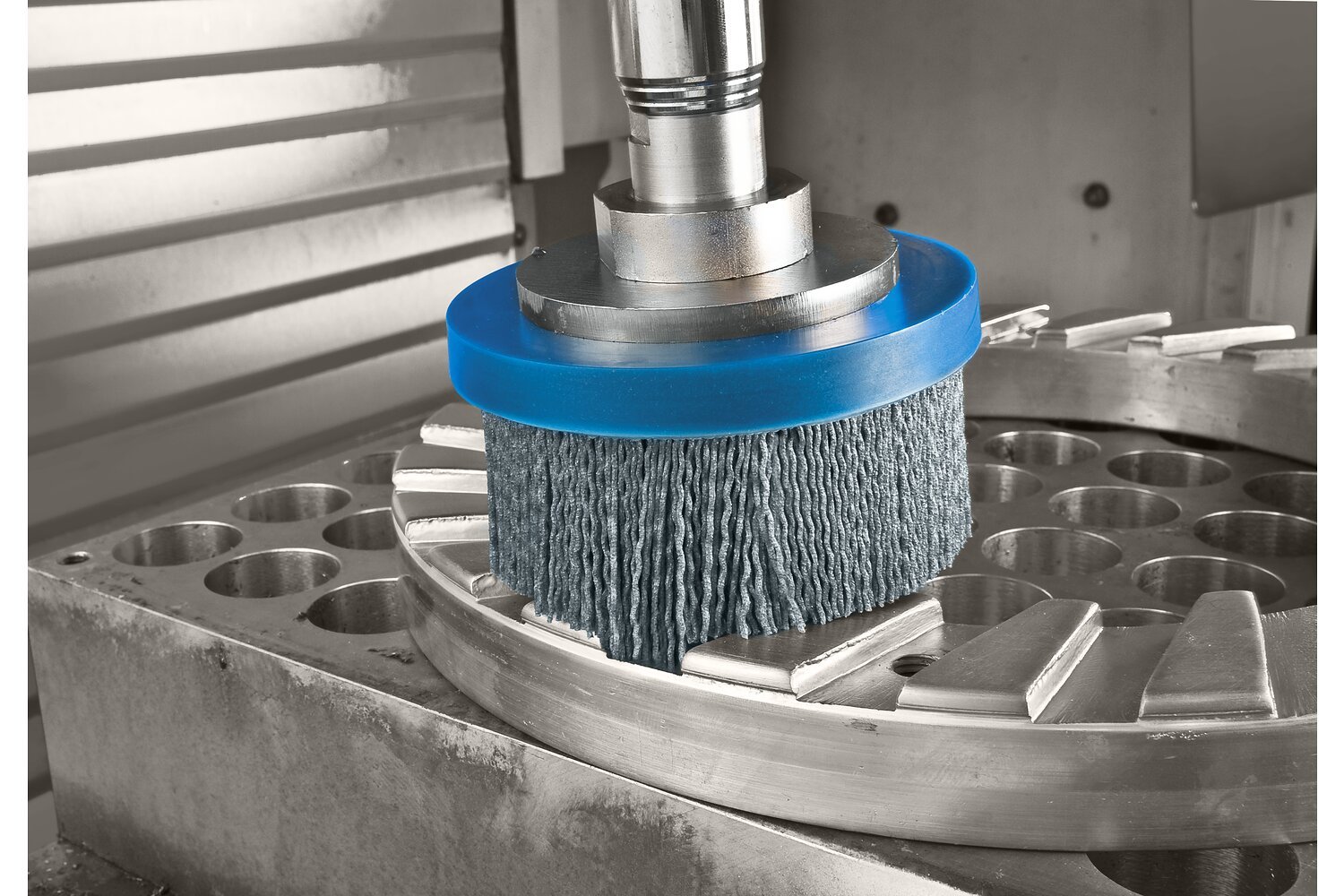

- Stationary machines
| Arbor Hole Dia.: | 7/8 Inch |
|---|---|
| Drive Type: | Robot, Stationary machines, Tool machine |
| Filament Material: | Silicon carbide (SiC) |
| Grit Size: | 80 |
| Max. RPM: | 3500 RPM |
| Pack Qty: | 1 |
| Trim Length: | 1 1/2 Inch |
| Wire Diameter: | 0.04 Inch |
