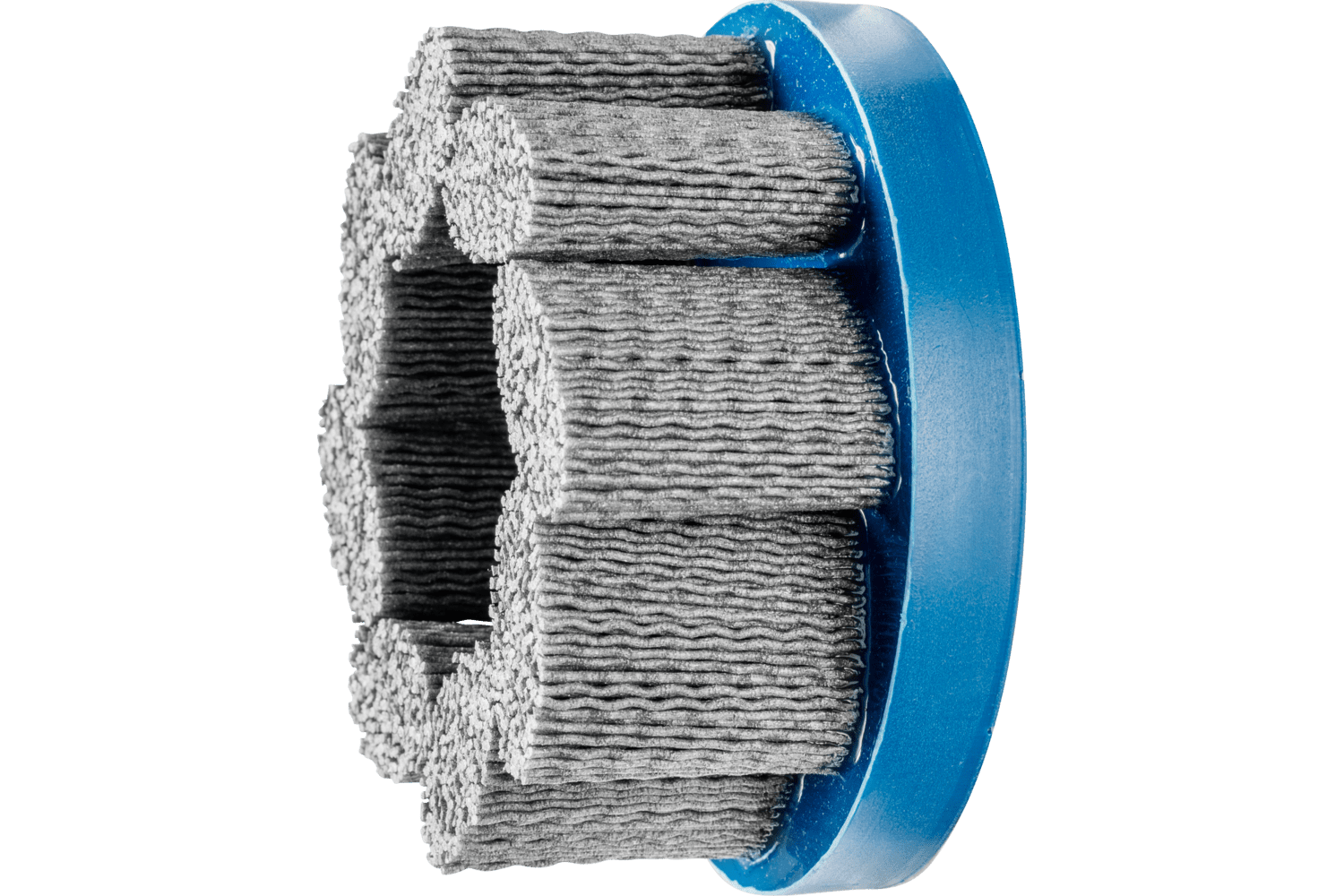

M-BRAD® Mounted Disc Brush, 4 Inch / Silicon carbide (SiC), 79183945
$0.00
Product information "M-BRAD® Mounted Disc Brush, 4 Inch / Silicon carbide (SiC), 79183945"
Technical information
4 Inch / Silicon carbide (SiC), 79183945
| Brush Diameter | 4 Inch |
| Filament Material | Silicon carbide (SiC) |
| Wire Diameter | 0.04 Inch |
| Grit Size | 80 |
| Arbor Hole | 7/8 Inch |
| Trim Length | 1 1/2 Inch |
| Max. RPM | 3500 RPM |
| Pack Qty | 1 |

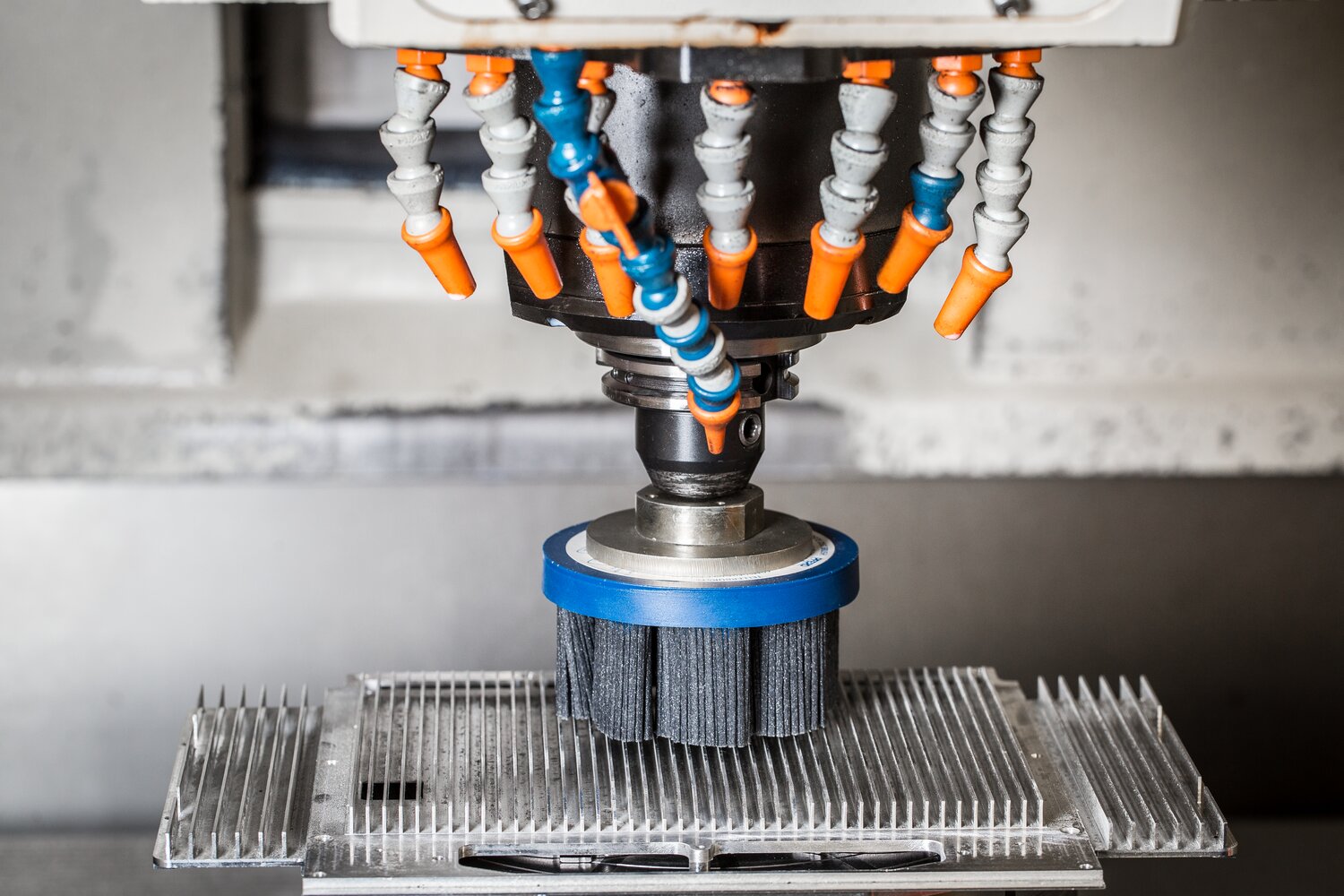

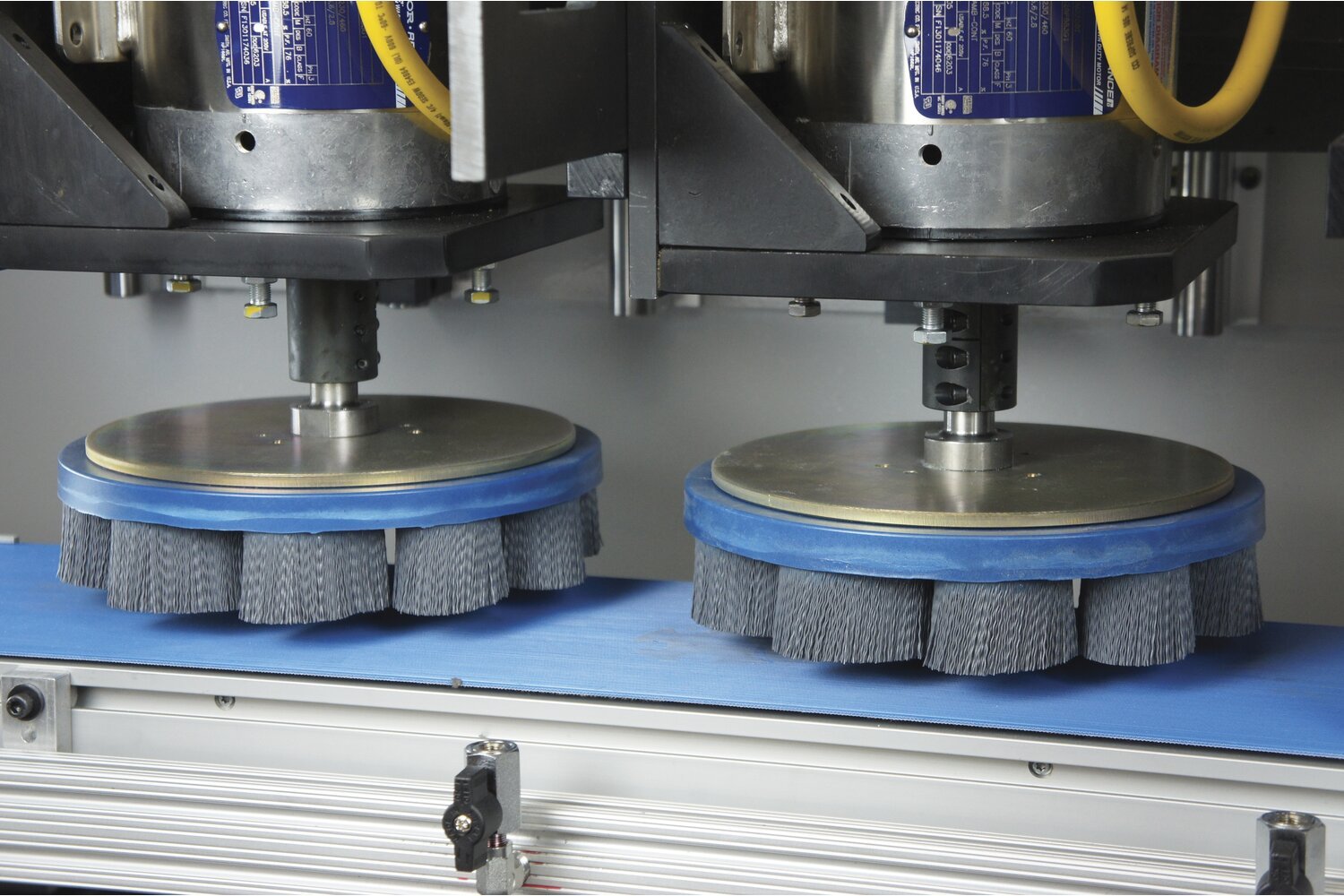

Uniquely flexible brush. Ideal for deburring and work on surfaces. Perfect for use on stationary machines. Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable mounting options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labor-intensive, manual work is reduced and repeatable results are achieved with short cycle times. Silicon carbide (SiC) filament brushes are designed for deburring work and surface improvement. Plastic filaments are temperature-resistant up to 410°F.
Advantages
- Long tool life and aggressive brushing action due to the high filament density.
- Extremely smooth operation due to evenly distributed filament material.
- Special arrangement of the filament enables optimal adjustment to the workpiece contour, less heat build-up, and more efficient use of the coolant.
- Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
Applications
- Cleaning
- Deburring
- Roughening
- Structuring (matt finishing, brush matting and satin finishing)
Materials that can be worked
- Stainless steel (INOX)
- Steel, cast steel
- Steel materials with a hardness > 54 HRC
- Steels up to 370 HV (< 38 HRC)
- Thermoplastics
- Wood
- Aluminum
- Bronze
- Cast iron
- Cast steel
Drive Types
- Tool machine
- Robot
- Stationary machines
| Arbor Hole Dia.: | 7/8 Inch |
|---|---|
| Drive Type: | Robot, Stationary machines, Tool machine |
| Filament Material: | Silicon carbide (SiC) |
| Grit Size: | 80 |
| Max. RPM: | 3500 RPM |
| Pack Qty: | 1 |
| Trim Length: | 1 1/2 Inch |
| Wire Diameter: | 0.04 Inch |
