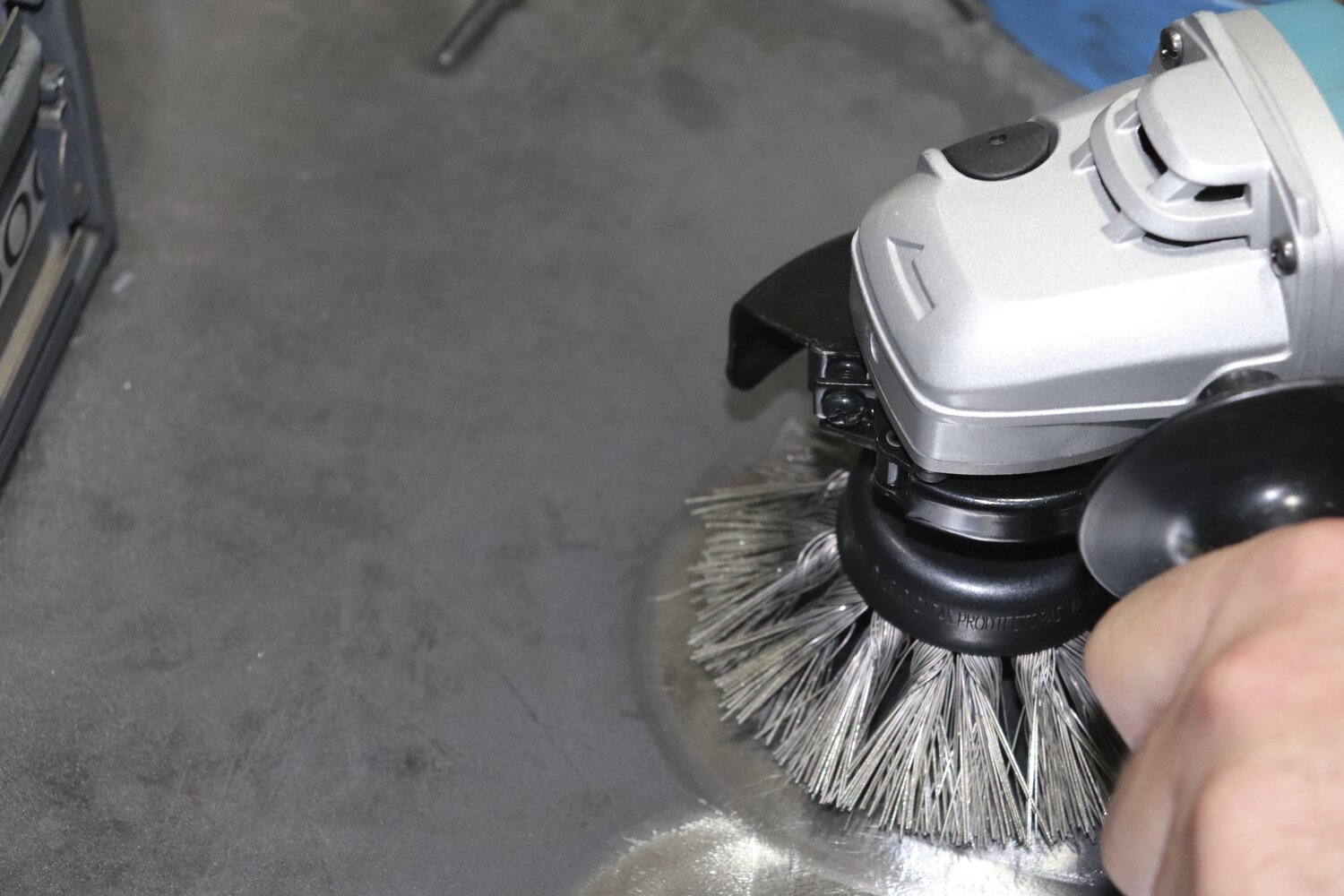

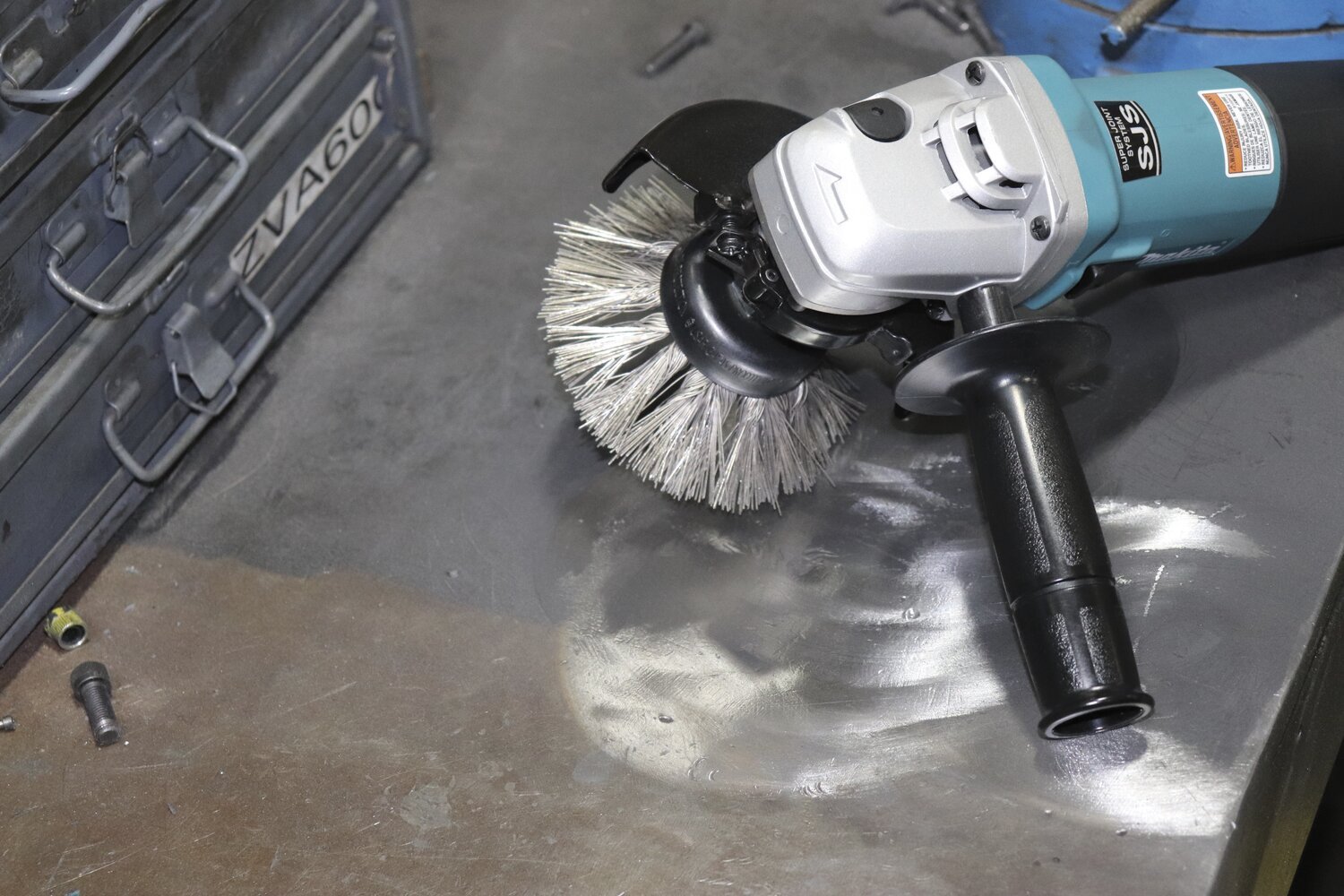

Diamond Coated Wire Cup Brush, 4 Inch, 79184349
PFERD TOOLS
$0.00
Product number:
79184349
Product information "Diamond Coated Wire Cup Brush, 4 Inch, 79184349"
Technical information
4 Inch, 79184349
| Brush Diameter | 4 Inch |
| Filament Material | Stainless steel wire (INOX) diamond (DIA) |
| Wire Diameter | 0.02 Inch |
| Grit Size | 400 |
| Thread / Arbor | 5/8-11 |
| Trim Length | 1 1/2 Inch |
| Number of Knots | 24 |
| Max. RPM | 9000 RPM |
| Pack Qty | 1 |
The brush knots are knotted to 50% of the length. The brush achieves a better surface quality on uneven surfaces when compared to knotted brushes. INOX DIA filament brushes are designed for particularly demanding applications that require an aggressive brush. They are primarily used on extremely hard materials. Stainless steel wire (INOX) diamond (DIA) is temperature-resistant up to 850 °F.
Advantages
- Optimal ratio of aggressiveness and flexibility.
Applications
- Cleaning
- Deburring
- Descaling
- Removing oxide layers
Materials that can be worked
- Soft titanium alloys (tensile strength 500 N/mm²)
- Stainless steel (INOX)
- Titanium
- Titanium alloys
- Tungsten carbide
- Wear-resistant coatings (powder metal alloys and hardfacing alloys)
- Aluminum
- Bronze
- Cobalt-based alloys
- Hard non-ferrous metal
Drive Types
- Angle grinder
| Drive Type: | Angle grinder |
|---|---|
| Filament Material: | Stainless steel wire (INOX) diamond (DIA) |
| Grit Size: | 400 |
| Max. RPM: | 9000 RPM |
| Mounting System: | 5/8-11 |
| Pack Qty: | 1 |
| Trim Length: | 1 1/2 Inch |
| Wire Diameter: | 0.02 Inch |
