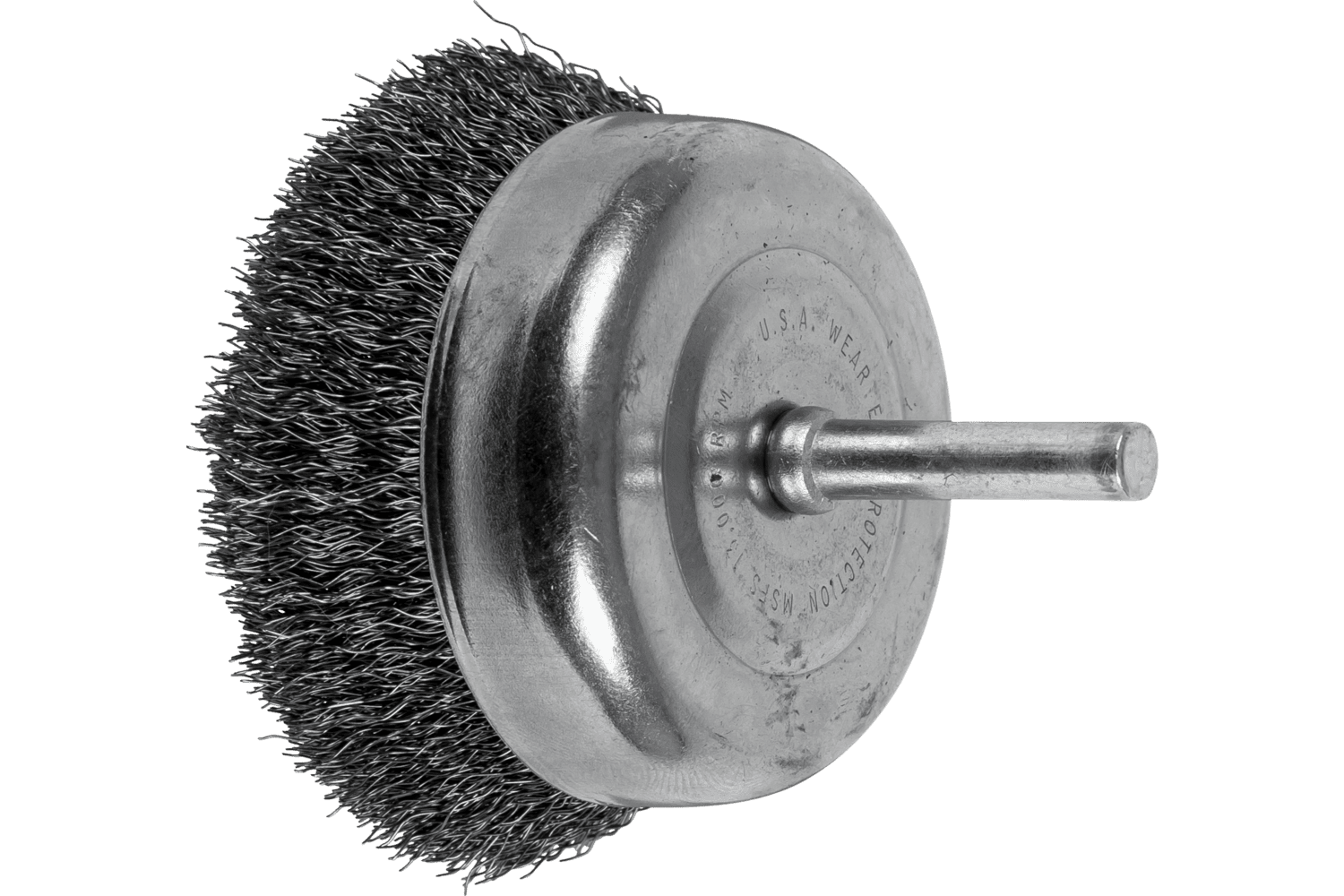

Crimped Mounted Cup Brush, 2 1/2 Inch / Steel wire (ST)
$0.00
Product information "Crimped Mounted Cup Brush, 2 1/2 Inch / Steel wire (ST)"
Technical information
2 1/2 Inch / Steel wire (ST)
| Brush Diameter | 2 1/2 Inch |
| Filament Material | Steel wire (ST) |
| Wire Diameter | 0.008 Inch |
| Shank Diameter | 1/4 Inch |
| Trim Length | 7/8 Inch |
| Max. RPM | 13000 RPM |
| Pack Qty | 10 |

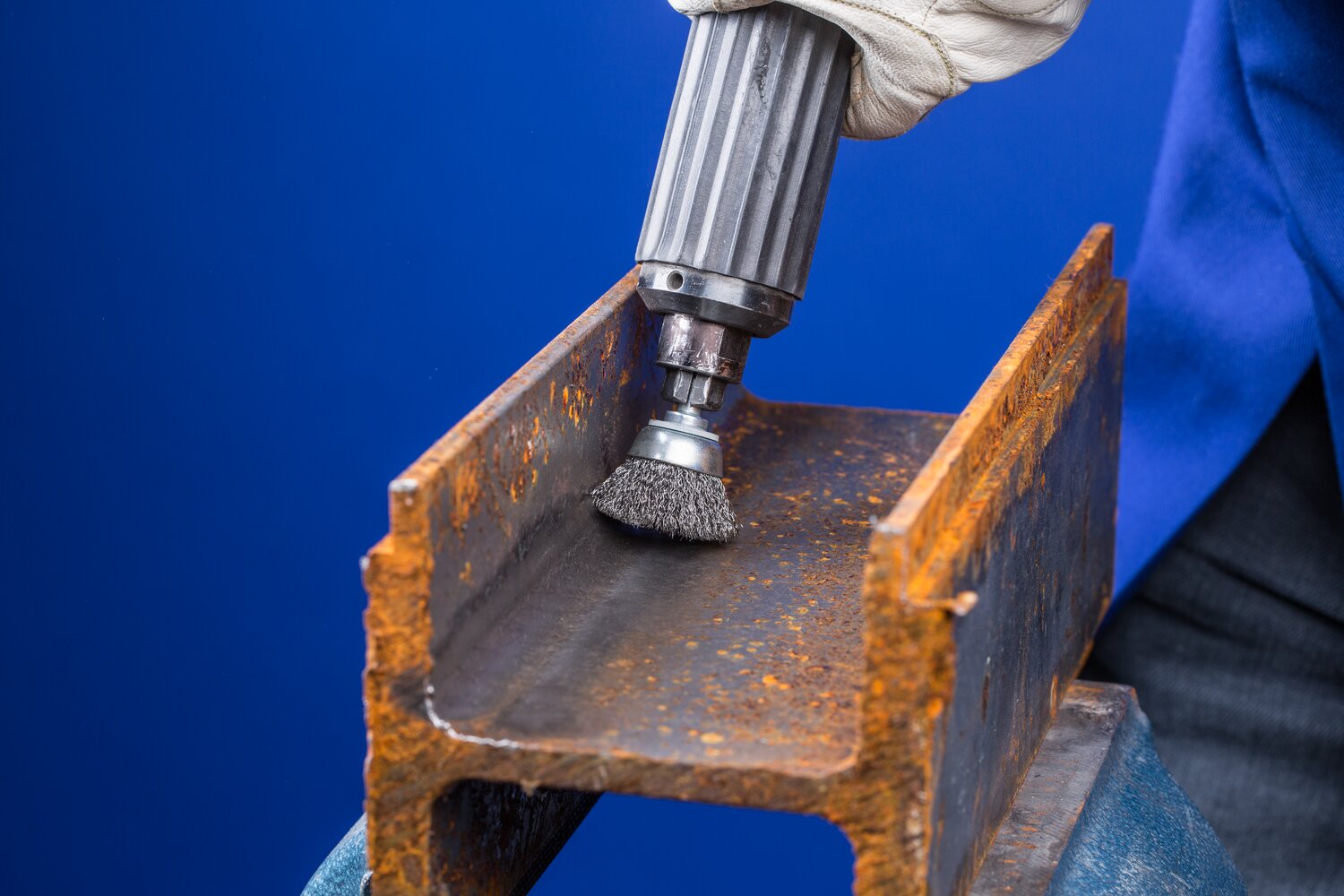

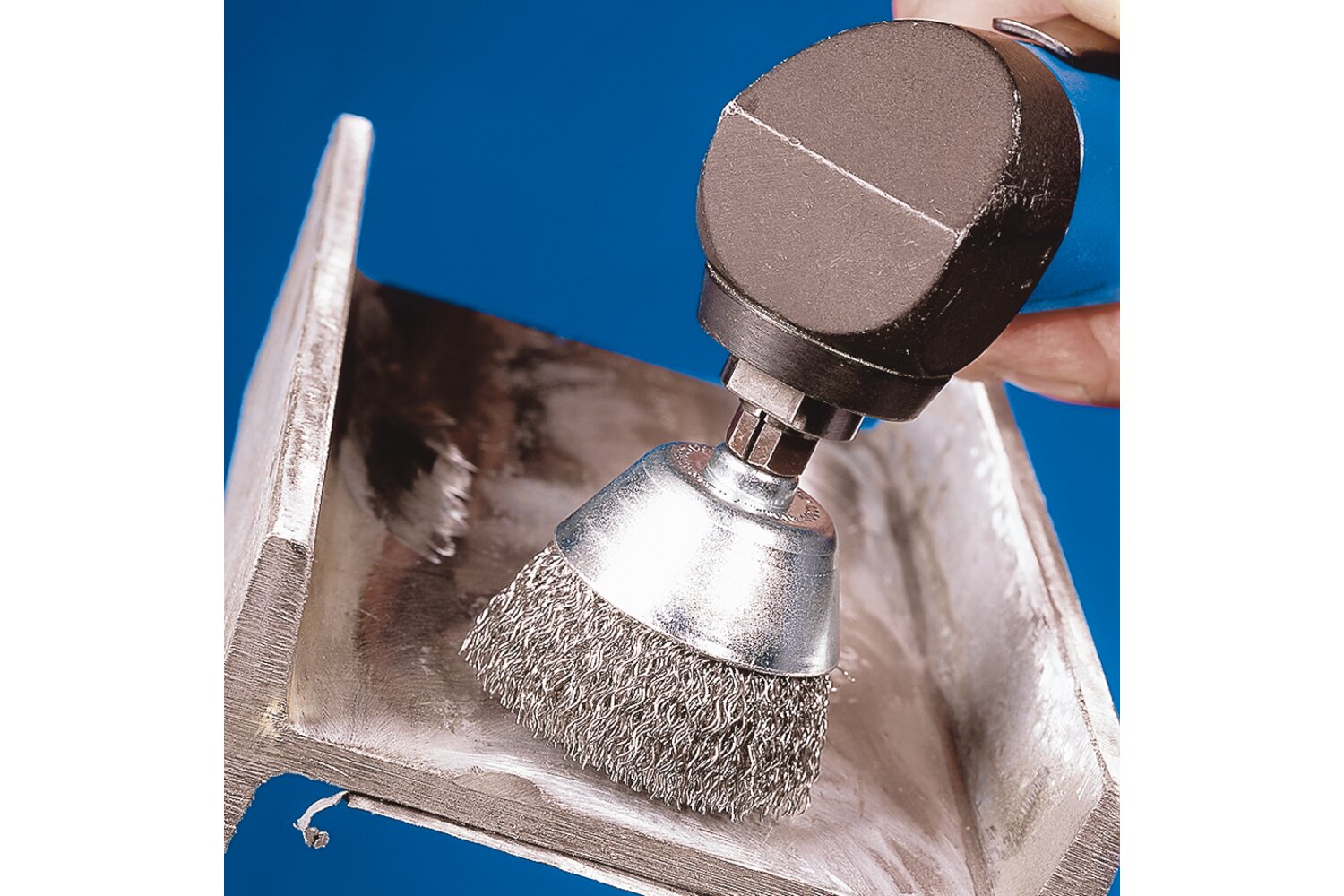

Designed for cleaning, derusting and smoothing. Perfect tool for the removal of corrosion and paint. Ideal for brushing on large, flat and easily accessible surfaces with the entire brush face applied to the workpiece. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.
Advantages
- Highly flexible, enabling optimal adaptation to the workpiece contour.
- Long service life through use of PFERD special wire.
- Creates fine surfaces.
Applications
- Cleaning
- Deburring
- Derusting
- Removing oxide layers
- Paint stripping
- Roughening
Materials that can be worked
- Steel, cast steel
- Steel materials with a hardness > 54 HRC
- Steels up to 370 HV (< 38 HRC)
- Thermoplastics
- Wood
- Cast iron
- Cast steel
- Thermosetting plastics
- Elastomers
Drive Types
- Flexible shaft drive
- Power drill
- Straight grinder
Safety
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
| Drive Type: | Flexible shaft drive, Power drill, Straight grinder |
|---|---|
| Filament Material: | Steel wire (ST) |
| Max. RPM: | 13000 RPM |
| Pack Qty: | 10 |
| Trim Length: | 7/8 Inch |
| Wire Diameter: | 0.008 Inch |
