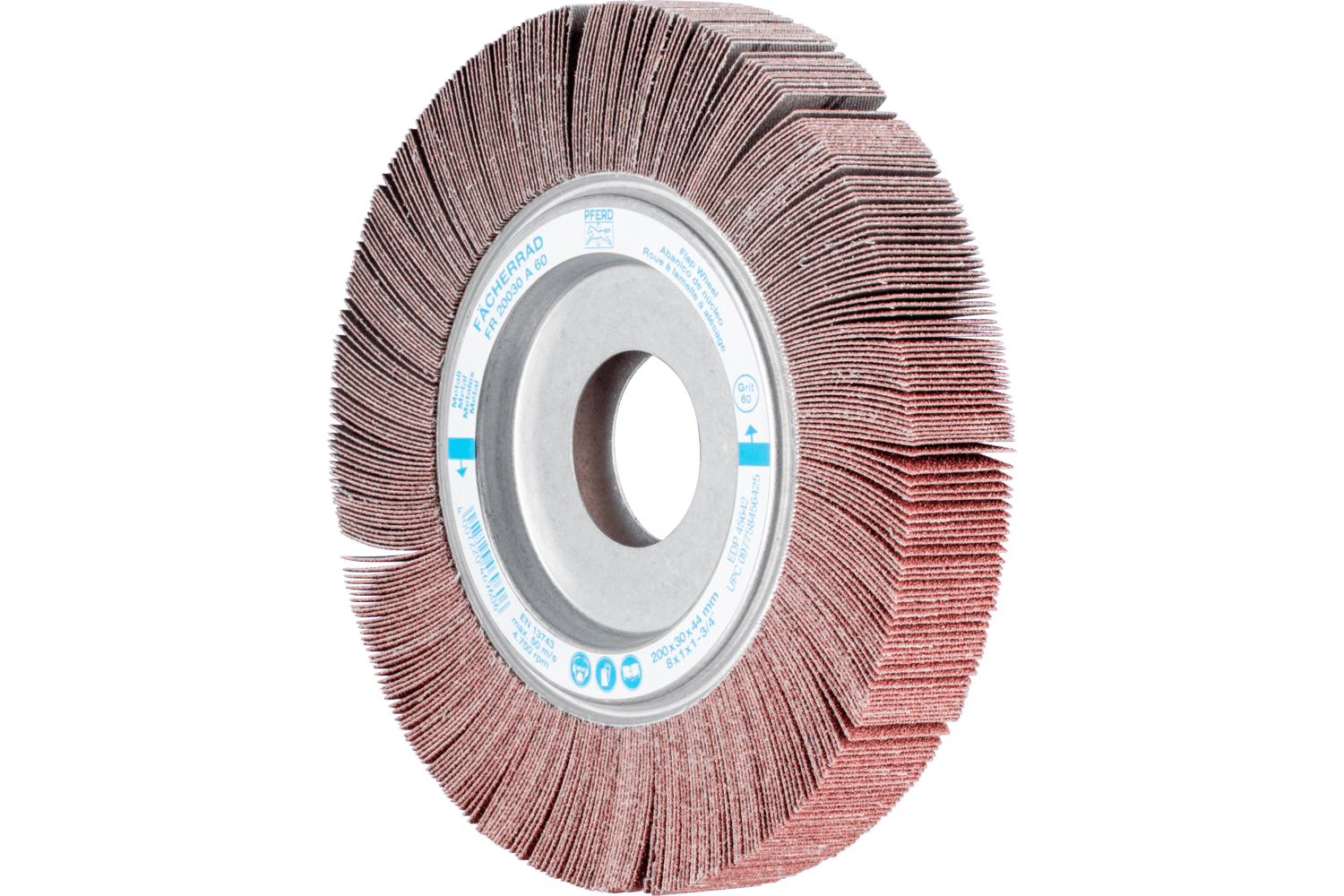

Unmounted Flap Wheel, 8 x 1", 60 Grit
PFERD TOOLS
$0.00
Product number:
44736061
Product information "Unmounted Flap Wheel, 8 x 1", 60 Grit"
Technical information
8 x 1", 60 Grit
| Dia. External | 8 in |
| Width | 1 in |
| Drive type | Flexible shaft drive |
| Grit | 60 |
| Max. RPM | 4700 |
| Pack qty | 2 |
With unmounted flap wheels, coated abrasive flaps are arranged radially around the core in a fan-like structure. The flexible flaps perfectly adapt to surface contours. The abrasive grain is embedded in the sturdy, flexible cloth backing material with a resinoid bond. In ISO 5429, unmounted flap wheels are designated as "flap wheels." For universal applications from coarse to fine grinding.
Special features
- Conforms to contours due to high flexibility.
- Consistently high stock removal rate throughout the entire service life as new, aggressive abrasive is constantly exposed.
- Can be used face-down very close to edges and in corners thanks to special clamping system.
Applications
- Deburring
- Step-by-step fine grinding
- Leveling
- Structuring (matt finishing, brush matting and satin finishing)
- Surface work
- Work on weld seams
Materials that can be worked
- Stainless steel (INOX)
- Steel materials with a hardness > 54 HRC
- Steels up to 370 HV (< 38 HRC)
- Aluminum
- Annealed cast iron
- Brass
- Cast steel
- Copper
- Grey/nodular cast iron (GG/GJL, GGG/GJS)
- Hardened, heat-treated steels over 370 HV (38 HRC)
Recommendations for use
- Flap wheel wear and the thermal load on the workpiece are reduced by decreasing the contact pressure and peripheral speed, and by adding grinding oil.
- Stock removal rate should be increased by using a coarser grit, not by increasing the contact pressure. This avoids unnecessary flap wheel wear and prevents the thermal load of the workpiece.
- Increasing the speed results in a slightly finer surface quality. An increase in contact pressure results in a slightly coarser surface. The softer the workpiece material, the coarser the resulting surface (when using the same grit size).
- For the best performance, use with a recommended peripheral speed of 3,000-6,000 SFPM. This provides an ideal compromise between stock removal rate, surface quality, thermal load on the workpiece and tool wear.
- Use the appropriate grinding oil for the material to significantly increase the service life and the abrasive performance of the discs.
- For the best results, use a power tool with 1,000–1,500 watts.
Safety
- Unmounted flap wheels should only be used with the appropriate clamping flanges.
- For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
- The contact pressure has to be reduced significantly when the optimum rotational speed is exceeded.
- The maximum permitted peripheral speed is 9,800 SFPM.
| Pack Qty: | 2 |
|---|
