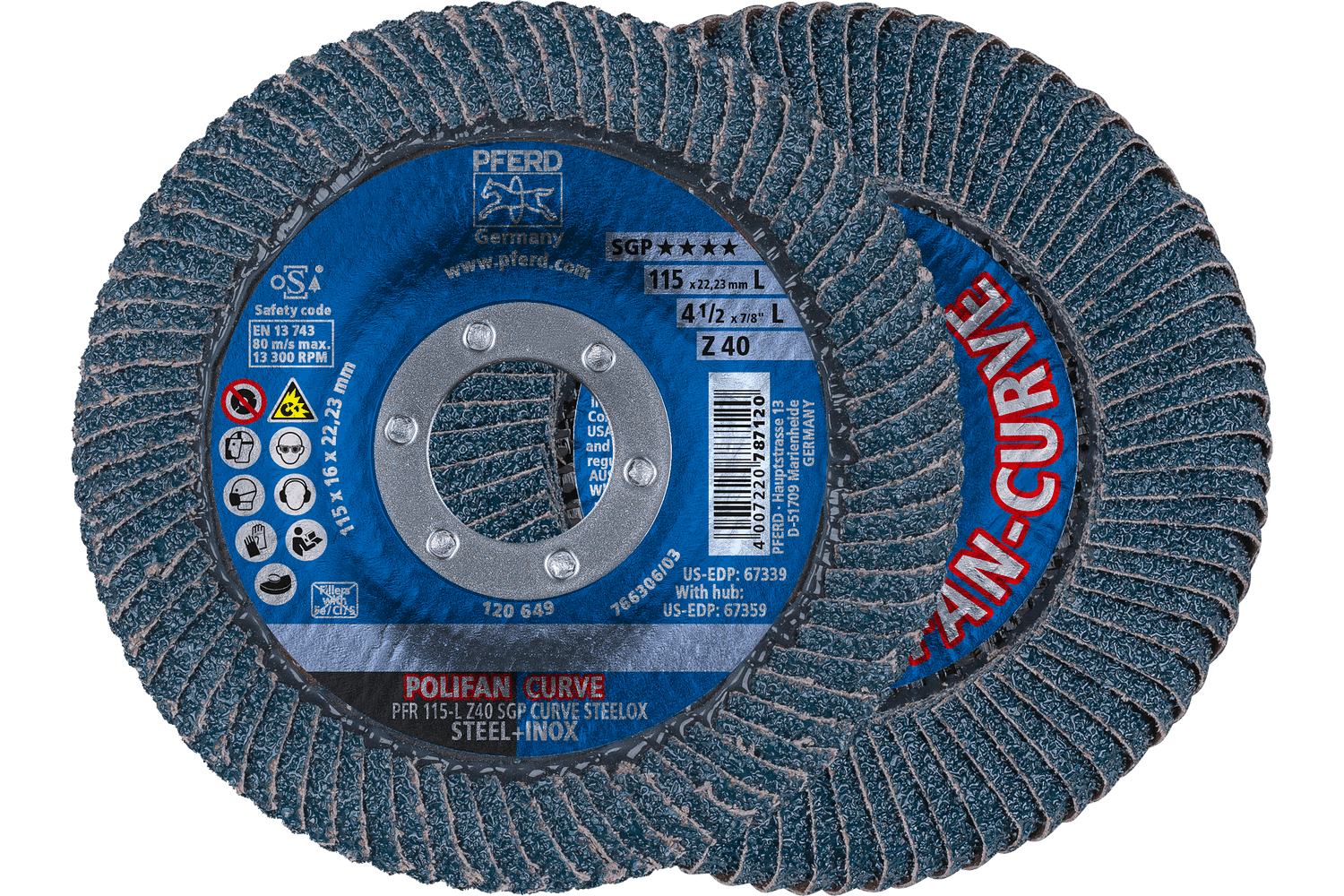

Flap Disc, Z SGP CURVE STEELOX, L (5/16"), 67698042
$0.00
Product information "Flap Disc, Z SGP CURVE STEELOX, L (5/16"), 67698042"
Technical information
L (5/16"), 67698042
| Shape | PFR CURVE |
| Abrasive | Zirconia alumina Z |
| Grit | 40 |
| Drive type | Angle grinder |
| Max. RPM | 13300 |
| Pack qty | 1 |
Special Line SGP includes products engineered for specific tasks that offer the user key advantages over conventional products. This quality line also includes products that, due to their particularly high performance, offer ultimate economic efficiency. The patented flap disc POLIFAN-CURVE has been specially developed for work on fillet welds. It is the only flap disc in the world featuring a radial configuration of flaps allowing for grinding with all surfaces of the disc. PFERD TOOLS’ POLIFAN® CURVE is patented in many countries across the globe. High-performance flap disc for maximum stock removal on steel and stainless steel (INOX).
Advantages
- Outstanding service life when working on fillet welds and a high stock removal rate ensure fast work and lower production costs.
- Excellent service life when working on fillet welds.
- Precise and optimum grinding of the fillet weld geometry.
Applications
- Chamfering
- Deburring
- Work on weld seams
- Work on fillet welds
Materials that can be worked
- Stainless steel (INOX)
- Steel
Recommendations for use
- After the abrasive on the outer edge of the disc has worn down, the disc can continue to be used as a conventional flap disc.
- For fillet weld radii > 5/16” or throat thickness > 1/4” with 90° joint, width at the radius: 9/16” with diameter 6” or 7”.
| Pack Qty: | 1 |
|---|
