Diamond Needle File Set, D91
PFERD TOOLS
$0.00
Product number:
15842051
Product information "Diamond Needle File Set, D91"
Technical information
D91
| Grit | D91 |
| Drive type | Manual application |
| Overall length | 5 1/2 Inch |
| Pack qty | 1 |

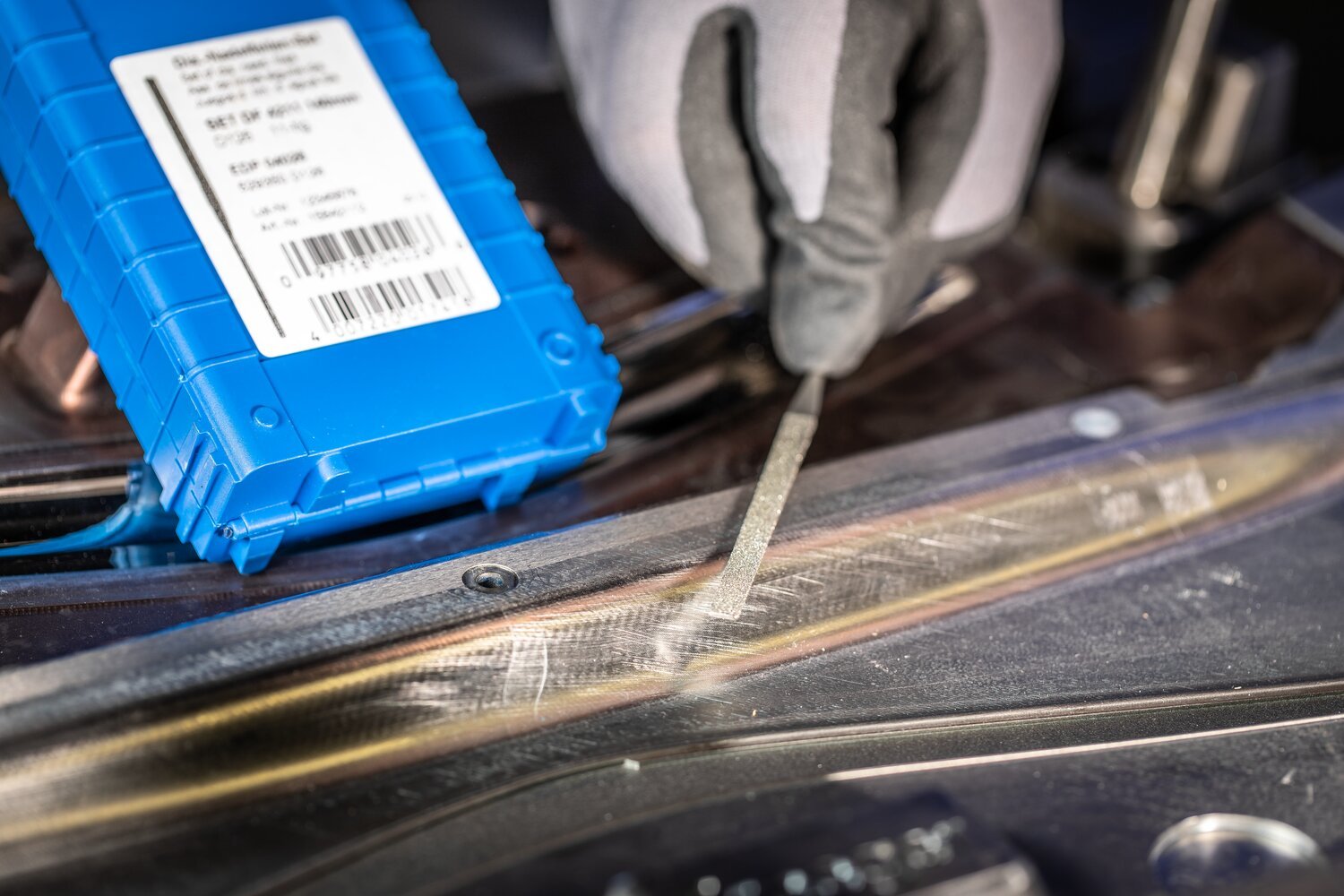

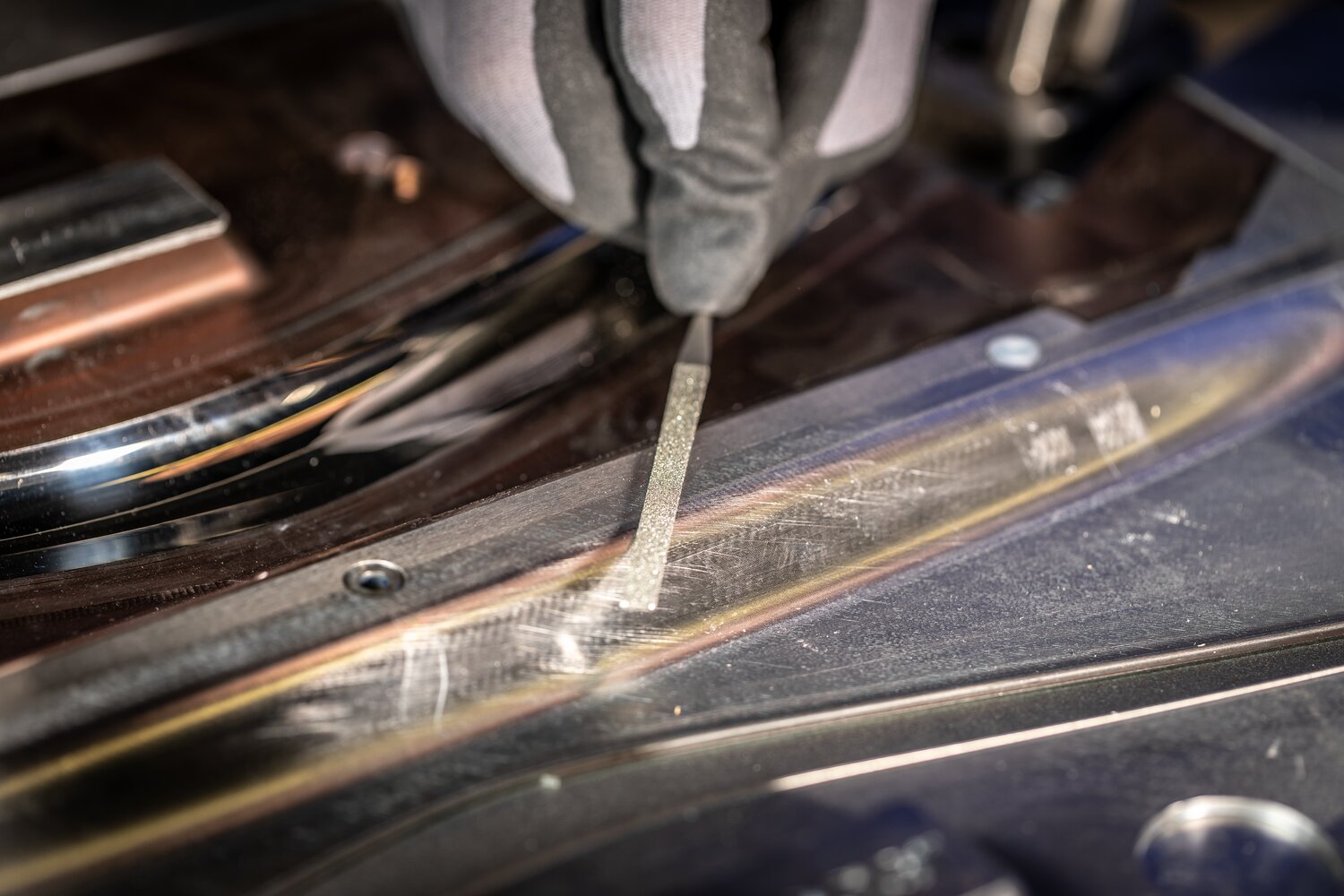

The diamond needle file set comes in a sturdy, practical plastic box which protects the tools from damage. This is ideal for keeping in the tool trolley or workbench. Diamond needle files can be used universally in tool making. This set contains one each of the following file shapes: hand, three square, square, half-round, and round
Applications
- Deburring
- Finishing
- Leveling
- Removing oxide layers
- Surface work
- Working on edges
- Working on edges (chamfering, rounding)
Materials that can be worked
- Steel materials with a hardness > 54 HRC
- Technical ceramics
- Tool steels
- Tungsten carbide
- Abrasive materials
- Case-hardened steels
- Ferrite (magnetic material)
- Glass
- Graphite and synthetic carbon
- Nickel or titanium-based superalloys
Recommendations for use
- Only apply light pressure to the file, especially when using on workpiece edges.
- Loaded diamond files can be cleaned in kerosene or anti-static plastic cleaner with a file brush. Alternatively, ultrasonic cleaning is also possible. Often, knocking the file against a hard object is sufficient.
- Avoid using grease.
| Pack Qty: | 1 |
|---|
