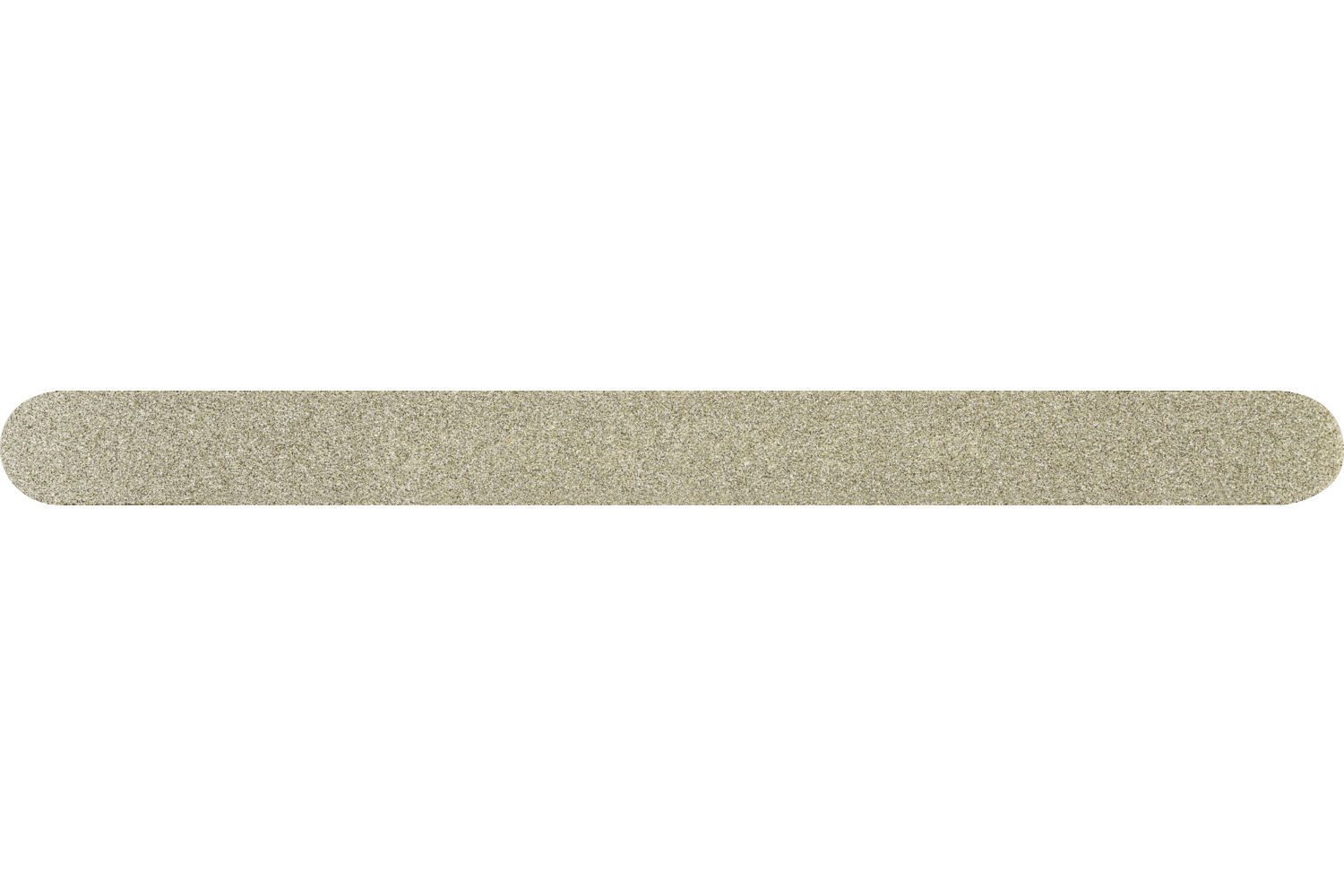

Diamond Flexible File 6-1/2" x 1/2", D126
$0.00
Product information "Diamond Flexible File 6-1/2" x 1/2", D126"
Technical information
D126
| Grit | D126 |
| Drive type | Manual application |
| Coating | one side |
| Overall length | 6 1/2 Inch |
| Pack qty | 5 |

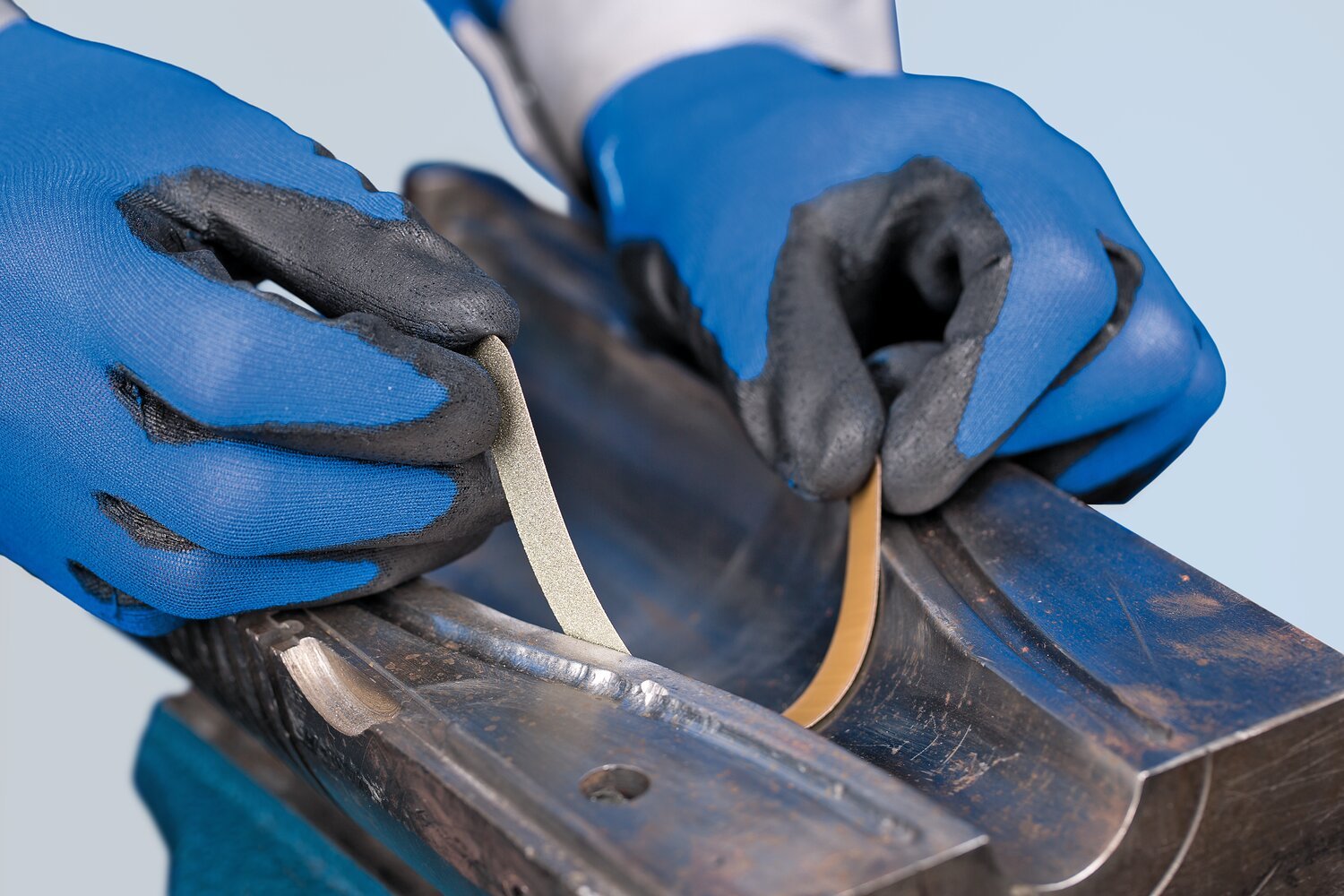

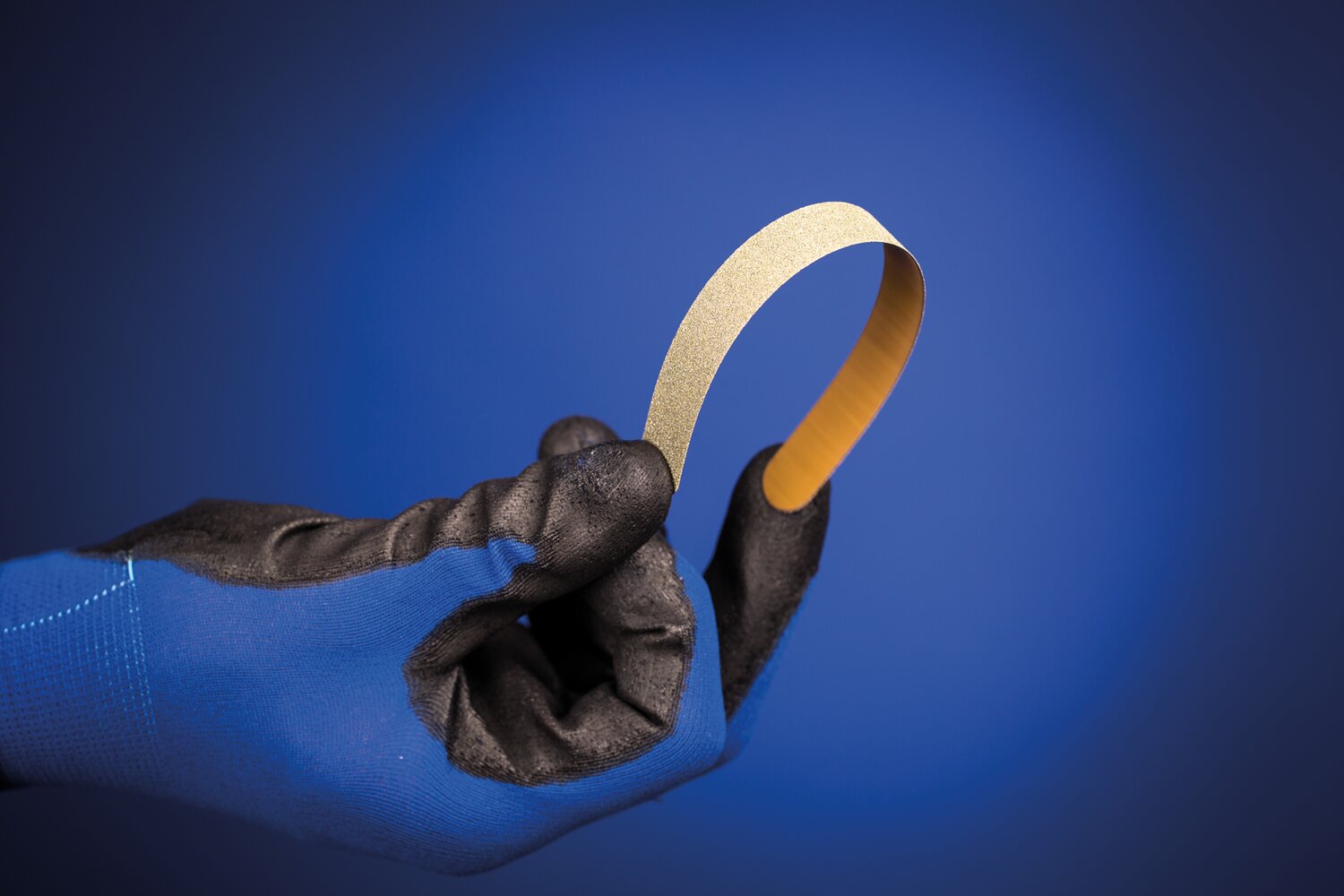

Diamond files and sheets are used when conventional files fail due to the hardness of the workpiece material. Diamond files and sheets are also used for processing hardened steel. Using these products does not generate much heat, which prevents chemical wear. This allows for a longer service life for the high hardness diamond grain. Flexible diamond files adapt perfectly to workpiece surfaces. Due to their flexibility, they can be used in convex and concave contours with small radii.
Special features
- Ideal for work on hardened steel.
Applications
- Finishing
- Leveling
- Removing oxide layers
- Rounding
- Surface work
Materials that can be worked
- Steel materials with a hardness > 54 HRC
- Technical ceramics
- Tool steels
- Tungsten carbide
- Abrasive materials
- Case-hardened steels
- Ferrite (magnetic material)
- Glass
- Graphite and synthetic carbon
- Nickel or titanium-based superalloys
Recommendations for use
- Only apply light pressure to the file, especially when using on workpiece edges.
- Loaded diamond files can be cleaned in kerosene or anti-static plastic cleaner with a file brush. Alternatively, ultrasonic cleaning is also possible. Often, knocking the file against a hard object is sufficient.
- Avoid using grease.
- Only use file up to a bending radius of 5/8".
| Pack Qty: | 5 |
|---|
