Milled tooth files tanged hand
$0.00
Product information "Milled tooth files tanged hand"
Technical information
PFERD Milled Tooth Hand File 12" Coarse Cut
| Item number | 13101301 |
| Cut | 1 |
| Cut files type | Bastard |
| EDP no. | 13003 |
| Height | 5/16 Inch |
| Length | 12 Inch |
| PFERD TOOLS type | 290 |
| Width | 1.21875 Inch |
| Packaging unit | 5 EACH |

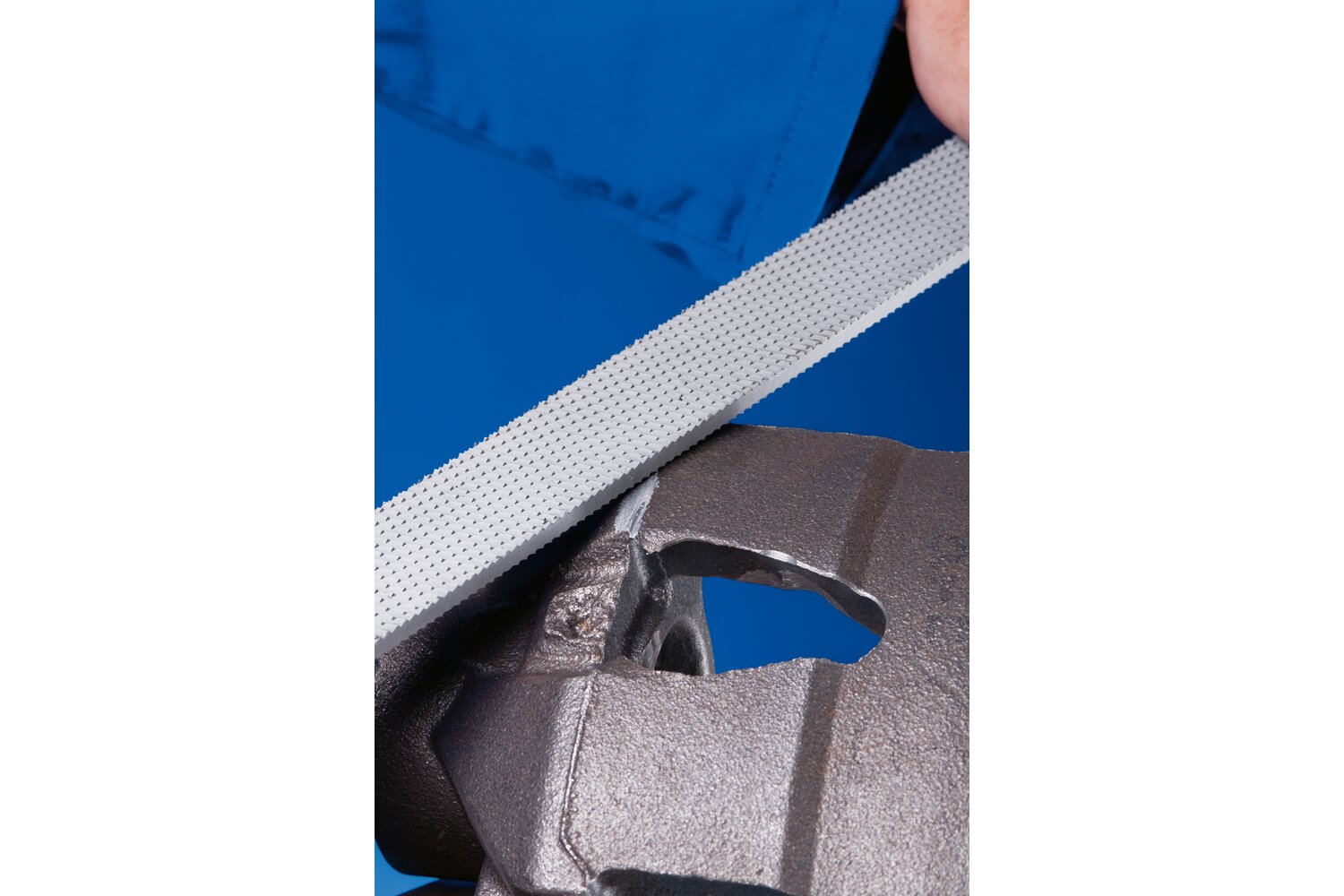

Milled tooth files from PFERD are particularly designed for coarse stock removal. The highly abrasive milled tooth geometry with large flutes prevents loading. Rectangular file with cuts on three sides. Tanged version. Angled cut with chip breaker on the flat sides, straight cut on the high edge. Designed for work on rectangular surfaces. Bastard cut for coarse stock removal on soft metals. Milled tooth shape with large flutes prevents teeth from loading. These milled file blades come in industrial packaging.
Special features
- Very aggressive.
- Large flutes prevent loading.
Recommendations for use
- For coarse stock removal, use cut 1 with 8 teeth per inch.
Workpiece materials
- Steel, cast steel
- Steels up to 370 HV (< 38 HRC)
- Aluminum
- Brass
- Cast steel
- Copper
- Grey/nodular cast iron (GG/GJL, GGG/GJS)
- Soft non-ferrous metal
Applications
- Chamfering
- Deburring
- Leveling
- Rounding
- Surface work
- Working on edges (chamfering, rounding)
Compatible power tools
- Manual application
| Application: | Chamfering, Deburring, Leveling |
|---|---|
| Country of Origin: | DE |
| Cut: | 1, 2 |
| Drive Type: | Manual application |
| Material: | Aluminum, Brass, Steel, cast steel, Steels up to 370 HV (< 38 HRC) |
