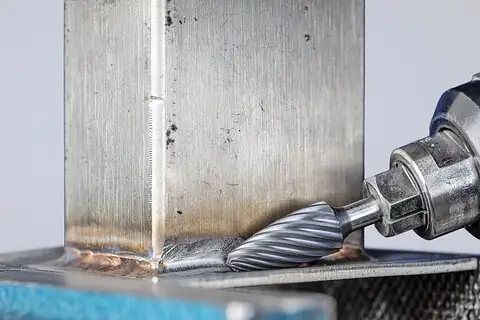

High-performance tungsten carbide burs, INOX cut, Tree bur with radius end – Shape F
$0.00
Product information "High-performance tungsten carbide burs, INOX cut, Tree bur with radius end – Shape F"
Technical information
PFERD Carbide Bur SF-5 Tree Shape INOX Cut 1/2" x 1" x 1/4" Shank
| Item number | 21724727 |
| Dia. External | 1/2 Inch |
| Dia. shank | 1/4 Inch |
| EDP no. | 24727 |
| Overall length | 2-3/4 Inch |
| Cut | INOX |
| RPM, hard non-ferrous metals | 7000 - 12000 RPM |
| RPM, soft non-ferrous metals | 7000 - 12000 RPM |
| Packaging unit | 1 pieces |
With the INOX cut, PFERD has developed innovative burs specifically for stainless steel (INOX). They achieve incredibly high stock removal on all austenitic steels, as well as rust- and acid-resistant steels. The INOX cut generates significantly less vibration in comparison to a double cut bur. Tree bur with radius end, shape F.
Special features
- Excellent stock removal rate and impressive service life due to innovative tooth design.
- Creates high quality surface finish and the optimum material chip formation.
- Workpiece is protected through much lower thermal load.
- The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
Recommendations for use
- Use the burs on powerful power tools with elastically mounted spindles to avoid unwanted vibration.
- Observe the recommended rotational speed.
- The smaller the bur diameter is in the area being used, the higher the recommended rotational speed can be.
- For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.
Safety notes
- Very high speeds can cause discoloration on the shank. This does not constitute a safety risk.
Workpiece materials
- Hard non-ferrous metal
- Stainless steel (INOX)
- Titanium
- Titanium alloys
Applications
- Cutting out holes
- Deburring
- Leveling
- Milling
- Milling out
- Surface work
- Work on weld seams
Compatible power tools
- Flexible shaft drive
- Tool machine
- Robot
- Stationary machines
- Straight grinder
| Country of Origin: | DE |
|---|
