High-performance tungsten carbide burs, CAST cut, Cylindrical bur with radius end – Shape C
$0.00
Product information "High-performance tungsten carbide burs, CAST cut, Cylindrical bur with radius end – Shape C"
Technical information
PFERD Carbide Bur SC-5 Cylindrical Radius End CAST Cut 1/2" x 1" x 1/4" Shank
| Item number | 21724469 |
| Dia. External | 1/2 Inch |
| Dia. shank | 1/4 Inch |
| EDP no. | 24469 |
| Overall length | 2-3/4 Inch |
| Cut | CAST |
| RPM, grey cast iron, white cast iron | 12000 - 20000 RPM |
| Packaging unit | 1 pieces |

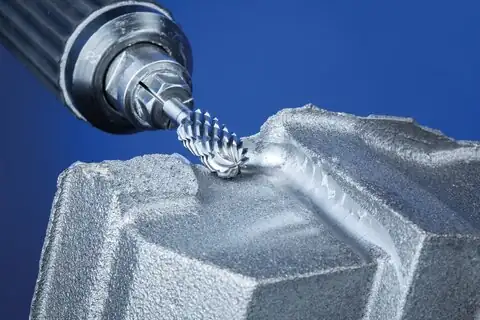

With the CAST cut, PFERD has developed innovative burs specifically for work on cast iron. These burs achieve incredibly high stock removal on cast iron and operate with significantly reduced vibration and noise. Cylindrical bur with rounded radius end, shape C.
Special features
- Up to 100% higher stock removal rate on cast iron than conventional double cut burs, due to an innovative tooth design.
- Significantly increased aggressiveness, creates large chips, and has very good chip removal.
- Comfortable to use due to reduced vibration and less noise.
- The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
Recommendations for use
- Use the burs on powerful power tools with elastically mounted spindles to avoid unwanted vibration.
- Observe the recommended rotational speed.
- For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.
Safety notes
- Very high speeds can cause discoloration on the shank. This does not constitute a safety risk.
Workpiece materials
- Annealed cast iron
- Black annealed cast iron (GTS, GJMB)
- Cast iron
- Grey/nodular cast iron (GG/GJL, GGG/GJS)
- White annealed cast iron (GTW, GJMW)
Applications
- Cutting out holes
- Deburring
- Leveling
- Milling
- Milling out
- Surface work
- Work on weld seams
Compatible power tools
- Flexible shaft drive
- Tool machine
- Robot
- Stationary machines
- Straight grinder
| Country of Origin: | DE |
|---|
