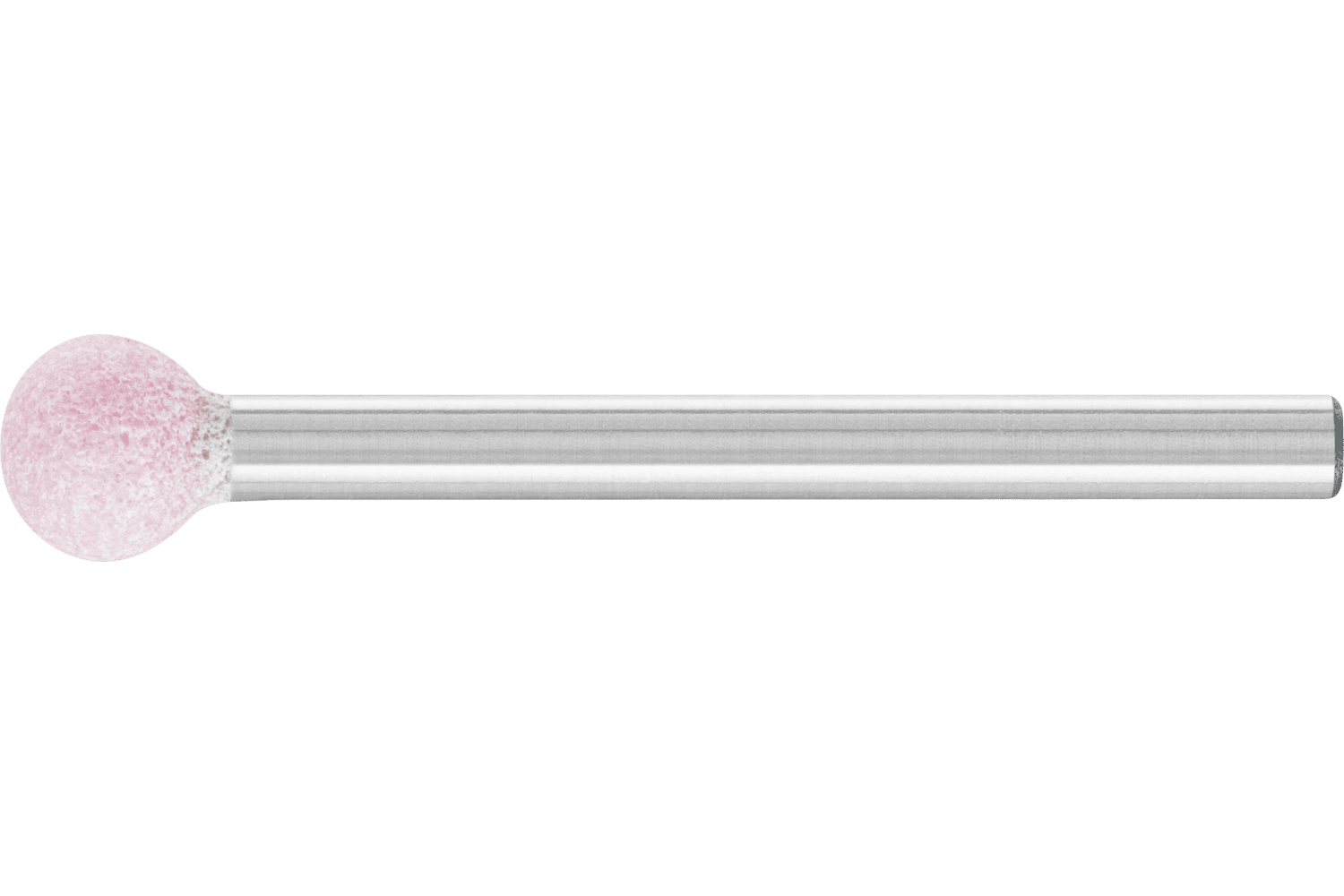

Mounted points - Series B STEEL EDGE
$0.00
Product information "Mounted points - Series B STEEL EDGE"
Technical information
Mounted points - Series B STEEL EDGE, B125, 1/4 x 1/4", Grit 100, 1/8" shank
| Item number | 39105058 |
| Shape | B125 |
| Dia. external | 1/4 Inch |
| Width | 1/4 Inch |
| Grit | 100 |
| Dia. shank | 1/8 Inch |
| Drive type | Flexible shaft drive, Straight grinder |
| Application | Deburring, Working on edges (chamfering, rounding), Finishing, Grouting, Grinding out, Work on weld seams, Leveling, Surface work |
| Material | Steel, Cast steel |
| Pack qty | 10 |
The STEEL EDGE type is ideal for edge grinding and deburring work on steel and cast steel components. Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours. Series B mounted points are generally used on smaller or more delicate components, such as in tool and die construction. Due to the special shapes, it is possible to grind in a variety of contours. Applications include grinding out slits and grooves in hard-to-reach areas, machining bores and small holes, and smoothing surfaces.
Special features
- Long service life and low wear due to hard, dimensionally stable bond.
- Cost-effective due to high edge stability, even on low-speed power tools.
- Ideal for work on edges.
Applications
- Deburring
- Finishing
- Grinding out
- Grouting
- Leveling
- Surface work
- Work on weld seams
- Working on edges (chamfering, rounding)
Materials that can be worked
- Steel
- Cast steel
Recommendations for use
- STEEL EDGE mounted points perform best at a peripheral speed of 5,000-7,800 SFPM.
Safety
- The maximum permitted rotational speed relates to the unsupported shank length of 1/2".
| Application: | Deburring, Finishing, Grinding out, Grouting, Leveling, Surface work |
|---|---|
| Drive Type: | Flexible shaft drive, Straight grinder |
| Material: | Cast steel, Steel |
| PFERD TOOLS Type: | B 125 3,1 AR 100 O5V STEEL EDGE |
| Pack Qty: | 10 |
