High-performance tungsten carbide bur set, Diamond cut
$0.00
Product information "High-performance tungsten carbide bur set, Diamond cut"
Technical information
PFERD Carbide Bur Set 5 Piece Diamond Cut 1/4" Shank Plastic Case
| Item number | 21726552 |
| Dia. shank | 1/4 Inch |
| EDP no. | 26552 |
| Cut | Diamond |
| PFERD TOOLS type | TC-Set 5 pieces C4 |
| Packaging unit | 1 pieces |

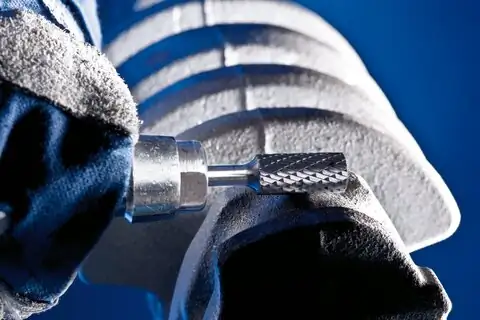

Diamond cut burs are designed for machining stainless steel (INOX), steel, and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. They have high stock removal with short chips, and achieve a good surface finish. Universal line burs are designed for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. This set contains five tungsten carbide burs in the shapes and dimensions most commonly used in the workshop. The sturdy plastic box protects the burs against dirt and damage. The burs are secured at the shanks, facilitating their selection and withdrawal. The box also has five unused slots for additional burs.
Special features
- Good stock removal rate due to high quality tungsten carbide, bur shape, cut, and optional coating.
- Durable.
- The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.
- High surface quality.
Recommendations for use
- The smaller the bur diameter is in the area being used, the higher the recommended rotational speed can be.
- For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/4" shank diameter, use power tools with a power output from 300 watts.
Workpiece materials
- Annealed cast iron
- Black annealed cast iron (GTS, GJMB)
- Case-hardened steels
- Cast iron
- Cast steel
- Cobalt-based alloys
- Grey/nodular cast iron (GG/GJL, GGG/GJS)
- Hard aluminium alloys
- Hardened, heat-treated steels over 370 HV (38 HRC)
- High-temperature-resistant materials
- Nickel-based alloys (e.g. Inconell and Hastelloy)
- Stainless steel (INOX)
- Steel
- Steel, cast steel
- Steels over 220 HV (> 95 HB)
- Steels up to 220 HV (< 95 HB)
- Steels up to 370 HV (< 38 HRC)
- Tool steels
- White annealed cast iron (GTW, GJMW)
Applications
- Cutting out holes
- Deburring
- Leveling
- Milling
- Milling out
- Surface work
- Work on weld seams
Compatible power tools
- Flexible shaft drive
- Tool machine
- Robot
- Stationary machines
- Straight grinder
| Country of Origin: | DE |
|---|
