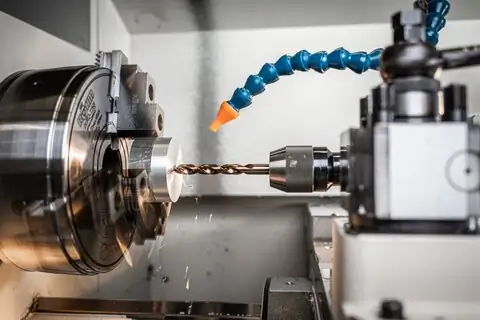

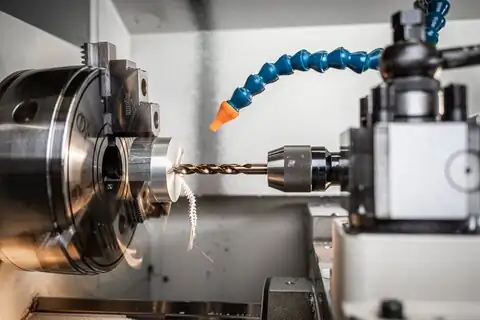

HSS twist drill bits, HSSE N INOX
$0.00
Product information "HSS twist drill bits, HSSE N INOX"
Technical information
PFERD HSS Twist Drill 3/4" M35 (Co5) INOX
| Item number | 25204068 |
| Angle | 135 ° |
| Diameter | 3/4 Inch |
| EDP no. | 20074 |
| Flute length | 5-5/8 Inch |
| Helix angles | 36 ° |
| Overall length | 7-2/3 Inch |
| RPM, grey cast iron, white cast iron | 170 - 420 RPM |
| RPM, hard non-ferrous metals | 420 - 840 RPM |
| RPM, soft non-ferrous metals | 170 - 1010 RPM |
| RPM, steels over 220 HV (95 HB) | 340 - 420 RPM |
| Version | INOX |
| Packaging unit | 1 pieces |
Drill bits with cross grinding for industrial use. Fully ground, right-hand turning to produce precise drill holes due to their high concentricity and exact centering. PFERD offers spiral drills STEEL (118 ° point angle) and INOX (135 ° point angle) versions. High-performance HSSE-Co5 (M35) drill bit for industrial use on INOX and other non-ferrous metals. The fully ground right-hand turning design with cross grinding provides an exact centering drill tip and a high level of concentricity.
Special features
- Ideal for tough and hard materials, such as alloyed and high-strength steel, stainless steel (INOX).
- Robust tip profile.
- Very durable.
- Very good temperature resistance due to Co content.
- Very good chip removal.
- High concentricity.
- Exact centering and low feed force thanks to cross grinding.
Recommendations for use
- Observe the recommended rotational speed.
- When drilling metals, use a high-quality cutting oil or cooling lubricant, if possible. This facilitates smooth running and extends the drill service life. Exception: when working on aluminum, use kerosene instead of cutting oil.
- To avoid corrosion when working on stainless steel (INOX), remove any particles that break away from the workpiece. Clean the workpiece chemically or mechanically (etching/polishing, etc.).
Safety notes
- Wear eye protection.
- Follow the safety instructions.
Workpiece materials
- Aluminum
- Annealed cast iron
- Black annealed cast iron (GTS, GJMB)
- Brass
- Bronze
- Case-hardened steels
- Cast iron
- Cast steel
- Casting scale
- Chipboard
- Cobalt-based alloys
- Copper
- Ductile cast iron
- Elastomers
- Fibre-reinforced thermosetting plastics (GRP, CRP)
- Fibre-reinforced thermosetting plastics (GRP, CRP) with a fibre content > 40 %
- Fibre-reinforced thermosetting plastics (GRP, CRP) with a fibre content ≤ 40 %
- Grey/nodular cast iron (GG/GJL, GGG/GJS)
- Hard aluminium alloys
- Hard non-ferrous metal
- Nickel or titanium-based superalloys
- Nickel-based alloys (e.g. Inconell and Hastelloy)
- Other
- Other non-ferrous metals
- Plastics
- Roller-bearing and ball-bearing steels
- Soft aluminium alloys
- Soft non-ferrous metal
- Soft titanium alloys (tensile strength 500 N/mm²)
- Soft wood
- Stainless steel (INOX)
- Steel
- Steel, cast steel
- Steels over 220 HV (> 95 HB)
- Steels up to 220 HV (< 95 HB)
- Steels up to 370 HV (< 38 HRC)
- Thermoplastics
- Thermosetting plastics
- Titanium
- Titanium alloys
- Tool steels
- Tough aluminium alloys
- White annealed cast iron (GTW, GJMW)
- Wood
- Zinc
Applications
- Drilling
Compatible power tools
- Column drill
- Tool machine
- Power drill
- Robot
- Stationary machines
| Angle: | 135 ° |
|---|---|
| Application: | Drilling |
| Country of Origin: | DE |
| Helix angles: | 36 ° |
| Version: | INOX |
