Chain saw sharpeners
$0.00
Product information "Chain saw sharpeners"
Technical information
PFERD CHAIN SHARP CS-X 1/8" with Round and Flat Files
| Item number | 18600742 |
| Cut | Classic Line |
| EDP no. | 17299 |
| Length | 12.4 Inch |
| PFERD TOOLS type | CS-X |
| Packaging unit | 1 EACH |

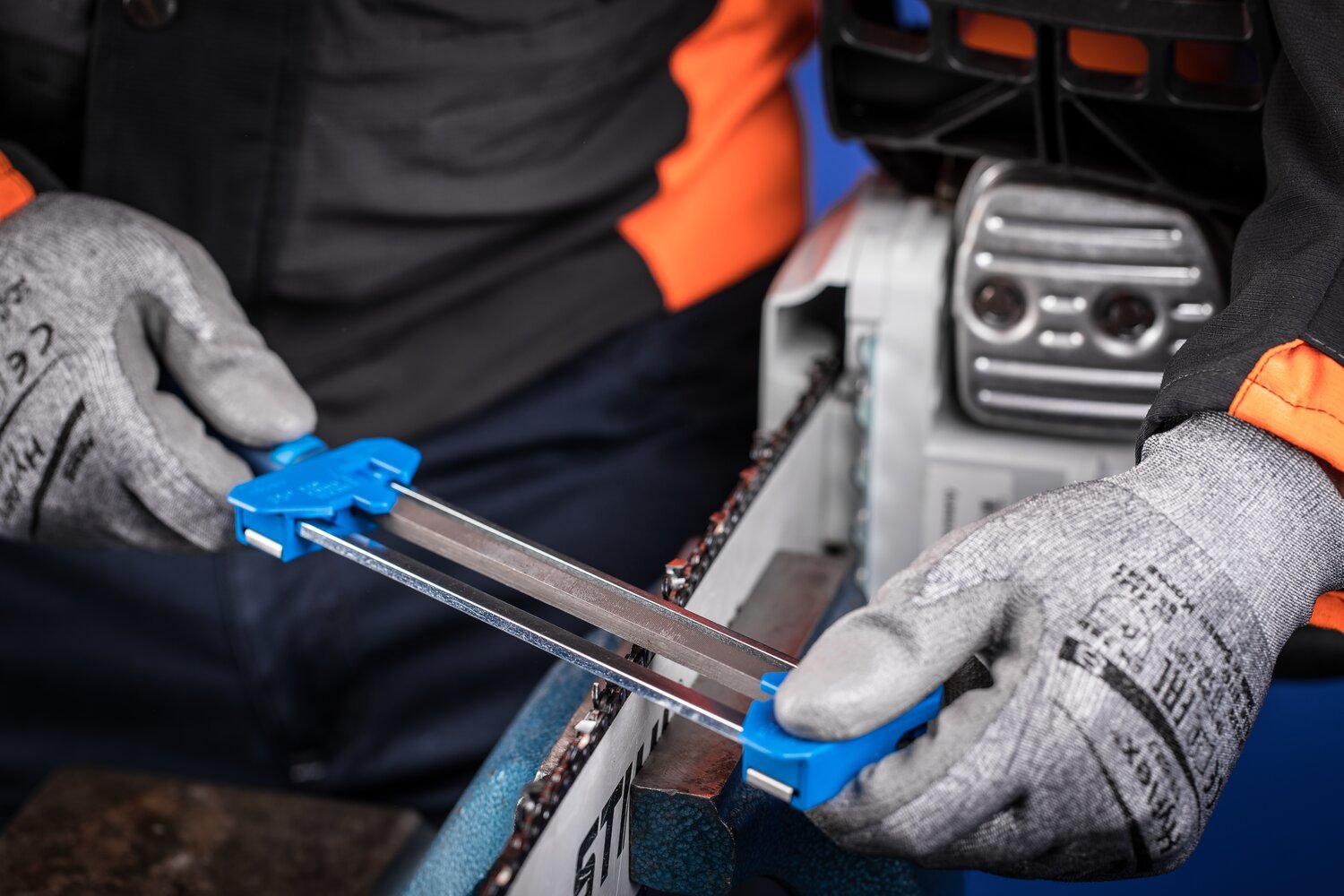

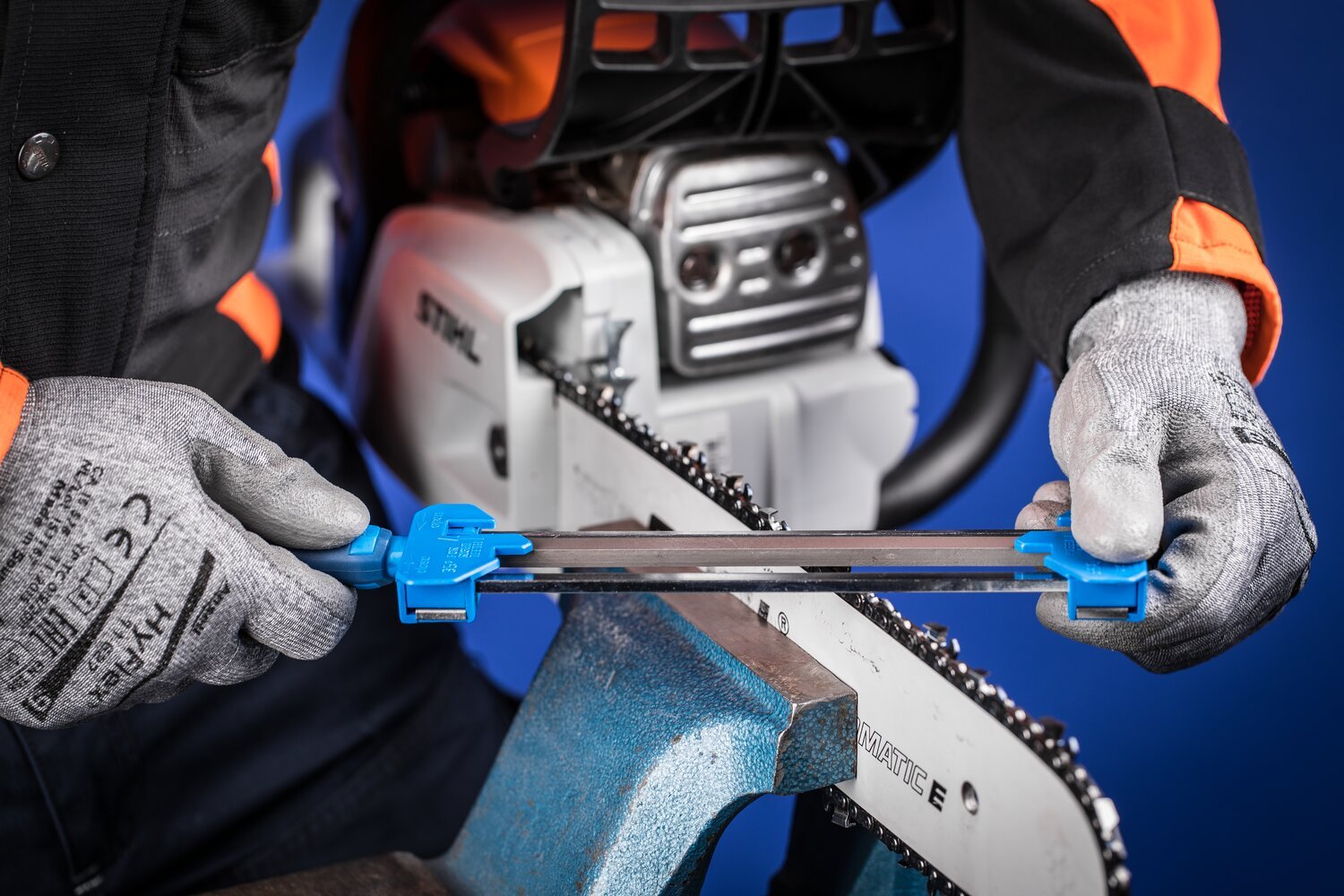

PFERD offers sharpeners for both manually and mechanically sharpening saw chains. Sharpeners from PFERD stand out because of their durability and ease of use. Chain saw sharpeners from PFERD are ideal for manually sharpening saw chains. Manual sharpening is more economical and gentler than machine-based sharpening, and it prolongs the operating life of the saw chain if resharpened at an early stage. The CHAIN SHARP CS-X chain saw sharpener stands out because of its ideal file position, ergonomic shape, and easy handling. The device provides a sharpening angle of 30°. The chain saw sharpener includes a sharpener, a Classic Line chain saw file, and a depth gauge file. It comes with detailed operating instructions in a transparent, reusable plastic pouch which protects against damage and dirt.
Special features
- Flexible use on site due to compact device design.
- Easy to use due to its defined sharpening angle.
- Long tool life due to interchangeable files.
- Turn the device over to change from the right to the left tooth – no conversion work required.
- Shape is optimized for precise guidance and optimal sharpening results.
- Modern design makes it easy to replace the files.
- Simultaneously sharpen the saw teeth and adjust the depth gauge.
- Precise and uniform sharpening result, even for inexperienced users.
Recommendations for use
- Designed for low profile saw chains.
Ordering notes
Observe the defined depth gauge distance. PFERD offers this chain saw sharpener in various designs for different chain pitches.
Workpiece materials
- Steels up to 370 HV (< 38 HRC)
Applications
- Sharpening
Compatible power tools
- Manual application
| Application: | Sharpening |
|---|---|
| Chain pitch: | 0.325, 0.375, 0.404, 1/4 LP, 3/8 LP |
| Country of Origin: | DE |
| Drive Type: | Manual application |
| Material: | Steels up to 370 HV (< 38 HRC) |
| PFERD TOOLS Type: | CS-X, KSSG 90, KSSG 91 |
