Bench grinding wheels UNIVERSAL
PFERD TOOLS
$0.00
Product number:
39009719
Product information "Bench grinding wheels UNIVERSAL"
Technical information

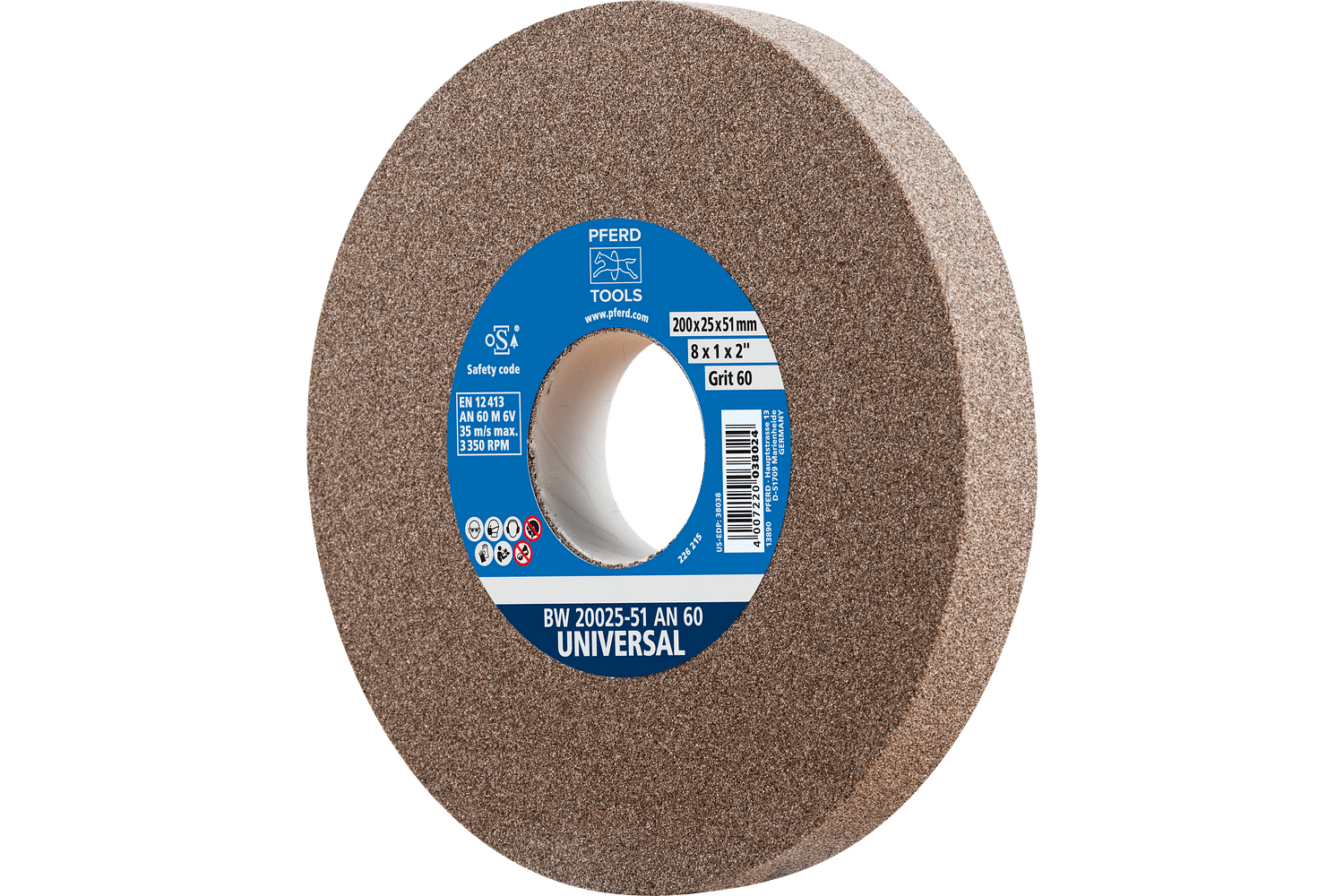

Bench grinding wheels UNIVERSAL, 8 x 1 x 2", Grit 60
| Item number | 39009719 |
| Dia. external | 8 Inch |
| Width | 1 Inch |
| Dia. hole | 2 Inch |
| Grit | 60 |
| Drive type | Bench grinder |
| Max. RPM | 3350 RPM |
| Included bushings | 1 1/4", 1", 3/4", 5/8", 1/2", 32, 25, 20, 16 |
| Version | UNIVERSAL |
| Application | Deburring, Working on edges (chamfering, rounding), Sharpening |
| Material | Stainless steel (INOX), Cast iron, Steel |
| Pack qty | 1 |
PFERD bench grinding wheels have been designed to work with standard bench grinders. The UNIVERSAL type is ideal for general workshop use.
Special features
- Durable.
- High dimensional stability.
- High abrasive performance.

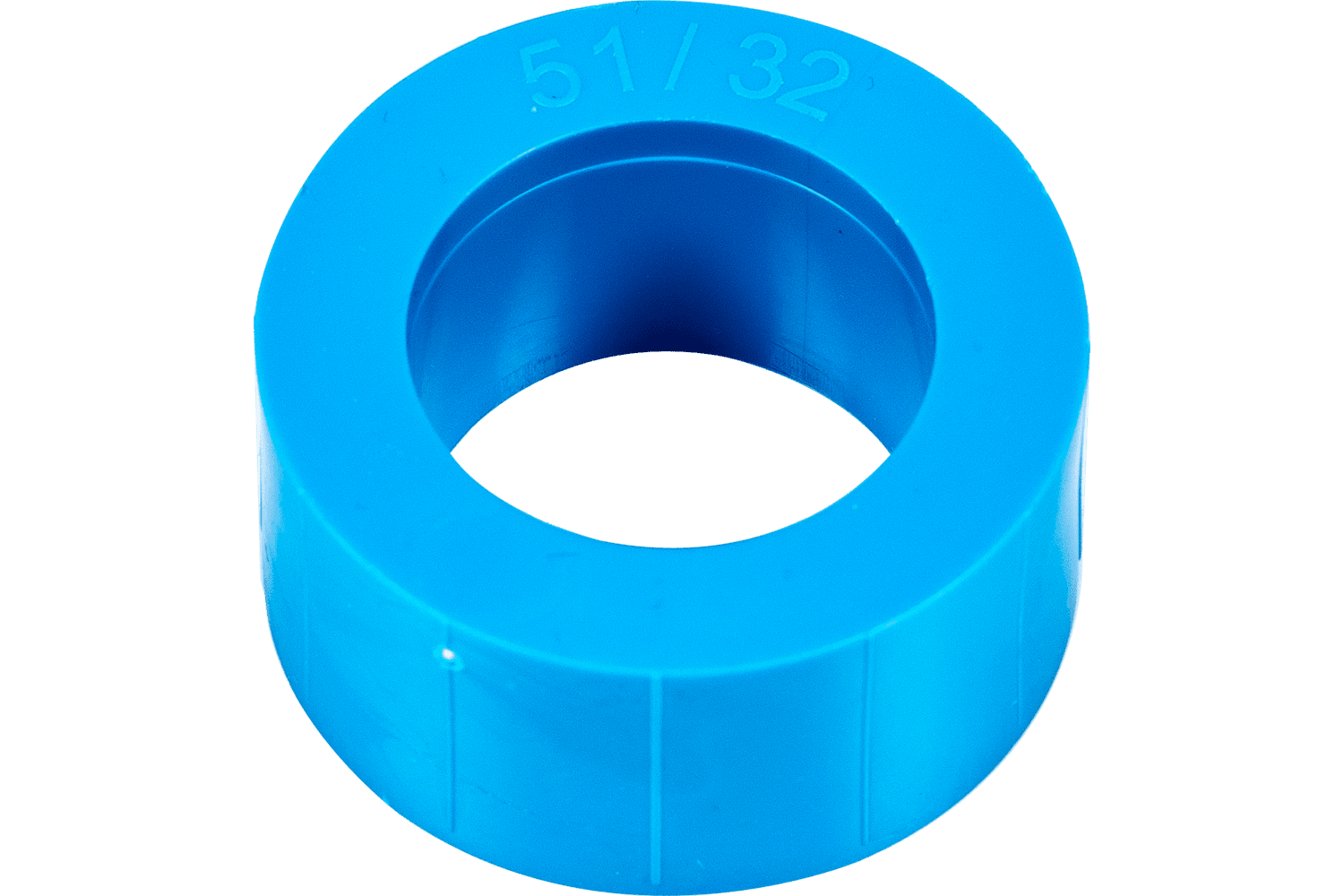

- Integrated telescopic bushings for mounting on almost any bench grinder spindle.
Applications
- Deburring
- Sharpening
- Working on edges (chamfering, rounding)
Materials that can be worked
- Stainless steel (INOX)
- Steel
- Cast iron
Recommendations for use
- Dressing the wheel on a regular basis exposes sharp grain and maintains an even grinding area.
- Constantly adjust the workpiece support to the grinding wheel diameter (gap width max. 1/8").
Safety
- The maximum permitted peripheral speed is 6,900 SFPM.
- For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
- Before clamping, the grinding tool must be ring tested to make sure that it does not have any cracks (undamaged grinding tools give a clear tone).
| Application: | Deburring, Sharpening |
|---|---|
| Drive Type: | Bench grinder |
| Material: | Cast iron, Stainless steel (INOX), Steel |
| PFERD TOOLS Type: | BW 20025-51 AN 60 UNIVERSAL |
| Pack Qty: | 1 |
