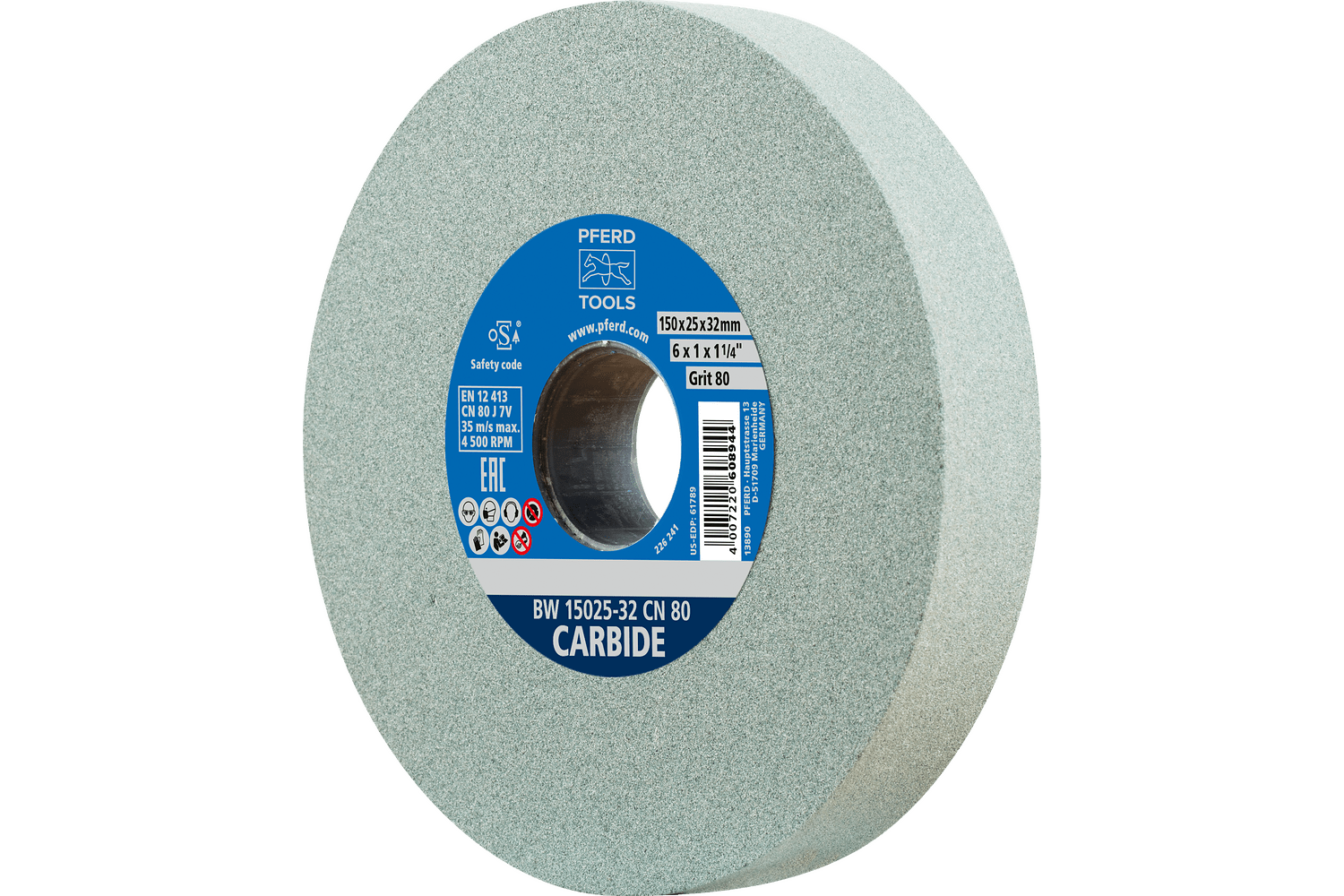

Bench grinding wheels CARBIDE
PFERD TOOLS
$0.00
Product number:
39010133
Product information "Bench grinding wheels CARBIDE"
Technical information
Bench grinding wheels CARBIDE, 6 x 1 x 1-1/4", Grit 80
| Item number | 39010133 |
| Dia. external | 6" |
| Width | 1 Inch |
| Dia. hole | 1-1/4 Inch |
| Grit | 80 |
| Drive type | Bench grinder |
| Max. RPM | 4500 RPM |
| Included bushings | 1", 3/4", 5/8", 1/2", 25, 20, 16, 13 |
| Version | CARBIDE |
| Application | Sharpening, Deburring, Working on edges (chamfering, rounding) |
| Material | Tungsten carbide, Steel materials with a hardness > 54 HRC, Hardened, heat-treated steels over 370 HV (38 HRC), Glass |
| Pack qty | 1 |
PFERD bench grinding wheels have been designed to work with standard bench grinders. CARBIDE type bench grinding wheels are used on hard materials, such as for sharpening tungsten carbide tools.
Special features
- Durable.
- High dimensional stability.
- High abrasive performance.

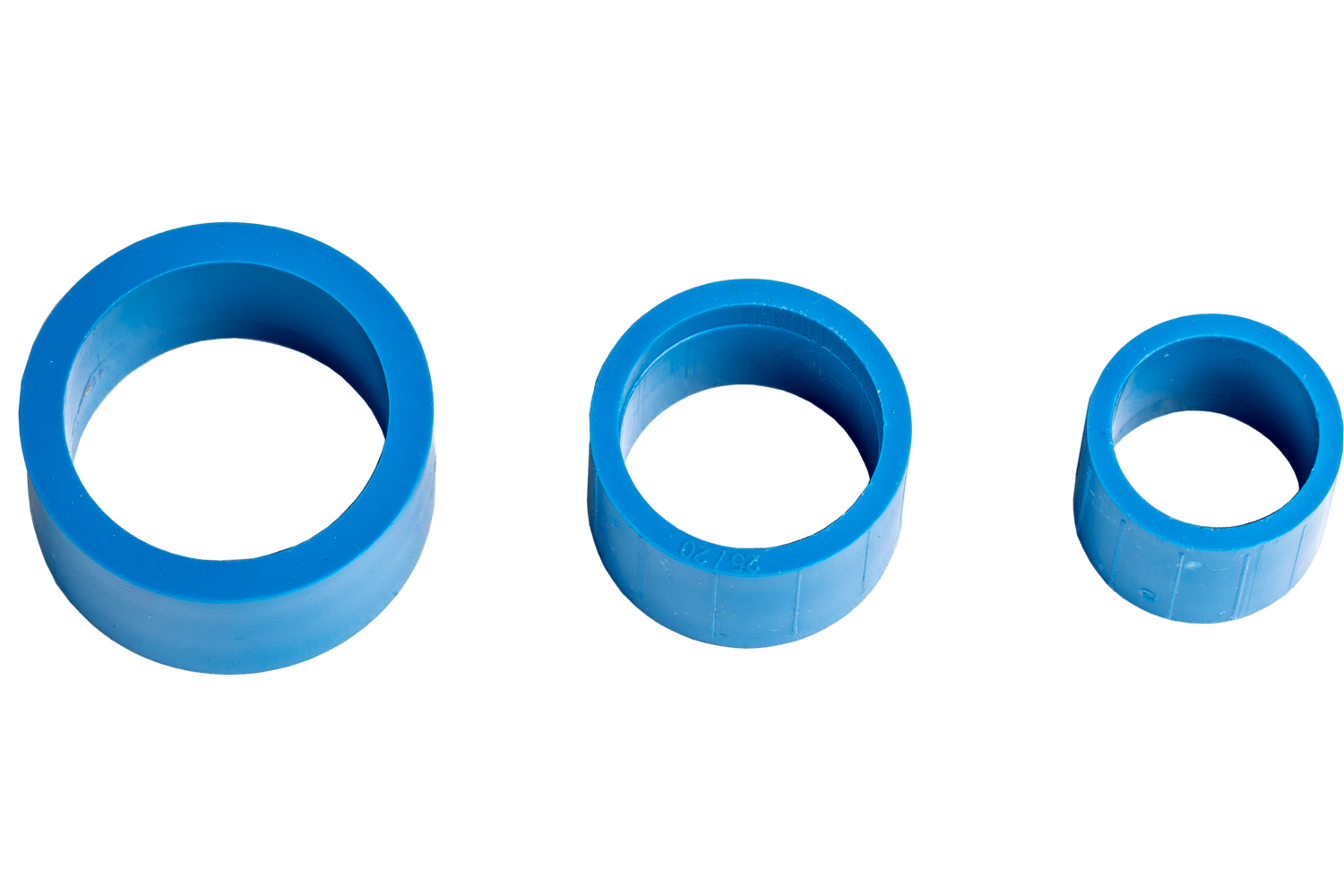

- Integrated telescopic bushings for mounting on almost any bench grinder spindle.
Applications
- Deburring
- Sharpening
- Working on edges (chamfering, rounding)
Materials that can be worked
- Steel materials with a hardness > 54 HRC
- Tungsten carbide
- Glass
- Hardened, heat-treated steels over 370 HV (38 HRC)
Recommendations for use
- Dressing the wheel on a regular basis exposes sharp grain and maintains an even grinding area.
- Constantly adjust the workpiece support to the grinding wheel diameter (gap width max. 1/8").
Safety
- The maximum permitted peripheral speed is 6,900 SFPM.
- For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
- Before clamping, the grinding tool must be ring tested to make sure that it does not have any cracks (undamaged grinding tools give a clear tone).
| Application: | Deburring, Sharpening |
|---|---|
| Drive Type: | Bench grinder |
| Material: | Tungsten carbide |
| PFERD TOOLS Type: | BW 15025-32 CN 80 CARBIDE |
| Pack Qty: | 1 |
