Polishing tools
Buffing Drum, Soft Cotton Yarn
Buffing Drum, Soft Cotton YarnDue to the soft cotton yarn, ideal for high-gloss polishing with polishing pastes in tool and die-making. The ends of the threads provide optimum absorption of the polishing paste. Please order corresponding polishing pastes and arbor separately.Special featuresConforms to contours due to high flexibility.Can be freely shaped, meaning they can be used on complicated geometries.ApplicationsPolishingMaterials that can be workedStainless steel (INOX)Steel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsTitaniumTitanium alloysAluminumBrassBronzeCast steelCobalt-based alloysCopperFibre-reinforced thermosetting plastics (GRP, CRP)Hardened, heat-treated steels over 370 HV (38 HRC)Nickel-based alloys (e.g. Inconell and Hastelloy)Technical informationDia. External4 inWidth4 inDrive typeDrum grindersMax. RPM3500Pack qty1
Cloth Ring, Sisal Fabric
Cloth Ring, Sisal FabricCloth rings are used for pre-polishing and high-gloss polishing with polishing pastes. If a very smooth surface finish is desired, use several or even all types successively. ST (sisal cloth) type for coarse pre-polishing.Special featuresConforms to contours due to high flexibility.Can be freely shaped, meaning they can be used on complicated geometries.ApplicationsPolishingMaterials that can be workedStainless steel (INOX)Steel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsTitaniumTitanium alloysAluminumBrassBronzeCast steelCobalt-based alloysCopperFibre-reinforced thermosetting plastics (GRP, CRP)Hardened, heat-treated steels over 370 HV (38 HRC)Nickel-based alloys (e.g. Inconell and Hastelloy)Recommendations for usePre-polishing of steel and INOX: Cloth rings ST with green polishing paste.Pre-polishing of aluminum and brass: Cloth rings ST with gray polishing paste.Pre-polishing of non-ferrous metals: Cloth rings ST with brown polishing paste.Type ST cloth rings achieve their best performance at a recommended peripheral speed of 2,000–3,000 SFPM.Technical informationVersionSTDia. External3 inWidth3/4 inDrive typeFlexible shaft driveMax. RPM7500Pack qty5
COMBICLICK® Felt Disc
COMBICLICK Felt DiscThe COMBICLICK® system consists of a specially developed backing pad and a rugged mounting system at the back of the disc. The backing pad allows COMBICLICK® discs to be used on most available angle grinders. The special geometry of the cooling slots ensures high air throughput, which considerably reduces the thermal load on the abrasive material and the workpiece. The quick-mounting system, rugged fixture, secure attachment of the disc and optimized cooling system help to provide up to 30% lower workpiece temperature, up to 25% increased stock removal, up to 30% longer disc life and improved utilization of the abrasive. Designed for polishing with polishing paste bars, grinding pastes or diamond polishing pastes in face-down grinding on medium-sized and large surfaces.Special featuresDurability makes this cost-effective.Precise handling throughout product lifespan due to high dimensional stability.Innovative quick-mounting system guarantees convenient handling and cool grindingExtremely quick and easy disc changes reduce process costs.With COMBICLICK®, scratches caused by protruding clamping parts are prevented and very high utilization of the available abrasive is attained.ApplicationsPolishingMaterials that can be workedStainless steel (INOX)Steel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsTitaniumTitanium alloysZincAluminumBrassBronzeCast steelCobalt-based alloysCopperFibre-reinforced thermosetting plastics (GRP, CRP)Hardened, heat-treated steels over 370 HV (38 HRC)Nickel-based alloys (e.g. Inconell and Hastelloy)Recommendations for useUse COMBICLICK® felt discs with COMBICLICK® backing pads on variable speed angle grinders.For the best performance, use with a recommended peripheral speed of 1,000-2,000 SFPM. This provides an ideal compromise between polishing performance, thermal load on the workpiece and tool wear.When applying a different polishing paste, use a new unused felt disc.SafetyFor safety reasons, the maximum permitted rotational speed indicated must never be exceeded.Technical informationDia. External4 1/2 inDrive typeAngle grinderMax. RPM10500Pack qty5
COMBIDISC® Felt Disc
COMBIDISC Felt DiscDesigned for polishing with polishing paste bars, grinding pastes, or diamond polishing pastes in face-down grinding on small and medium-sized surfaces. The CDR clamping system has a threaded connection with male thread (plastic). Also compatible with the following commonly used systems: Roloc™, Lockit, Speed Lok TR, Power Lock Type III, Fastlock-System B, Roll-On.Special featuresReduced down time due to quick changes.Convenient to use due to simple handling and low-vibration working.No operational disruptions caused by sticking, slipping, or disengaging.ApplicationsPolishingMaterials that can be workedStainless steel (INOX)Steel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsTitaniumTitanium alloysZincAluminumBrassBronzeCast steelCobalt-based alloysCopperFibre-reinforced thermosetting plastics (GRP, CRP)Hardened, heat-treated steels over 370 HV (38 HRC)Nickel-based alloys (e.g. Inconell and Hastelloy)Recommendations for useUse COMBIDISC® felt discs with a abrasive disc holders on flexible shaft drives with angle handpieces, or small compressed-air or electric angle grinders.Use the appropriate grinding oil for the material to significantly increase the service life and the abrasive performance of the discs.When applying a different polishing paste, use a new unused felt disc.For the best performance, use with a recommended peripheral speed of 1,000-2,000 SFPM. This provides an ideal compromise between polishing performance, thermal load on the workpiece and tool wear.SafetyThe maximum permitted peripheral speed is 9,800 SFPM.Technical informationDia. External2 inDrive typeAngle grinderPack qty10

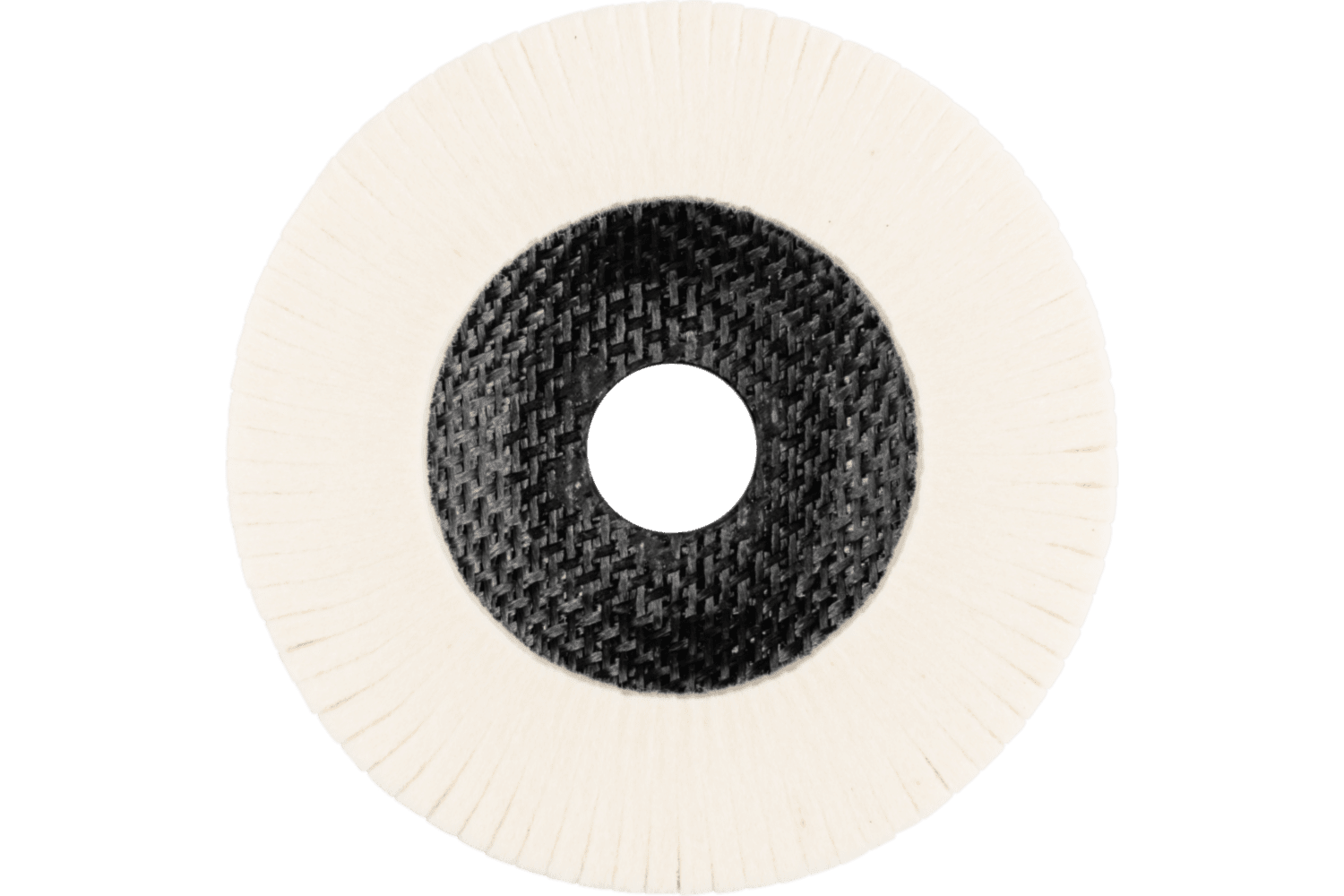

Felt Flap Disc
Felt Flap DiscFelt flap discs are used for pre-polishing and high-gloss polishing on medium-sized to large components. Due to their hardness and flexibility, felt flap discs are used when the exact form of geometric shapes has to be maintained. As a general rule, diamond polishing pastes and polishing paste bars are used for this.Special featuresConforms to contours due to high flexibility.Can be freely shaped, meaning they can be used on complicated geometries.Low thermal load on the workpiece.ApplicationsPolishingMaterials that can be workedStainless steel (INOX)Steel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsTitaniumTitanium alloysAluminumBrassBronzeCast steelCobalt-based alloysCopperFibre-reinforced thermosetting plastics (GRP, CRP)Hardened, heat-treated steels over 370 HV (38 HRC)Nickel-based alloys (e.g. Inconell and Hastelloy)Recommendations for useUse the soft type for buffing and processing workpieces with lots of contours. If a very fine finish is desired, the hard and soft types can be used successively.Technical informationVersionW (soft)Dia. External4 1/2 inWidth7/8 inDrive typeAngle grinderMax. RPM8350Pack qty5

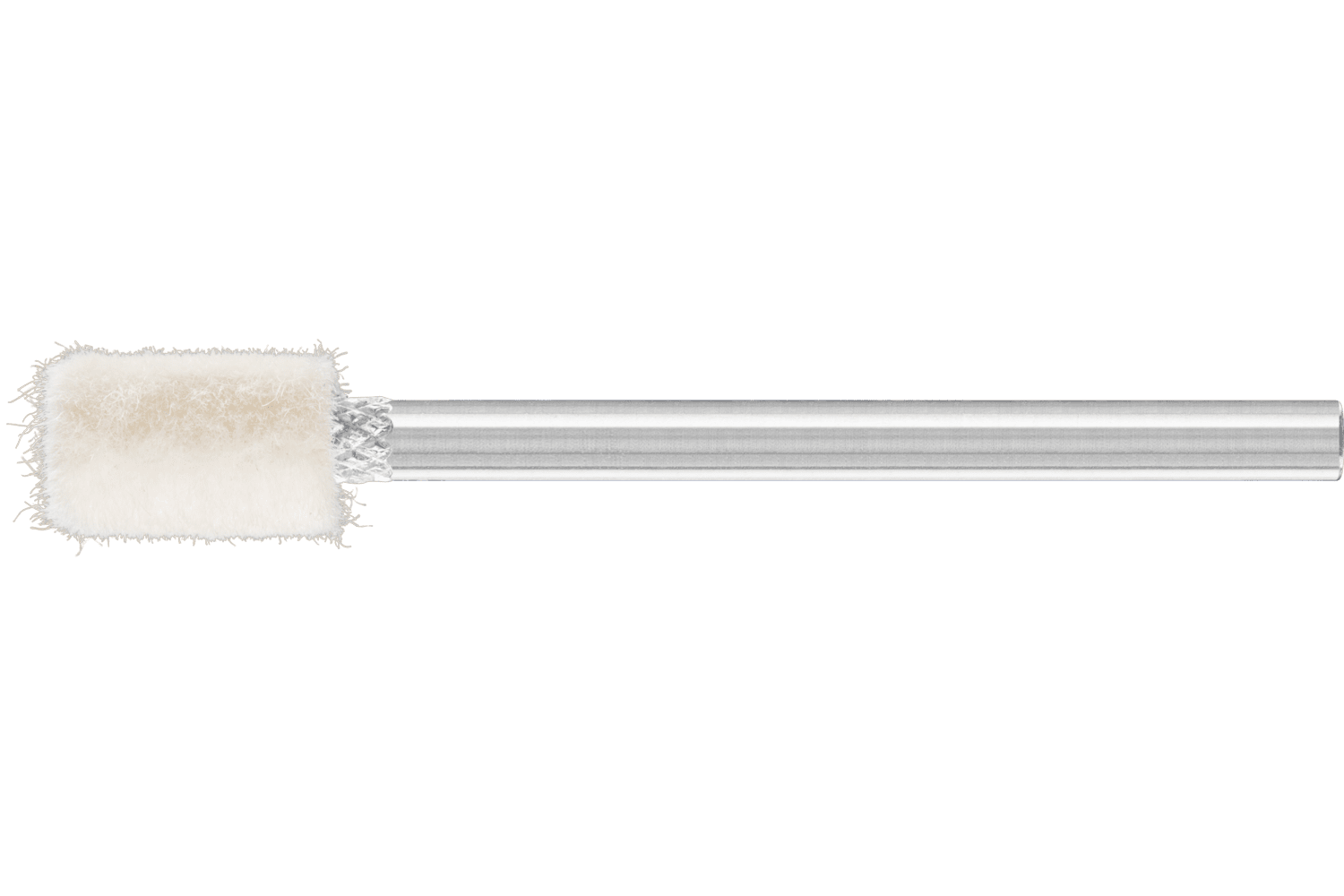

Felt Point
Felt PointDue to their hardness and flexibility, felt points are used when the exact form of geometric shapes has to be maintained. The cylindrical shape is mainly used peripherally.Special featuresCan be freely shaped, meaning they can be used on complicated geometries.Precise retention of geometric shapes due to the hardness of these products.ApplicationsPolishingMaterials that can be workedStainless steel (INOX)Steel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsTitaniumTitanium alloysAluminumBrassBronzeCast steelCobalt-based alloysCopperFibre-reinforced thermosetting plastics (GRP, CRP)Hardened, heat-treated steels over 370 HV (38 HRC)Nickel-based alloys (e.g. Inconell and Hastelloy)Recommendations for useFor the best performance, use with a recommended peripheral speed of 1,000-2,000 SFPM. This provides an ideal compromise between stock removal rate, surface quality, thermal load on the workpiece and tool wear.Use diamond polishing pastes and polishing paste bars.When applying a different polishing paste, use a new unused polishing product.SafetyFor safety reasons, the maximum permitted rotational speed indicated must never be exceeded.Technical informationShapeCylindersVersionM (medium)Dia. External1/4 inWidth3/8 inDia. shank1/8 InchDrive typeFlexible shaft driveMax. RPM79500Pack qty10

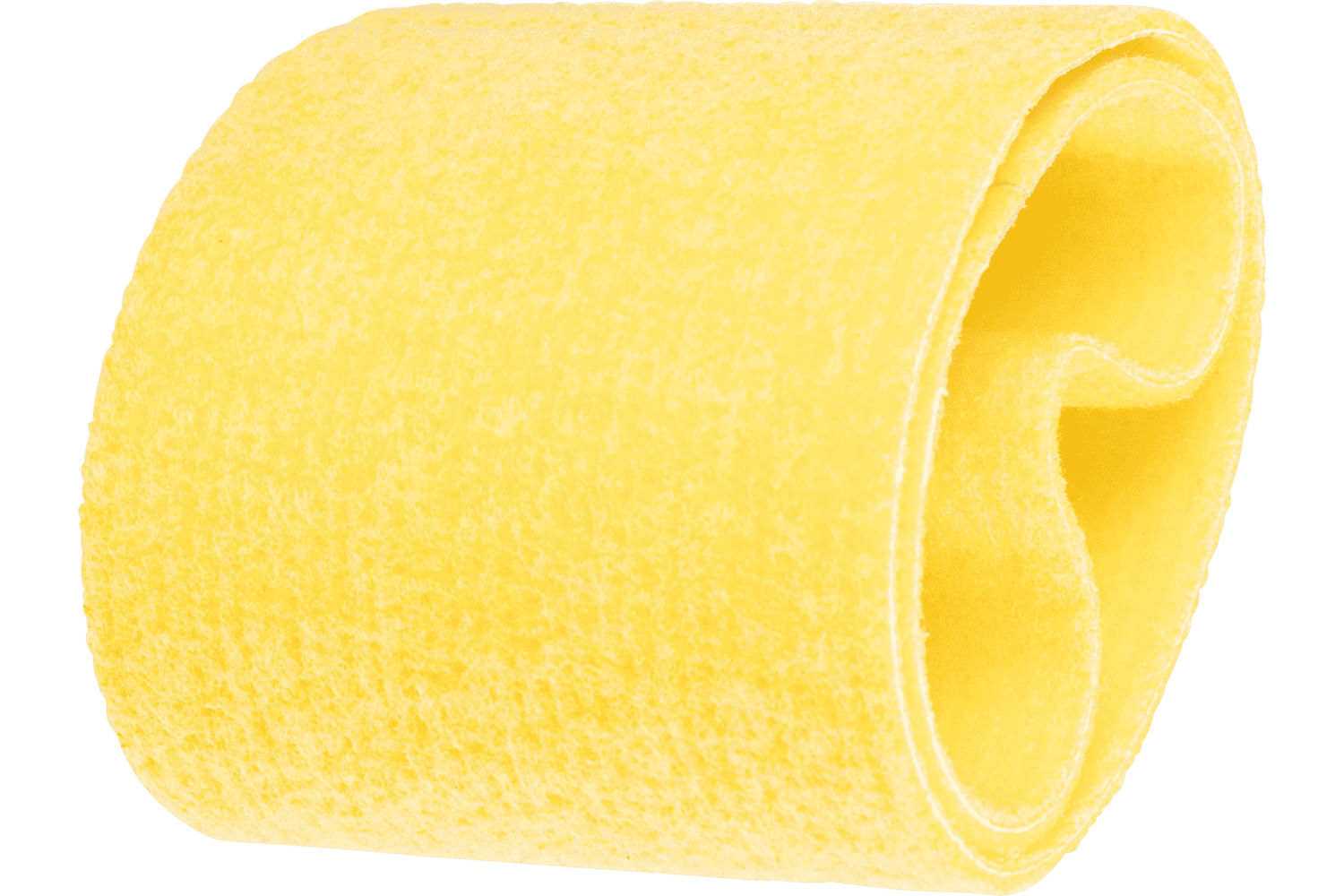

Felt Polishing Belt
Felt Polishing BeltDesigned for polishing with polishing paste bars and grinding pastes on tubular constructions and railings. Short belts are compatible with commonly available belt grinders.Special featuresHigh tear strength with optimum flexibility.Cost-effective due to high abrasive performance and durability.ApplicationsPolishingMaterials that can be workedStainless steel (INOX)Steel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsTitaniumTitanium alloysZincAluminumAnnealed cast ironBrassBronzeCast steelCobalt-based alloysCopperFibre-reinforced thermosetting plastics (GRP, CRP)Grey/nodular cast iron (GG/GJL, GGG/GJS)Hardened, heat-treated steels over 370 HV (38 HRC)Nickel-based alloys (e.g. Inconell and Hastelloy)Recommendations for useFor the polishing process, apply pre-polishing and high-gloss polishing successively.When changing the polishing paste, also replace the polishing belt so no contaminants are included from previous step.For best performance, use at a recommended peripheral speed of 1,000-3,000 SFPM.SafetyFollow all safety instructions for abrasive belt use.Technical informationWidth4 inDrive typeDrum grindersPack qty5

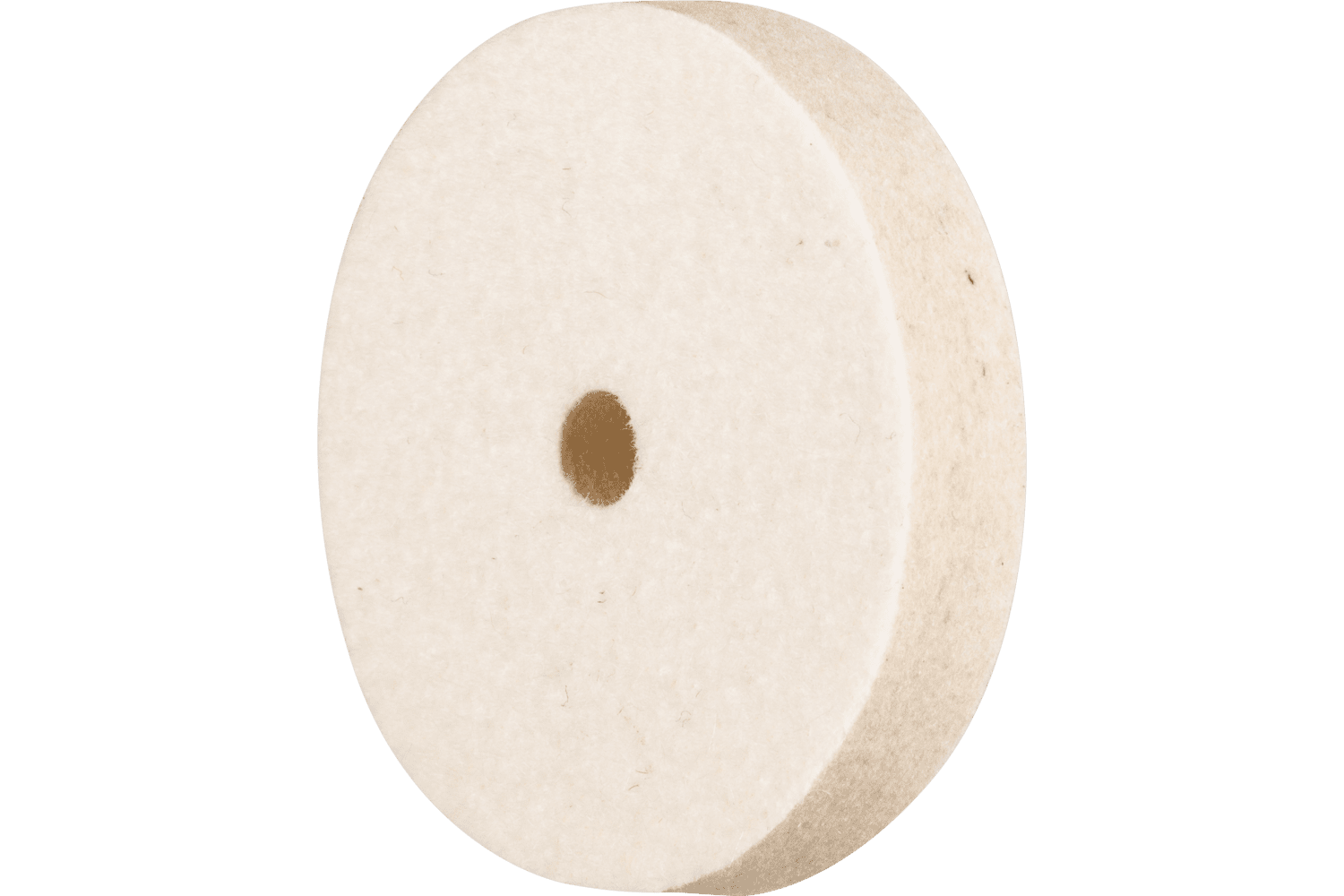

Felt Wheel
Felt WheelFelt wheels are mainly used peripherally for high-gloss polishing.Special featuresPrecise retention of geometric shapes due to the hardness of these products.Can be freely shaped, meaning they can be used on complicated geometries.ApplicationsPolishingMaterials that can be workedStainless steel (INOX)Steel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsTitaniumTitanium alloysAluminumBrassBronzeCast steelCobalt-based alloysCopperFibre-reinforced thermosetting plastics (GRP, CRP)Hardened, heat-treated steels over 370 HV (38 HRC)Nickel-based alloys (e.g. Inconell and Hastelloy)Recommendations for useUse diamond polishing pastes and polishing paste bars.When applying a different polishing paste, use a new unused polishing product.SafetyFor safety reasons, the maximum permitted rotational speed indicated must never be exceeded.Technical informationShapeDiscVersionM (medium)Dia. External1 3/4 inWidth3/8 inDrive typeFlexible shaft driveMax. RPM13500Pack qty5
