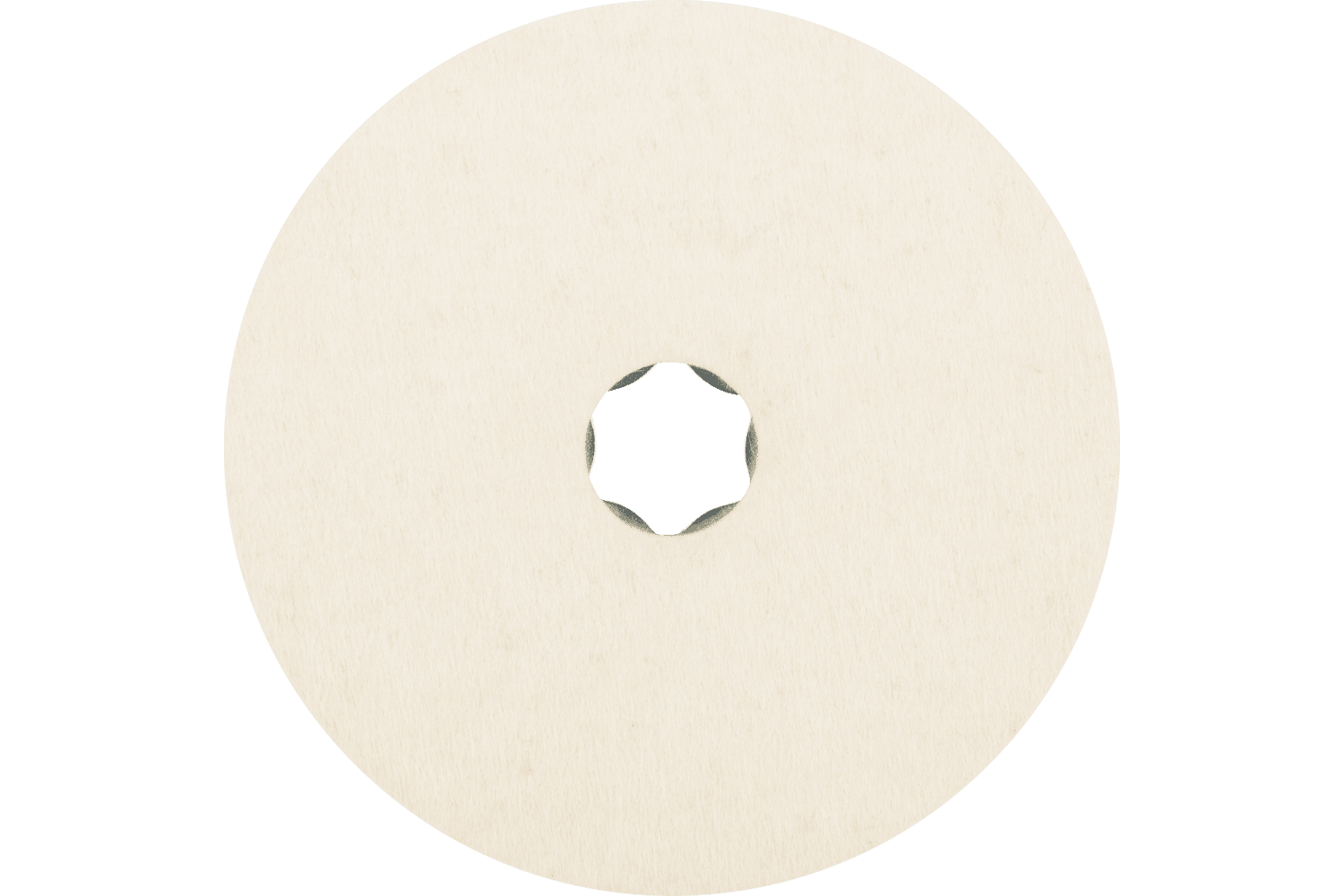

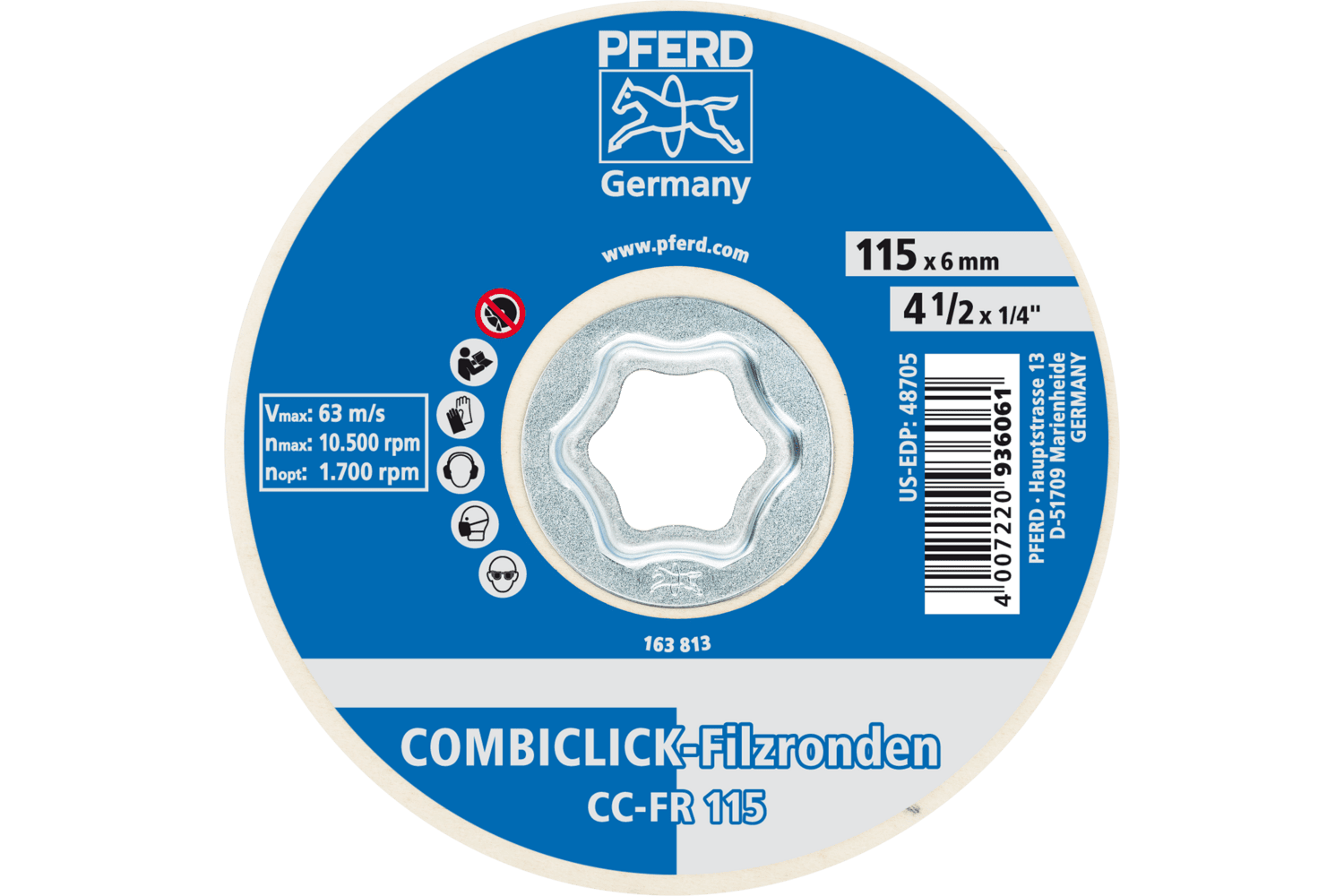

COMBICLICK® Felt Disc, 4 1/2" Dia
$0.00
Product information "COMBICLICK® Felt Disc, 4 1/2" Dia"
Technical information
4 1/2" Dia
| Dia. External | 4 1/2 in |
| Drive type | Angle grinder |
| Max. RPM | 10500 |
| Pack qty | 5 |
The COMBICLICK® system consists of a specially developed backing pad and a rugged mounting system at the back of the disc. The backing pad allows COMBICLICK® discs to be used on most available angle grinders. The special geometry of the cooling slots ensures high air throughput, which considerably reduces the thermal load on the abrasive material and the workpiece. The quick-mounting system, rugged fixture, secure attachment of the disc and optimized cooling system help to provide up to 30% lower workpiece temperature, up to 25% increased stock removal, up to 30% longer disc life and improved utilization of the abrasive. Designed for polishing with polishing paste bars, grinding pastes or diamond polishing pastes in face-down grinding on medium-sized and large surfaces.
Special features
- Durability makes this cost-effective.
- Precise handling throughout product lifespan due to high dimensional stability.
- Innovative quick-mounting system guarantees convenient handling and cool grinding
- Extremely quick and easy disc changes reduce process costs.
- With COMBICLICK®, scratches caused by protruding clamping parts are prevented and very high utilization of the available abrasive is attained.
Applications
- Polishing
Materials that can be worked
- Stainless steel (INOX)
- Steel materials with a hardness > 54 HRC
- Steels up to 370 HV (< 38 HRC)
- Thermoplastics
- Titanium
- Titanium alloys
- Zinc
- Aluminum
- Brass
- Bronze
- Cast steel
- Cobalt-based alloys
- Copper
- Fibre-reinforced thermosetting plastics (GRP, CRP)
- Hardened, heat-treated steels over 370 HV (38 HRC)
- Nickel-based alloys (e.g. Inconell and Hastelloy)
Recommendations for use
- Use COMBICLICK® felt discs with COMBICLICK® backing pads on variable speed angle grinders.
- For the best performance, use with a recommended peripheral speed of 1,000-2,000 SFPM. This provides an ideal compromise between polishing performance, thermal load on the workpiece and tool wear.
- When applying a different polishing paste, use a new unused felt disc.
Safety
- For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
| Pack Qty: | 5 |
|---|
