Industrial power brushes

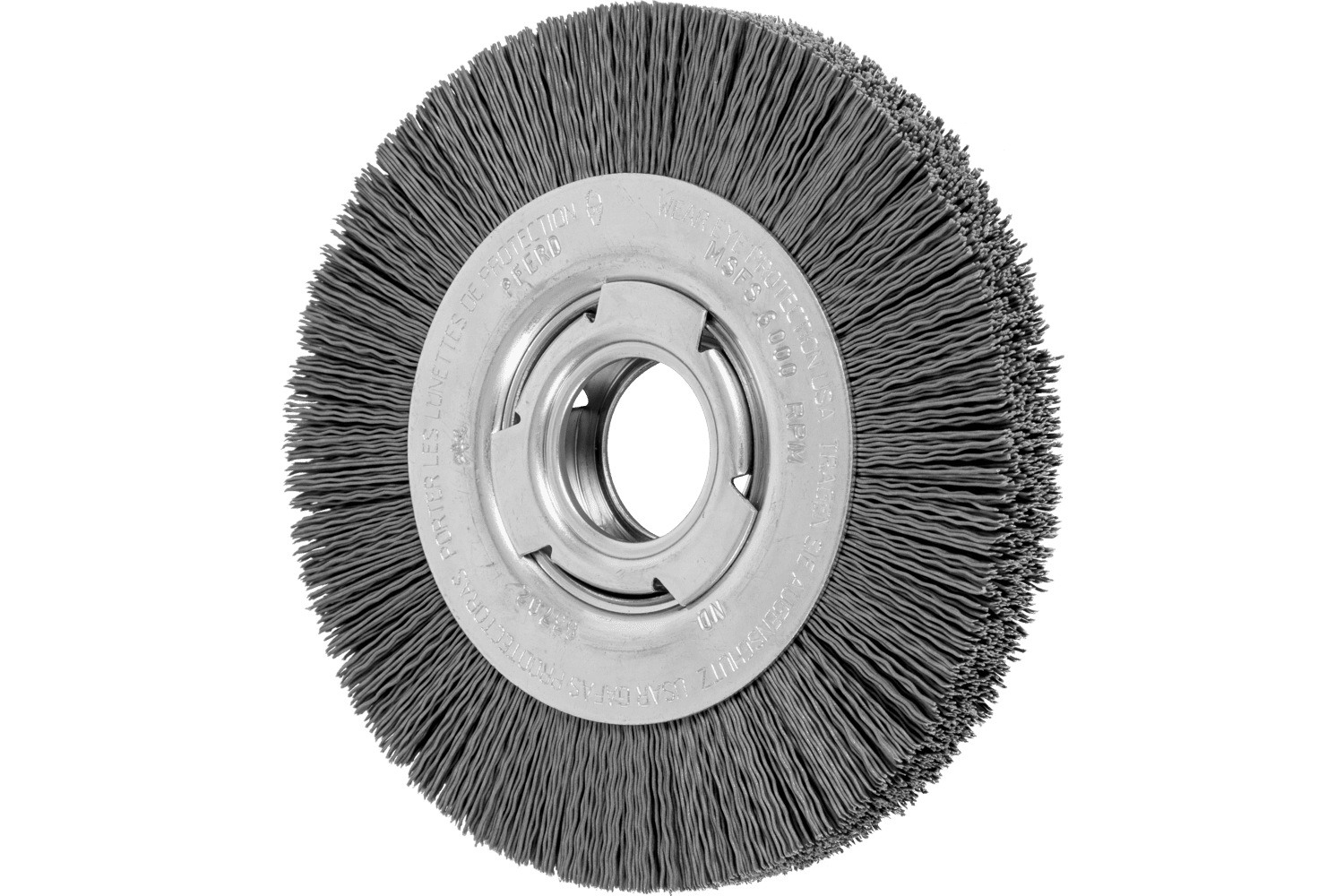

M-BRAD® Wheel Brush
Technical informationBrush Diameter6 InchFace Width13/16 InchFilament MaterialSilicon carbide (SiC)Wire Diameter0.022 InchGrit Size320Arbor Hole1 1/4 InchTrim Length1 1/8 InchMax. RPM6000 RPMPack Qty1Excellent for medium-duty hand-held or automated brushing of large workpieces. Silicon carbide (SiC) filament brushes are designed for deburring work and surface improvement. Plastic filaments are temperature-resistant up to 410°F. Developed specially for industrial use.AdvantagesDurability makes this cost-effective.The special design enables bunching to create wide gapless rollers. This enables a uniform surface finish to be achieved.Can be used with all common stationary drive systems and bench grinders.Highly flexible, enabling optimal adaptation to the workpiece contour.Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.ApplicationsCleaningDeburringRougheningStructuring (matt finishing, brush matting and satin finishing)Materials that can be workedStainless steel (INOX)Steel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodAluminumBronzeCast ironCast steel

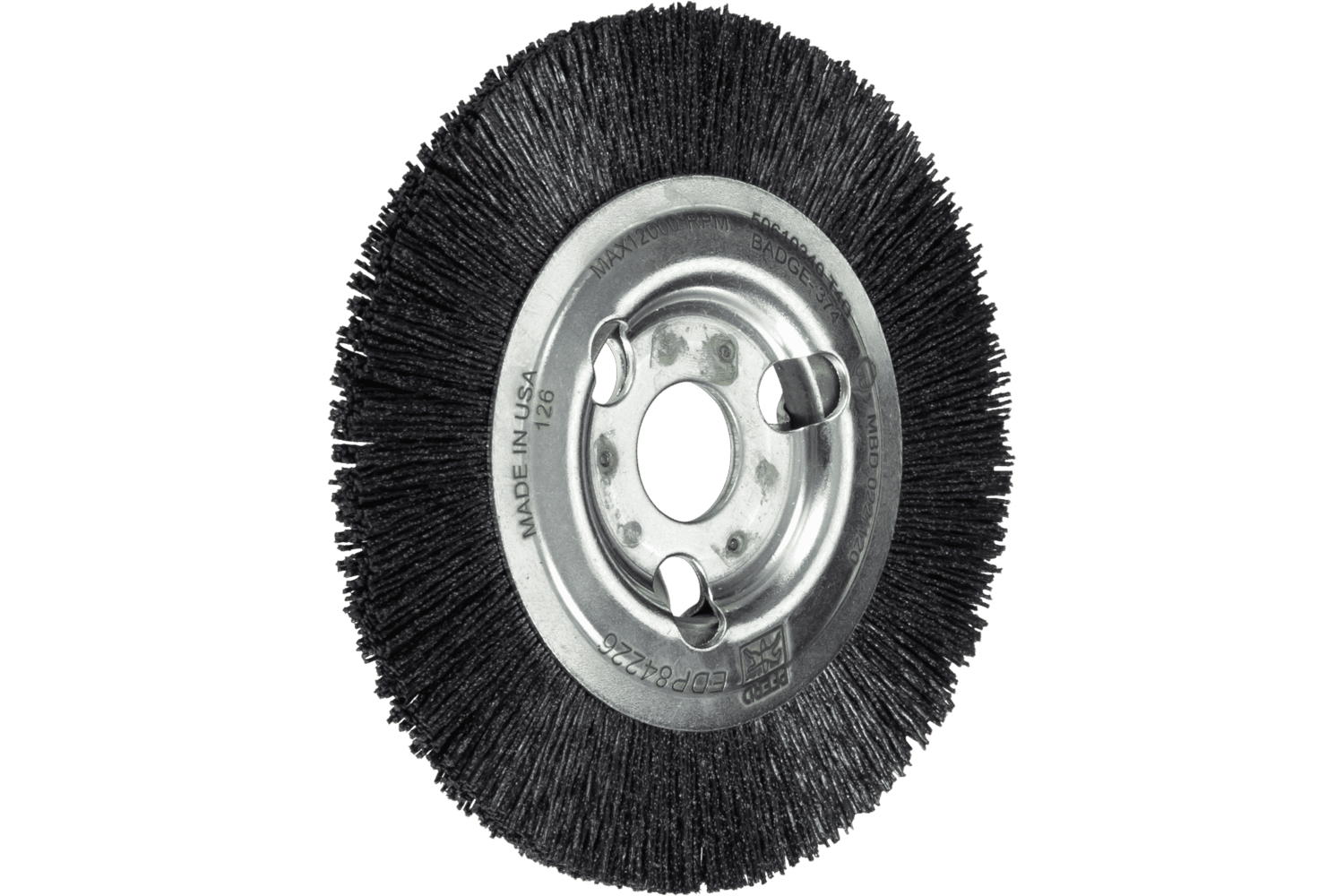

M-BRAD® Wheel Brush
Technical informationBrush Diameter4 InchFace Width3/4 InchFilament MaterialCeramic oxide grain (CO)Wire Diameter0.022 InchGrit Size120Arbor Hole1/2 InchTrim Length3/4 InchMax. RPM12500 RPMPack Qty2Brushes with ceramic oxide grain (CO) offer good toughness and excellent sharpness. For high stock removal and aggressive brushing action. Plastic filaments are temperature-resistant up to 410°F. Excellent for medium-duty hand-held or automated brushing of large workpieces.AdvantagesCan be used with all common stationary drive systems and bench grinders.The special design enables bunching to create wide gapless rollers. This enables a uniform surface finish to be achieved.Highly flexible, enabling optimal adaptation to the workpiece contour.Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.ApplicationsCleaningDeburringStructuring (matt finishing, brush matting and satin finishing)Materials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Steel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)TitaniumTitanium alloysAluminumBronzeCast ironCast steelDrive TypesBench grinderFlexible shaft driveStraight grinder

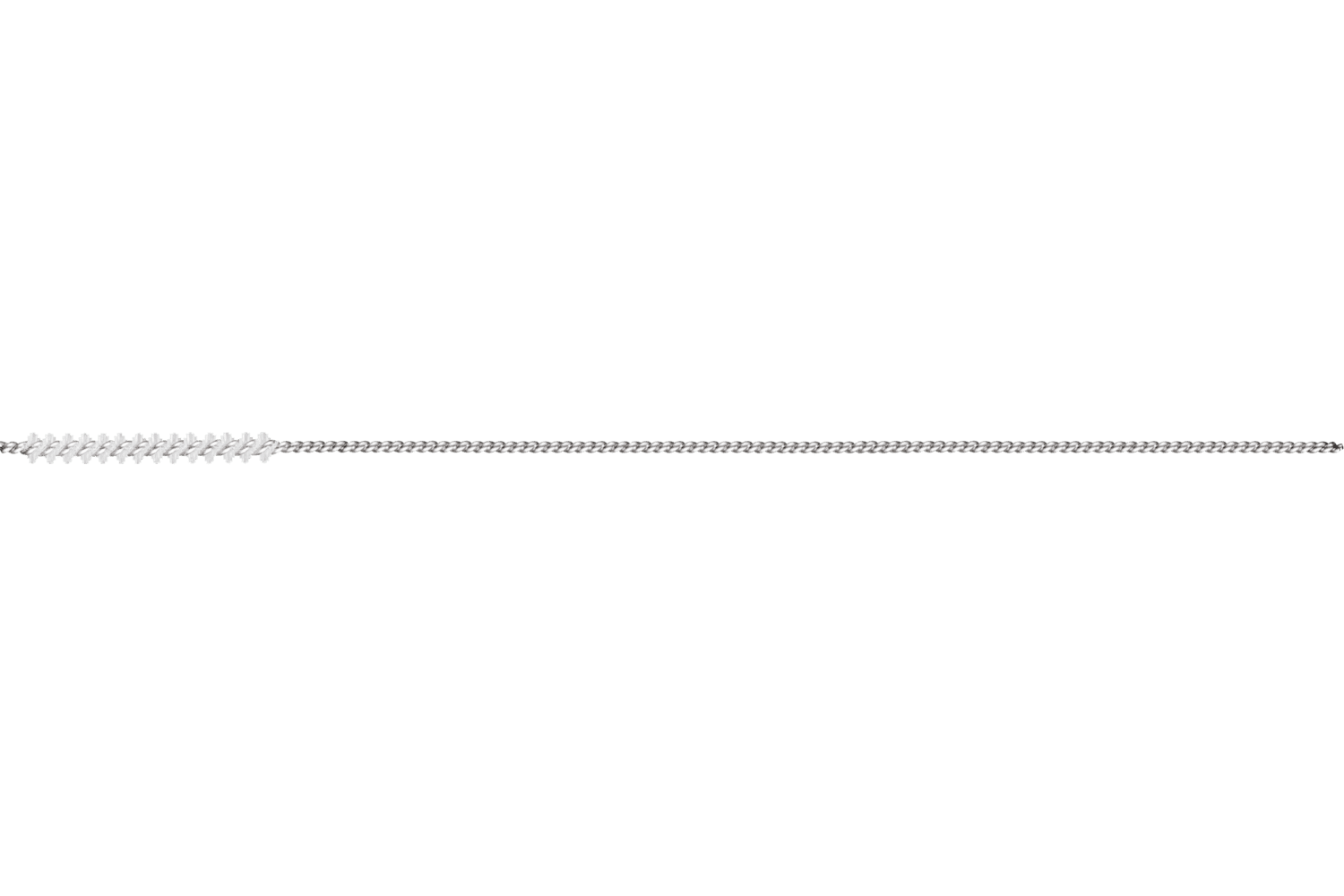

Microabrasive Silicate Tube Brush
Technical informationBrush Diameter0.03 InchFilament MaterialSilicon carbide (SiC)Wire Diameter0.006 InchGrit Size2000Shank Diameter0.015 InchMax. RPM1000 RPMPack Qty10For light deburring, cleaning of holes and cross holes and for work on surfaces. Silicon carbide (SiC) filament brushes are designed for deburring work and surface improvement. Plastic filaments are temperature-resistant up to 410°F.AdvantagesMaximum precision and efficiency when working on delicate workpieces.Highly flexible, enabling optimal adaptation to the workpiece contour.The dimensional accuracy of the workpieces remains unchanged.In tube brushes with a short eyelet, the filament reaches up to the tip of the brush.The bent end of the wire does not have any sharp edges, which prevents delicate surfaces from getting scratched.Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.ApplicationsCleaningDeburringRougheningStructuring (matt finishing, brush matting and satin finishing)Materials that can be workedStainless steel (INOX)Steel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodAluminumBronzeCast ironCast steelDrive TypesFlexible shaft driveManual applicationPower drillSafetyFor safe use, guide the brush into the workpiece before beginning work. When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

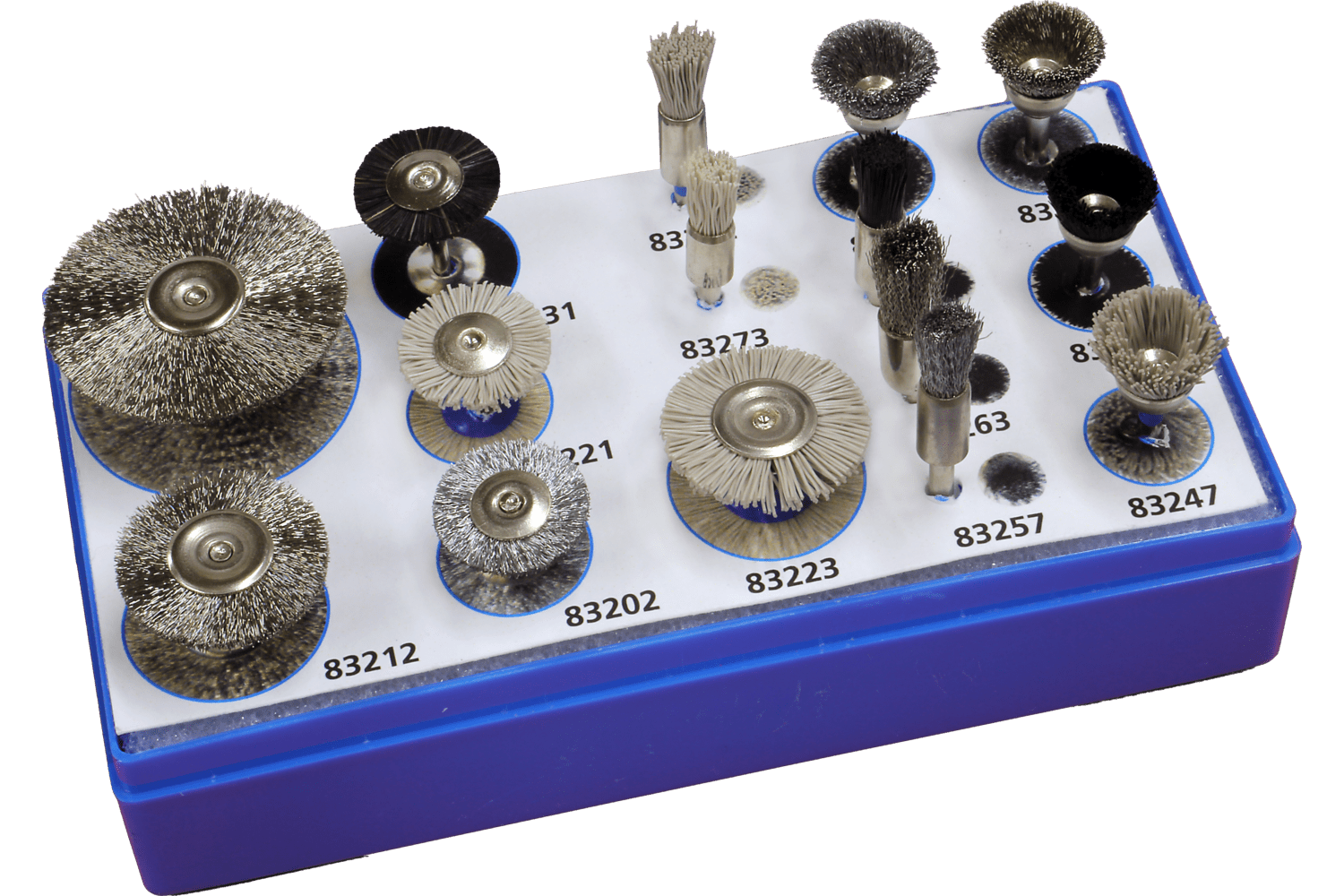

Miniature Brush Set
Technical informationPack Qty1PFERD stem mounted miniature brushes are perfect for precision applications required in many industries including jewelry, electronics, medical and aerospace. A wide selection of filaments includes: carbon steel wire, stainless steel wire (INOX) and brass wire, M-BRAD® aluminum oxide impregnated nylon filament, and a variety of natural bristles. All brushes are mounted on 1/8” stems, and are recommended for use with flexible shaft tools and straight grinders.
Miniature End Brush
Technical informationBrush Diameter1/4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.005 InchShank Diameter1/8 InchTrim Length7/16 InchMax. RPM25000 RPMPack Qty36Designed for light brushing such as deburring, cleaning and polishing. PFERD offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesMaximum precision and efficiency on delicate workpieces.Optimal access to hard-to-reach areas, such as drilled holes and crevices, as the filament spreads out upon rotation.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft driveStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

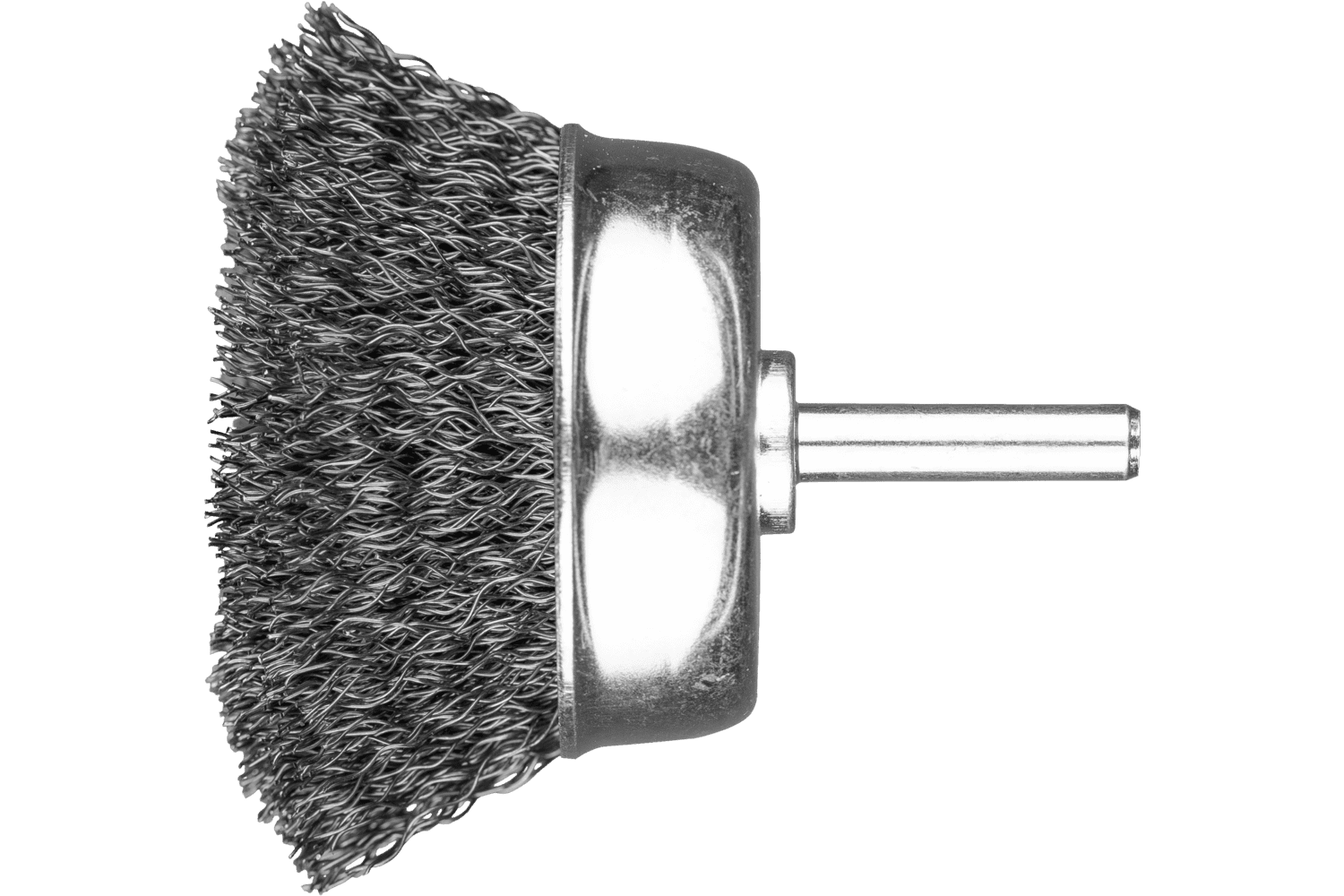

Mounted Crimped Cup Brush
Technical informationBrush Diameter2 InchFilament MaterialSteel wire (ST)Wire Diameter0.012 InchShank Diameter1/4 InchTrim Length3/4 InchMax. RPM13000 RPMPack Qty5Designed for cleaning, derusting and smoothing. Perfect tool for the removal of corrosion and paint. Ideal for brushing on large, flat and easily accessible surfaces with the entire brush face applied to the workpiece. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.AdvantagesPackaged for retail.Highly flexible, enabling optimal adaptation to the workpiece contour.Long service life through use of PFERD special wire.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving oxide layersPaint strippingRougheningMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodCast ironCast steelThermosetting plasticsElastomersDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

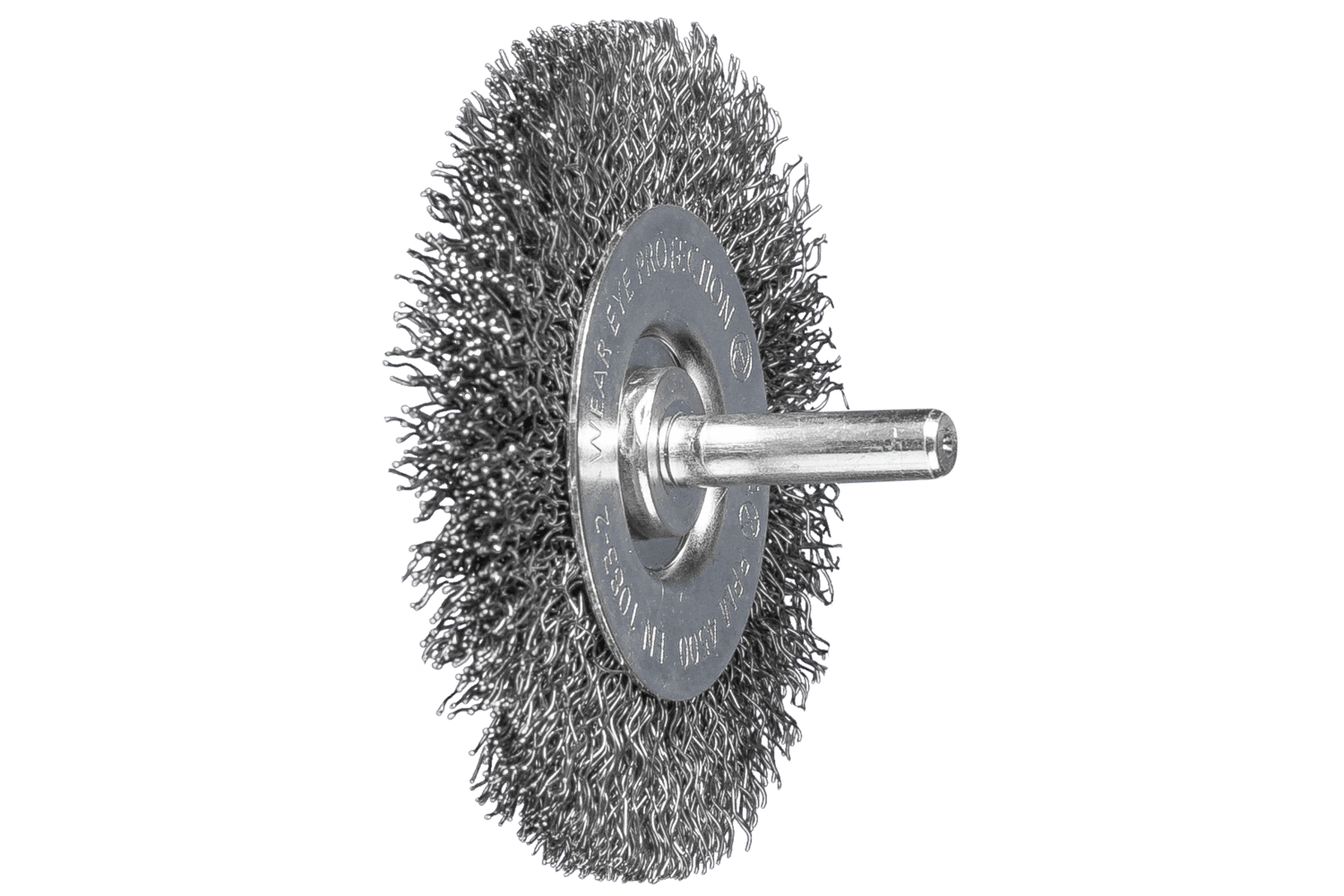

Mounted Crimped Wire Wheel Brush PSF
Technical informationBrush Diameter2 InchFilament MaterialSteel wire (ST)Wire Diameter0.012 InchShank Diameter1/4 InchTrim Length1/2 InchMax. RPM20000 RPMPack Qty5Designed for cleaning, derusting, smoothing, cleaning of weld seams, light deburring, and removal of corrosion and paint. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.AdvantagesHighly flexible, enabling optimal adaptation to the workpiece contour.Packaged for retail.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingRemoving oxide layersPaint strippingRougheningMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodCast ironCast steelThermosetting plasticsElastomersDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Mounted Flared Cup Brush
Technical informationBrush Diameter1 1/2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.006 InchShank Diameter1/4 InchTrim Length5/16 InchMax. RPM20000 RPMPack Qty10Excellent for medium-duty brushing such as deburring, cleaning, and derusting. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesHighly flexible, enabling optimal adaptation to the workpiece contour.Ideal for cleaning narrow or hard-to-reach areas such as grooves, fillets, and inside edges.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

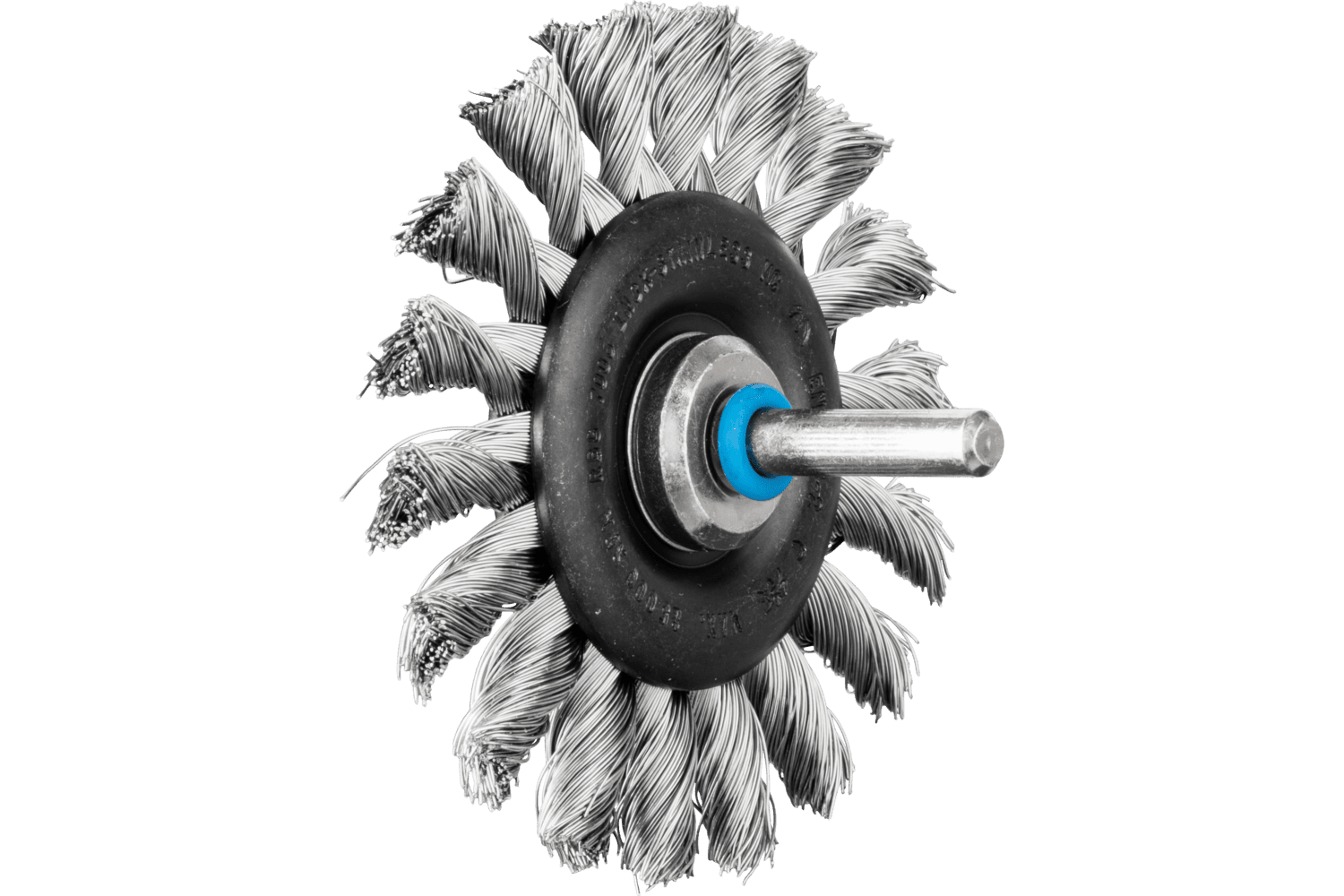

Mounted Knot Wheel Brush
Technical informationBrush Diameter3 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchShank Diameter1/4 InchTrim Length3/4 InchNumber of Knots18Max. RPM25000 RPMPack Qty10Aggressive brush for cleaning, derusting and work on weld seams. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesOptimal access to hard-to-reach areas such as grooves and recesses.Aggressive brushing action due to tightly-twisted wire knots.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

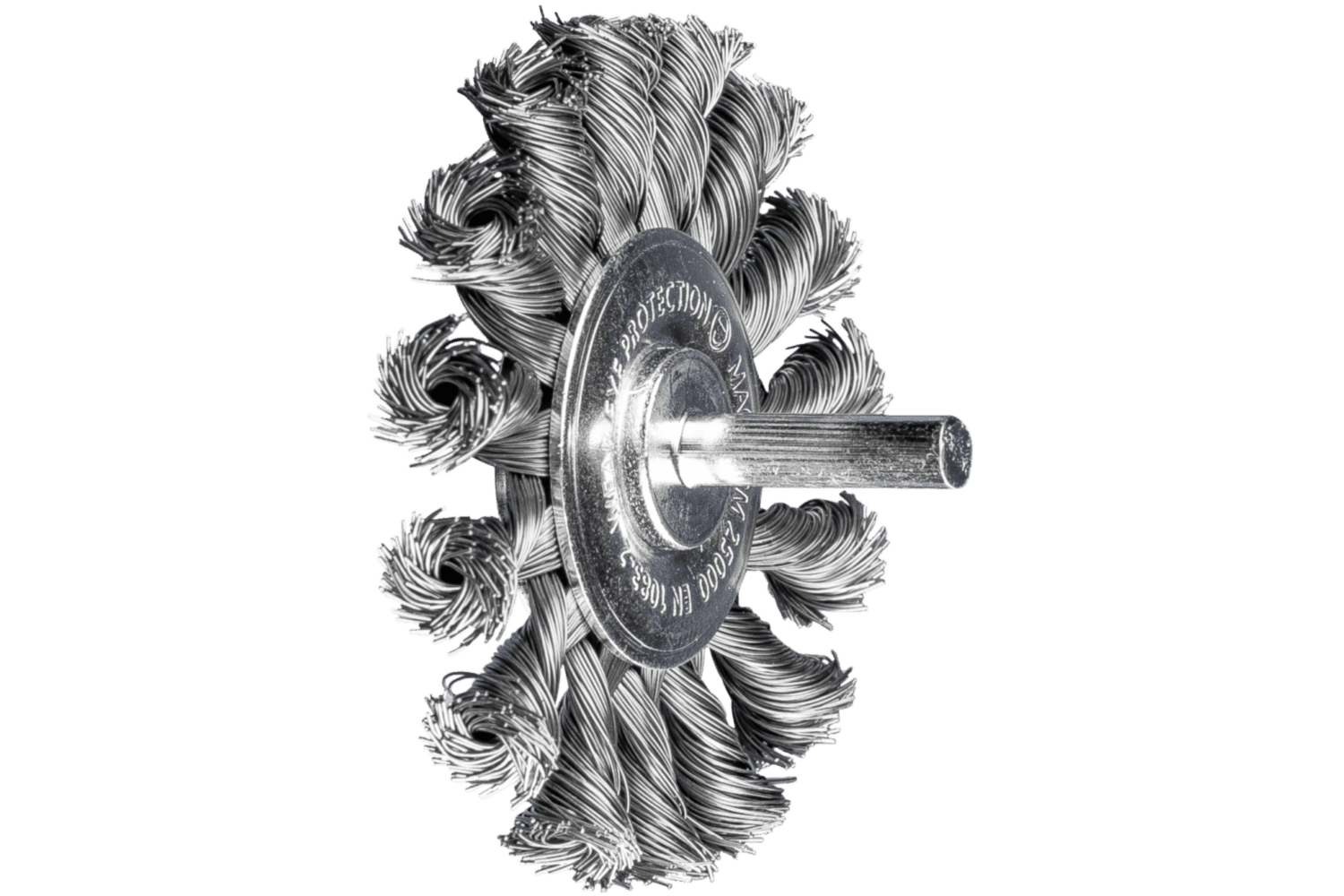

Mounted Knot Wire Wheel Brush PSF
Technical informationBrush Diameter3 InchFilament MaterialSteel wire (ST)Wire Diameter0.012 InchShank Diameter1/4 InchTrim Length3/4 InchMax. RPM25000 RPMPack Qty5Aggressive brush for cleaning, derusting and work on weld seams. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesOptimal access to hard-to-reach areas such as grooves and recesses.Packaged for retail.Aggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Mounted Wheel Brush
Technical informationBrush Diameter3/4 InchFilament MaterialBristle, blackWire Diameter0 InchShank Diameter1/8 InchTrim Length3/16 InchMax. RPM25000 RPMPack Qty36Designed for light brushing such as deburring, cleaning and polishing. PFERD offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders. Brushes with natural bristles (animal hair) are designed for light cleaning and dust removal, as well as for polishing (in combination with polishing pastes). These bristles are harder and less flexible than other natural bristle types. Natural bristles are temperature-resistant up to 300°F.AdvantagesMaximum precision and efficiency on delicate workpieces.Precise handling in hard-to-reach areas.ApplicationsCleaningPolishingMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)Steel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)TitaniumTitanium alloysZincAluminumBrassDrive TypesFlexible shaft driveStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Pencil End Brush Crimped Wire Coated Cup End Brush
Technical informationBrush Diameter3/16 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.012 InchShank Diameter1/4 InchTrim Length3/8 InchMax. RPM8000 RPMPack Qty10For cleaning blind holes and small crevices. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe metal tube can be cut back before starting work in order to achieve a large spreading diameter or to access hard-to-reach areas.Cutting back the metal tube exposes the rest of the filament so that all of it can be used.Optimal access to hard-to-reach areas.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Pilot End Brush
Technical informationBrush Diameter1/2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.005 InchShank Diameter1/4 InchTrim Length1/8 InchMax. RPM20000 RPMPack Qty10Excellent for cleaning rivets in the aviation sector. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe centering pin enables precise brushing.Tailored to the standard diameters in the aviation industry.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Power Tube Brush
Technical informationBrush Diameter1/2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.004 InchShank Diameter5/32 InchMax. RPM2500 RPMPack Qty10The high-performance tube brush is highly designed for deburring cross holes and for cleaning threads. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesLong tool life due to high filament density and double spirals.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft driveManual applicationPower drillSafetyFor safe use, guide the brush into the workpiece before beginning work. When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Roller Refill
Technical informationFilament MaterialPolyester/fabricTrim Length3/8 InchPack Qty30Paint rollers with PVC core for cost-efficient application.ApplicationsPaintingDrive TypesManual application
Roller Refill
Technical informationFilament MaterialPolyester/nylon mixTrim Length1/4 InchPack Qty25For use with semi-gloss and high-gloss paints on smooth surfaces.AdvantagesShed-resistant roller will not contaminate surface finish on smooth surfaces.ApplicationsPaintingDrive TypesManual application
Roller Refill
Technical informationFilament MaterialClothTrim Length7/16 InchPack Qty100Woven fabric rollers for painting in tight spots. Ideal for quick painting jobs on most surfaces.AdvantagesSmall diameter gets into tight spots and corners.Great surface finish.ApplicationsPaintingDrive TypesManual application
Scratch Brush PSF
Technical informationPack Qty1Excellent for cleaning in hard-to-reach areas, e.g. angles, corners and pipes. Contains one each of the following scratch brushes: filament material steel wire (brass-plated steel wire), stainless steel wire and brass wire.AdvantagesBrass-plated steel wire is less prone to corrosion.ApplicationsCleaningDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningWork on weld seamsMaterials that can be workedSoft woodStainless steel (INOX)SteelSteel, cast steelWoodAluminumBrassCast ironCast steelCopperDrive TypesManual application
Scratch brushes, for files
Technical informationPFERD File Card Fine Wire BrushItem number12601000EDP no.17146Length9.125 InchPackaging unit5 EACHPFERD offers an extensive range of scratch brushes in various shapes and filament materials. The file brush easily cleans chips from a loaded file. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. The brush has a robust wooden handle with wear-resistant steel wire filament.Special featuresEasy to clean.Long service life through use of PFERD special wire.Workpiece materialsSteelApplicationsCleaningCompatible power toolsManual application
SINGLETWIST® Knot End Brush
Technical informationBrush Diameter1/4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.006 InchShank Diameter1/4 InchTrim Length1 1/8 InchNumber of Knots1Max. RPM20000 RPMPack Qty10Innovative and flexible single-knot brush for special applications. End brush with plastic-covered brush body. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe brush is degreased and does not leave any oil residue on the workpiece.Optimal access to hard-to-reach areas such as inside corners, as the knot is less likely to unravel.The plastic covering prevents the risk of corrosion.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
SINGLETWIST® Knot
Technical informationBrush Diameter1/4 InchFilament MaterialSteel wire (ST)Wire Diameter0.006 InchShank Diameter1/4 InchTrim Length1 1/8 InchNumber of Knots1Max. RPM20000 RPMPack Qty10Innovative and flexible single-knot brush for special applications. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesOptimal access to hard-to-reach areas such as inside corners, as the knot is less likely to unravel.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Standard Twist Knot Wire Wheel Brush PSF
Technical informationBrush Diameter4 InchFilament MaterialSteel wire (ST)Wire Diameter0.02 InchThread / Arbor5/8-11Trim Length3/4 InchMax. RPM20000 RPMPack Qty5Aggressive brush. Designed for heavy-duty brushing in metalwork such as descaling, derusting, deburring, cleaning of weld seams, removal of adhesive residues and spatter. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesPackaged for retail.Aggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder
Standard Twist Knot Wire Wheel Brush
Technical informationBrush Diameter3 InchFace Width7/16 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.012 InchArbor Hole3/8 InchTrim Length3/4 InchNumber of Knots18Max. RPM25000 RPMPack Qty10The brush knots are knotted to 75% of the length. The brush is designed for brushing large areas and for heavy-duty brushwork, such as deburring, cleaning, derusting and descaling, as well as removing spatter. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesOptimal ratio of aggressiveness and flexibility.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinder
Standard Twist Knot Wire Wheel Brush
Technical informationBrush Diameter7 1/2 InchFilament MaterialStainless steel wire (INOX) diamond (DIA)Wire Diameter0.02 InchGrit Size270Arbor Hole1 1/4 InchTrim Length2 InchNumber of Knots24Max. RPM8000 RPMPack Qty1The brush knots are knotted to 50% of the length. The brush achieves a better surface quality on uneven surfaces when compared to knotted brushes. INOX DIA filament brushes are designed for particularly demanding applications that require an aggressive brush. They are primarily used on extremely hard materials. Stainless steel wire (INOX) diamond (DIA) is temperature-resistant up to 850 °F.AdvantagesOptimal ratio of aggressiveness and flexibility.ApplicationsCleaningDeburringDescalingRemoving oxide layersMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysTungsten carbideWear-resistant coatings (powder metal alloys and hardfacing alloys)AluminumBronzeCobalt-based alloysHard non-ferrous metalDrive TypesStationary machines
