Industrial power brushes

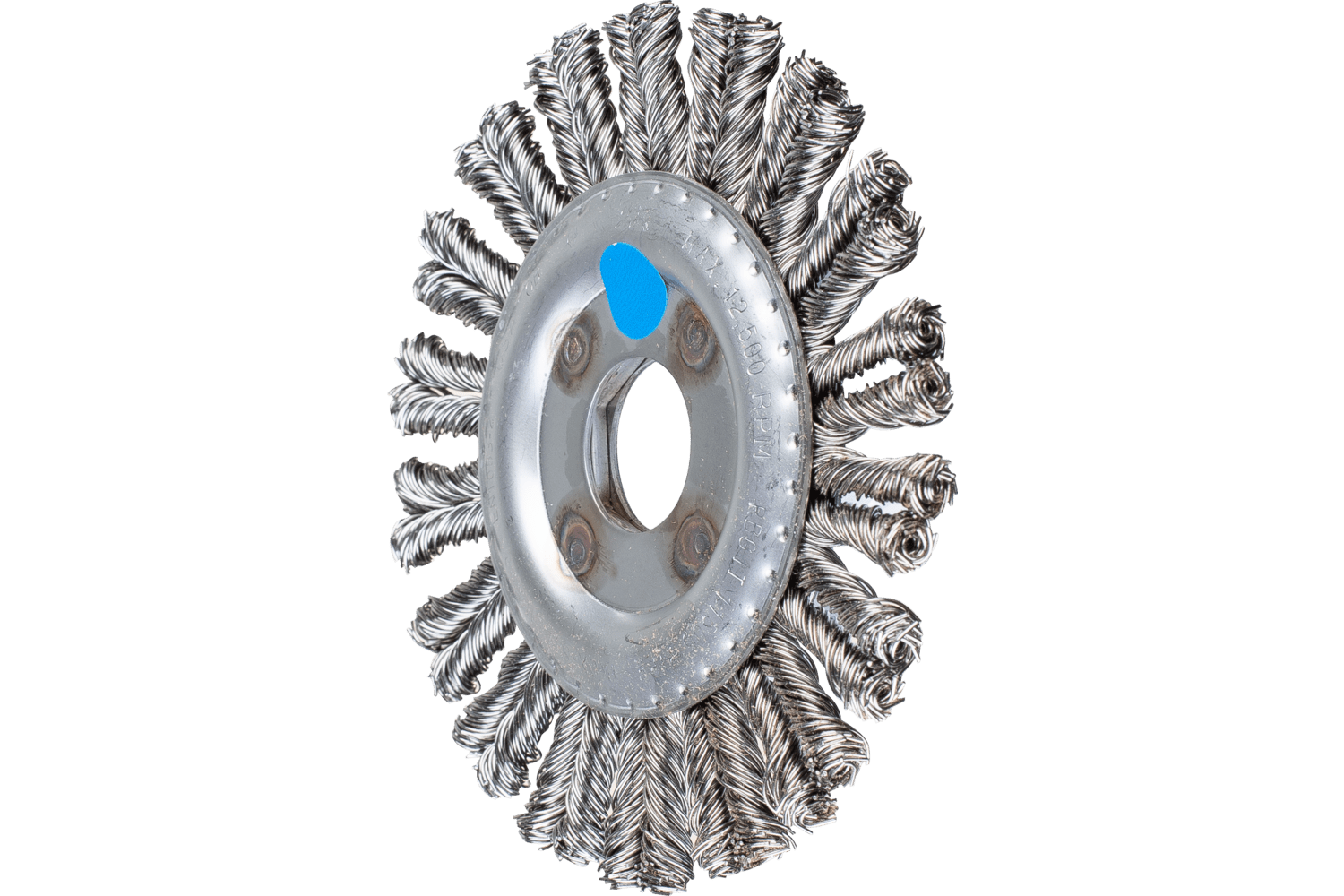

INOX-TOTAL Knot Wire Wheel Brush
Technical informationBrush Diameter4 1/2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchArbor Hole7/8 InchTrim Length7/8 InchNumber of Knots36Max. RPM12500 RPMPack Qty1Very aggressive and robust brush that is able to withstand high mechanical loads. Perfect for heavy-duty brushing in pipeline and container construction. In addition to brushes with a stainless steel filament, PFERD also offers brushes of the INOX-TOTAL type for work on stainless steel (INOX). It is particularly well suited to use in critical environments. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F. The brush is degreased and does not leave any oil residue on the workpiece.AdvantagesMaximum protection against corrosion as all components are produced from stainless steel (INOX) of quality 1.4310 (V2A).Extra-slim design allows access to hard-to-reach areas such as root weld seams.Maximum economic efficiency due to maximum service life and stock removal rate.Brush runs smoothly due to it's flawless balance.Designed for work on corners and edges as the knots are less likely to unravel.Aggressive brushing action due to tightly-twisted wire knots.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinderFlexible shaft driveStraight grinder

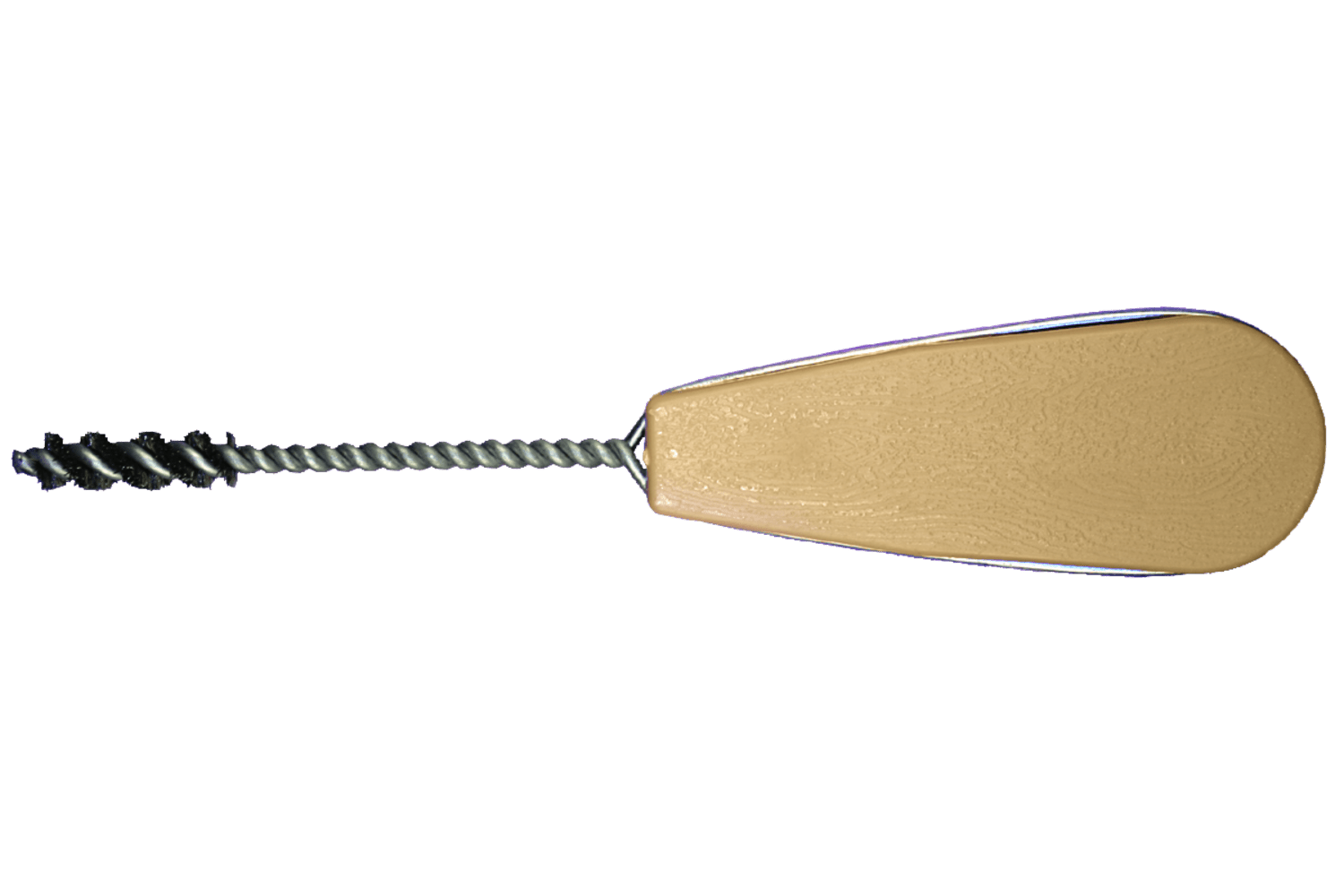

Internal Tube Fitting Brush
Technical informationBrush Diameter17/64 InchFilament MaterialSteel wire (ST)Pack Qty12For internal cleaning and preparation of metal tubes and joints. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.AdvantagesEquipped with ergonomic handle for comfortable use.Long service life through use of PFERD special wire.ApplicationsCleaningRougheningDrive TypesManual application

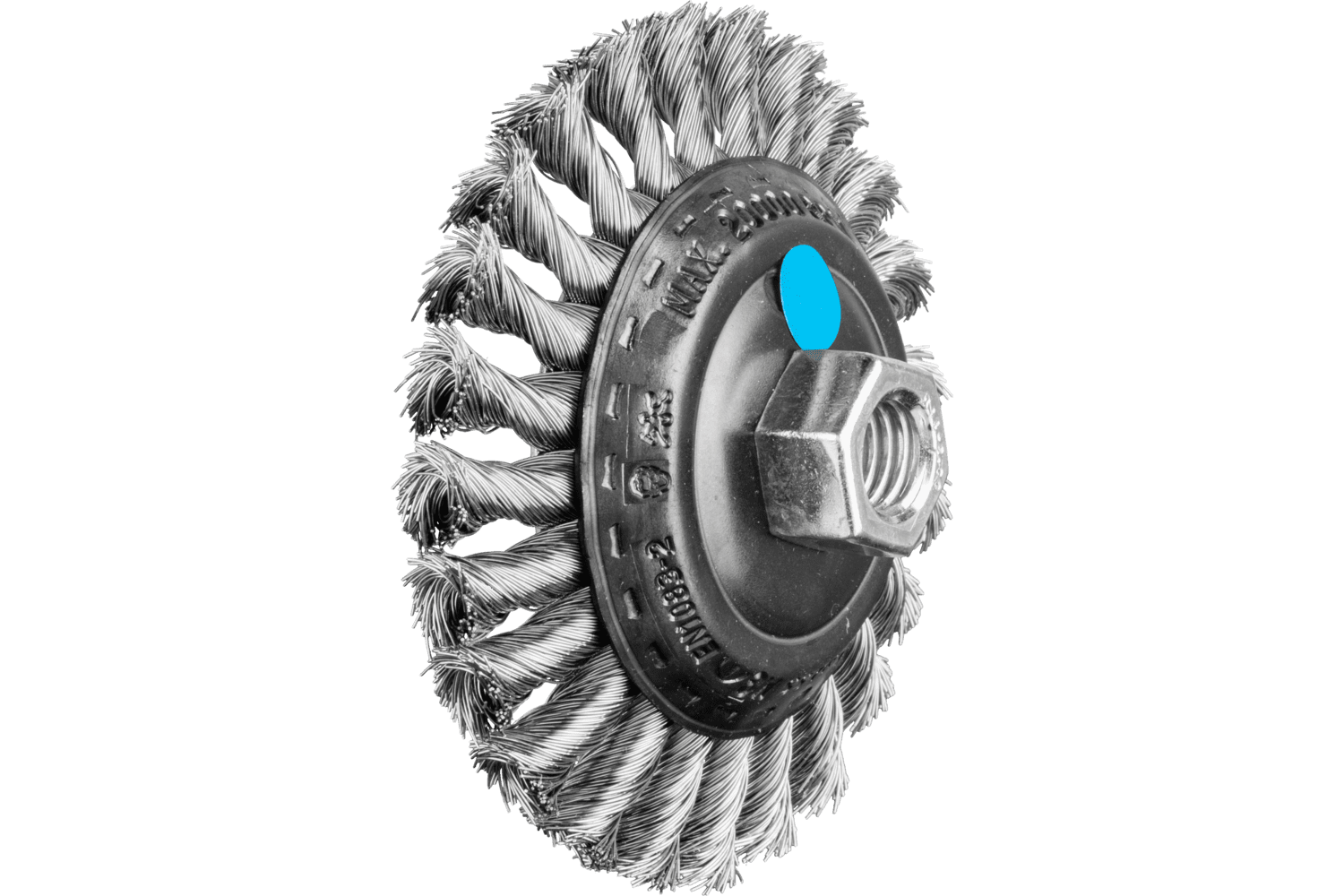

Knot Wire Bevel Brush
Technical informationBrush Diameter4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchThread / Arbor5/8-11Trim Length3/4 InchNumber of Knots22Max. RPM20000 RPMPack Qty5Aggressive brush. Excellent for heavy-duty brushing such as deburring, cleaning, derusting and descaling and removal of spatter. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesAggressive brushing action due to tightly-twisted wire knots.Ideal for cleaning narrow or hard-to-reach areas such as grooves, fillets, and inside edges.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinder

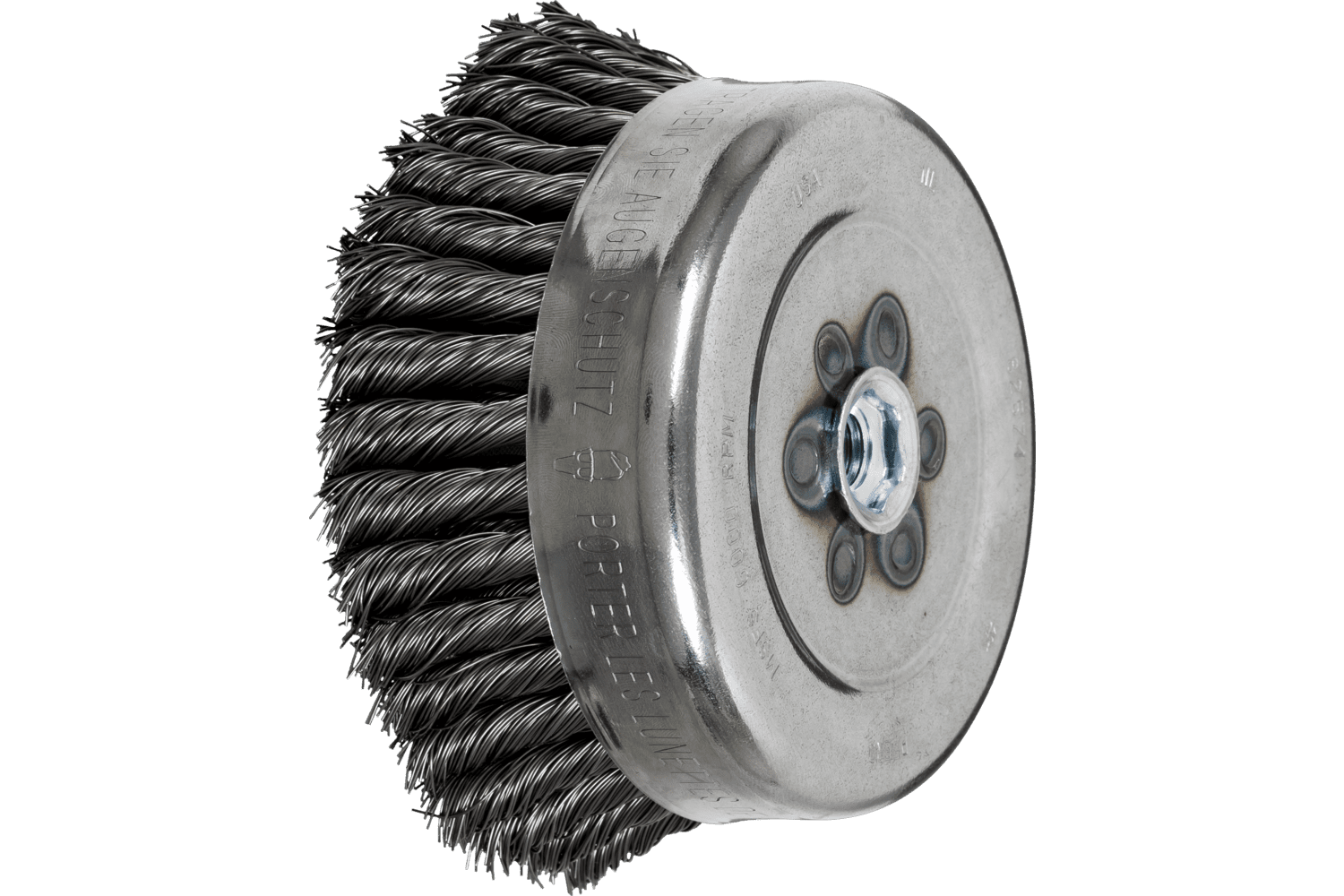

Knot Wire Cup Brush
Technical informationBrush Diameter6 InchFilament MaterialSteel wire (ST)Wire Diameter0.023 InchThread / Arbor5/8-11Trim Length1 1/2 InchNumber of Knots66Max. RPM6000 RPMPack Qty1Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesDouble-row design enables fast results due to larger filament width.With female thread for optimum guidability and fatigue-free working.Aggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder

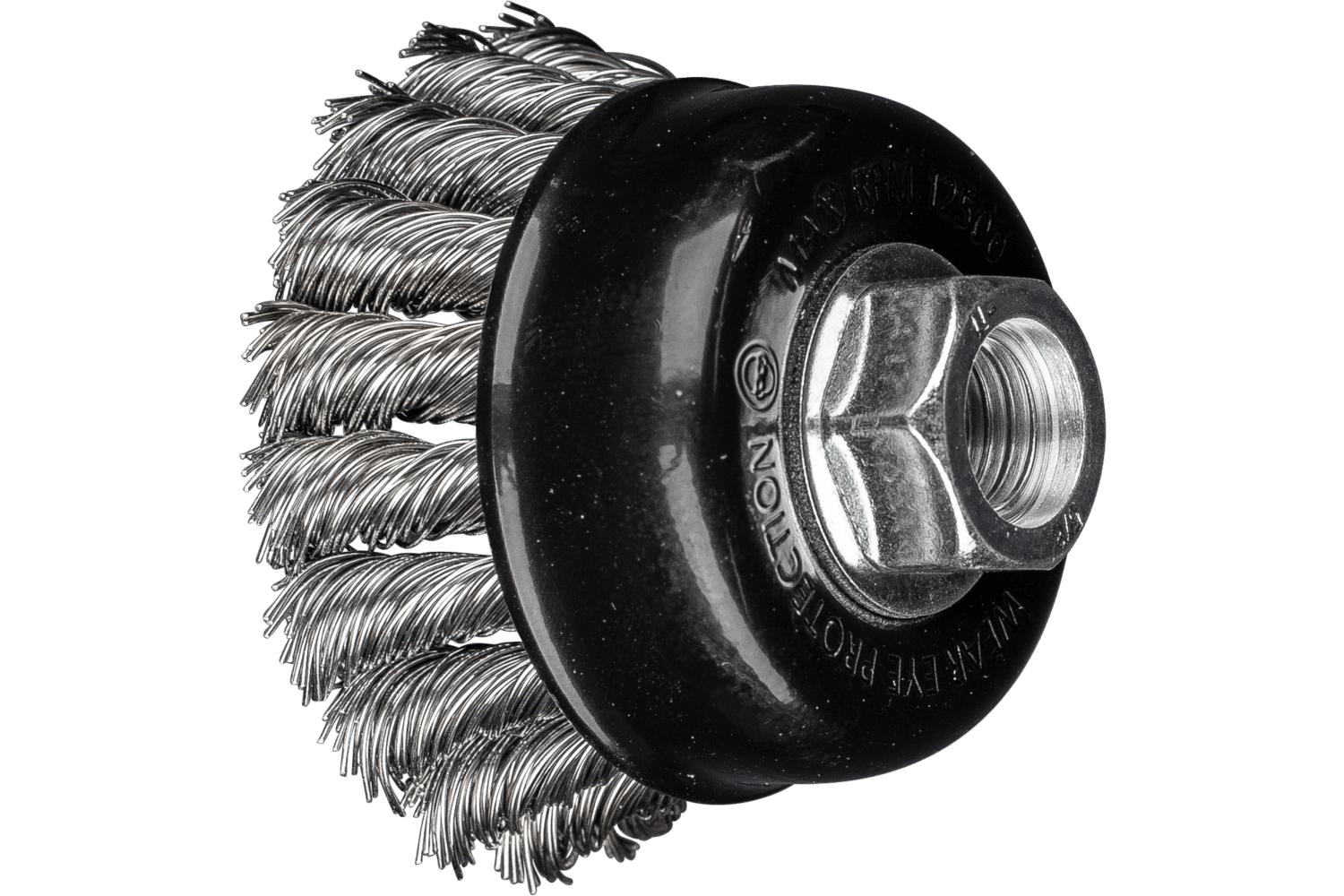

Knot Wire Cup Brush PSF
Technical informationBrush Diameter2 3/4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchThread / Arbor5/8-11Trim Length3/4 InchMax. RPM12500 RPMPack Qty5Aggressive brush. Excellent for heavy-duty brushing such as deburring, cleaning, derusting and descaling and removal of spatter. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesPackaged for retail.Aggressive brushing action due to tightly-twisted wire knots.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinder

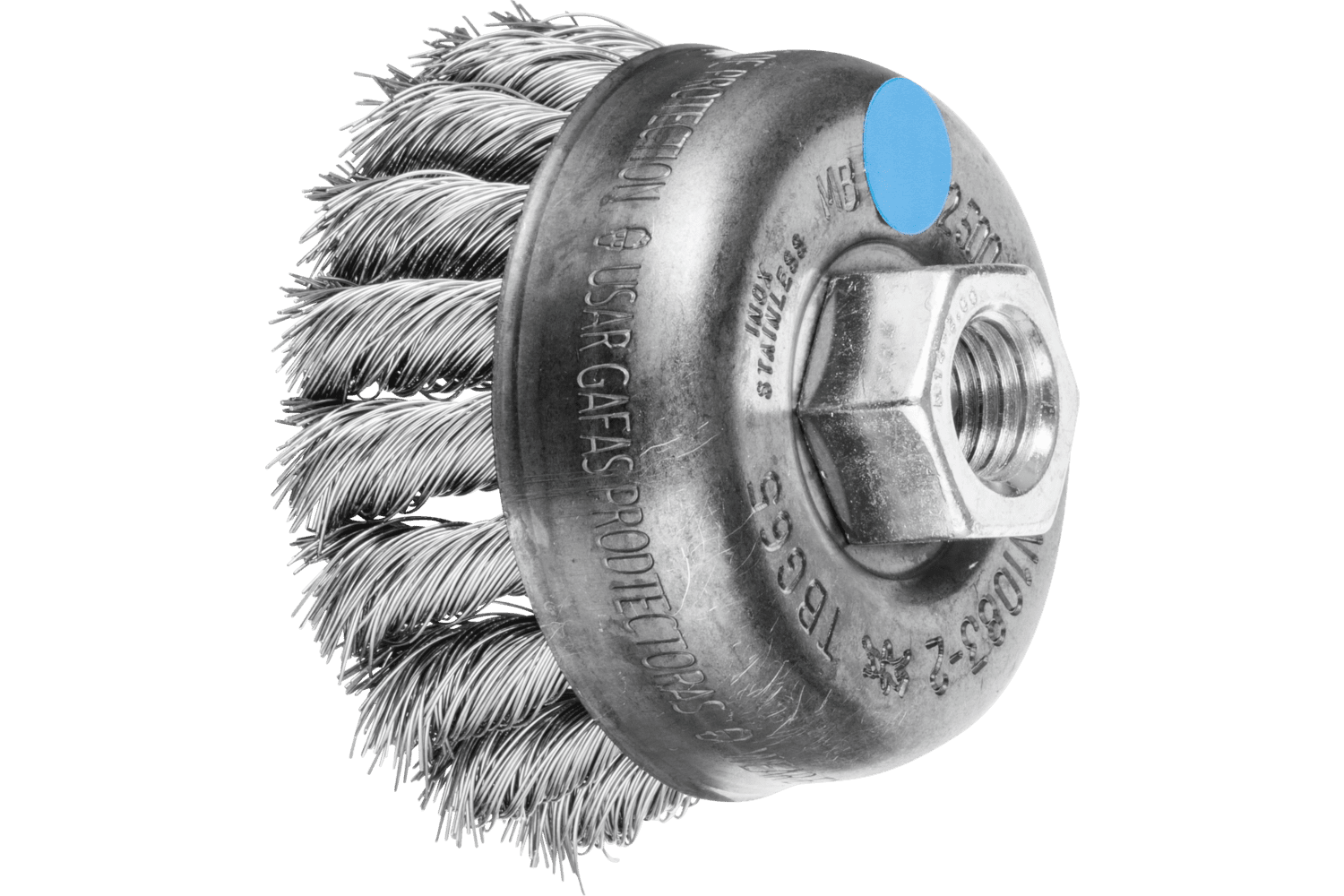

Knot Wire Cup Brush
Technical informationBrush Diameter2 3/4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchThread / Arbor5/8-11Trim Length7/8 InchNumber of Knots18Max. RPM14000 RPMPack Qty5The brush knots are knotted to 75% of the length. The brush is designed for brushing large areas and for heavy-duty brushwork, such as deburring, cleaning, derusting and descaling, as well as removing spatter. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesOptimal ratio of aggressiveness and flexibility.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinder

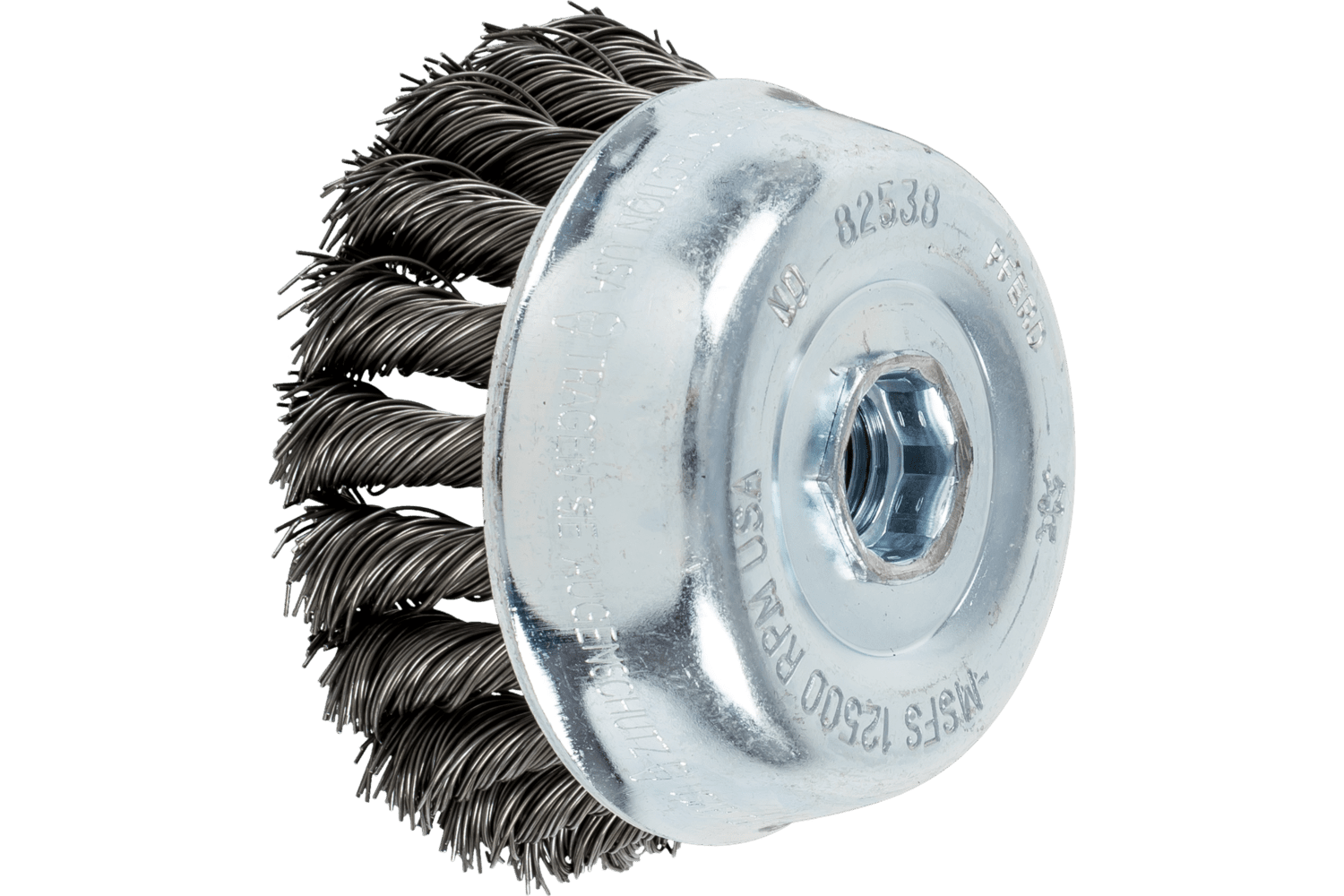

Knot Wire Cup Brush
Technical informationBrush Diameter3 1/2 InchFilament MaterialSteel wire (ST)Wire Diameter0.02 InchThread / Arbor5/8-11Trim Length7/8 InchNumber of Knots20Max. RPM12500 RPMPack Qty1The brush knots are knotted to 75% of the length. The brush with female thread is designed for brushing large areas and for heavy-duty brushwork, such as deburring, cleaning, derusting and descaling, as well as removing spatter. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesWith female thread for optimum guidability and fatigue-free working.Optimal ratio of aggressiveness and flexibility.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder

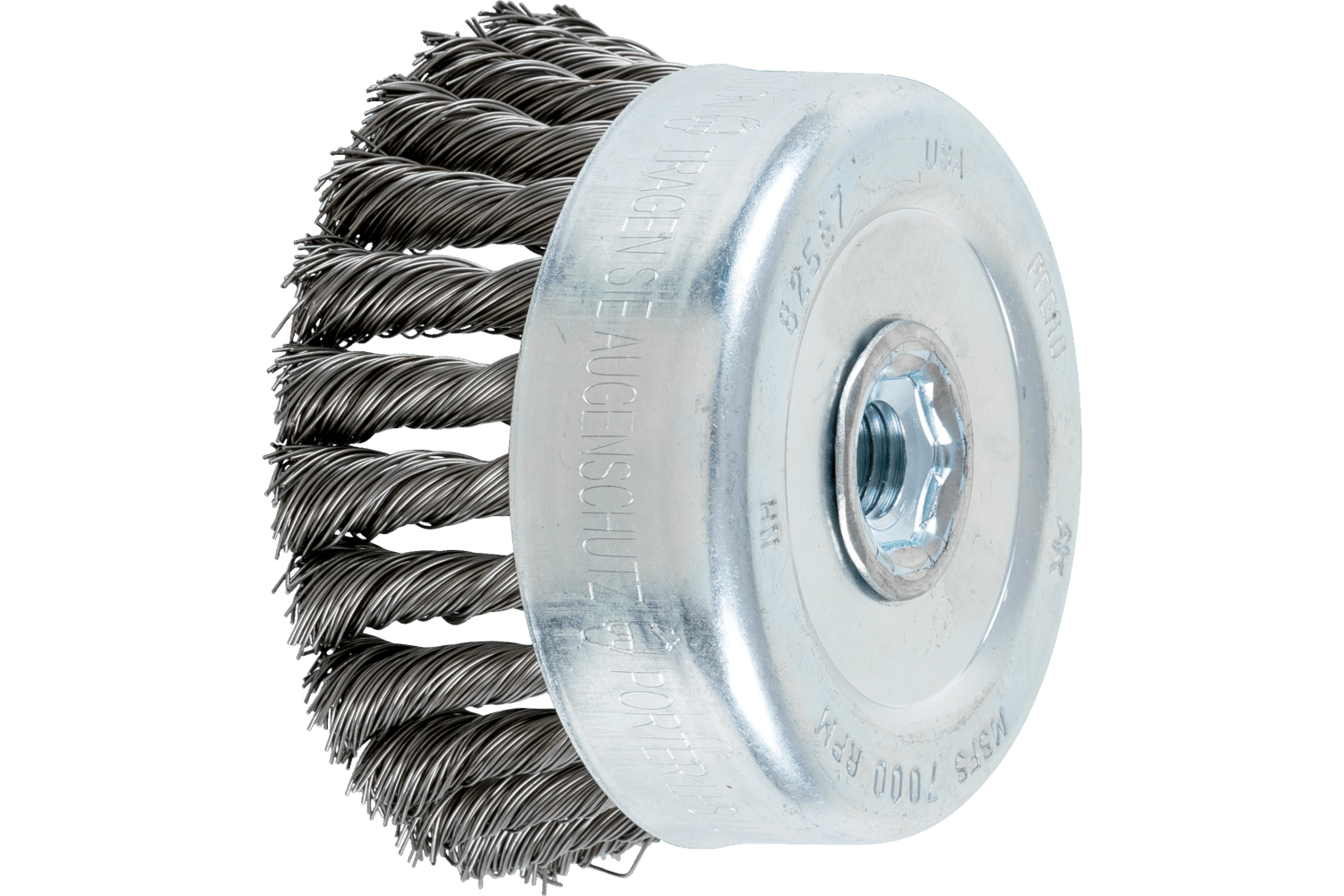

Knot Wire Cup Brush
Technical informationBrush Diameter4 InchFilament MaterialSteel wire (ST)Wire Diameter0.02 InchThread / Arbor5/8-11Trim Length1 3/8 InchNumber of Knots24Max. RPM7000 RPMPack Qty1Aggressive brush with internal thread. Excellent for heavy-duty brushing such as deburring, cleaning, derusting and descaling and removal of spatter. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesWith female thread for optimum guidability and fatigue-free working.Aggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder
Knot Wire Cup Brush
Technical informationBrush Diameter2 3/4 InchFilament MaterialSteel wire (ST)Wire Diameter0.02 InchThread / ArborX-LOCKTrim Length3/4 InchNumber of Knots18Max. RPM12500 RPMPack Qty1000Aggressive brush. Excellent for heavy-duty brushing such as deburring, cleaning, derusting and descaling and removal of spatter. With the BOSCH X-LOCK system for angle grinders, you can change discs quickly and comfortably. Instead of a round center hole, the X-LOCK system features an X-shaped contour, which allows the disc to be fixed on the angle grinder in a form-fitting manner. This guarantees that different discs can be mounted securely and comfortably in the shortest possible time. The unique system meets the highest quality and safety standards and even withstands tough and challenging operating conditions. X-LOCK from Bosch is the world's first quick-changing system for angle grinders: Position the tool in the X-LOCK holder, click it into place – and you're ready! It's never been so easy to change accessories on angle grinders. X-LOCK is creating a new standard which makes professionals’ lives easier and increases their productivity. Bosch Power Tools relies on strong partners like PFERD. PFERD has developed the principle for connecting the X-LOCK punched part with the bonded abrasive, flap discs and brushes and created the conditions to enable them to be produced industrially. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesWith X-LOCK arbor for quick and easy tool changing.Secure fixing as the product audibly clicks into place.Aggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder
Knot Wire End Brush PSF
Technical informationBrush Diameter3/4 InchFilament MaterialSteel wire (ST)Wire Diameter0.014 InchShank Diameter1/4 InchTrim Length1 InchMax. RPM20000 RPMPack Qty5Aggressive brush. Designed for medium-duty brushing such as deburring, cleaning, derusting and descaling, as well as removing spatter. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesOptimal access to hard-to-reach areas such as recesses and drilled holes.Packaged for retail.Aggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Knot Wire End Brush
Technical informationBrush Diameter3/4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.006 InchShank Diameter1/4 InchTrim Length1 InchNumber of Knots8Max. RPM20000 RPMPack Qty10Aggressive brush. Designed for medium-duty brushing such as deburring, cleaning, derusting and descaling, as well as removing spatter. End brush with plastic-covered brush body. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe brush is degreased and does not leave any oil residue on the workpiece.Optimal access to hard-to-reach areas such as recesses and drilled holes.The plastic covering prevents the risk of corrosion.Aggressive brushing action due to tightly-twisted wire knots.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Knot Wire End Brush
Technical informationBrush Diameter1/2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchShank Diameter1/4 InchTrim Length1 1/8 InchNumber of Knots6Max. RPM20000 RPMPack Qty10Aggressive brush. Designed for medium-duty brushing such as deburring, cleaning, derusting and descaling, as well as removing spatter. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F. The brush is degreased and does not leave any oil residue on the workpiece.AdvantagesAggressive brushing action due to tightly-twisted wire knots.Optimal access to hard-to-reach areas such as recesses and drilled holes.Reduced flare for more precise surface contact.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Knot Wire End Brush
Technical informationBrush Diameter1 InchFilament MaterialSteel wire (ST)Wire Diameter0.006 InchShank Diameter1/4 InchTrim Length1 InchNumber of Knots12Max. RPM20000 RPMPack Qty10Aggressive brush. Designed for medium-duty brushing such as deburring, cleaning, derusting and descaling, as well as removing spatter. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesOptimal access to hard-to-reach areas such as recesses and drilled holes.Aggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

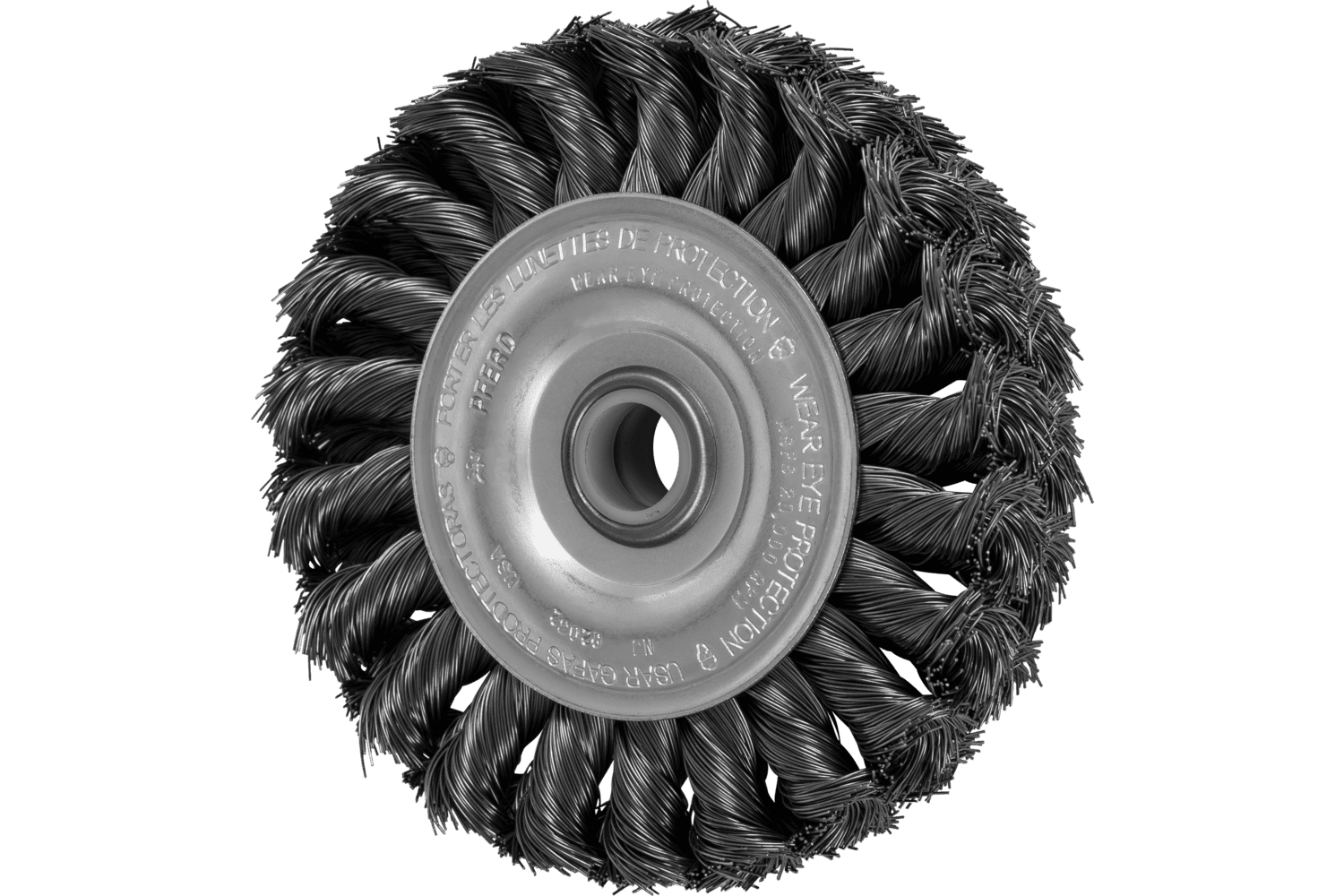

Knot Wire Wheel Brush
Technical informationBrush Diameter4 InchFace Width1 1/8 InchFilament MaterialSteel wire (ST)Wire Diameter0.014 InchArbor Hole1/2 InchTrim Length3/4 InchNumber of Knots44Max. RPM20000 RPMPack Qty5The brush knots are knotted to 50% of the length. The brush achieves a better surface quality on uneven surfaces when compared to knotted brushes. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesDouble-row design enables fast results due to larger filament width.Optimal ratio of aggressiveness and flexibility.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steel

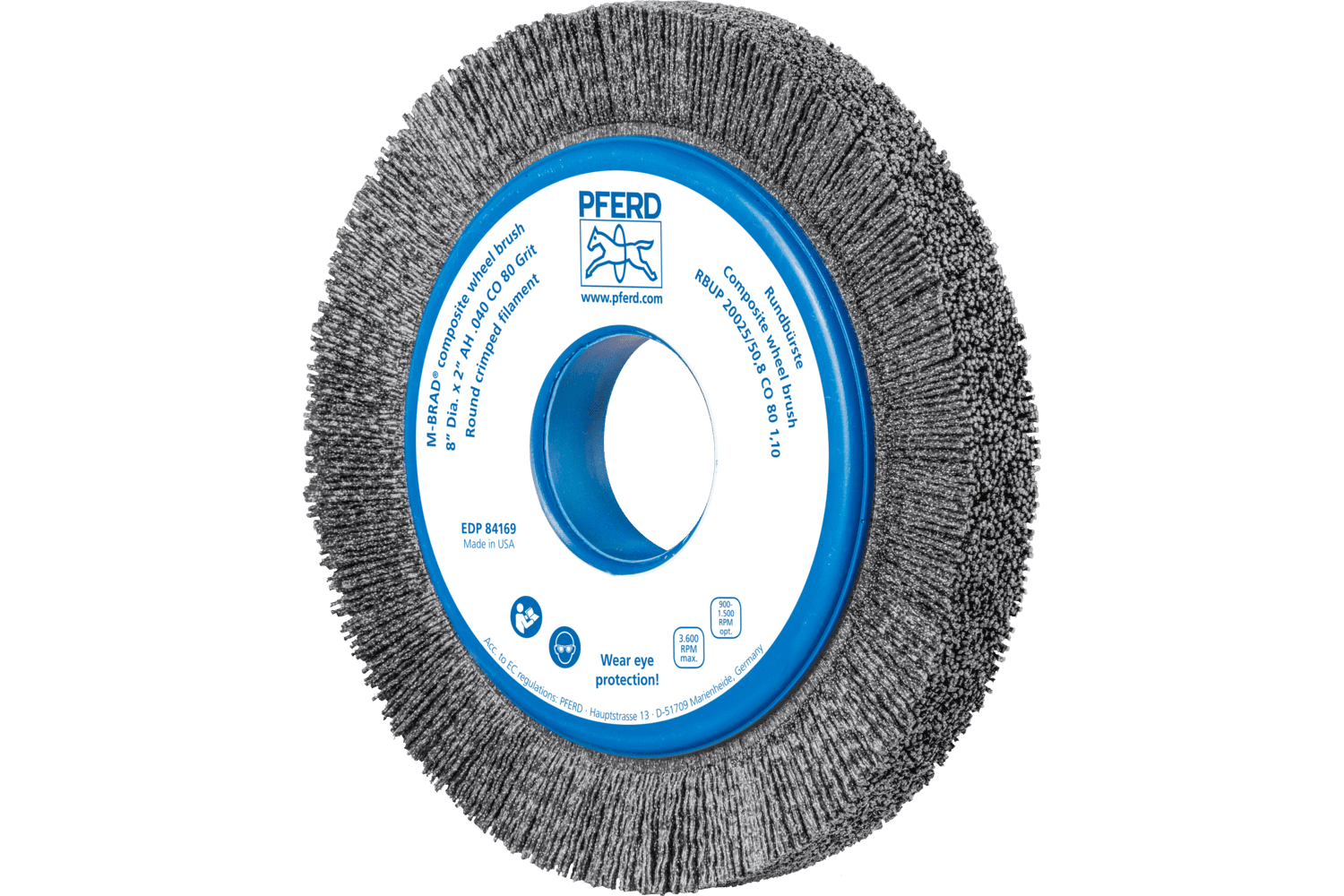

M-BRAD® Composite Wheel Brush
Technical informationBrush Diameter8 InchFace Width1 InchFilament MaterialSilicon carbide (SiC)Wire Diameter0.045 InchGrit Size80Arbor Hole2 InchTrim Length2 1/4 InchMax. RPM3600 RPMPack Qty1Uniquely flexible brush. Its nylon filament makes this product ideal for deburring complicated components such as cylinder heads or gears. Developed specially for industrial use. Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable mounting options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labor-intensive, manual work is reduced and repeatable results are achieved with short cycle times. Silicon carbide (SiC) filament brushes are designed for deburring work and surface improvement. Rectangular filament [REC] is designed for particularly demanding applications that require an aggressive brush. The larger cross-section of the filaments means that these are more stiff than round filaments and provide a greater contact area with the workpiece. Plastic filaments are temperature-resistant up to 410°F.AdvantagesLong tool life and aggressive brushing action due to the high filament density.Extremely smooth operation due to evenly distributed filament material.Highly flexible, enabling optimal adjustment to the workpiece contour and less heat build-up.Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.For aggressive work due to rectangular filament (REC).ApplicationsCleaningDeburringRougheningStructuring (matt finishing, brush matting and satin finishing)Materials that can be workedStainless steel (INOX)Steel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodAluminumBronzeCast ironCast steelDrive TypesFlexible shaft driveTool machineRobotStationary machinesStraight grinder

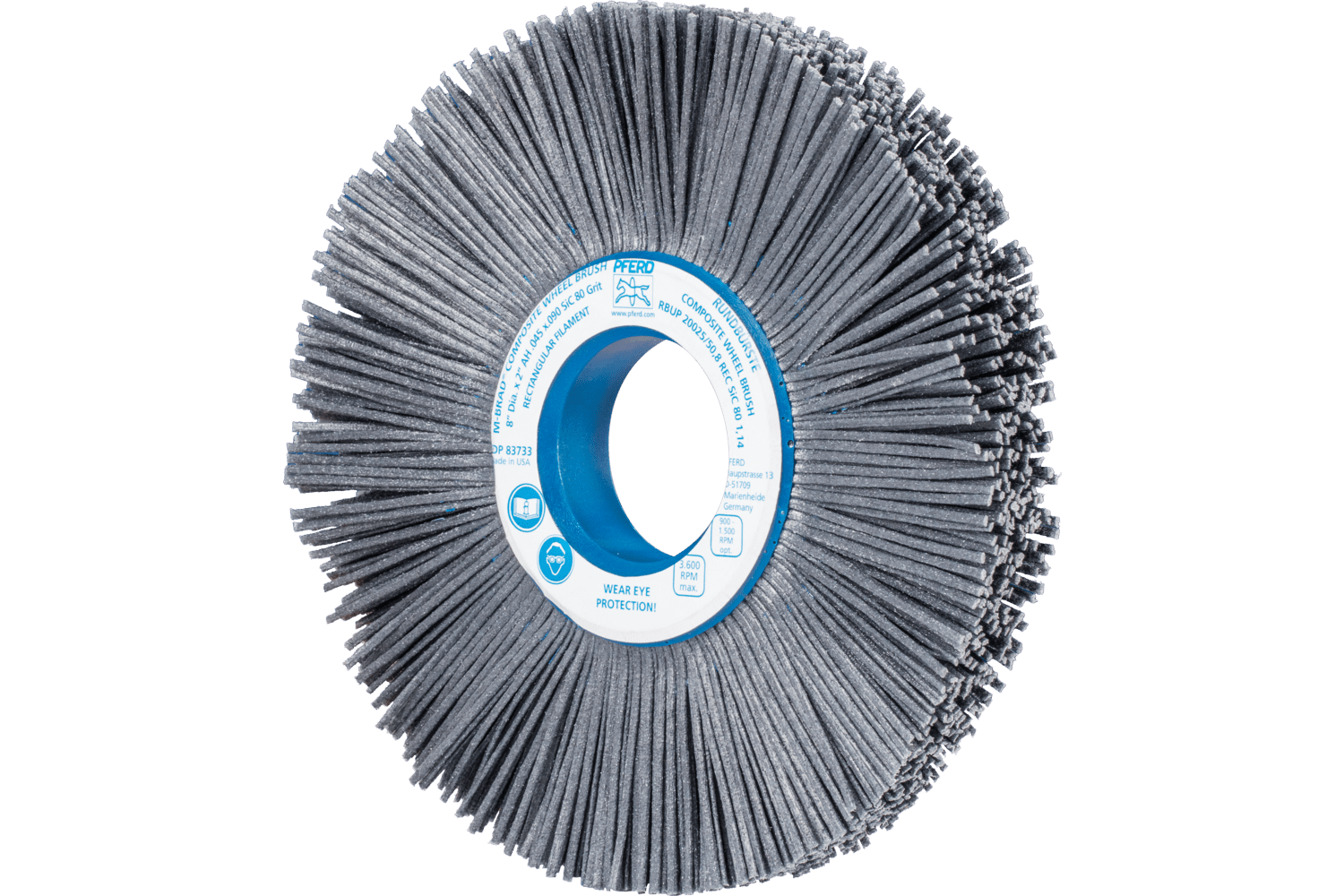

M-BRAD® Composite Wheel Brush
Technical informationBrush Diameter6 InchFace Width1/2 InchFilament MaterialCeramic oxide grain (CO)Wire Diameter0.04 InchGrit Size80Arbor Hole2 InchTrim Length1 1/4 InchMax. RPM3600 RPMPack Qty1Impressively aggressive brush. Its nylon filament makes this product ideal for deburring complicated components such as cylinder heads or gears, as well as for working on surfaces. Developed specially for industrial use. Uniquely flexible brush. Its nylon filament makes this product ideal for deburring complicated components such as cylinder heads or gears. Developed specially for industrial use. Brushes with ceramic oxide grain (CO) offer good toughness and excellent sharpness. For high stock removal and aggressive brushing action. Plastic filaments are temperature-resistant up to 410°F.AdvantagesLong tool life and aggressive brushing action due to the high filament density.Extremely smooth operation due to evenly distributed filament material.Highly flexible, enabling optimal adjustment to the workpiece contour and less heat build-up.Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.For particularly aggressive machining and for creating a high surface quality.ApplicationsCleaningDeburringStructuring (matt finishing, brush matting and satin finishing)Materials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Steel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)TitaniumTitanium alloysAluminumBronzeCast ironCast steelDrive TypesFlexible shaft driveTool machineRobotStationary machinesStraight grinder

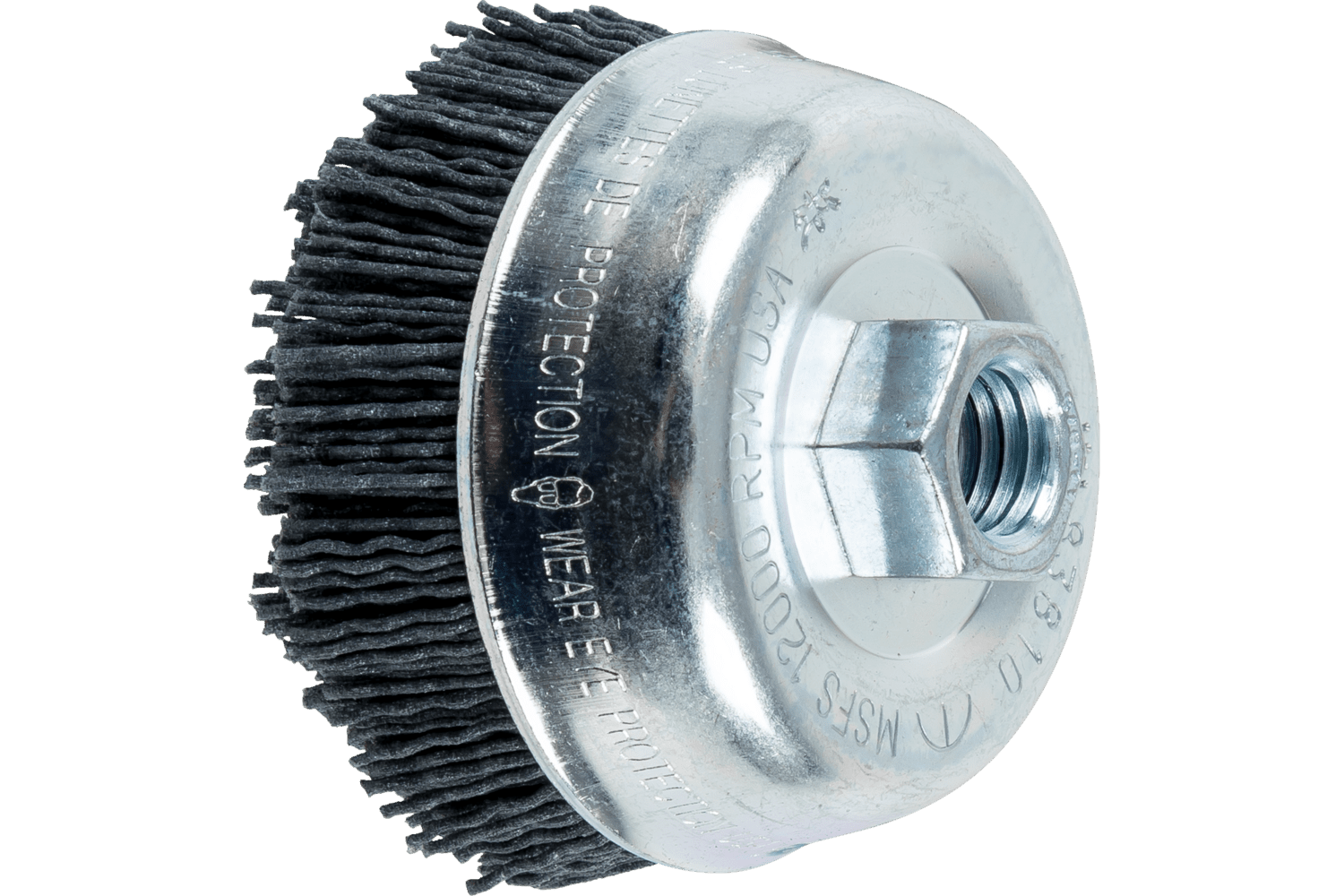

M-BRAD® Cup Brush
Technical informationBrush Diameter3 1/2 InchFilament MaterialSilicon carbide (SiC)Wire Diameter0.04 InchGrit Size120Thread / Arbor5/8-11Trim Length7/8 InchMax. RPM12000 RPMPack Qty1Excellent for medium-duty brushing such as deburring, cleaning, and derusting of large surfaces. Silicon carbide (SiC) filament brushes are designed for deburring work and surface improvement. Plastic filaments are temperature-resistant up to 410°F.AdvantagesHighly flexible, enabling optimal adaptation to the workpiece contour.Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.ApplicationsCleaningDeburringRougheningStructuring (matt finishing, brush matting and satin finishing)Materials that can be workedStainless steel (INOX)Steel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodAluminumBronzeCast ironCast steelDrive TypesAngle grinderCordless angle grinder
M-BRAD® End Brush - Banded
Technical informationBrush Diameter1/2 InchFilament MaterialSilicon carbide (SiC)Wire Diameter0.04 InchGrit Size120Shank Diameter1/4 InchTrim Length1 InchMax. RPM20000 RPMPack Qty10Designed for light brushing such as deburring, cleaning and derusting. Silicon carbide (SiC) filament brushes are designed for deburring work and surface improvement. Plastic filaments are temperature-resistant up to 410°F.AdvantagesThe bridle prevents the wires spreading out sideways.The bridle enables the spreading out and flexibility of the brush filament to be strictly controlled.Optimal access to hard-to-reach areas such as recesses and drilled holes.If the filament has worn away down to the bridle, it can be removed from the bridle for further use. This does not affect the brushing behavior.Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.ApplicationsCleaningDeburringRougheningStructuring (matt finishing, brush matting and satin finishing)Materials that can be workedStainless steel (INOX)Steel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodAluminumBronzeCast ironCast steelDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

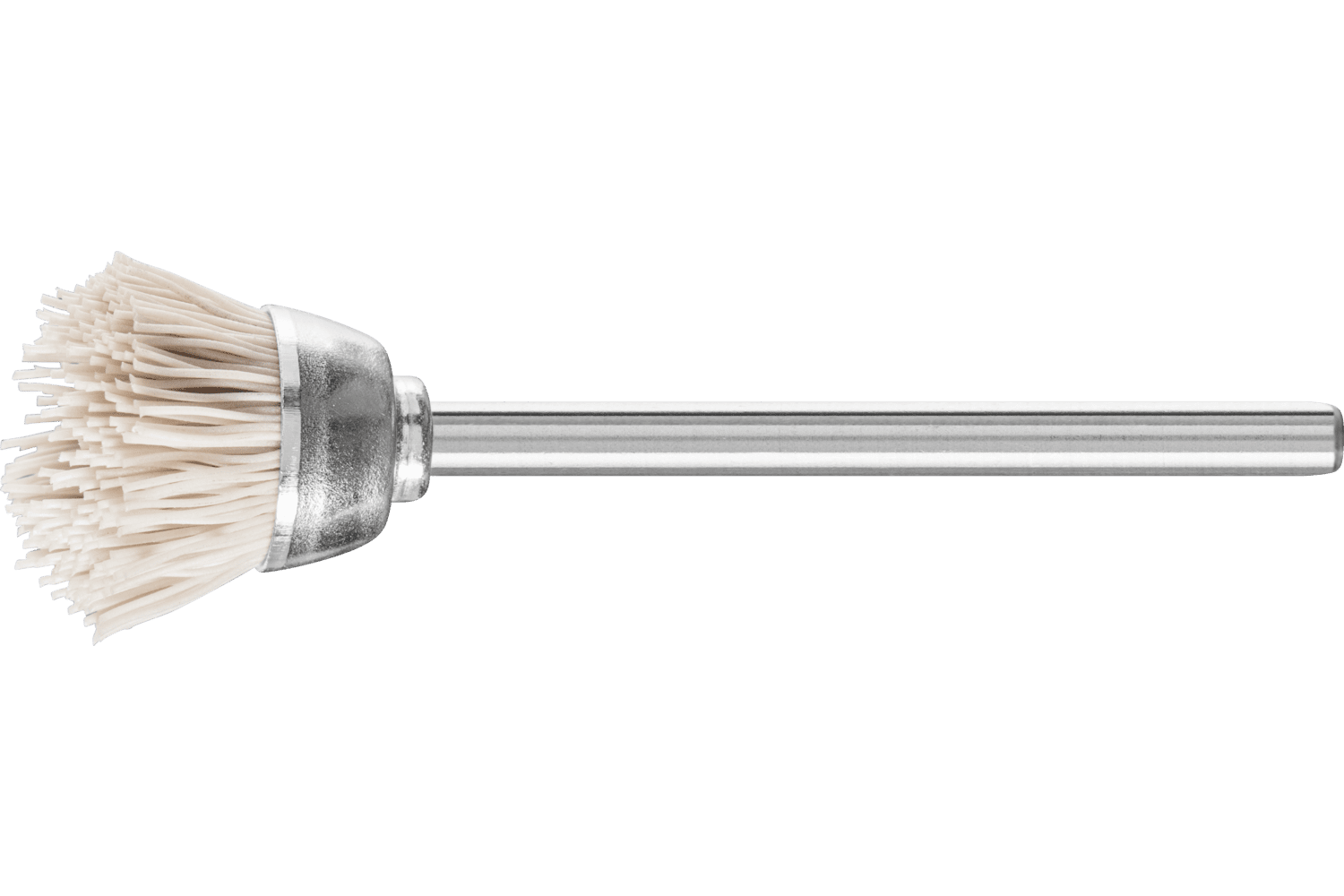

M-BRAD® Miniature Cup Brush
Technical informationBrush Diameter9/16 InchFilament MaterialAluminum oxide (AO)Wire Diameter0.012 InchGrit Size600Shank Diameter1/8 InchTrim Length1/4 InchMax. RPM6000 RPMPack Qty36Designed for light brushing such as deburring, cleaning and polishing. Ideal for brushing on small surfaces due to face-down use with the entire brush face applied to the workpiece. PFERD offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders. Brushes with aluminum oxide (AO) are less sharp-edged and aggressive than those with SiC. These brushes are designed for polishing and smoothing finishes on soft metals. Plastic filaments are temperature-resistant up to 410°F.AdvantagesMaximum precision and efficiency on delicate workpieces.Highly flexible, enabling optimal adaptation to the workpiece contour.Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.ApplicationsCleaningDeburringMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)AluminumBronzeCast ironCast steelCobalt-based alloysOther non-ferrous metalsDrive TypesFlexible shaft driveStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

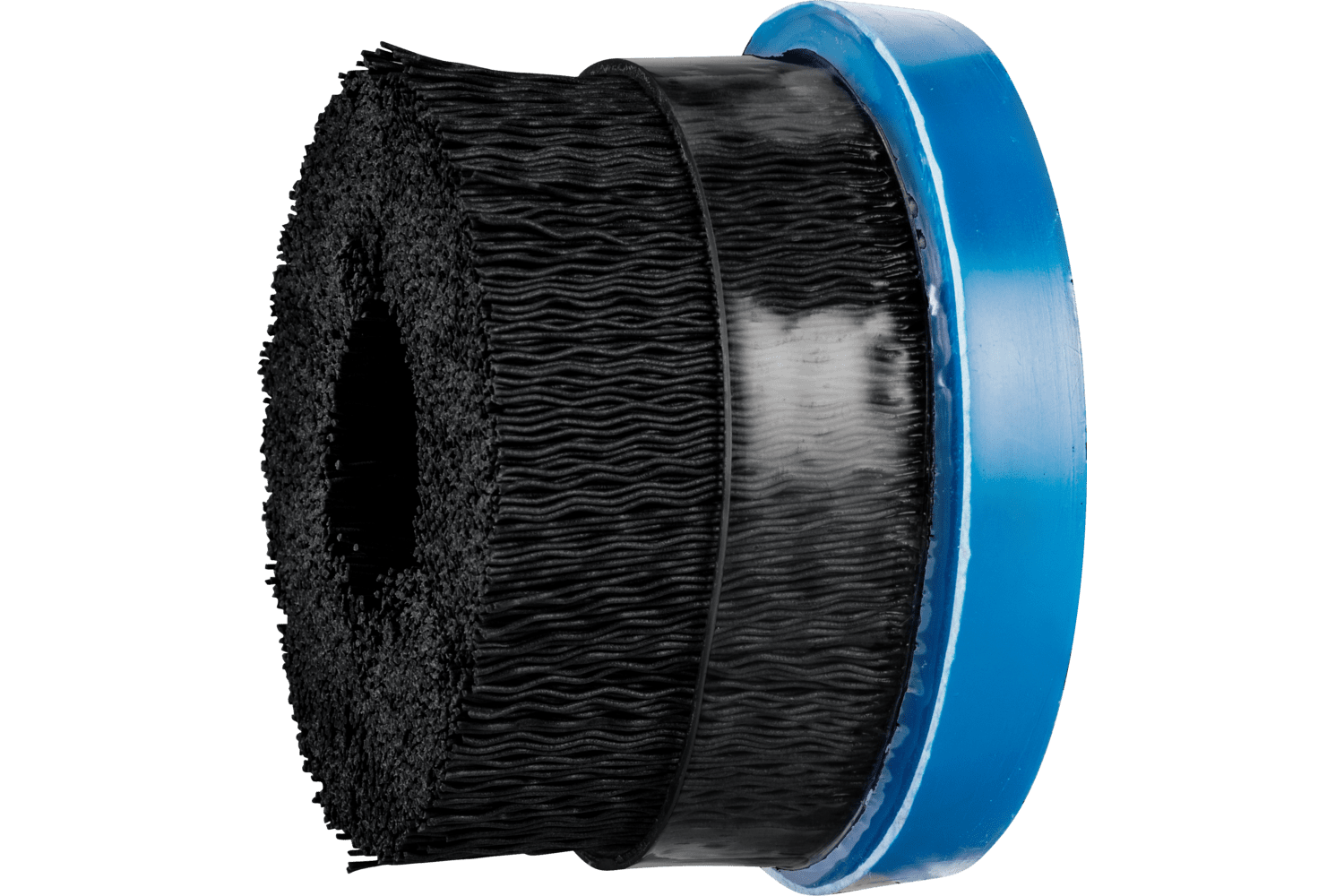

M-BRAD® Mounted Disc Brush
Technical informationBrush Diameter1 InchFilament MaterialCeramic oxide grain (CO)Wire Diameter0.04 InchGrit Size80Shank Diameter1/4 InchTrim Length1 1/8 InchMax. RPM5000 RPMPack Qty1Ideal for deburring and work on surfaces on stationary machines. Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable mounting options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labor-intensive, manual work is reduced and repeatable results are achieved with short cycle times. Brushes with ceramic oxide grain (CO) offer good toughness and excellent sharpness. For high stock removal and aggressive brushing action. Plastic filaments are temperature-resistant up to 410°F.AdvantagesLong tool life and aggressive brushing action due to the high filament density.Extremely smooth operation due to evenly distributed filament material.Optimal access to hard-to-reach areas, such as drilled holes and crevices, as the filament spreads out upon rotation.The bridle prevents the wires spreading out sideways.If the filament has worn away down to the bridle, the bridle can be removed to extend the life of the brush. This does not affect the brushing behavior.The bridle enables the spreading out and flexibility of the brush filament to be controlled.Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.For particularly aggressive machining and for creating a high surface quality.ApplicationsCleaningDeburringStructuring (matt finishing, brush matting and satin finishing)Materials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Steel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)TitaniumTitanium alloysAluminumBronzeCast ironCast steelDrive TypesFlexible shaft driveTool machinePower drillRobotStationary machinesStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

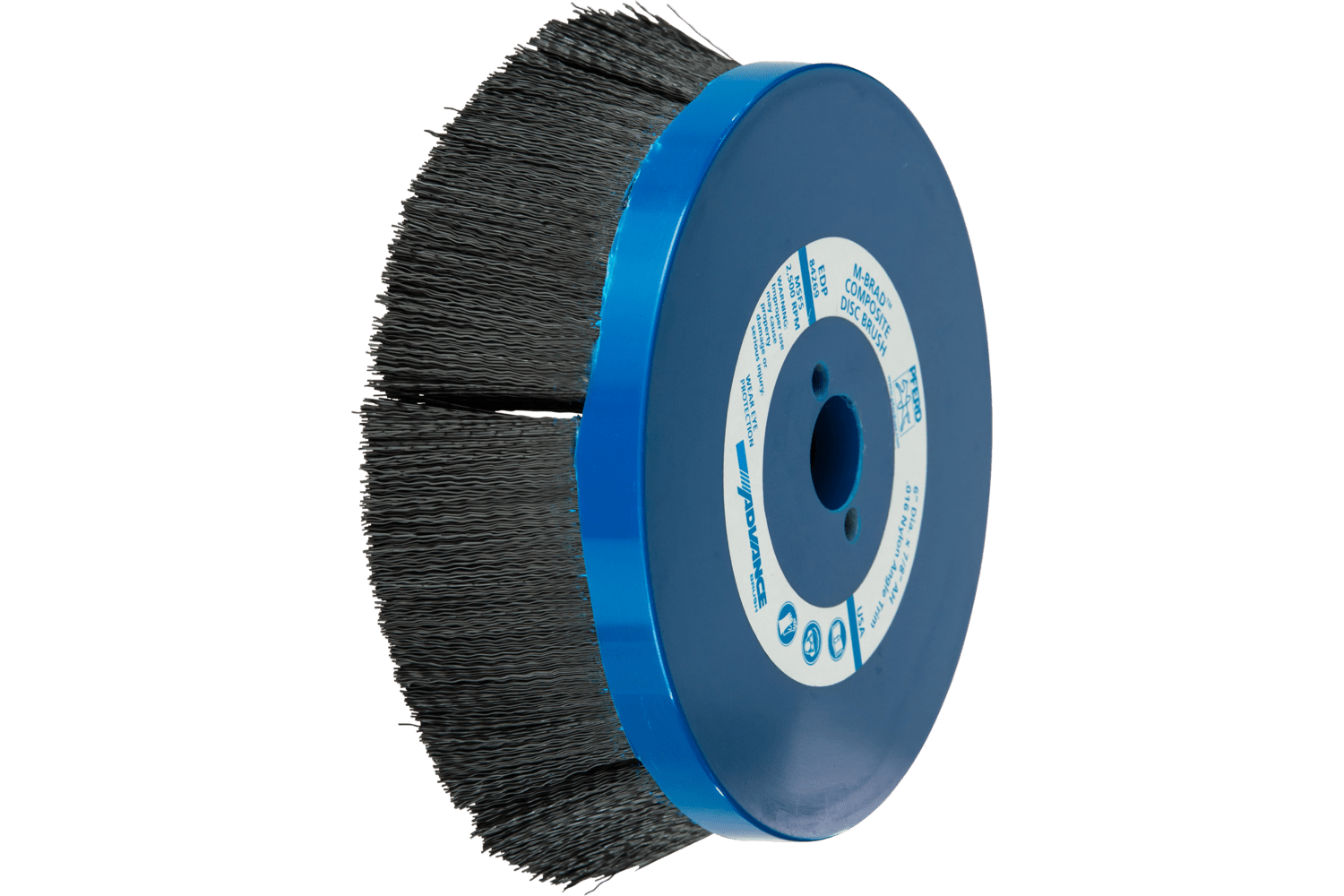

M-BRAD® Mounted Disc Brush
Technical informationBrush Diameter4 InchFilament MaterialNylonWire Diameter0.016 InchArbor Hole7/8 InchTrim Length1 1/2 InchMax. RPM3500 RPMPack Qty1Uniquely flexible brush. Ideal for deburring and work on surfaces. Perfect for use on stationary machines. Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable mounting options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labor-intensive, manual work is reduced and repeatable results are achieved with short cycle times. Nylon filament brushes are designed for working on materials that would otherwise be scratched or damaged, e.g. soft plastics. Plastic filaments are temperature-resistant up to 410°F.AdvantagesLong tool life and aggressive brushing action due to the high filament density.Extremely smooth operation due to evenly distributed filament material.Special arrangement of the filament enables optimal adjustment to the workpiece contour, less heat build-up, and more efficient use of the coolant.ApplicationsCleaningDeburringMaterials that can be workedThermoplasticsThermosetting plasticsOther non-ferrous metalsDrive TypesTool machineRobotStationary machines
M-BRAD® Mounted Disc Brush
Technical informationBrush Diameter2 InchFilament MaterialNylonWire Diameter0.016 InchShank Diameter1/4 InchTrim Length1 1/2 InchMax. RPM5000 RPMPack Qty1Particularly aggressive brush with bridle. Ideal for deburring and work on surfaces on stationary machines. Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable mounting options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labor-intensive, manual work is reduced and repeatable results are achieved with short cycle times. Nylon filament brushes are designed for working on materials that would otherwise be scratched or damaged, e.g. soft plastics. Plastic filaments are temperature-resistant up to 410°F.AdvantagesLong tool life and aggressive brushing action due to the high filament density.Extremely smooth operation due to evenly distributed filament material.If the filament has worn away down to the bridle, the bridle can be removed to extend the life of the brush. This does not affect the brushing behavior.The bridle enables the spreading out and flexibility of the brush filament to be controlled.The bridle prevents the wires spreading out sideways.ApplicationsCleaningDeburringMaterials that can be workedThermoplasticsThermosetting plasticsOther non-ferrous metalsDrive TypesFlexible shaft driveTool machineRobotStationary machinesStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
M-BRAD® Mounted Disc Brush
Technical informationBrush Diameter6 InchFilament MaterialNylonWire Diameter0.016 InchArbor Hole7/8 InchTrim Length1 1/2 InchMax. RPM2500 RPMPack Qty1Particularly aggressive brush with bridle. Ideal for deburring and work on surfaces on stationary machines. Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable mounting options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labor-intensive, manual work is reduced and repeatable results are achieved with short cycle times. Nylon filament brushes are designed for working on materials that would otherwise be scratched or damaged, e.g. soft plastics. Plastic filaments are temperature-resistant up to 410°F.AdvantagesLong tool life and aggressive brushing action due to the high filament density.Extremely smooth operation due to evenly distributed filament material.The bridle prevents the wires spreading out sideways.If the filament has worn away down to the bridle, the bridle can be removed to extend the life of the brush. This does not affect the brushing behavior.The bridle enables the spreading out and flexibility of the brush filament to be controlled.ApplicationsCleaningDeburringMaterials that can be workedThermoplasticsThermosetting plasticsOther non-ferrous metalsDrive TypesTool machineRobotStationary machines

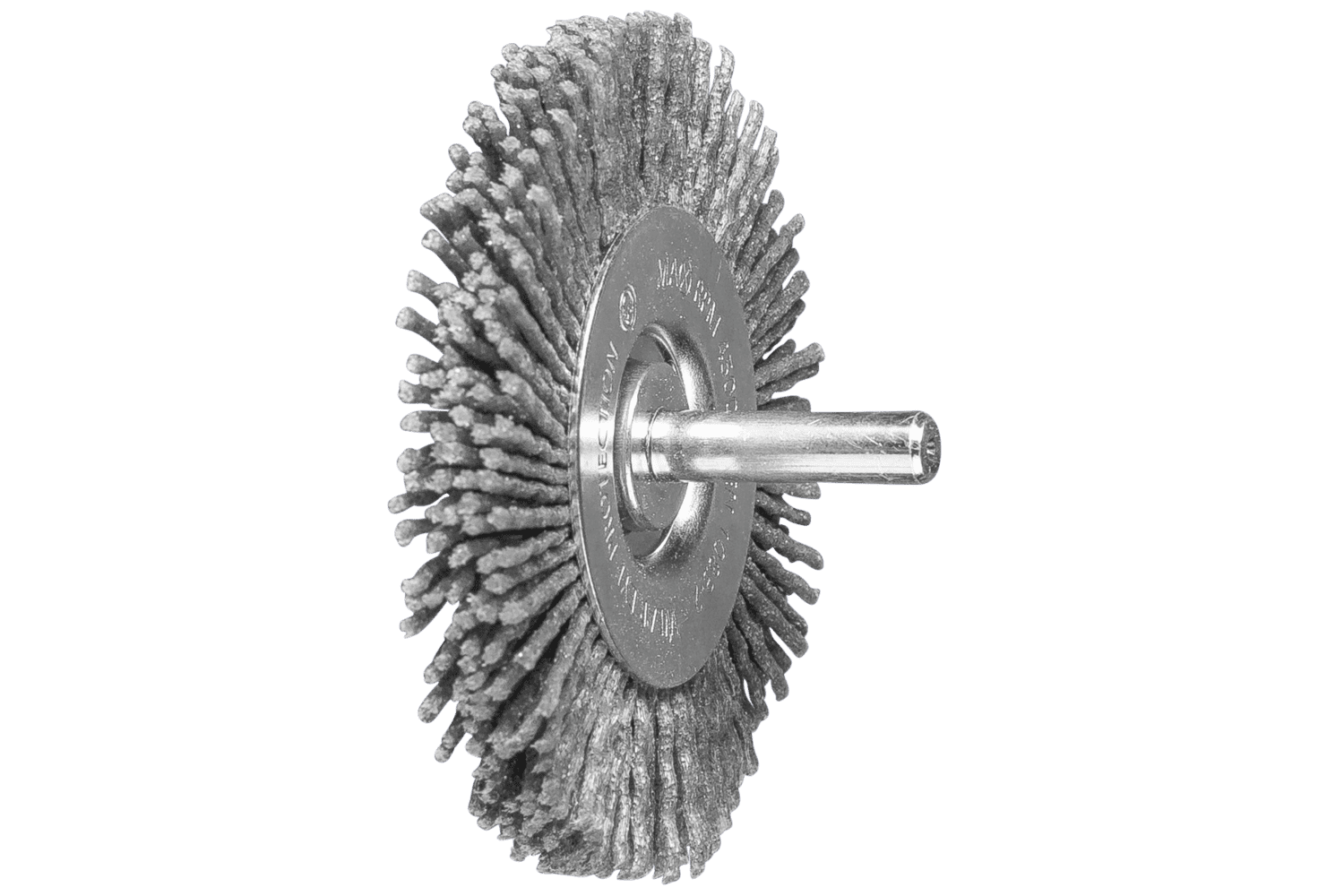

M-BRAD® Mounted Wheel Brush PSF
Technical informationBrush Diameter3 InchFilament MaterialSilicon carbide (SiC)Wire Diameter0.04 InchGrit Size120Shank Diameter1/4 InchTrim Length3/4 InchMax. RPM4500 RPMPack Qty5Designed for cleaning, derusting, smoothing, cleaning of weld seams, light deburring, and removal of corrosion and paint. Specially developed for use with low rotational speeds on cordless drills and power drills. Silicon carbide (SiC) filament brushes are designed for deburring work and surface improvement. Plastic filaments are temperature-resistant up to 410°F.AdvantagesHighly flexible, enabling optimal adaptation to the workpiece contour.Packaged for retail.Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.ApplicationsCleaningDeburringRougheningStructuring (matt finishing, brush matting and satin finishing)Materials that can be workedStainless steel (INOX)Steel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)ThermoplasticsWoodAluminumBronzeCast ironCast steelDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
