Industrial power brushes
Crimped Wire Wheel Brush
Technical informationBrush Diameter4 InchFilament MaterialSteel wire (ST)Wire Diameter0.014 InchThread / Arbor5/8-11Trim Length11/16 InchMax. RPM12500 RPMPack Qty5Designed for medium-duty brushing such as derusting, cleaning of weld seams and light deburring work. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesHighly flexible, enabling optimal adaptation to the workpiece contour.Suitable for use on angle grinders.Long service life through use of PFERD special wire.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving oxide layersPaint strippingRougheningMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)WoodCast ironCast steelElastomersDrive TypesAngle grinderCordless angle grinder
Diamond Coated Wire Cup Brush
Technical informationBrush Diameter2 3/4 InchFilament MaterialStainless steel wire (INOX) diamond (DIA)Wire Diameter0.02 InchGrit Size270Thread / Arbor5/8-11Trim Length1 5/8 InchNumber of Knots18Max. RPM11000 RPMPack Qty1The brush knots are knotted to 50% of the length. The brush achieves a better surface quality on uneven surfaces when compared to knotted brushes. INOX DIA filament brushes are designed for particularly demanding applications that require an aggressive brush. They are primarily used on extremely hard materials. Stainless steel wire (INOX) diamond (DIA) is temperature-resistant up to 850 °F.AdvantagesOptimal ratio of aggressiveness and flexibility.ApplicationsCleaningDeburringDescalingRemoving oxide layersMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysTungsten carbideWear-resistant coatings (powder metal alloys and hardfacing alloys)AluminumBronzeCobalt-based alloysHard non-ferrous metalDrive TypesAngle grinder
Drum Brush
Technical informationBrush Diameter4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.008 InchArbor Hole3/4 InchTrim Length1 InchMax. RPM6000 RPMPack Qty1Excellent for surface structuring work on large workpieces. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesCan be used on all common burnishing machines due to keyed arbor hole.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningStructuring (matt finishing, brush matting and satin finishing)Materials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesDrum grinders
Encapsulated Bevel Stringer Bead Brush
Technical informationBrush Diameter5 InchFilament MaterialSteel wire (ST)Wire Diameter0.014 InchThread / Arbor5/8-11Trim Length1 1/4 InchMax. RPM15000 RPMPack Qty10Extremely aggressive brushing action, ideal for heavy-duty brushing. Designed for working on weld seams that are produced through automatic welding processes. Wire is bonded in a synthetic elastomer material which firmly supports the wire filaments, providing precisely controlled brush face, longer brush life and very aggressive removal rates. Limited flexibility. Brushes with encapsulated steel wire are available in different hardness grades. Designed for extremely aggressive use and high heat-resistance. Color: blackAdvantagesMaximum service life as premature wire breakage is prevented.Precise handling due to high dimensional stability.Extra-slim design allows access to hard-to-reach areas such as root weld seams.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder
Encapsulated Crimped Wire End Brush
Technical informationBrush Diameter1/2 InchFilament MaterialSteel wire (ST)Wire Diameter0.01 InchShank Diameter1/4 InchTrim Length7/8 InchMax. RPM18000 RPMPack Qty150Extremely aggressive brushing action, ideal for heavy-duty brushing. Wire is bonded in a synthetic elastomer material which firmly supports the wire filaments, providing precisely controlled brush face, longer brush life and very aggressive removal rates. Limited flexibility. Brushes with encapsulated steel wire are available in different hardness grades. For general use. Aggressive enough for most applications. This brush is made with brass-plated steel wire. Color: green.AdvantagesPrecise handling due to high dimensional stability.Maximum service life as premature wire breakage is prevented.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Encapsulated Crimped Wire Wheel Brush
Technical informationBrush Diameter2 InchFilament MaterialSteel wire (ST)Wire Diameter0.02 InchShank Diameter1/4 InchTrim Length7/16 InchMax. RPM17000 RPMPack Qty150Extremely aggressive brushing action, ideal for heavy-duty brushing. Wire is bonded in a synthetic elastomer material which firmly supports the wire filaments, providing precisely controlled brush face, longer brush life and very aggressive removal rates. Limited flexibility. Brushes with encapsulated steel wire are available in different hardness grades. For general use. Aggressive enough for most applications. This brush is made with brass-plated steel wire. Color: green.AdvantagesMaximum service life as premature wire breakage is prevented.Precise handling due to high dimensional stability.Ideal for cleaning narrow or hard-to-reach areas such as grooves, fillets, and inside edges.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Encapsulated Cup Brush
Technical informationBrush Diameter4 InchFilament MaterialSteel wire (ST)Wire Diameter0.02 InchThread / Arbor5/8-11Trim Length1 1/8 InchMax. RPM7000 RPMPack Qty1Extremely aggressive brushing action, ideal for heavy-duty brushing. Wire is bonded in a synthetic elastomer material which firmly supports the wire filaments, providing precisely controlled brush face, longer brush life and very aggressive removal rates. Limited flexibility. Brushes with encapsulated steel wire are available in different hardness grades. Designed for extremely aggressive use and high heat-resistance. Color: blackAdvantagesMaximum service life as premature wire breakage is prevented.Precise handling due to high dimensional stability.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder
Encapsulated Stringer Bead Brush
Technical informationBrush Diameter4 InchFilament MaterialSteel wire (ST)Wire Diameter0.02 InchThread / Arbor5/8-11Trim Length7/8 InchMax. RPM20000 RPMPack Qty10Extremely aggressive brushing action, ideal for heavy-duty brushing. For heavy-duty brushing in pipeline and container construction. Wire is bonded in a synthetic elastomer material which firmly supports the wire filaments, providing precisely controlled brush face, longer brush life and very aggressive removal rates. Limited flexibility. Brushes with encapsulated steel wire are available in different hardness grades. Designed for extremely aggressive use and high heat-resistance. Color: blackAdvantagesMaximum service life as premature wire breakage is prevented.Precise handling due to high dimensional stability.Extra-slim design allows access to hard-to-reach areas such as root weld seams.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder
Encapsulated Stringer Bead Brush
Technical informationBrush Diameter6 InchFilament MaterialSteel wire (ST)Wire Diameter0.014 InchThread / Arbor5/8-11Trim Length1 1/16 InchMax. RPM9000 RPMPack Qty10Extremely aggressive brushing action, ideal for heavy-duty brushing in pipeline and container construction. Wire is bonded in a synthetic elastomer material which firmly supports the wire filaments, providing precisely controlled brush face, longer brush life and very aggressive removal rates. Limited flexibility. Brushes with encapsulated steel wire are available in different hardness grades. Designed for extremely aggressive use and high heat-resistance. Color: blackAdvantagesMaximum service life as premature wire breakage is prevented.Precise handling due to high dimensional stability.Extra-slim design allows access to hard-to-reach areas such as root weld seams.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder
Expansion Joint Wire Brush
Technical informationBrush Diameter12 InchFace Width1/2 InchFilament MaterialSteel wire (ST)Wire Diameter0.035 InchArbor Hole1 InchTrim Length3 InchNumber of Knots40Max. RPM6000 RPMPack Qty2For brushing out loose and semi-solid substances, such as stone, grit and dross from joints and expansion joints in road and airport construction. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesExtra-slim design enables optimal access to hard-to-reach areas such as joints.Aggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steel
External Tube Fitting Brush
Technical informationBrush Diameter1/4 InchFilament MaterialSteel wire (ST)Pack Qty6For external cleaning and preparation of metal tubes and joints. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.AdvantagesPlastic casing protects user‘s hands from sharp wire tips and pipe edges.Long service life through use of PFERD special wire.ApplicationsCleaningRougheningDrive TypesManual application
Style K Adapter
Technical informationShapeMetric adapterPack Qty1PFERD offers various arbor hole adapters for wheel brushes.AdvantagesEnables the use of brushes on all power tools as the hole diameter is adjusted to the required dimension.Machined metal components for accurate fit.
EZmount® Wire Wheel
Technical informationBrush Diameter6 InchFace Width3/4 InchFilament MaterialSteel wire (ST)Wire Diameter0.014 InchArbor Hole1 InchTrim Length7/8 InchMax. RPM6000 RPMPack Qty1Designed for light and medium-duty brushing in stationary application. Robust wheel brush with short, dense filament for universal application in the workshop. Variable bore diameters enable application on all standard stationary drive systems. Developed for use on bench grinders. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesHighly flexible, enabling optimal adaptation to the workpiece contour.Can be used with all common stationary drive systems and bench grinders.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingRemoving oxide layersPaint strippingRougheningMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)WoodCast ironCast steelElastomersDrive TypesBench grinderStationary machines
File brush HBF steel wire
Technical informationFilament MaterialSteel wire (ST)Wire Diameter0.006 InchTrim Length9/32 InchNumber of Rows1Pack Qty1PFERD offers an extensive range of scratch brushes in various shapes and filament materials. The file brush easily cleans chips from a loaded file. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. The brush has a robust wooden handle with wear-resistant steel wire filament.AdvantagesEasy to clean.Long service life through use of PFERD special wire.ApplicationsCleaningMaterials that can be workedSteelDrive TypesManual application
File Card Fine Wire Brush
PFERD offers an extensive range of scratch brushes in various shapes and filament materials. The file brush easily cleans chips from a loaded file. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. The brush has a robust wooden handle with wear-resistant steel wire filament.
Full Cable Knot Wheel Brush COMBITWIST® HD
Technical informationBrush Diameter7Filament MaterialSteel wire (ST)Wire Diameter0.02 InchThread / Arbor5/8-11Trim Length1 5/8 InchNumber of Knots30Max. RPM9000 RPMPack Qty1Very aggressive brush. Suitable for heavy-duty brushing in metalwork such as descaling, derusting, deburring, cleaning of weld seams and removal of adhesive residues and spatter. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesExtremely high filament density for optimum tool life.Brush runs smoothly due to it's flawless balance.Designed for work on corners and edges as the knots are less likely to unravel.Aggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder

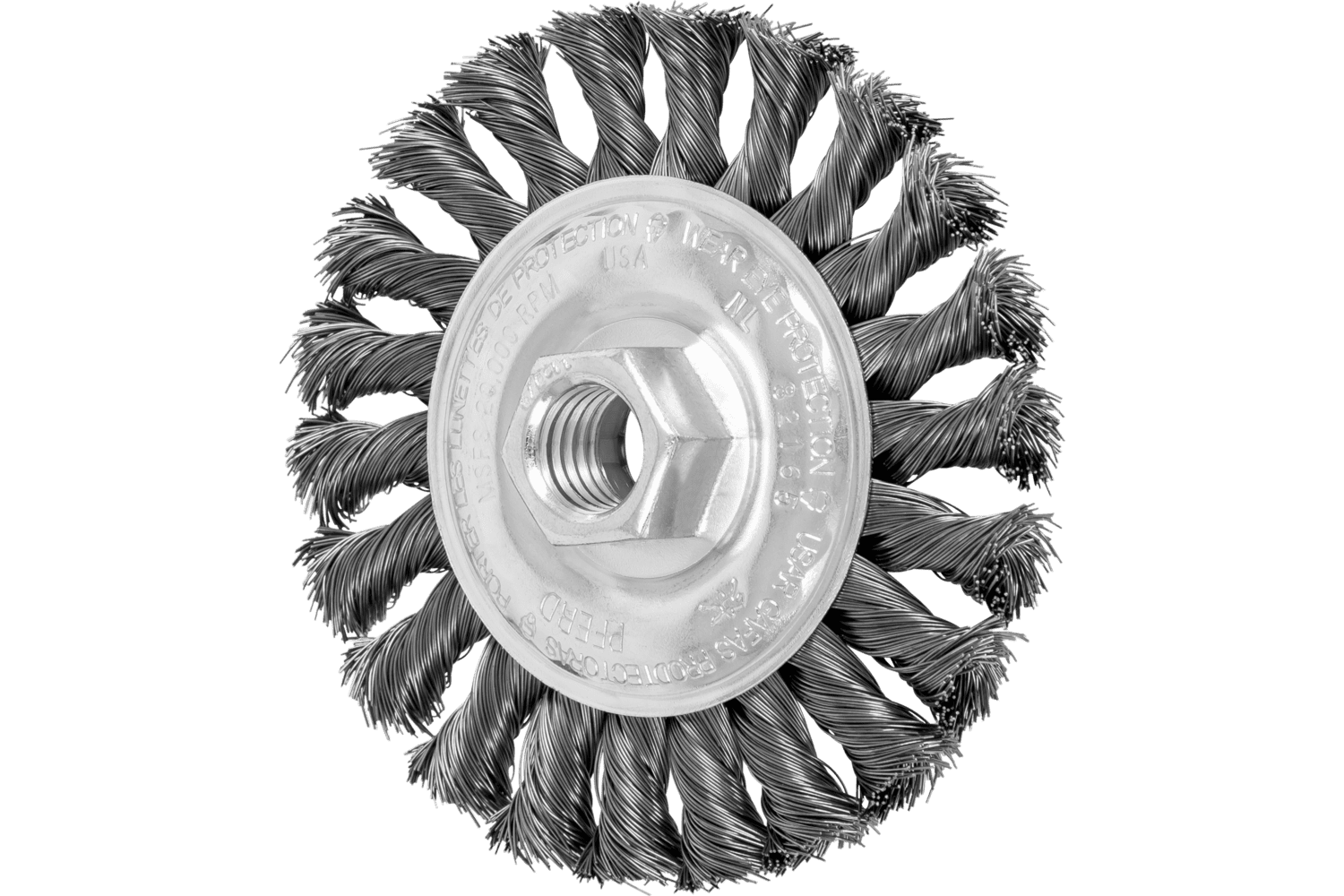

Full Cable Knot Wheel Brush
Technical informationBrush Diameter4 InchFilament MaterialSteel wire (ST)Wire Diameter0.014 InchThread / Arbor5/8-11Trim Length3/4 InchNumber of Knots22Max. RPM20000 RPMPack Qty5Aggressive brush. Designed for heavy-duty brushing in metalwork such as descaling, derusting, deburring, cleaning of weld seams, removal of adhesive residues and spatter. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesAggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder

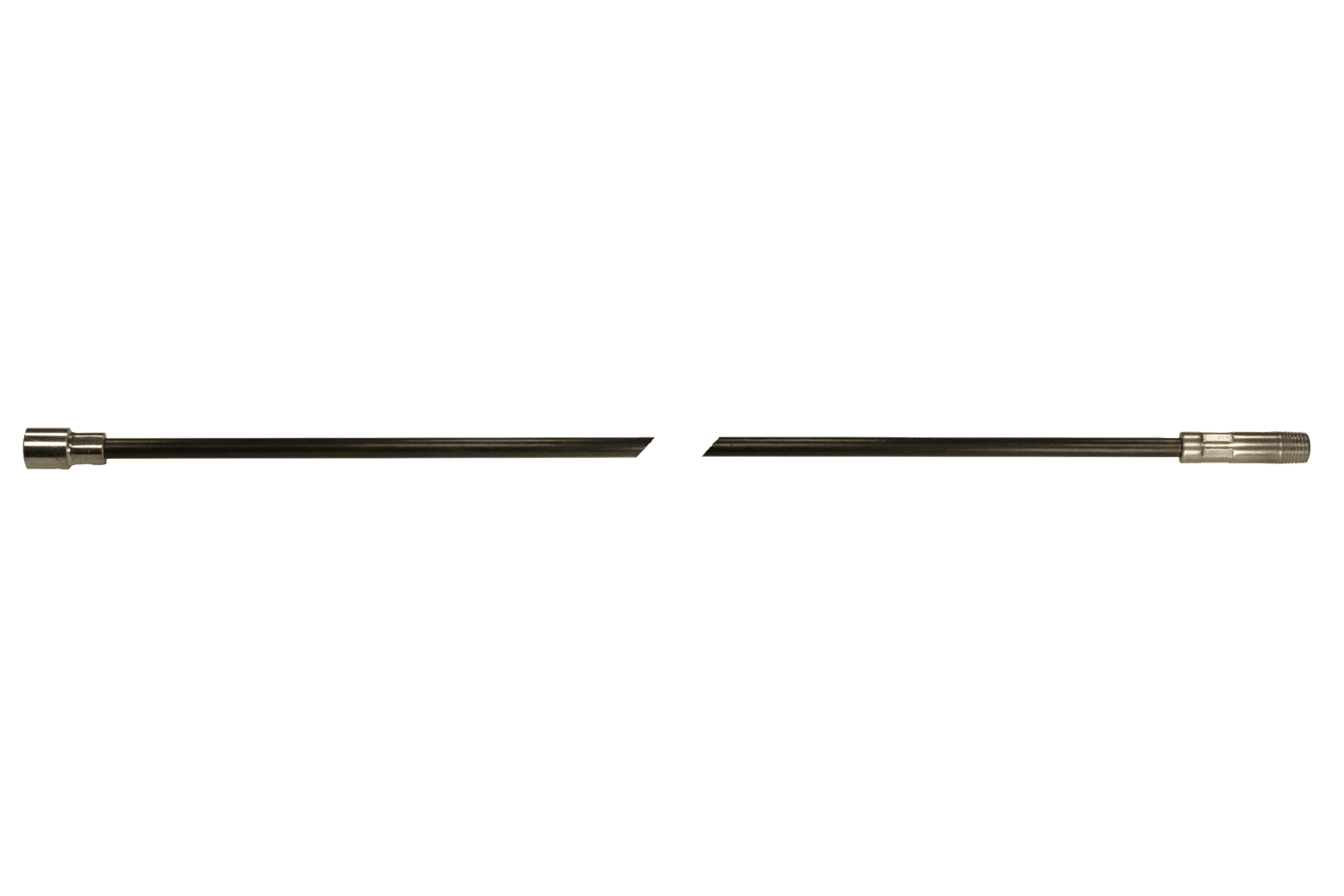

Galvanized Flue Brush Handle
Technical informationThread / Arbor1/4" NPTPack Qty1Designed for work with tube brushes with a thread.AdvantagesOptimal access to hard-to-reach areas.

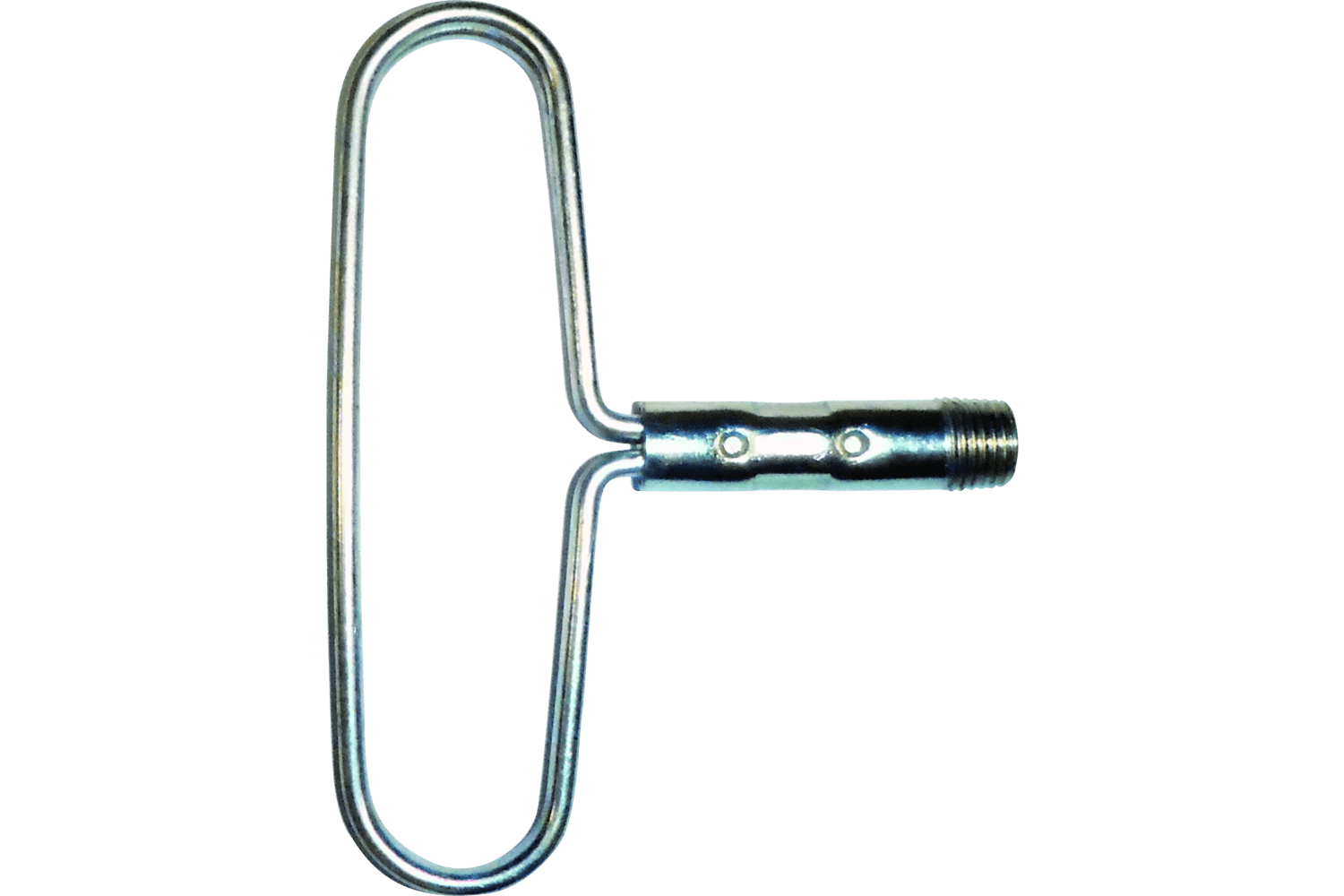

Galvanized T-Shape Wire Handle with
Technical informationThread / Arbor1/4" NPTPack Qty1Designed for work with tube brushes with a thread.AdvantagesOptimal access to hard-to-reach areas.

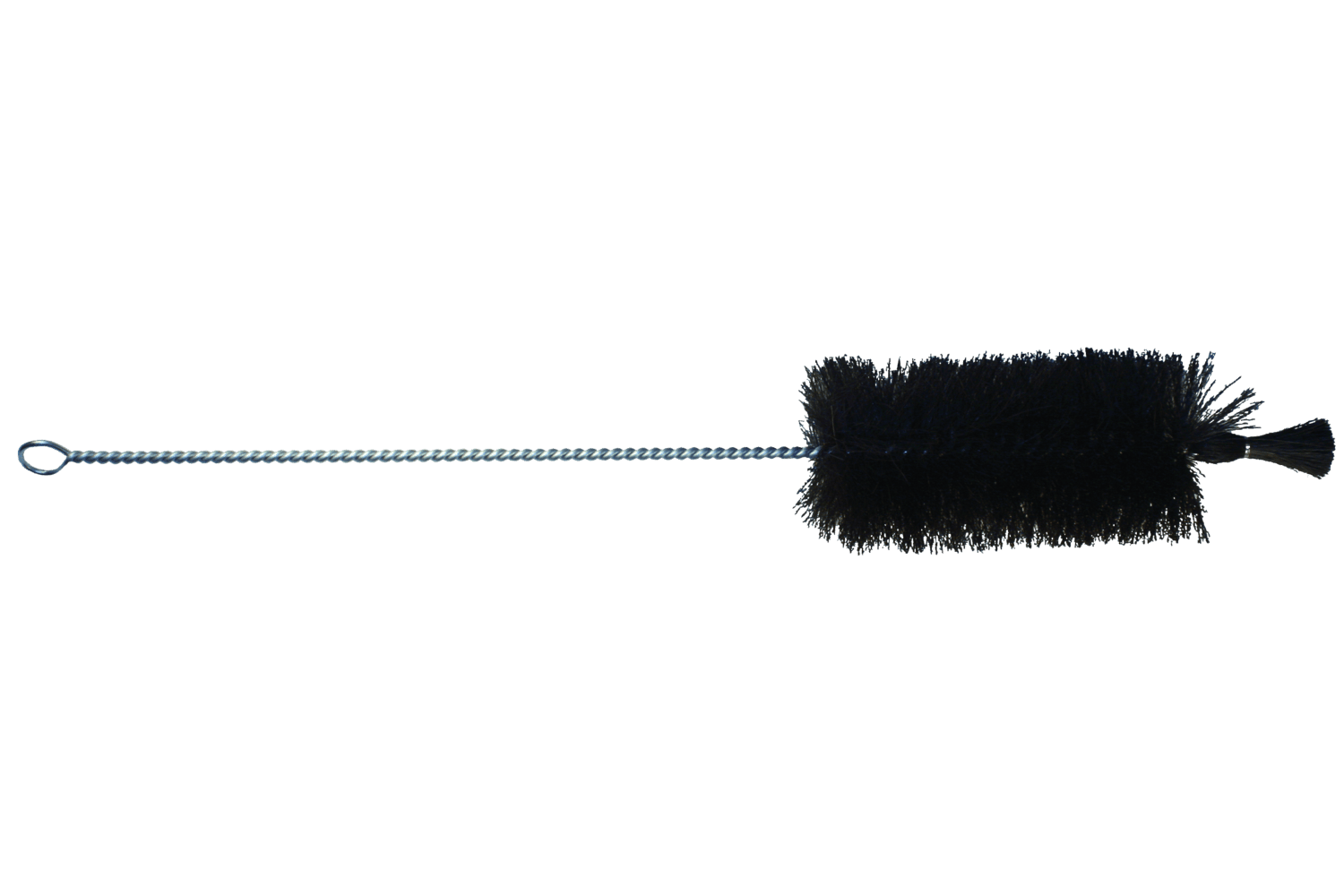

Hand Bottle Brush
Technical informationFilament MaterialHorsehairTrim Length2 3/4 InchPack Qty12For deep cleaning of bottles and narrow, hard-to-reach interiors.AdvantagesThorough side and bottom cleaning in hard-to-reach places.ApplicationsCleaningWashingDrive TypesManual application

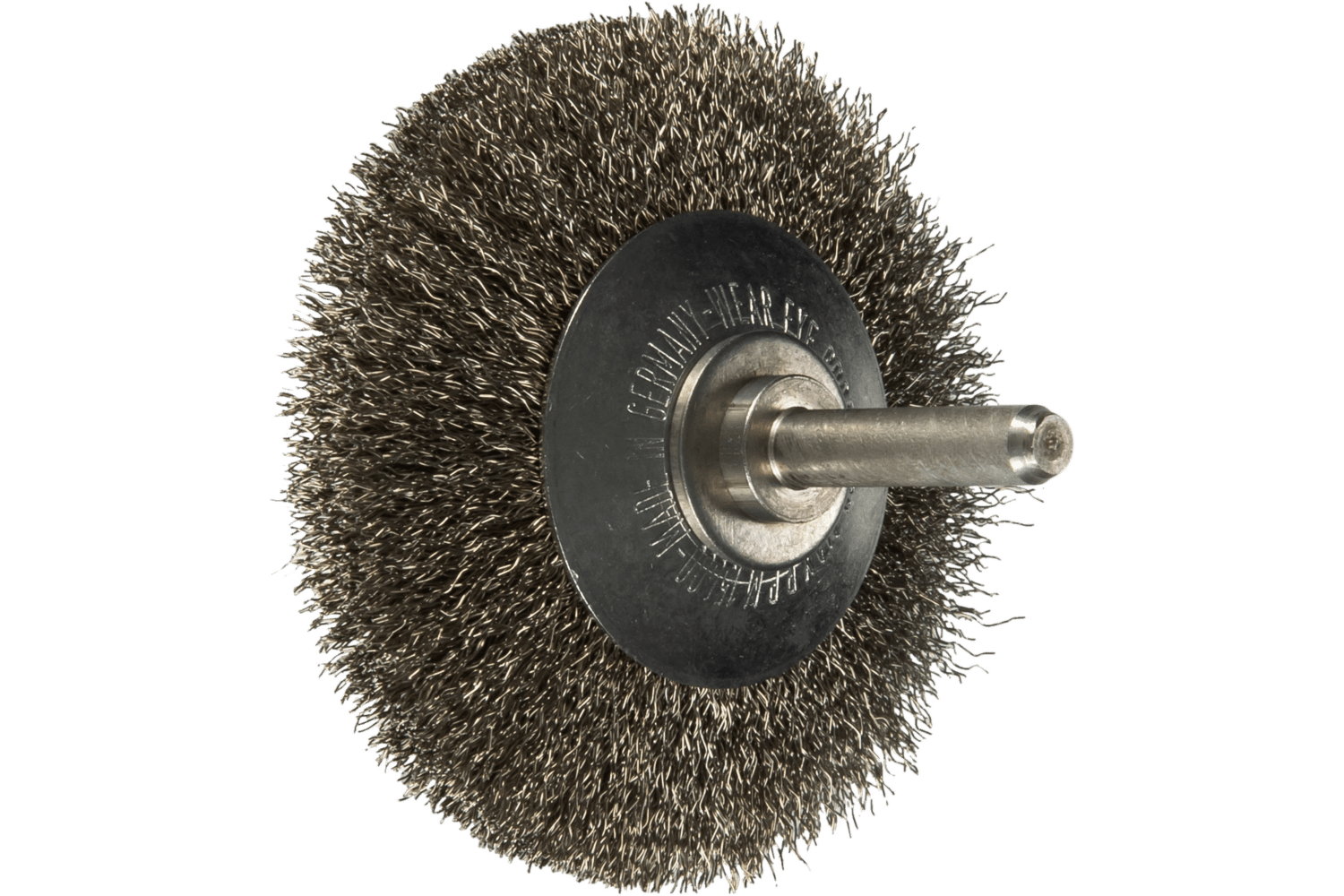

INOX-TOTAL Crimped Wire Bevel Brush
Technical informationBrush Diameter2 3/4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.008 InchShank Diameter1/4 InchTrim Length5/8 InchMax. RPM12000 RPMPack Qty10Excellent for medium-duty brushing such as deburring, cleaning, and removal of heat discoloration. In addition to brushes with a stainless steel filament, PFERD also offers brushes of the INOX-TOTAL type for work on stainless steel (INOX). It is particularly well suited to use in critical environments. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe brush is degreased and does not leave any oil residue on the workpiece.Maximum protection against corrosion as all components are produced from stainless steel (INOX) of quality 1.4310 (V2A).Highly flexible, enabling optimal adaptation to the workpiece contour.Ideal for cleaning narrow or hard-to-reach areas such as grooves, fillets, and inside edges.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

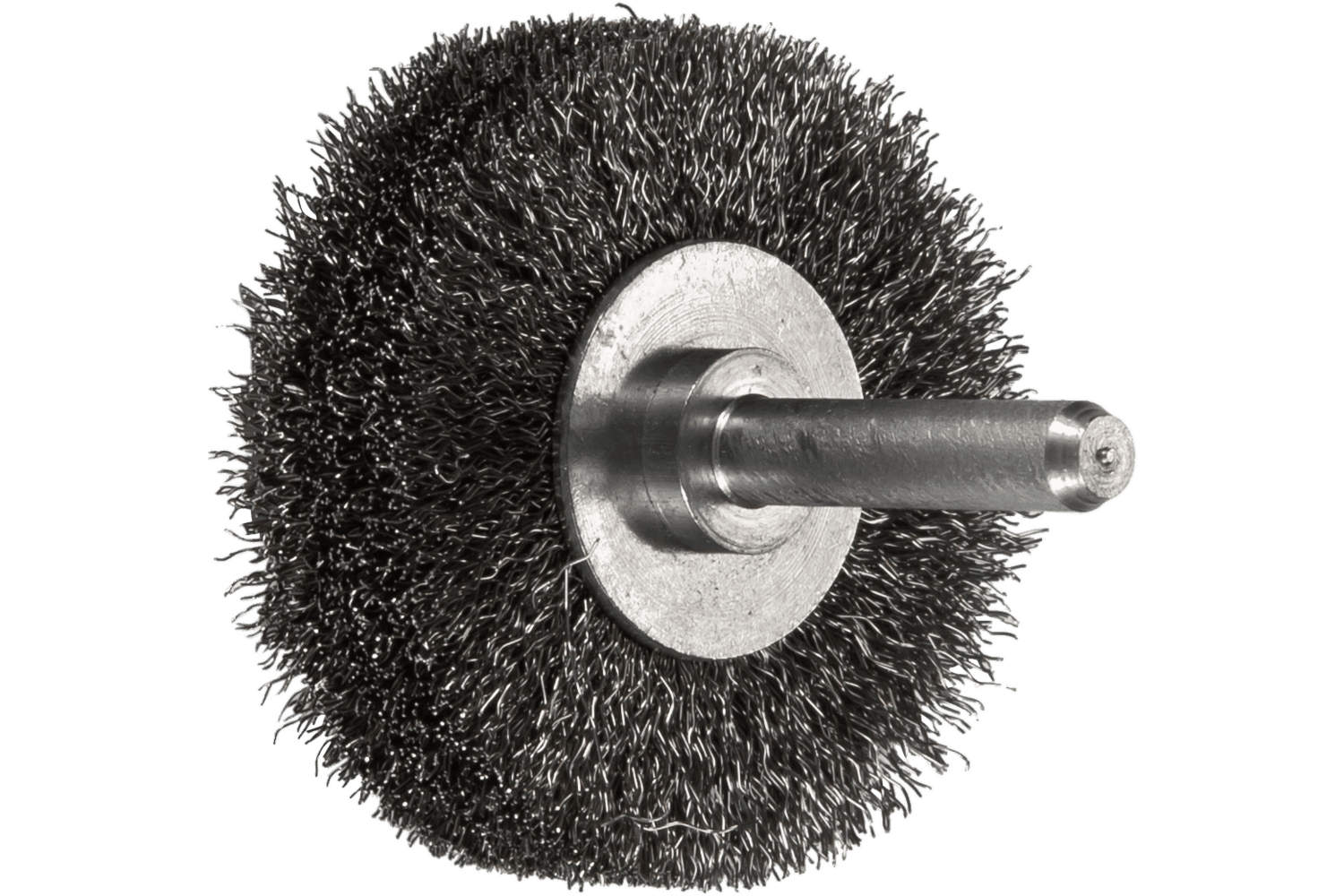

INOX-TOTAL Crimped Wire Wheel Brush
Technical informationBrush Diameter2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.008 InchShank Diameter1/4 InchTrim Length3/4 InchMax. RPM12000 RPMPack Qty10Designed for cleaning, deburring, and removing heat discoloration. In addition to brushes with a stainless steel filament, PFERD also offers brushes of the INOX-TOTAL type for work on stainless steel (INOX). It is particularly well suited to use in critical environments. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe brush is degreased and does not leave any oil residue on the workpiece.Maximum protection against corrosion as all components are produced from stainless steel (INOX) of quality 1.4310 (V2A).Highly flexible, enabling optimal adaptation to the workpiece contour.Very corrosion-resistant.Creates fine surfaces.ApplicationsCleaningDeburringDerustingRemoving heat discolourationRemoving oxide layersPaint strippingRougheningMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
INOX-TOTAL Crimped Wire Wheel Brush
Technical informationBrush Diameter3 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchShank Diameter1/4 InchTrim Length3/4 InchNumber of Knots18Max. RPM25000 RPMPack Qty10Designed for cleaning, deburring, and removing heat discoloration. In addition to brushes with a stainless steel filament, PFERD also offers brushes of the INOX-TOTAL type for work on stainless steel (INOX). It is particularly well suited to use in critical environments. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe brush is degreased and does not leave any oil residue on the workpiece.Maximum protection against corrosion as all components are produced from stainless steel (INOX) of quality 1.4310 (V2A).Aggressive brushing action due to tightly-twisted wire knots.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesFlexible shaft drivePower drillStraight grinderSafetyWhen clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.

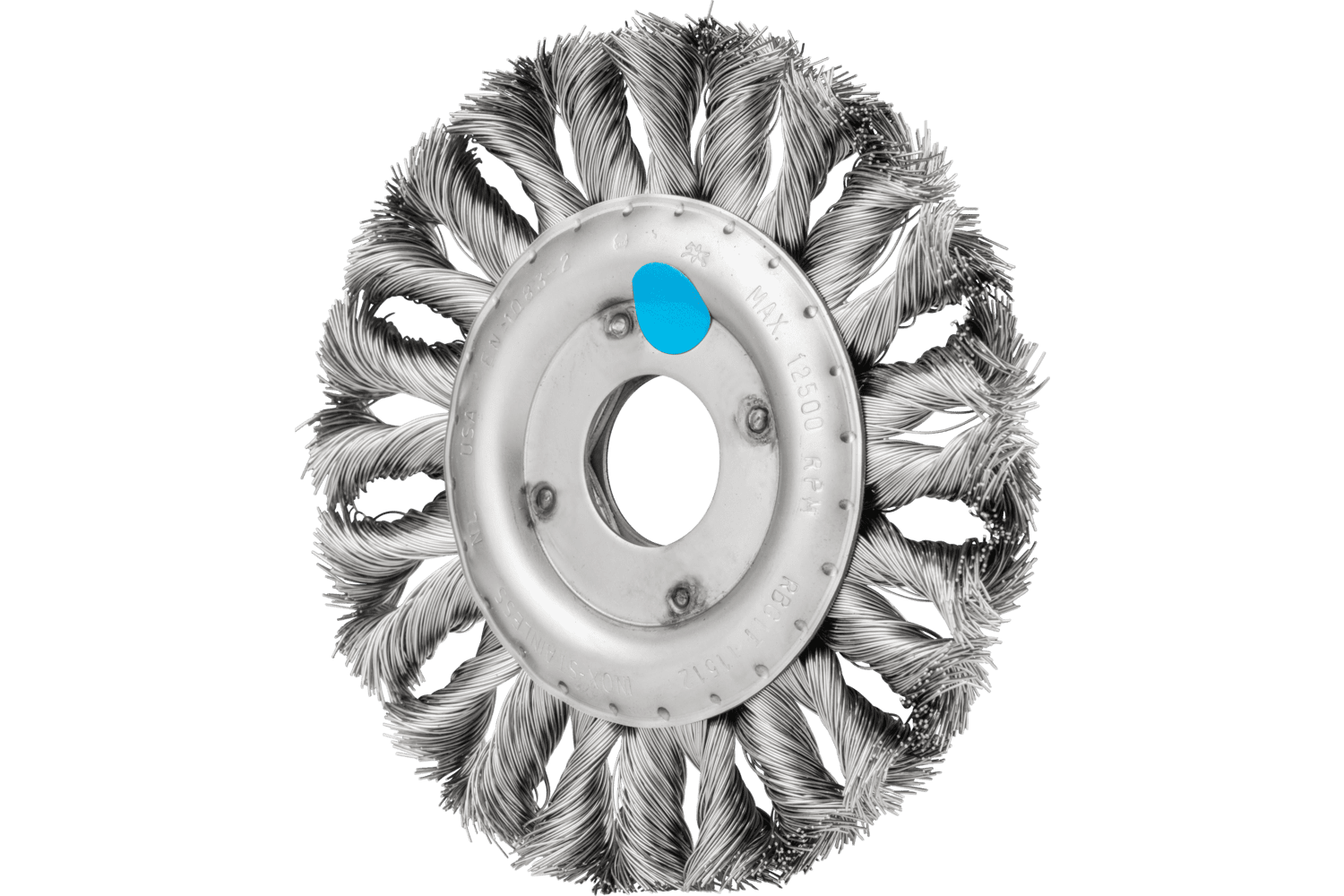

INOX-TOTAL Knot Wire Wheel Brush
Technical informationBrush Diameter4 1/2 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchArbor Hole7/8 InchTrim Length7/8 InchNumber of Knots24Max. RPM12500 RPMPack Qty1Very aggressive brush. Suitable for heavy-duty brushing such as removal of heat discoloration, deburring, cleaning of weld seams and removal of adhesive residues and spatter. In addition to brushes with a stainless steel filament, PFERD also offers brushes of the INOX-TOTAL type for work on stainless steel (INOX). It is particularly well suited to use in critical environments. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesThe brush is degreased and does not leave any oil residue on the workpiece.Maximum protection against corrosion as all components are produced from stainless steel (INOX) of quality 1.4310 (V2A).Maximum economic efficiency due to maximum service life and stock removal rate.Brush runs smoothly due to it's flawless balance.Designed for work on corners and edges as the knots are less likely to unravel.Aggressive brushing action due to tightly-twisted wire knots.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinderFlexible shaft driveStraight grinder
