Grinding Abrasives

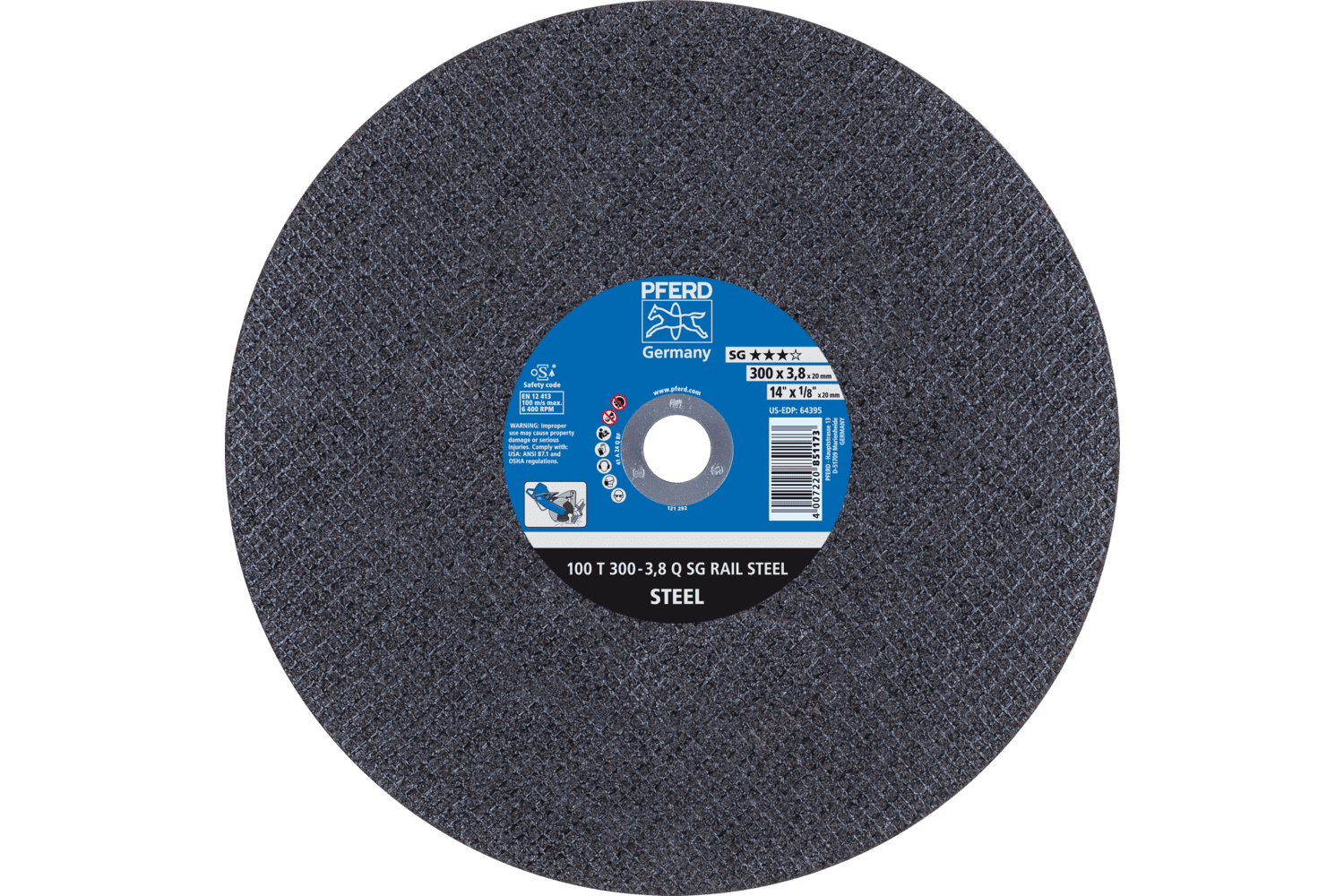

Large Diameter Cut-Off Wheel, SG RAIL STEEL
Technical informationDiameter12 InchWall thickness1/8 InchArbor hole20 mmShapeEHT / 41 / T1AbrasiveAluminum oxide ABond hardnessQ (medium-hard)Drive typeElectric angle grinder, Petrol cutter, RAIL cutting machine, Stationary machinesMax. RPM6400Pack qty20PFERD offers rail cut-off wheels (RAIL) in different dimensions. Rail cut-off wheels are used for fast and economical cutting of rails. The wide range Performance Line SG offers high-performance solutions for every application and material. Performance Line SG products achieve optimum results with excellent economic efficiency. Q hardness wheel for fast and economic cutting of rails.AdvantagesReduced labor time due to aggressive abrasive.Safe cutting work due to the highest possible cutting quality.High economic efficiency due to optimal durability.ApplicationsCuttingCutting of railsCutting of solid materialMaterials that can be workedSteel

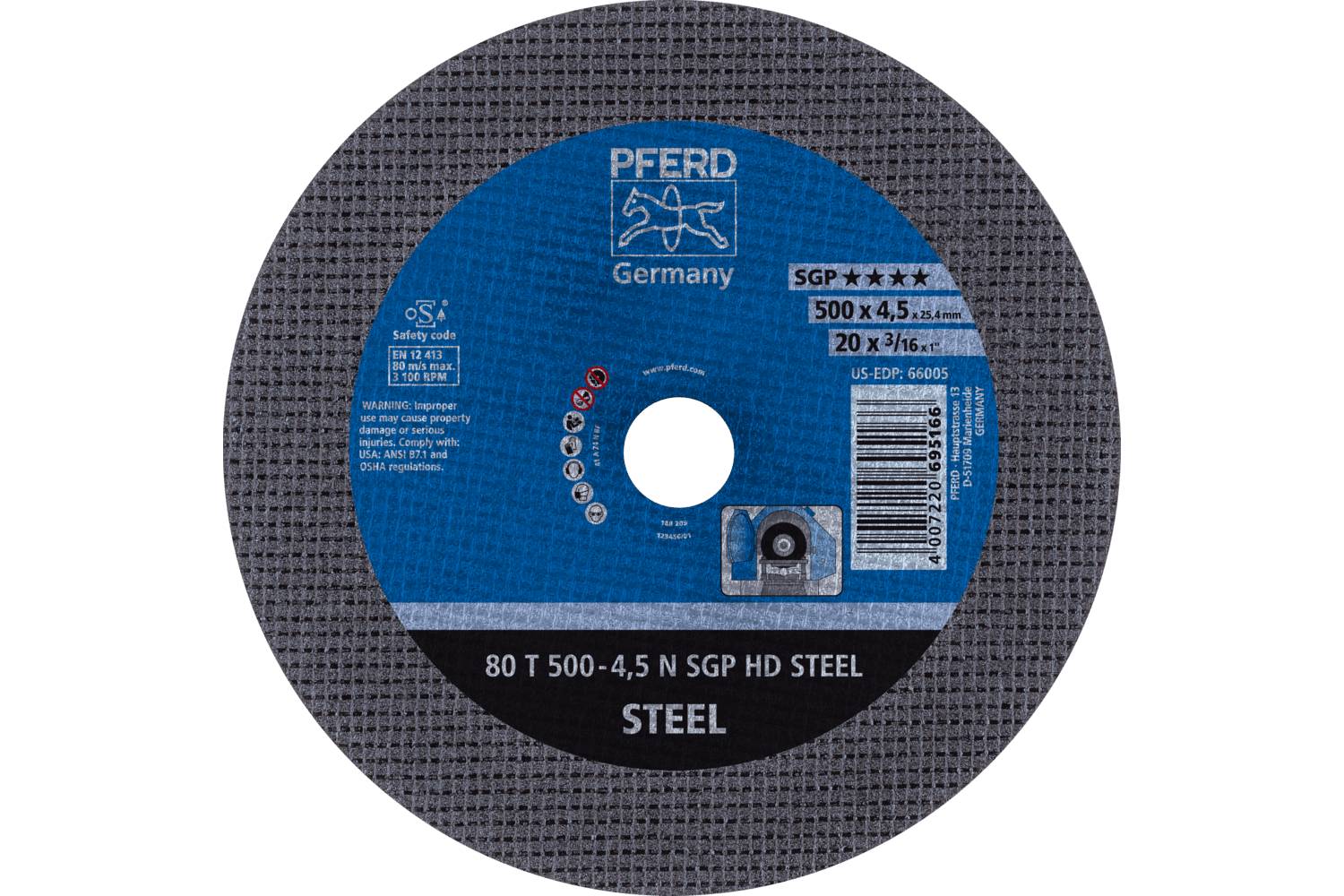

Large Diameter Cut-Off Wheel, SGP HD STEEL
Technical informationDiameter20 InchWall thickness3/16 InchArbor hole1 InchAbrasiveAluminum oxide ABond hardnessN (soft)Max. RPM3800Pack qty5PFERD offers products for the most demanding cutting work with its stationary cut-off wheels. Stationary cut-off wheels are available in a variety of versions and dimensions. Special Line SGP includes products engineered for specific tasks that offer the user key advantages over conventional products. This quality line also includes products that, due to their particularly high performance, offer ultimate economic efficiency. Designed for the mots demanding cutting work. Ideal for use in finishing work.AdvantagesUltimate economic efficiency due to optimum durability.Fast work due to excellent cutting characteristics.

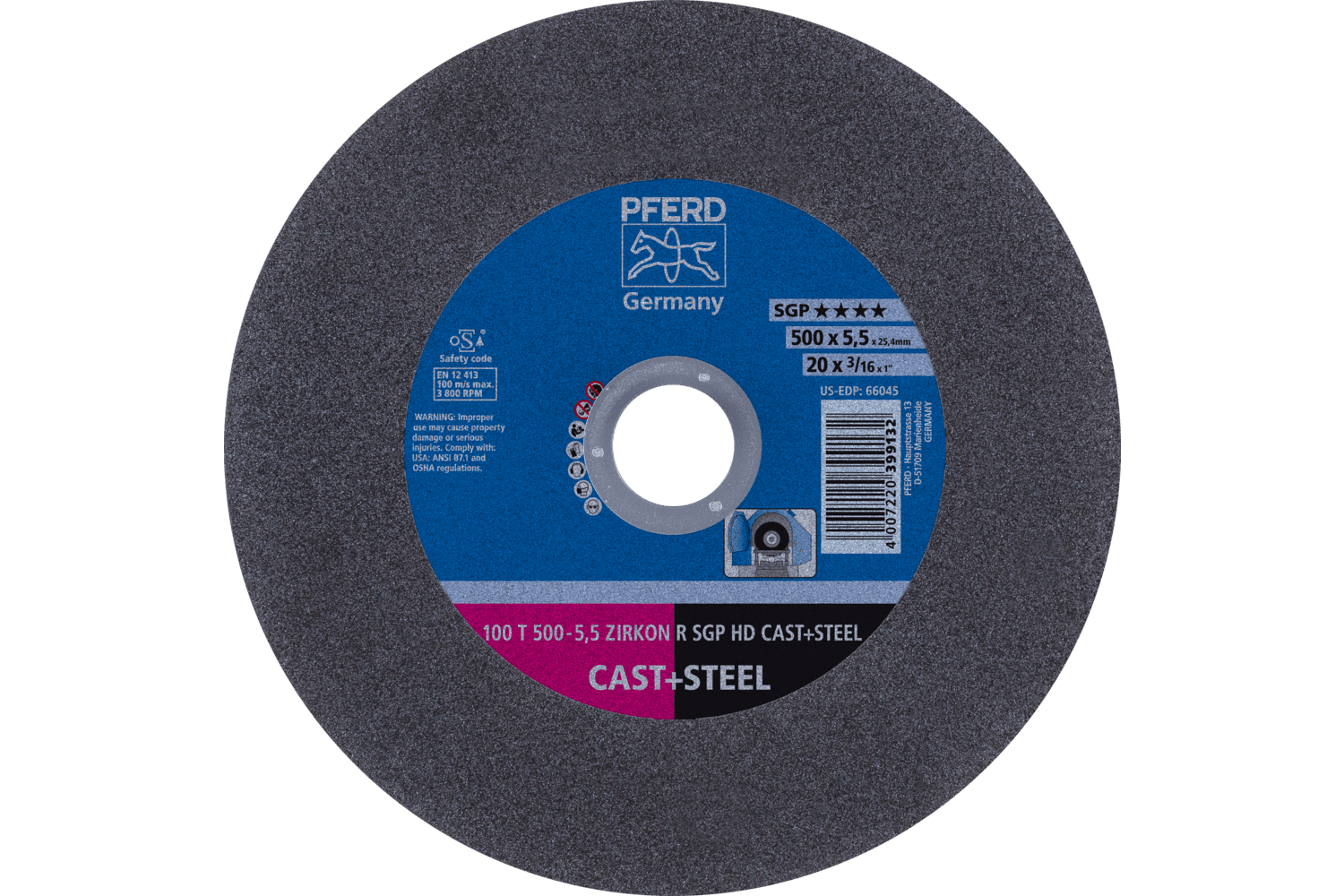

Large Diameter Cut-Off Wheel, ZIRKON SGP HD CAST+STEEL
Technical informationDiameter20 InchWall thickness3/16 InchArbor hole1 InchShapeEHT / 41 / T1AbrasiveZABond hardnessR (hard)Drive typeHEAVY DUTY cutting machine, Stationary machinesMax. RPM3800Pack qty5PFERD offers products for the most demanding cutting work with its stationary cut-off wheels. Stationary cut-off wheels are available in a variety of versions and dimensions. Special Line SGP includes products engineered for specific tasks that offer the user key advantages over conventional products. This quality line also includes products that, due to their particularly high performance, offer ultimate economic efficiency. Designed for the most demanding cutting work. Ideal for cutting risers and sprues. Specially developed for use in foundries.AdvantagesUltimate economic efficiency due to optimum durability.Fast work due to excellent cutting characteristics.ApplicationsCuttingCutting of large cross sectionsCutting of pipesCutting of profilesCutting of solid materialMaterials that can be workedSteelCast iron

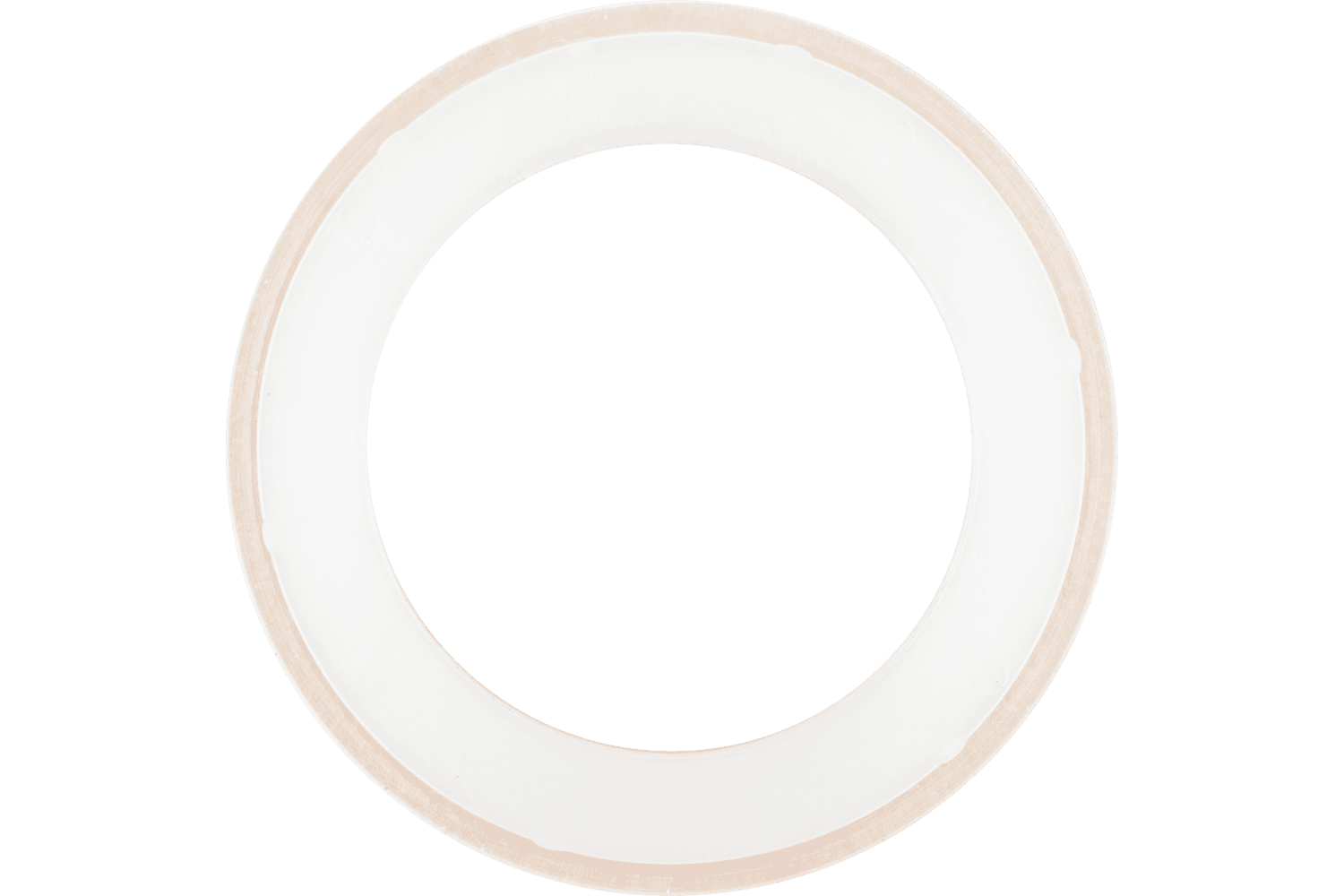

Plastic bushing reducer ring
Technical informationDiameter1 1/2 InchWall thickness3/16 InchPack qty1PFERD bench grinder bushings provide a safe method of reducing the wheel arbor to accommodate various spindle sizes. The bushing should be flush on both sides of the wheel, and should not interfere with the flanges.AdvantagesFlexible adjustment to the prerequisites of the drive system.Stop collar, to prevent the ring from pushing through the center hole of the cut-off wheel.SafetyEnsure that the flanges on the drive system are backed off in order to mount the wheel securely.
Portable Cut-Off Wheel, PSF CHOP STEEL
Technical informationDiameter14 InchWall thickness1/8 InchArbor hole20 mmShapeEHT / 41 / T1AbrasiveAluminum oxide ADrive typeElectric angle grinder, Gas sawMax. RPM5500Pack qty10Choose the Universal Line PSF for processing the most common materials. These robust products achieve good results with increased economic efficiency. PFERD TOOLS offers a variety of cut-off wheels for portable gas saws and electric cut-off grinder. These robust cut-off wheels are designed to cut steel, stone, concrete, cast iron and other materials.AdvantagesFast work due to high cutting performance.High economic efficiency due to good durability.ApplicationsCuttingMaterials that can be workedCast ironSteel
Portable Cut-Off Wheel, SG CAST+STONE
ShapeEHT / 41 / T1AbrasiveACDrive typeElectric angle grinder, Petrol cutterMax. RPM4800Pack qty10Performance Line SGThe wide range Performance Line SG offers high-performance solutions for every application and material. Performance Line SG products achieve optimum results with excellent economic efficiency. PFERD offers a variety of cut-off wheels for portable gas saws and electric cut-off grinder. These robust cut-off wheels are designed to cut steel, stone, concrete, cast iron and other materials. Cut-off wheel for use on portable gas saws and cut-off grinders. High cutting performance and maximum service life.AdvantagesFast work due to high cutting performance.Maximum economic efficiency due to maximum durability.ApplicationsCuttingMaterials that can be workedConcreteCast ironDuctile cast ironReinforced concrete
Portable Cut-Off Wheel, SG STEEL
ShapeEHT / 41 / T1AbrasiveAluminum oxide ADrive typeElectric angle grinder, Petrol cutterMax. RPM6400Pack qty20Performance Line SGThe wide range Performance Line SG offers high-performance solutions for every application and material. Performance Line SG products achieve optimum results with excellent economic efficiency. PFERD offers a variety of cut-off wheels for portable gas saws and electric cut-off grinder. These robust cut-off wheels are designed to cut steel, stone, concrete, cast iron and other materials. Cut-off wheel for use on portable gas saws and cut-off grinders. High cutting performance and maximum service life.AdvantagesFast work due to high cutting performance.Maximum economic efficiency due to maximum durability.ApplicationsCuttingMaterials that can be workedSteelCast iron
Portable Cut-Off Wheel, SG STONE
ShapeEHT / 41 / T1AbrasiveSilicon carbide SiCDrive typeElectric angle grinder, Petrol cutterMax. RPM6400Pack qty20Performance Line SGThe wide range Performance Line SG offers high-performance solutions for every application and material. Performance Line SG products achieve optimum results with excellent economic efficiency. PFERD offers a variety of cut-off wheels for portable gas saws and electric cut-off grinder. These robust cut-off wheels are designed to cut steel, stone, concrete, cast iron and other materials. Cut-off wheel for use on portable gas saws and cut-off grinders. High cutting performance and maximum service life.AdvantagesFast work due to high cutting performance.Maximum economic efficiency due to maximum durability.ApplicationsCuttingMaterials that can be workedStoneConcreteAluminumAsphaltCast ironOther non-ferrous metals
Portable Cut-Off Wheel, SG STUD STEEL
Technical informationDiameter14 InchWall thickness7/64 InchArbor hole1 InchShapeEHT / 41 / T1AbrasiveAluminum oxide ABond hardnessK (very soft)Drive typeCHOPSAW HD, Stationary machinesMax. RPM4400Pack qty10PFERD offers cut-off wheels for chopsaws (CHOPSAW) in different versions and dimensions. Cut-off wheels for chopsaws are used for cutting solid material, profiles and pipes. The wide range Performance Line SG offers high-performance solutions for every application and material. Performance Line SG products achieve optimum results with excellent economic efficiency. K hardness wheel with two outer reinforcement layers. For cutting work that requires high stability.AdvantagesHigh lateral stability due to outer reinforcement layers.Maximum economic efficiency due to very long service life.Designed for cutting bundled or stacked drywall profiles and other thin steel profiles.ApplicationsCuttingCutting of pipesCutting of profilesCutting of solid materialMaterials that can be workedSteelSafetyUse only on stationary machines with an output of up to 5 horsepower or less.
Vitrified Bench Wheel, CARBIDE, Silicon Carbide
PFERD bench grinding wheels have been designed to work with standard bench grinders. CARBIDE type bench grinding wheels are used on hard materials, such as for sharpening tungsten carbide tools.
Vitrified Bench Wheel, UNIVERSAL, Aluminum Oxide
PFERD bench grinding wheels have been designed to work with standard bench grinders. The UNIVERSAL type is ideal for general workshop use.
