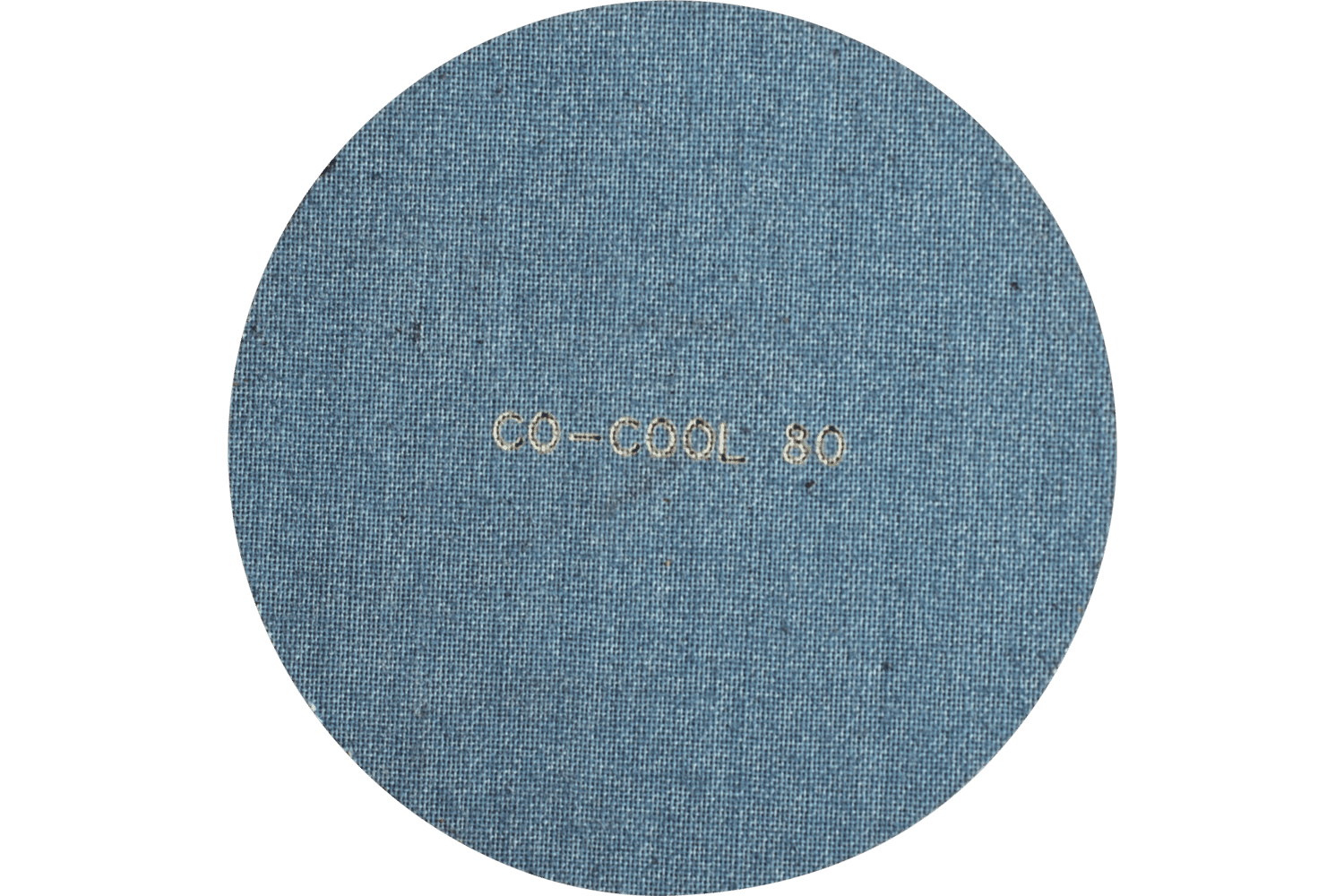

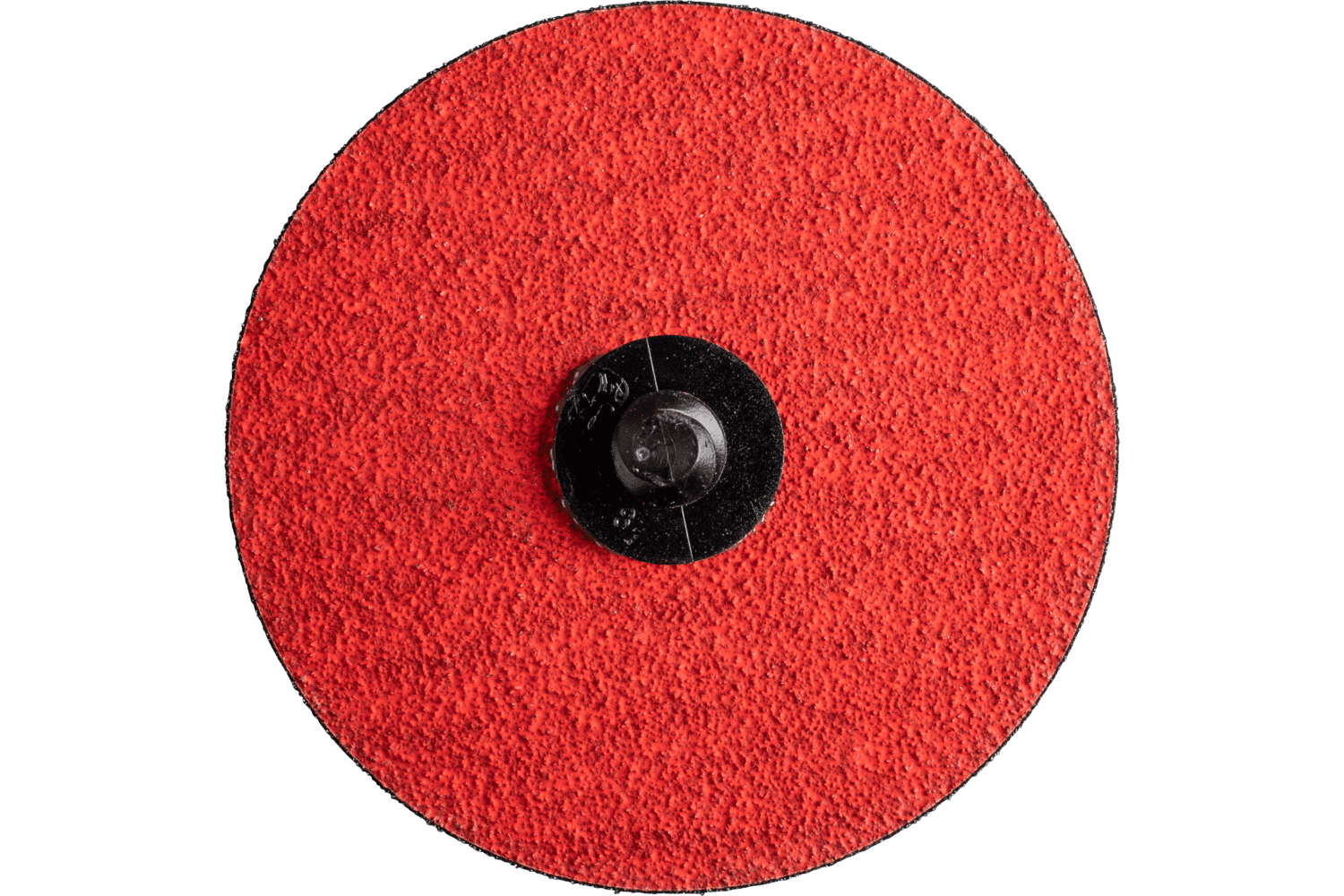

COMBIDISC® RS Abrasive Disc, 3" Dia, 80 Grit
$0.00
Product information "COMBIDISC® RS Abrasive Disc, 3" Dia, 80 Grit"
Technical information
3" Dia, 80 Grit
| Dia. External | 3 in |
| Drive type | Angle grinder |
| Grit | 80 |
| Pack qty | 50 |
For aggressive grinding with maximum stock removal rate on hard materials that do not conduct heat well. Consistently high performance due to self-sharpening ceramic oxide grain. Active grinding additives in the coating substantially improve the stock removal rate, prevent loading, and result in cooler grinding. RS type COMBIDISC® abrasive discs are ideal for weld dressing of backwards repair welds, e.g. in cases, slots and grooves on engines and for processing welded-on combustor plates. Unlike on conventional abrasive discs, the abrasive coating is on the underside of the tool, which allows backwards working.
Special features
- Ideal for use in extremely difficult-to-reach areas.
- Convenient and safe backward working.
- Reduced down time due to quick changes.
- Convenient to use due to simple handling and low-vibration working.
- No operational disruptions caused by sticking, slipping, or disengaging.
Applications
- Deburring
- Step-by-step fine grinding
- Leveling
- Roughening
- Sharpening
- Surface work
- Work on weld seams
- Working on edges
Materials that can be worked
- Stainless steel (INOX)
- Titanium
- Aluminum
- Annealed cast iron
- Bronze
- Cobalt-based alloys
- Grey/nodular cast iron (GG/GJL, GGG/GJS)
- Nickel-based alloys (e.g. Inconell and Hastelloy)
Recommendations for use
- Use COMBIDISC® mini fiber discs with abrasive disc holders on flexible shaft drives with angle handpieces, or small compressed-air or electric angle grinders.
- Use the appropriate grinding oil for the material to significantly increase the service life and the abrasive performance of the discs.
- Move the disc to the appropriate location on the workpiece. To grind, do not push it onto the surface, pull it toward yourself.
- To ensure get the most out of the disc's grinding surface, use the appropriate abrasive disc holder.
- Always use the RS abrasive discs at the specified optimum rotational speed and not the maximum permitted rotational speeds of the backing pad EDP 42454.
Safety
- The maximum permitted peripheral speed is 9,800 SFPM.
- For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
| Pack Qty: | 50 |
|---|
