Special file universal sharpening file
Technical informationPFERD Saw Bit File - Round Edge 8" Second Cut 2 Safe Edges with Handle (Retail Packaging)Item number11272207CutSingle cut 2Cut files typeSingle cut 2EDP no.17125PHeight1/8 InchIncl. handle12617141Length8 InchPFERD TOOLS type1212Width15/32 InchPackaging unit1 EACHPFERD special files are designed for specific uses, such as for processing soft metals and thermosetting plastics, for deburring parts turned on a lathe, or for sharpening cutting tools. Rectangular file, tanged, single cut 2 on two sides, with rounded, uncut narrow edges and ergonomic file handle. Often referred to as a lawnmower file. Can also be used to sharpen cutting tools. Single cut specifically designed for sharpening cutting tools. Files come in point-of-sale packaging with ergonomic file handles.Special featuresDurable.High surface quality with optimum cutting performance.Workpiece materialsSteelCast steelApplicationsChamferingFinishingSharpeningCompatible power toolsManual application

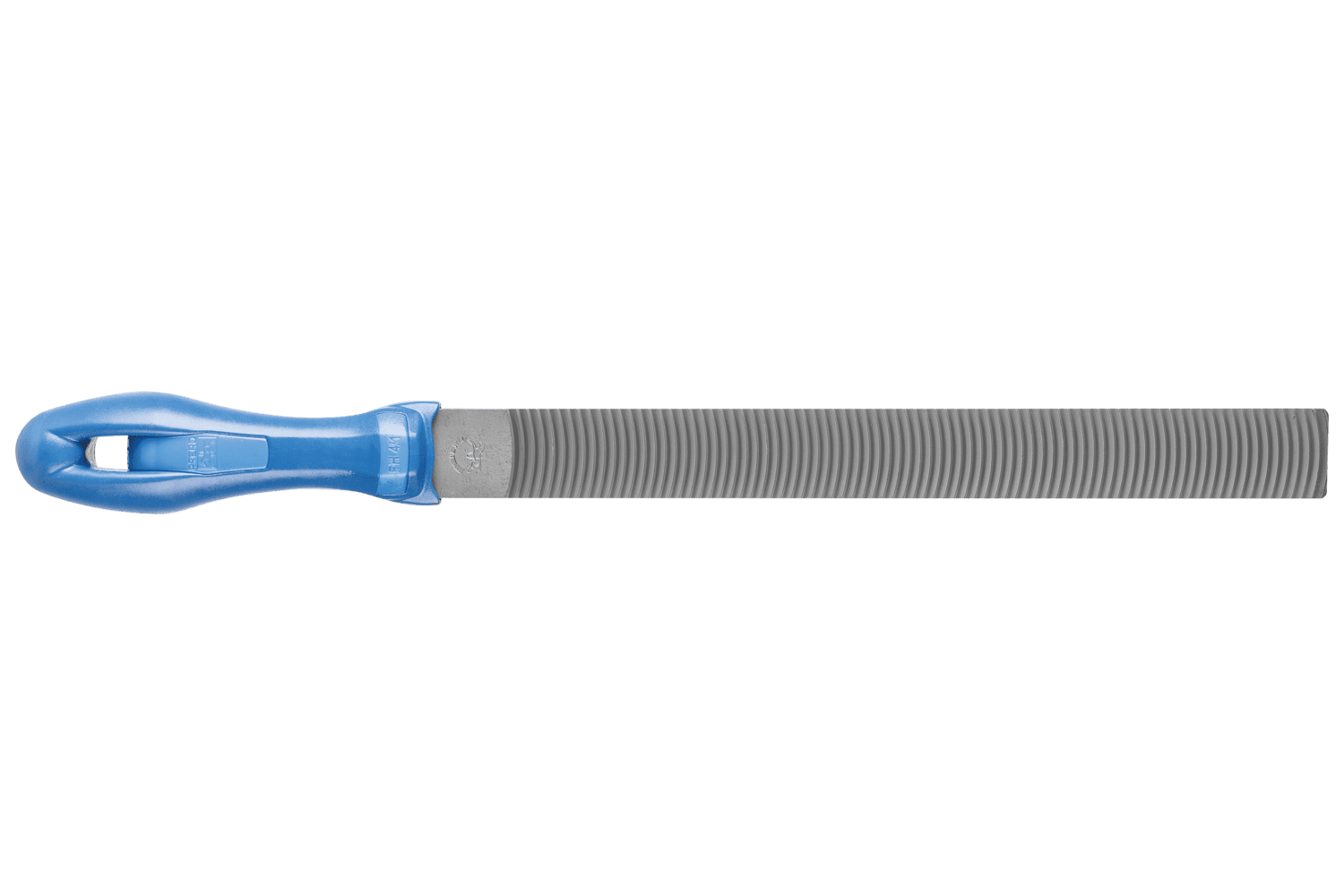

Special fitter’s file
Technical informationPFERD Fitter's File 10" Radial Cut 1 and Straight Cut 2 with HandleItem number11273256CutRadial 1/straight 2EDP no.16058Height1/8 InchIncl. handle12617141Length10 InchPFERD TOOLS type611Width15/32 InchPackaging unit1 EACHPFERD special files are designed for specific uses, such as for processing soft metals and thermosetting plastics, for deburring parts turned on a lathe, or for sharpening cutting tools. Rectangular file with different milled cuts, tanged and with ergonomic file handle. Straight cut with chip breaker on front side, radial cut on back side, uncut edges. Combination of a radial cut on one side for coarse stock removal, roughing and achieving score-free surfaces, and a straight cut on the other side for general roughing and finishing tasks. Files come in point-of-sale packaging with ergonomic file handles.Special featuresExtremely robust design.Versatile.Workpiece materialsSteels up to 370 HV (< 38 HRC)WoodAluminumCast steelOther non-ferrous metalsPlasticsApplicationsChamferingDeburringSurface workCompatible power toolsManual application

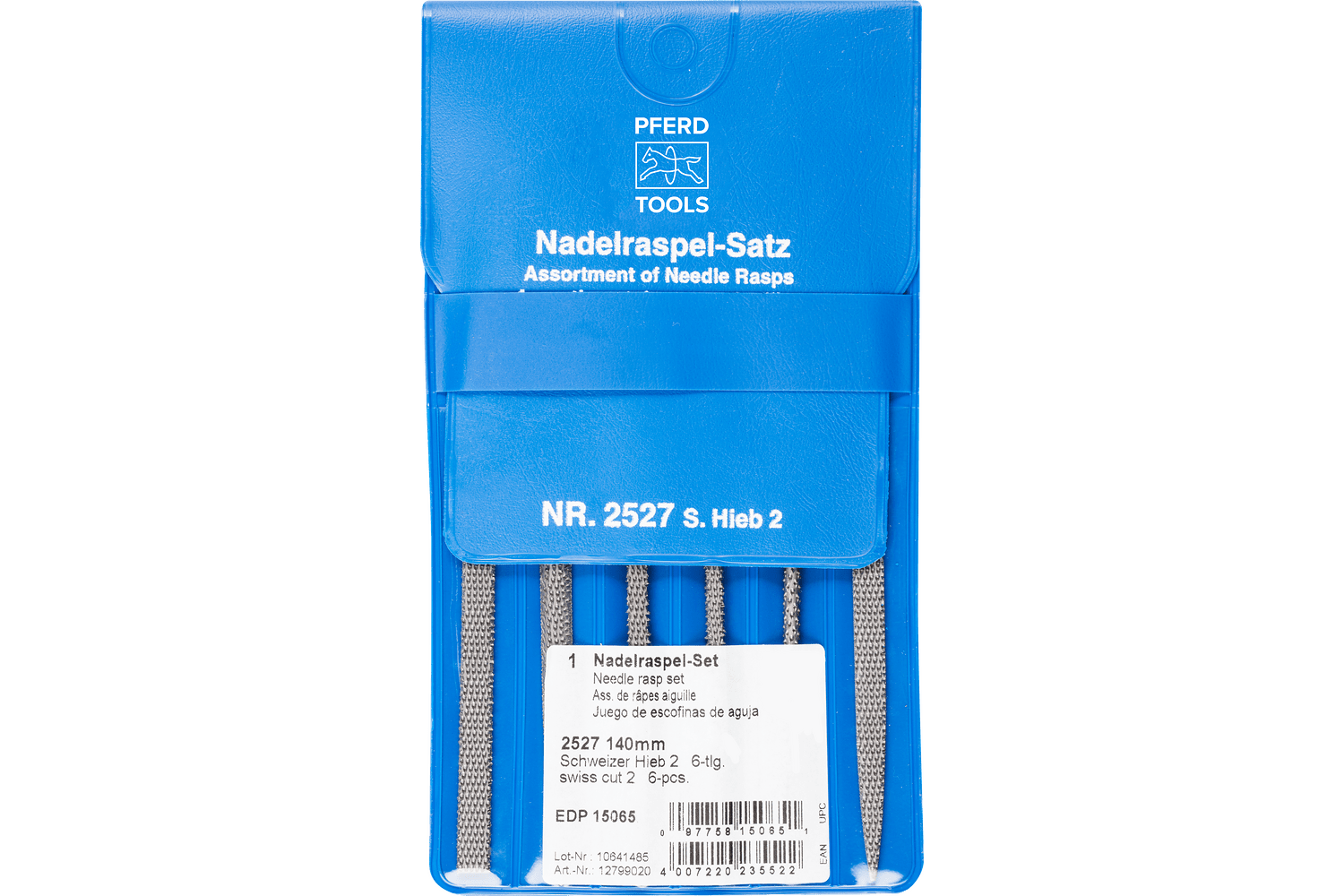

Special rasp set Swiss cut 2
Technical informationPFERD Needle Rasp Set - 6 Piece 5-1/2" Cut 2Item number12799020Cut2EDP no.15065Length5.5 InchPFERD TOOLS type2527Packaging unit1 EACHSwiss cut 2 for medium-fine precision work. Contains an application-oriented selection of needle rasps for work in hard-to-reach areas.Special featuresCan be used with or without a file handle due to the forged shank design.Designed to work well with a variety of materials.Application-oriented designs.Ordering notesComes in a clearly structured plastic pouch to protect against dirt and damage.Workpiece materialsSoft stoneWoodPlasticsApplicationsChamferingDeburringRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application
Square File 8" Coarse Cut with Handle
PFERD's machinist files meet the highest quality standards. They are long lasting and have very good stock removal rates. Square file, tapered and cut on four sides. Tanged version. Designed for filing angular surfaces. Bastard cut for coarse stock removal and roughing. Files come in point-of-sale packaging with ergonomic file handles.

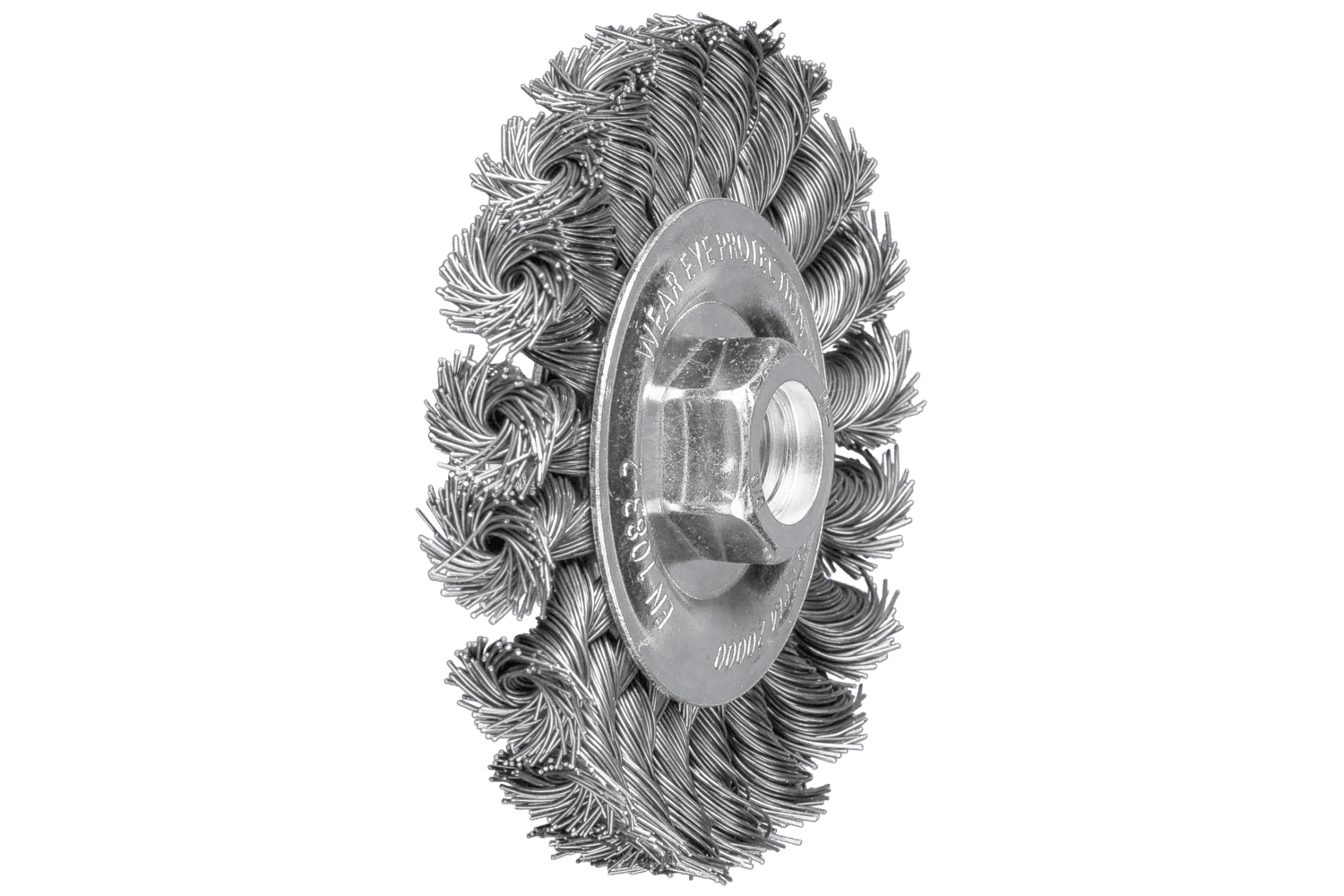

Standard Twist Knot Wire Wheel Brush PSF
Technical informationBrush Diameter4 InchFilament MaterialSteel wire (ST)Wire Diameter0.02 InchThread / Arbor5/8-11Trim Length3/4 InchMax. RPM20000 RPMPack Qty5Aggressive brush. Designed for heavy-duty brushing in metalwork such as descaling, derusting, deburring, cleaning of weld seams, removal of adhesive residues and spatter. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.AdvantagesPackaged for retail.Aggressive brushing action due to tightly-twisted wire knots.Long service life through use of PFERD special wire.ApplicationsCleaningDeburringDerustingDescalingRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSteel, cast steelSteel materials with a hardness > 54 HRCSteels up to 370 HV (< 38 HRC)Cast ironCast steelDrive TypesAngle grinder
Standard Twist Knot Wire Wheel Brush Stainless Steel
The brush knots are knotted to 75% of the length. The brush is designed for brushing large areas and for heavy-duty brushwork, such as deburring, cleaning, derusting and descaling, as well as removing spatter. Brass wire filament brushes are designed for applications like surface finishing on copper or brass workpieces. Compared to steel wire, brass wire is softer and more flexible. For all brushes with brass wire, PFERD uses wire quality CuZn37. Brass wire is temperature-resistant up to 350°F.

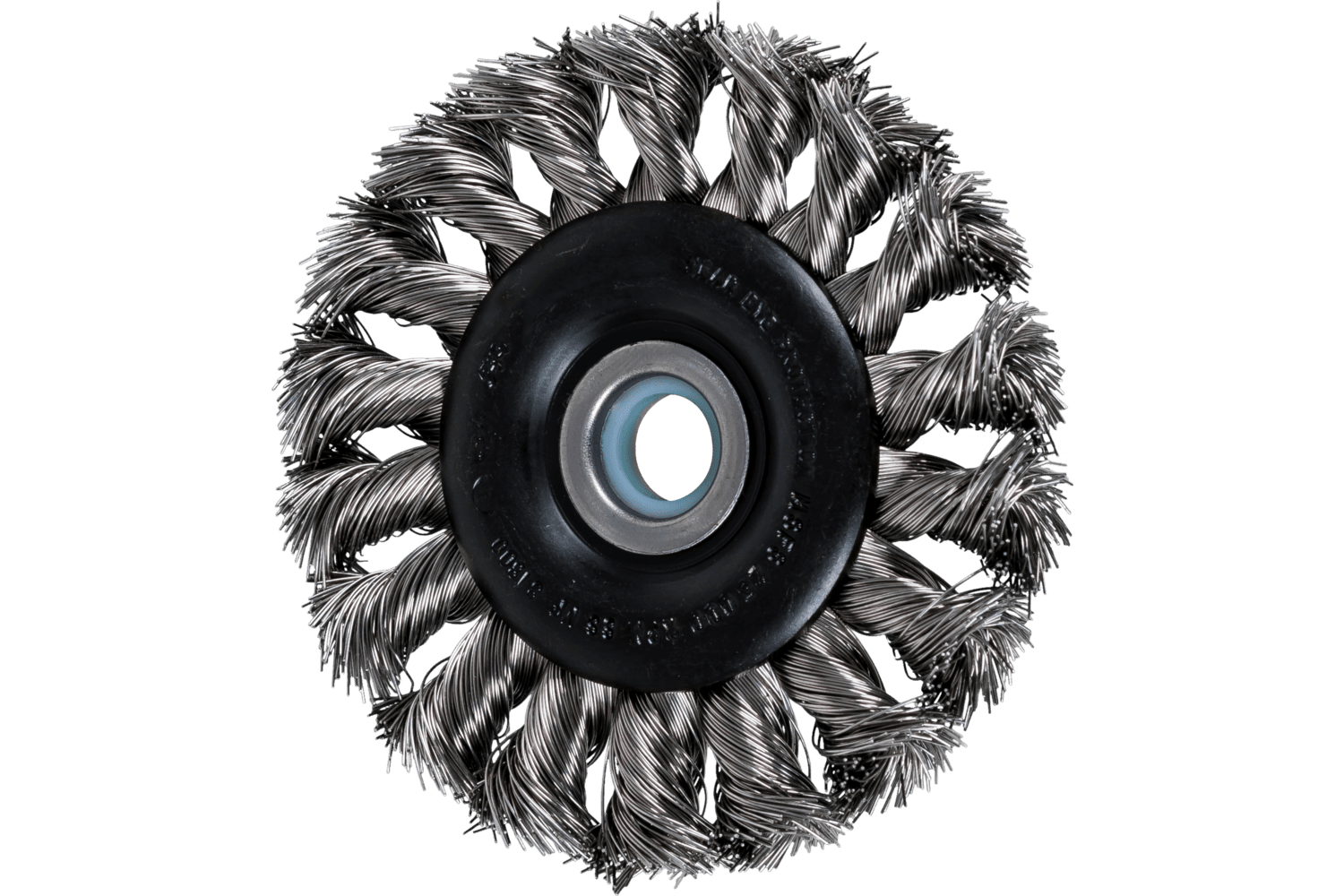

Standard Twist Knot Wire Wheel Brush
Technical informationBrush Diameter3 InchFace Width7/16 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.012 InchArbor Hole3/8 InchTrim Length3/4 InchNumber of Knots18Max. RPM25000 RPMPack Qty10The brush knots are knotted to 75% of the length. The brush is designed for brushing large areas and for heavy-duty brushwork, such as deburring, cleaning, derusting and descaling, as well as removing spatter. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesOptimal ratio of aggressiveness and flexibility.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinder

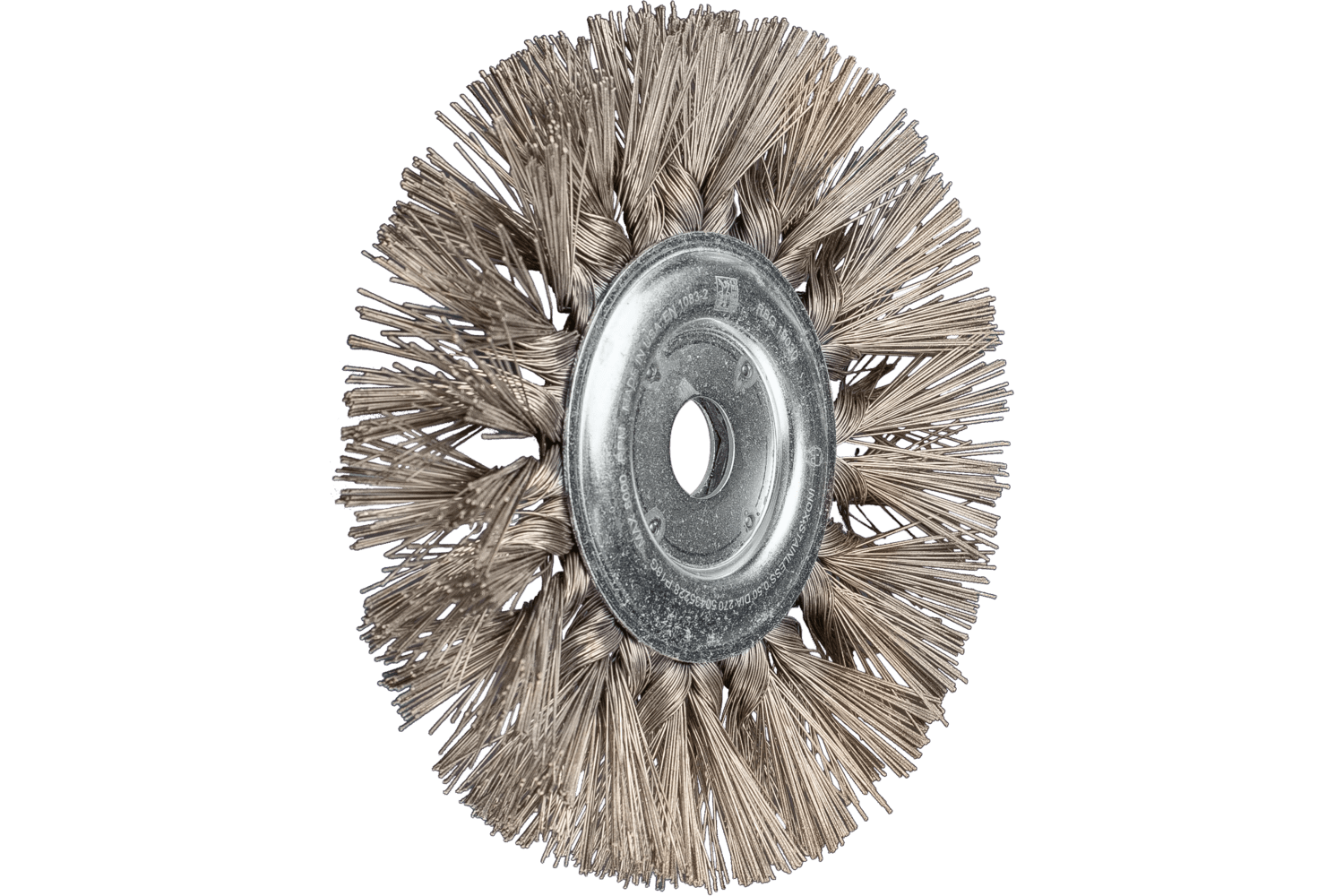

Standard Twist Knot Wire Wheel Brush
Technical informationBrush Diameter7 1/2 InchFilament MaterialStainless steel wire (INOX) diamond (DIA)Wire Diameter0.02 InchGrit Size270Arbor Hole1 1/4 InchTrim Length2 InchNumber of Knots24Max. RPM8000 RPMPack Qty1The brush knots are knotted to 50% of the length. The brush achieves a better surface quality on uneven surfaces when compared to knotted brushes. INOX DIA filament brushes are designed for particularly demanding applications that require an aggressive brush. They are primarily used on extremely hard materials. Stainless steel wire (INOX) diamond (DIA) is temperature-resistant up to 850 °F.AdvantagesOptimal ratio of aggressiveness and flexibility.ApplicationsCleaningDeburringDescalingRemoving oxide layersMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysTungsten carbideWear-resistant coatings (powder metal alloys and hardfacing alloys)AluminumBronzeCobalt-based alloysHard non-ferrous metalDrive TypesStationary machines

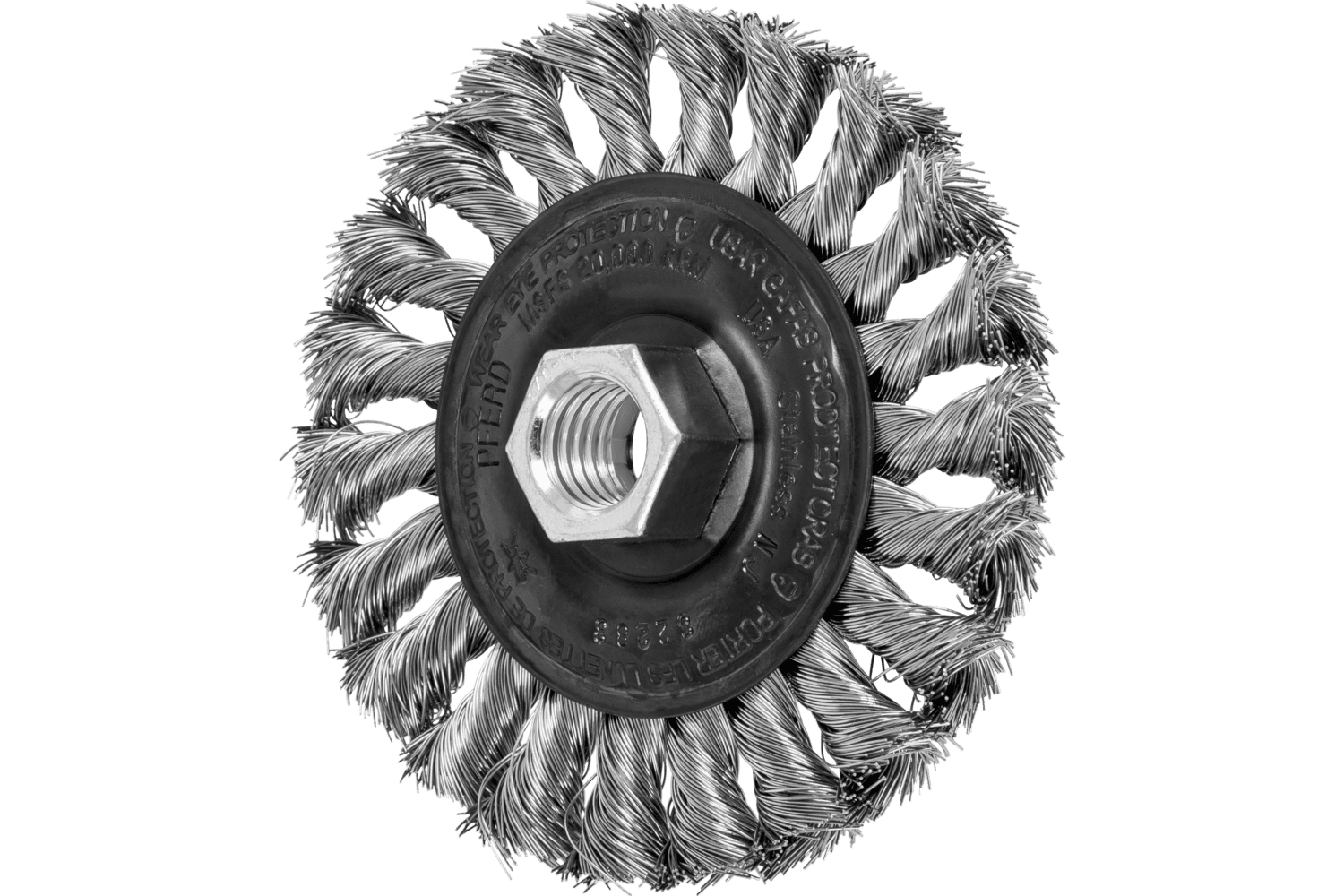

Standard Twist Knot Wire Wheel Brush
Technical informationBrush Diameter4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.014 InchThread / Arbor5/8-11Trim Length7/8 InchNumber of Knots22Max. RPM20000 RPMPack Qty10The brush knots are knotted to 75% of the length. The brush is designed for brushing large areas and for heavy-duty brushwork, such as deburring, cleaning, derusting and descaling, as well as removing spatter. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesOptimal ratio of aggressiveness and flexibility.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinder
Stringer Bead Wheel Brush Stainless Steel
Aggressive and robust brush that is able to withstand high mechanical loads. Ideal for heavy-duty brushing in pipeline and container construction. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.

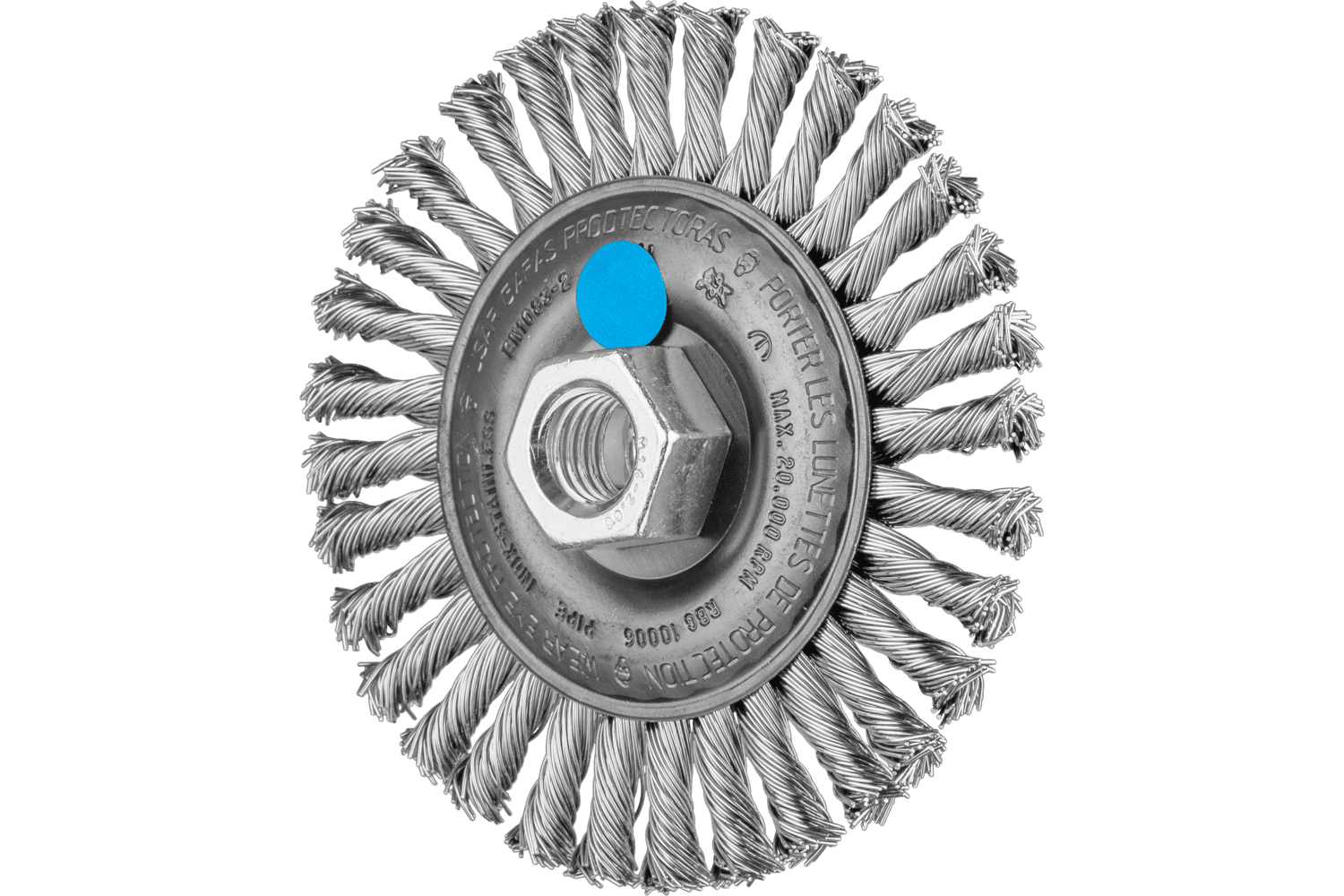

Stringer Bead Wheel Brush
Technical informationBrush Diameter4 InchFilament MaterialStainless steel wire (INOX)Wire Diameter0.02 InchThread / Arbor5/8-11Trim Length3/4 InchNumber of Knots32Max. RPM20000 RPMPack Qty10Aggressive and robust brush that is able to withstand high mechanical loads. Ideal for heavy-duty brushing in pipeline and container construction. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.AdvantagesAggressive brushing action due to tightly-twisted wire knots.Extra-slim design allows access to hard-to-reach areas such as root weld seams.Very corrosion-resistant.ApplicationsCleaningDeburringDerustingDescalingRemoving heat discolourationRemoving oxide layersPaint strippingRoot seam processingWork on weld seamsWork on fillet weldsMaterials that can be workedSoft titanium alloys (tensile strength 500 N/mm²)Stainless steel (INOX)TitaniumTitanium alloysAluminumBronzeCobalt-based alloysHard non-ferrous metalHigh-temperature-resistant materialsNickel-based alloys (e.g. Inconell and Hastelloy)Drive TypesAngle grinder

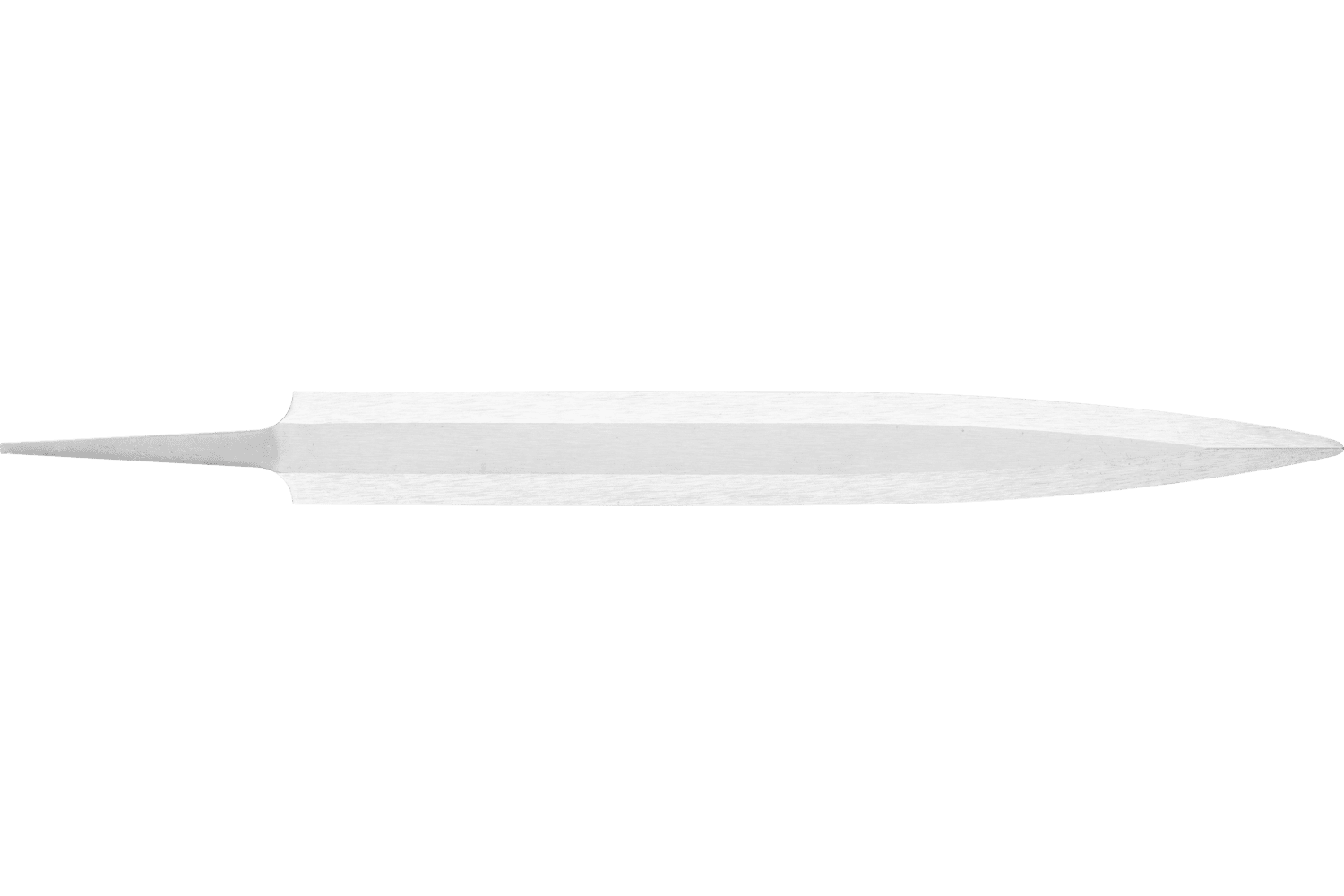

Tang files barrette
Technical informationPFERD Barrette File 8" Swiss Pattern Cut 0Item number19315202Cut0EDP no.12512Height3/16 InchLength8 InchPFERD TOOLS type875Width7/8 InchShapeBarrette shapePackaging unit12 EACHSmall, handy files for use on delicate components. Swiss cut 0 for coarse precision work.Special featuresCompact, handy design.Designed for small and delicate workpieces.Workpiece materialsSteels up to 370 HV (< 38 HRC)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

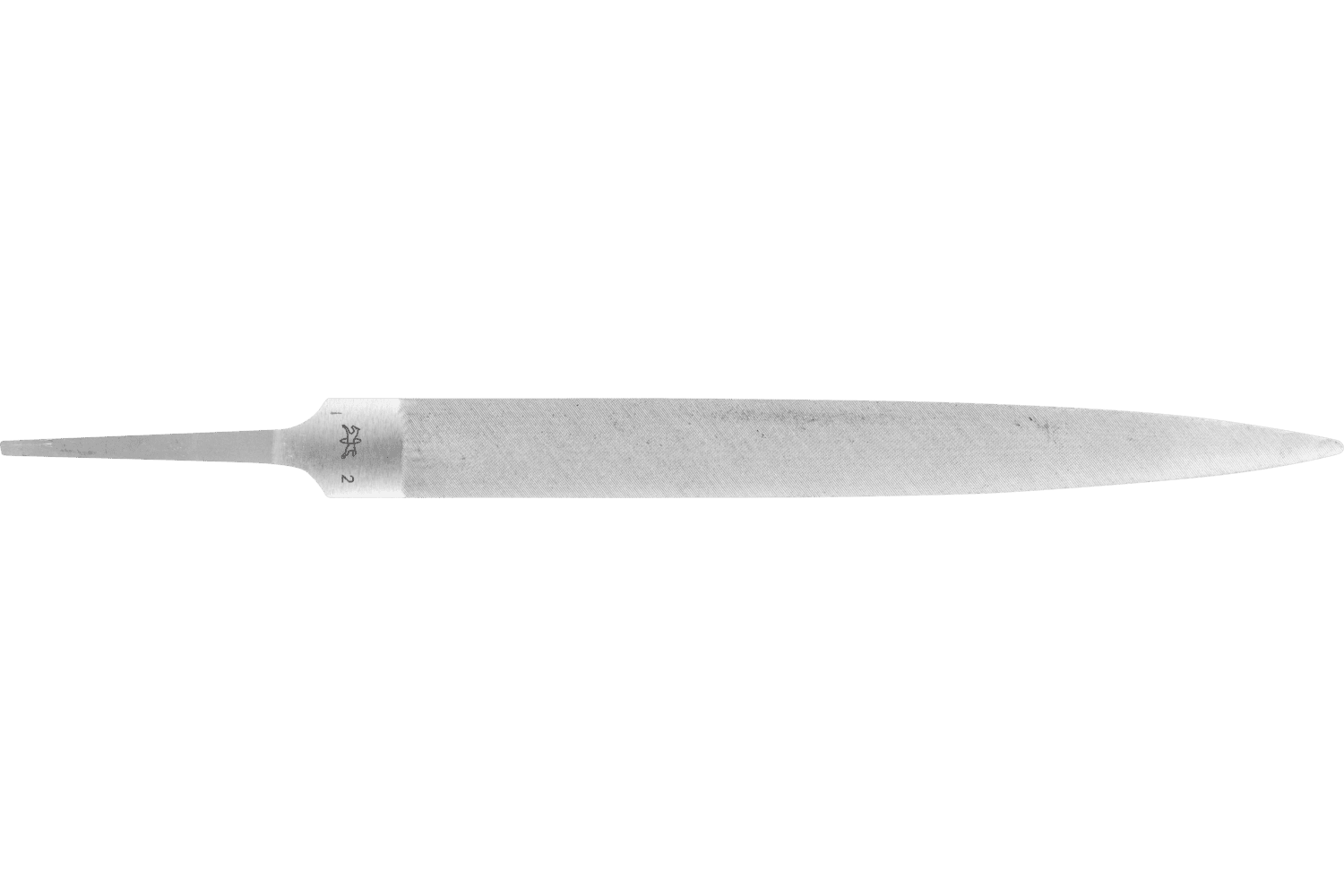

Tang files crossing oval
Technical informationPFERD Crossing File 6" Swiss Pattern Cut 2Item number19313154Cut2EDP no.12542Height3/16 InchLength6 InchPFERD TOOLS type865Width5/8 InchShapeCrossing oval shapePackaging unit12 EACHSmall, handy files for use on delicate components. Swiss cut 2 for medium-fine precision work.Special featuresCompact, handy design.Designed for small and delicate workpieces.Workpiece materialsSteels up to 370 HV (< 38 HRC)ApplicationsChamferingDeburringFinishingRoundingWorking on edges (chamfering, rounding)Compatible power toolsManual application

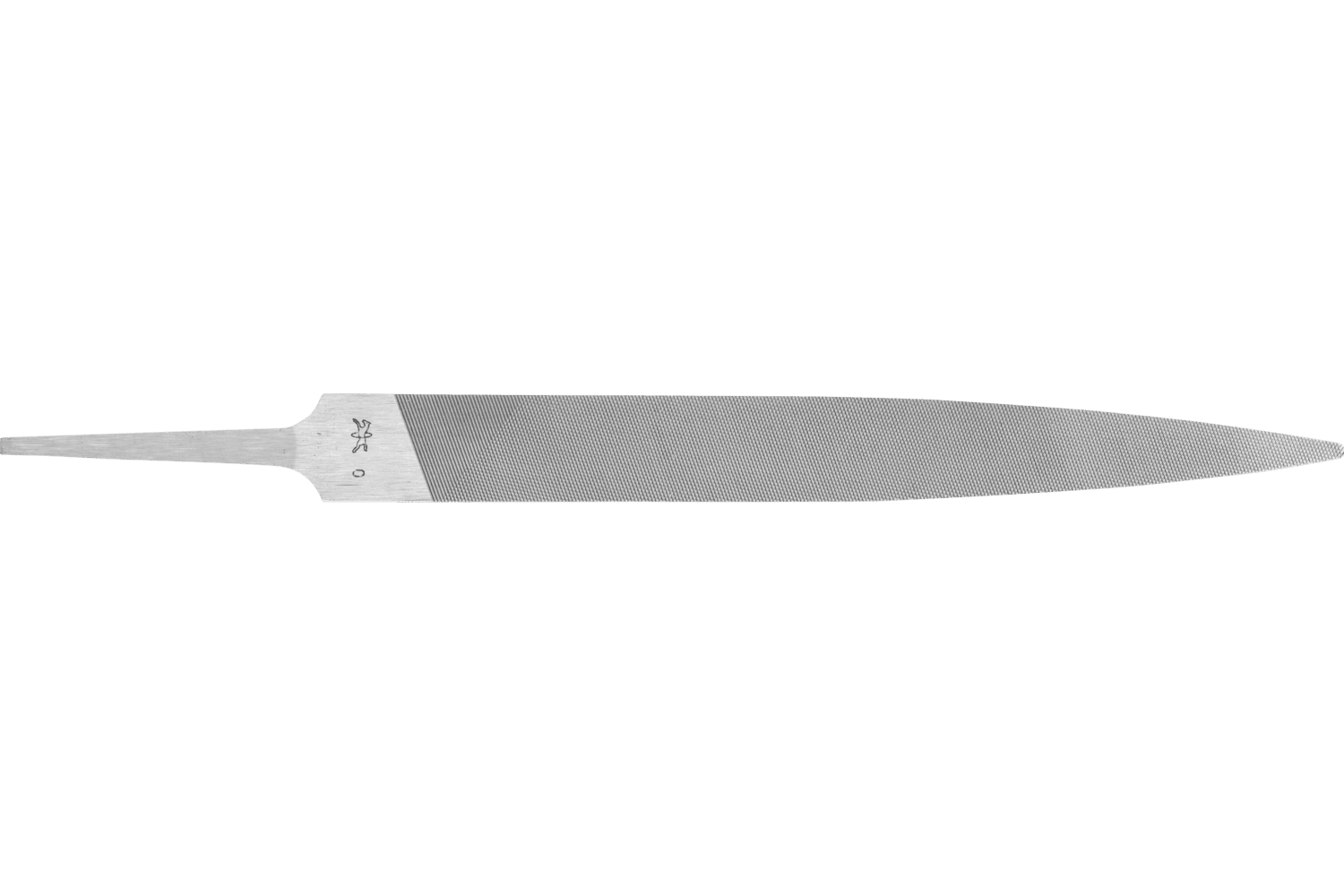

Tang files flat thin
Technical informationPFERD Warding File 6" Swiss Pattern Cut 0Item number19306152Cut0EDP no.12894Height3/32 InchLength6 InchPFERD TOOLS type830Width5/8 InchShapeFlat, thinPackaging unit12 EACHSmall, handy files for use on delicate components. Swiss cut 0 for coarse precision work.Special featuresCompact, handy design.Designed for small and delicate workpieces.Workpiece materialsSteels up to 370 HV (< 38 HRC)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

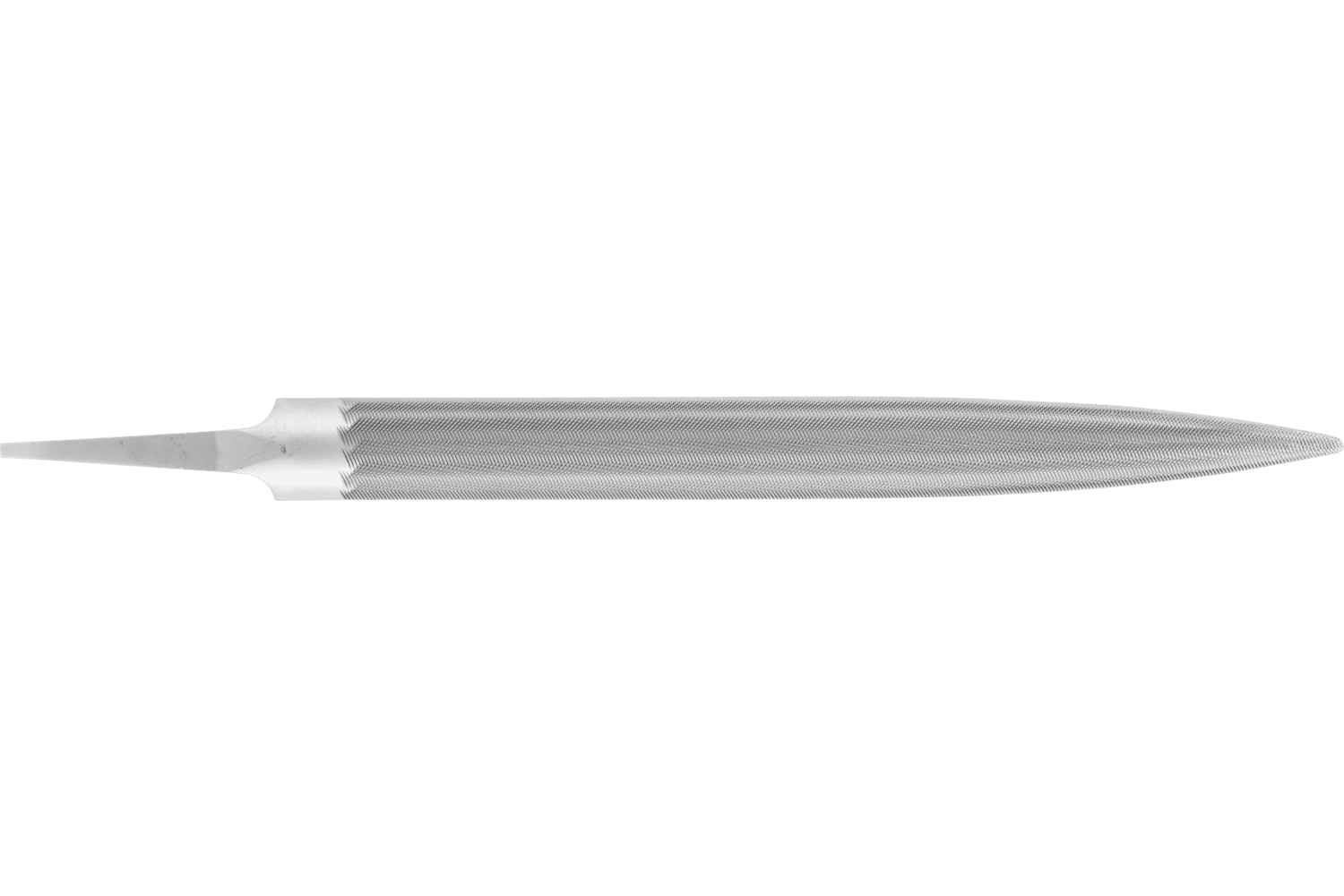

Tang files half-round
Technical informationPFERD Half Round File 10" Swiss Pattern Cut 00Item number19307251Cut00EDP no.12587Height1/4 InchLength10 InchPFERD TOOLS type835Width1 InchShapeHalf-roundPackaging unit12 EACHSmall, handy files for use on delicate components. Swiss cut 00 for very coarse precision work.Special featuresCompact, handy design.Designed for small and delicate workpieces.Workpiece materialsSteels up to 370 HV (< 38 HRC)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

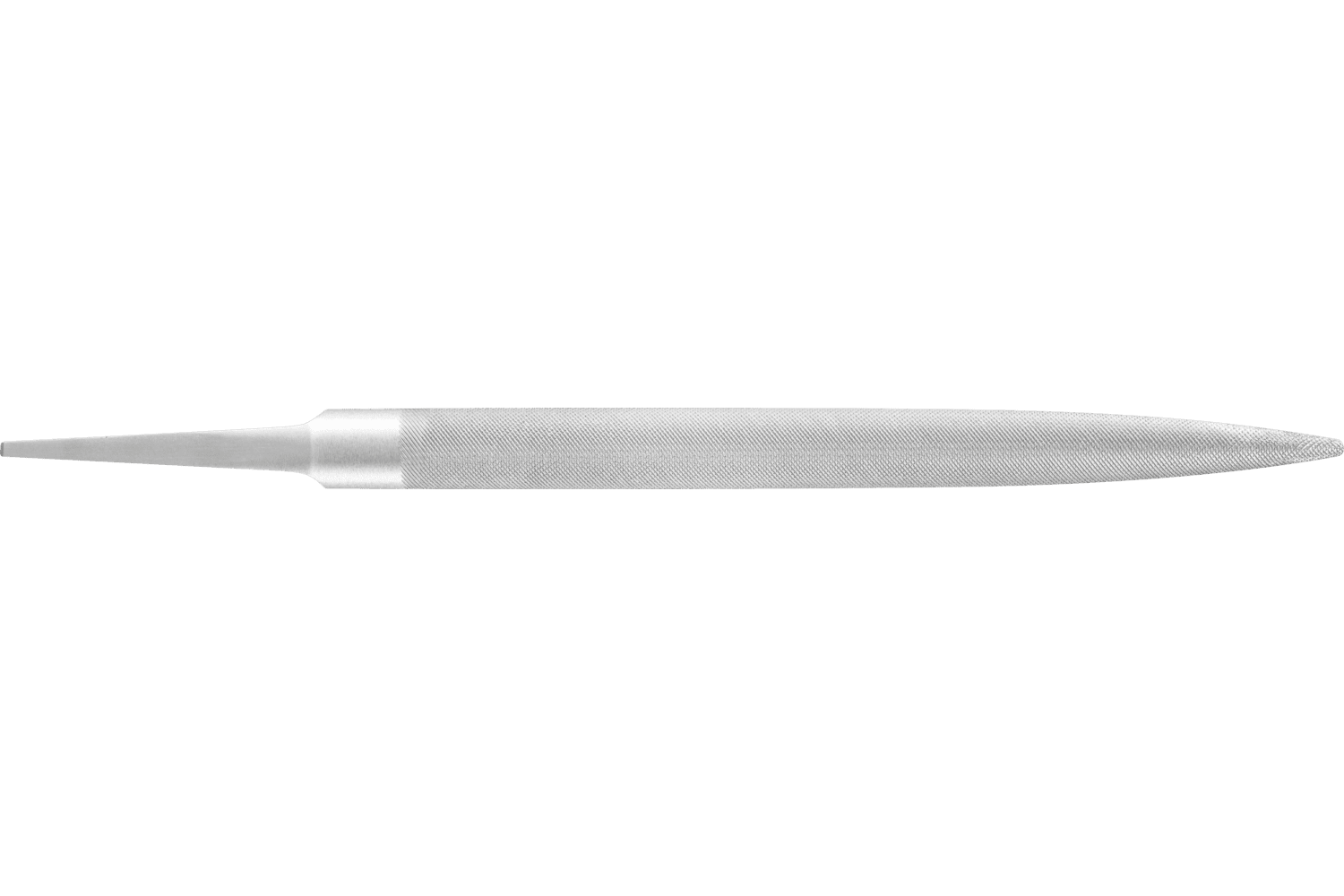

Tang files half-round slim
Technical informationPFERD Half Round Narrow File 6" Swiss Pattern Cut 00Item number19308151Cut00EDP no.12594Height1/8 InchLength6 InchPFERD TOOLS type840Width1/2 InchShapeHalf-round, slimPackaging unit12 EACHSmall, handy files for use on delicate components. Swiss cut 00 for very coarse precision work.Special featuresCompact, handy design.Designed for small and delicate workpieces.Workpiece materialsSteels up to 370 HV (< 38 HRC)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

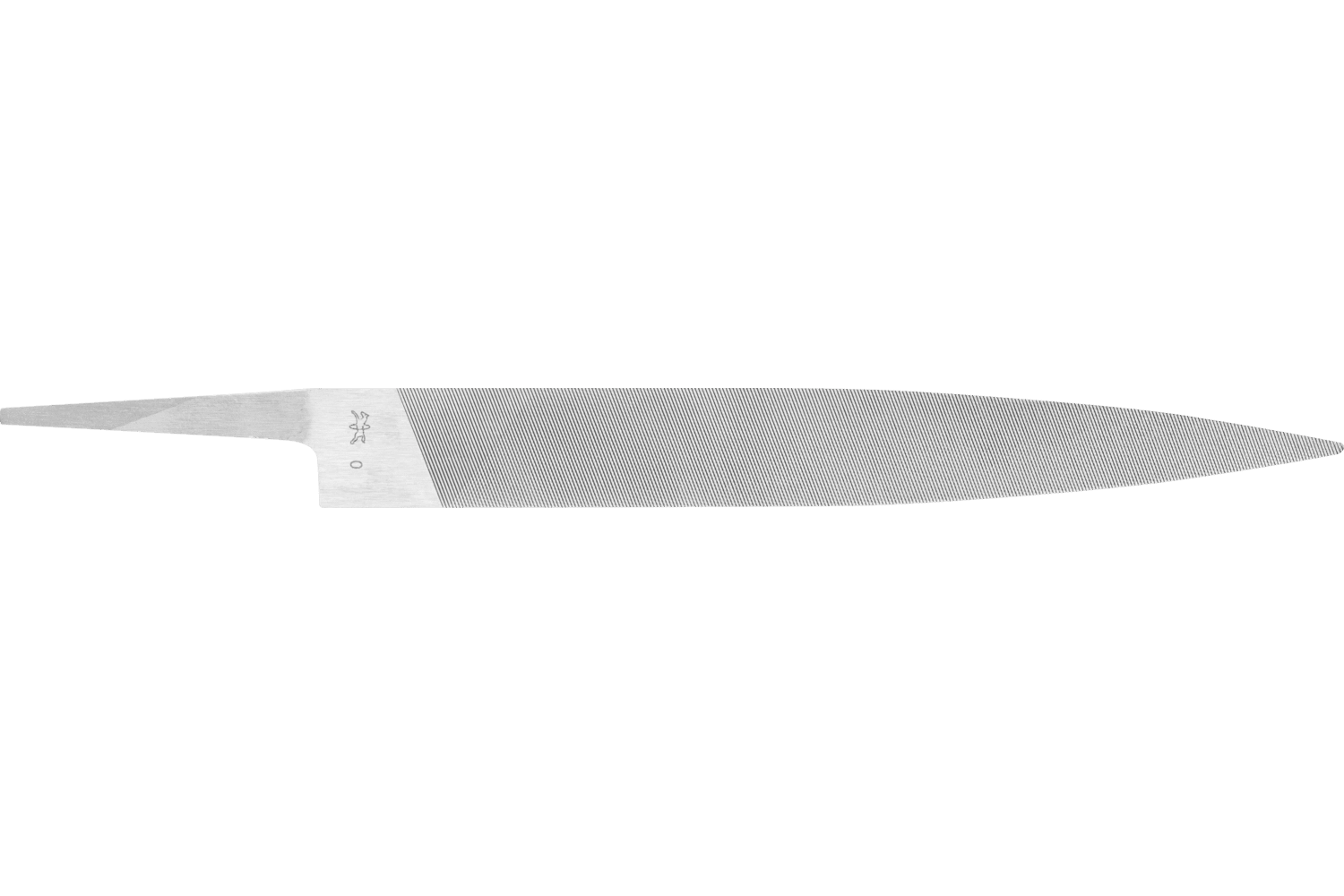

Tang files knife
Technical informationPFERD Knife File 6" Swiss Pattern Cut 0Item number19314152Cut0EDP no.12654Height3/16 InchLength6 InchPFERD TOOLS type870Width11/16 InchShapeKnife shapePackaging unit12 EACHSmall, handy files for use on delicate components. Swiss cut 0 for coarse precision work.Special featuresCompact, handy design.Designed for small and delicate workpieces.Workpiece materialsSteels up to 370 HV (< 38 HRC)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

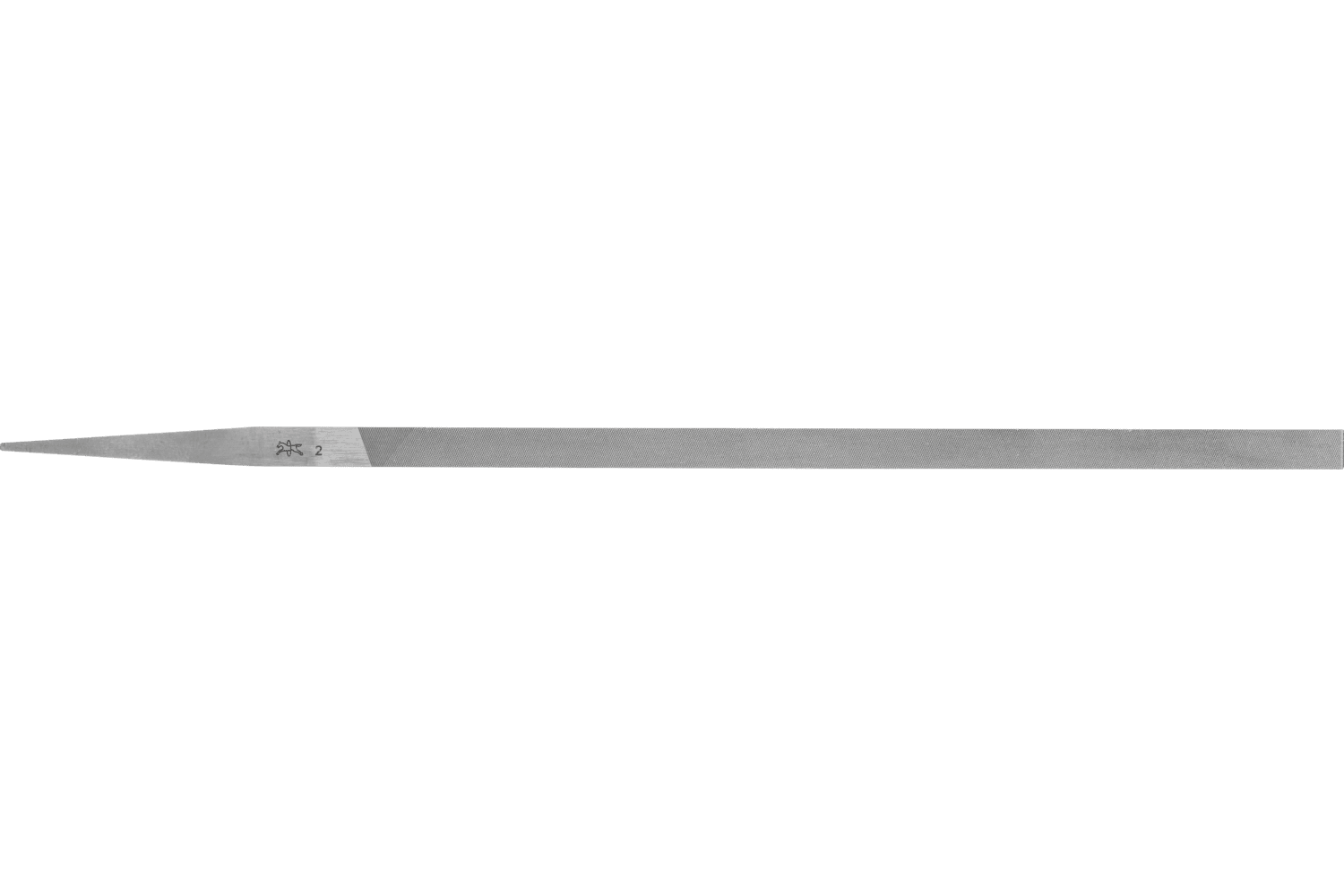

Tang files pillar file extra slim hand
Technical informationPFERD Pillar Extra Narrow File 8" Swiss Pattern Cut 2Item number19304204Cut2EDP no.12756Height1/8 InchLength8 InchPFERD TOOLS type820Width5/16 InchShapePillar files, extra slimPackaging unit12 EACHSmall, handy files for use on delicate components. Swiss cut 2 for medium-fine precision work.Special featuresCompact, handy design.Designed for small and delicate workpieces.Workpiece materialsSteels up to 370 HV (< 38 HRC)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

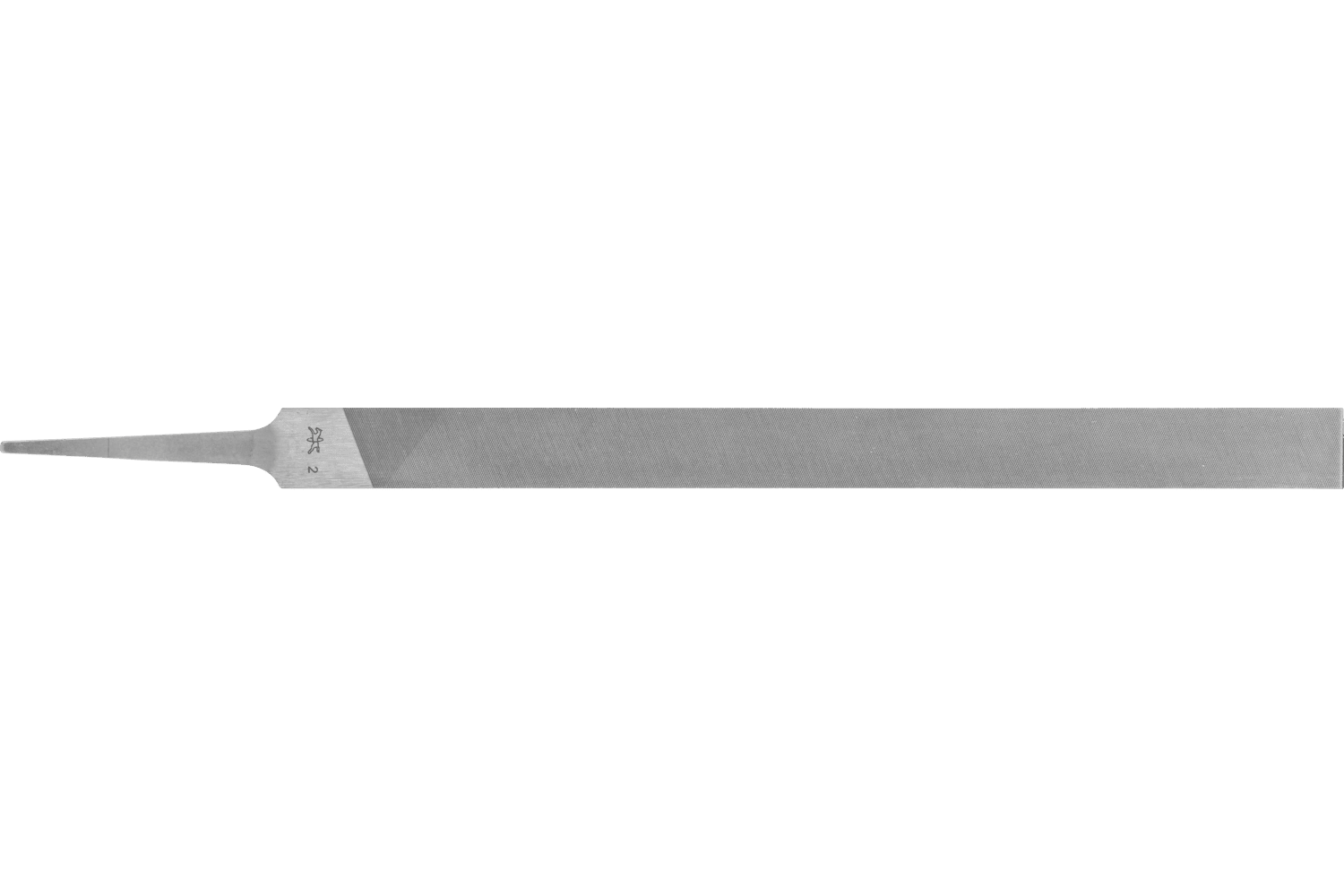

Tang files pillar file regular hand
Technical informationPFERD Pillar File 8" Swiss Pattern Cut 2Item number19302204Cut2EDP no.12699Height3/16 InchLength8 InchPFERD TOOLS type810Width9/16 InchShapePillar files, regularPackaging unit12 EACHSmall, handy files for use on delicate components. Swiss cut 2 for medium-fine precision work.Special featuresCompact, handy design.Designed for small and delicate workpieces.Workpiece materialsSteels up to 370 HV (< 38 HRC)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

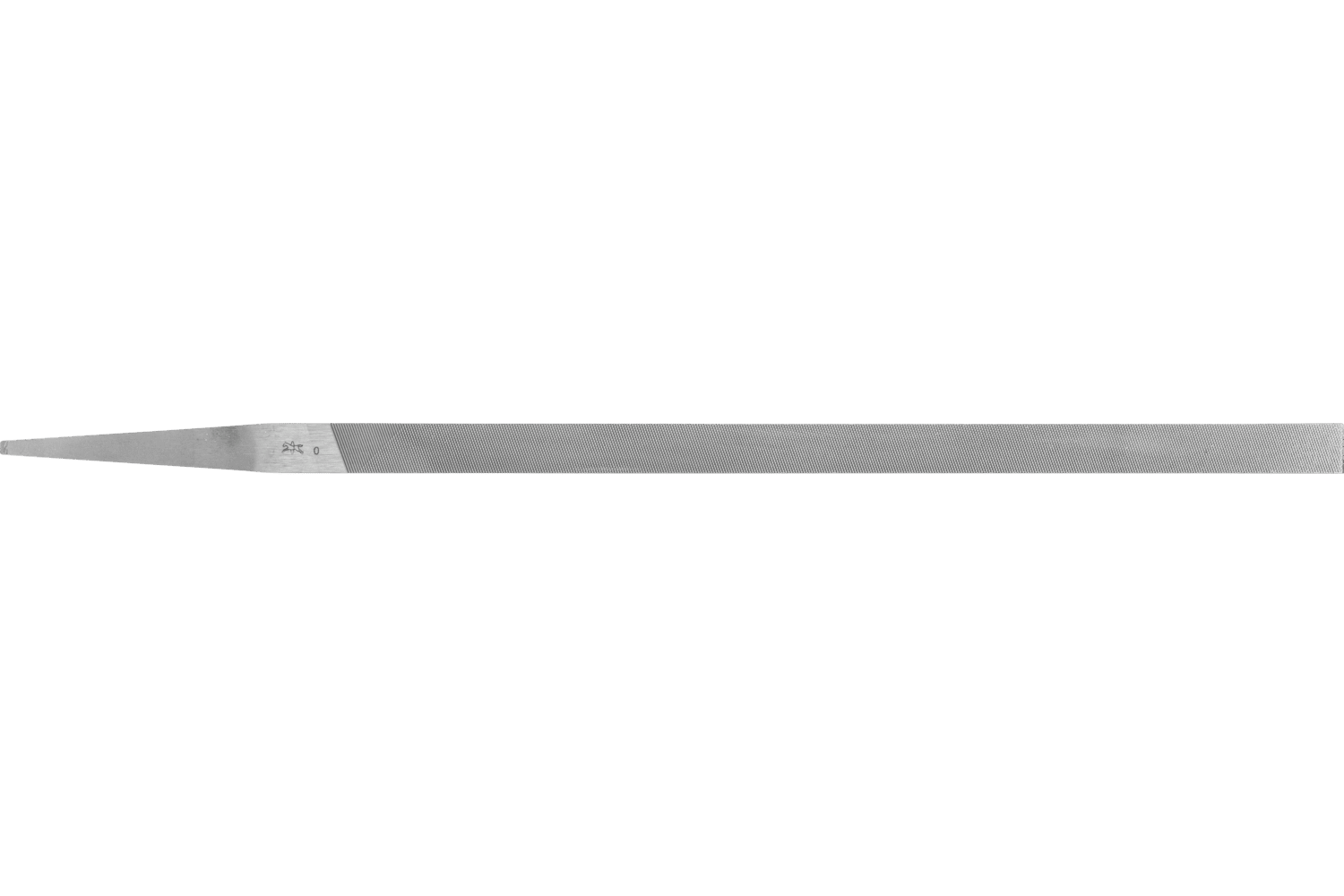

Tang files pillar file slim hand
Technical informationPFERD Pillar Narrow File 10" Swiss Pattern Cut 0Item number19303252Cut0EDP no.12736Height3/16 InchLength10 InchPFERD TOOLS type815Width1/2 InchShapePillar files, slimPackaging unit12 EACHSmall, handy files for use on delicate components. Swiss cut 0 for coarse precision work.Special featuresCompact, handy design.Designed for small and delicate workpieces.Workpiece materialsSteels up to 370 HV (< 38 HRC)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

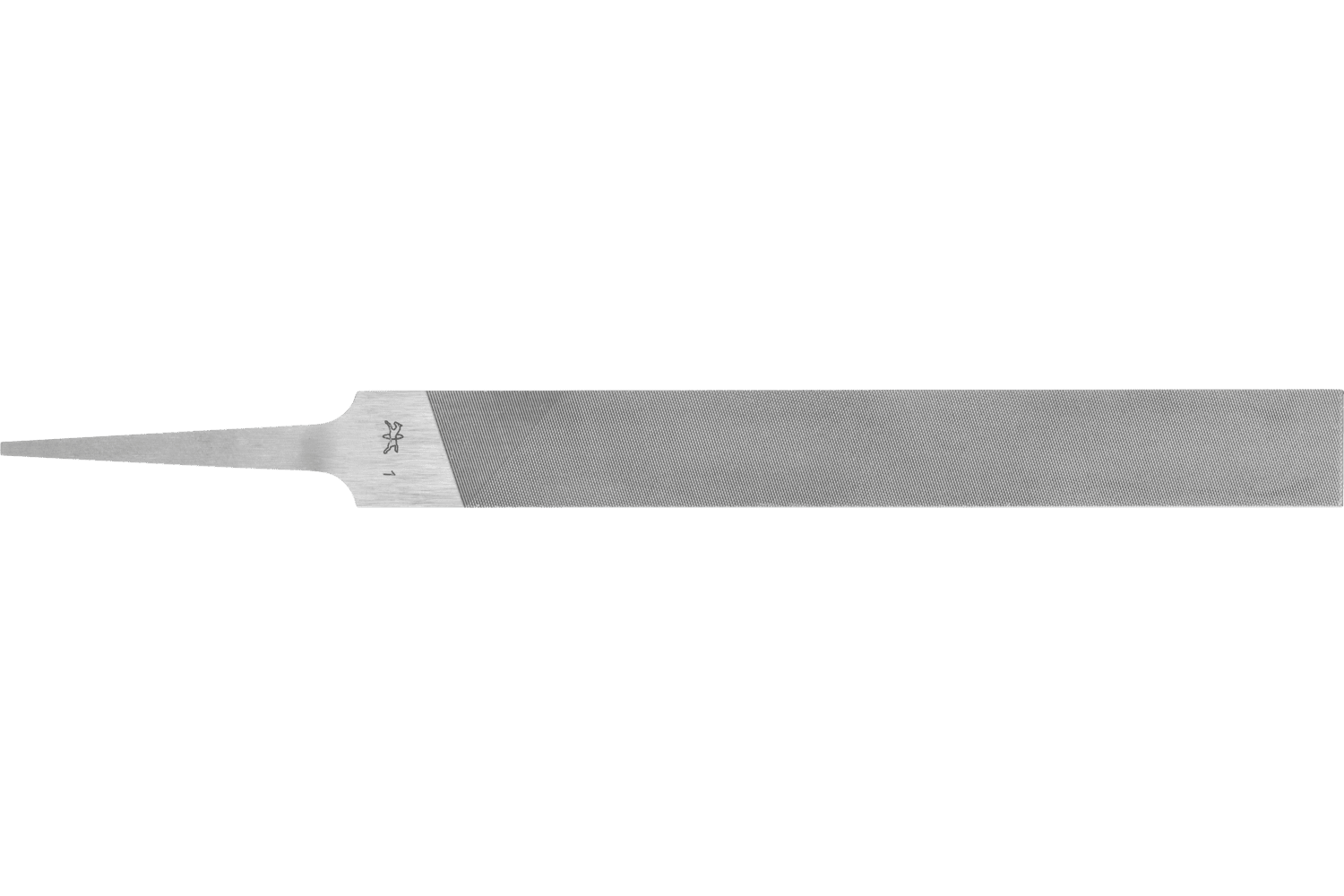

Tang files pottance file hand
Technical informationPFERD Hand File 6" Swiss Pattern Cut 1Item number19300153Cut1EDP no.12617Height5/32 InchLength6 InchPFERD TOOLS type800Width5/8 InchShapePottance files, handPackaging unit12 EACHSmall, handy files for use on delicate components. Swiss cut 1 for medium precision work.Special featuresCompact, handy design.Designed for small and delicate workpieces.Workpiece materialsSteels up to 370 HV (< 38 HRC)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

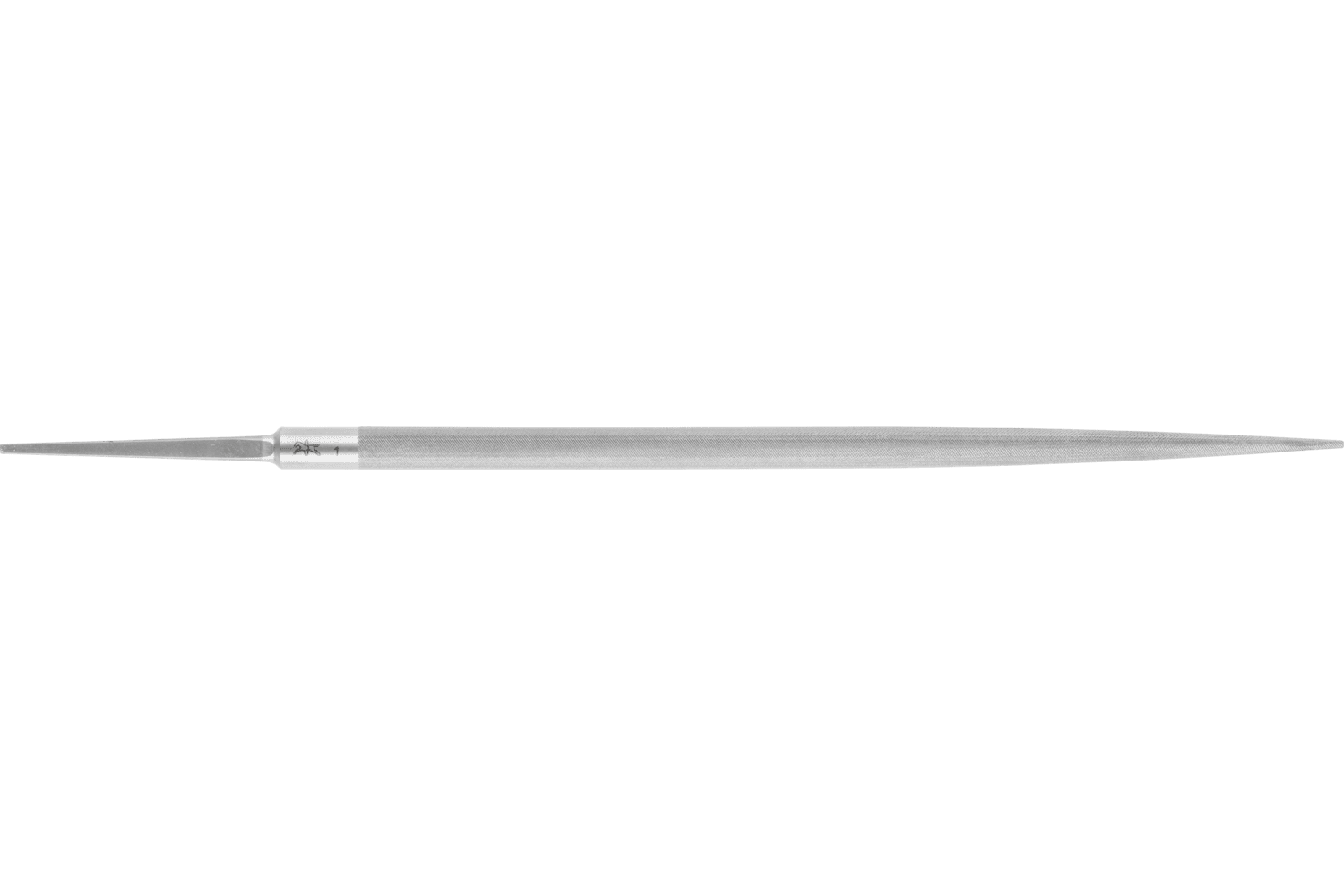

Tang files round
Technical informationPFERD Round File 8" Swiss Pattern Cut 1Item number19309203Cut1EDP no.12798Length8 InchPFERD TOOLS type845Dia. external5/16 InchShapeRoundPackaging unit12 EACHSmall, handy files for use on delicate components. Swiss cut 1 for medium precision work.Special featuresCompact, handy design.Designed for small and delicate workpieces.Workpiece materialsSteels up to 370 HV (< 38 HRC)ApplicationsChamferingDeburringFinishingRoundingWorking on edges (chamfering, rounding)Compatible power toolsManual application

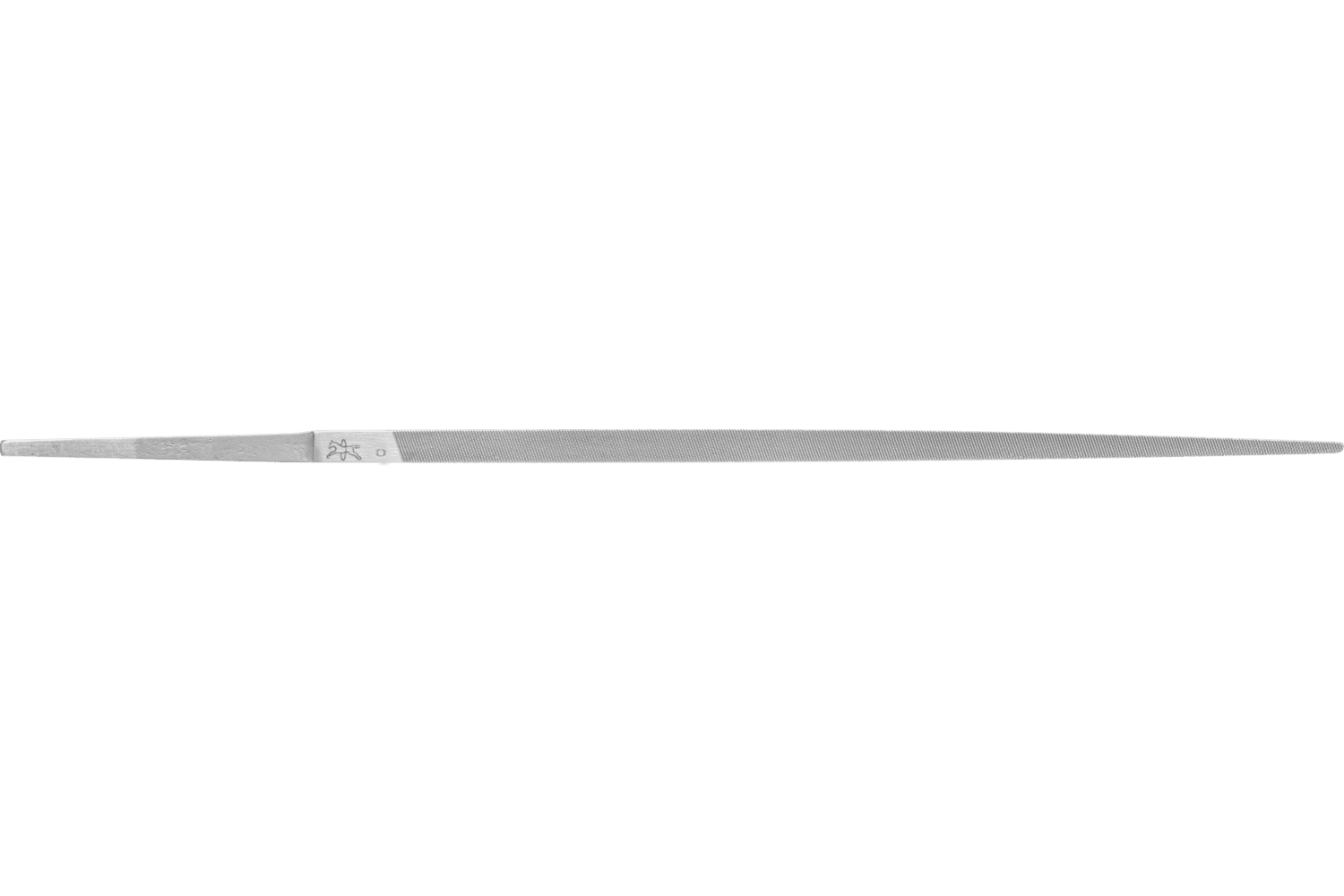

Tang files square
Technical informationPFERD Square File 6" Swiss Pattern Cut 0Item number19312152Cut0EDP no.12848Length6 InchPFERD TOOLS type860Width1/4 InchShapeSquarePackaging unit12 EACHSmall, handy files for use on delicate components. Swiss cut 0 for coarse precision work.Special featuresCompact, handy design.Designed for small and delicate workpieces.Workpiece materialsSteels up to 370 HV (< 38 HRC)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application

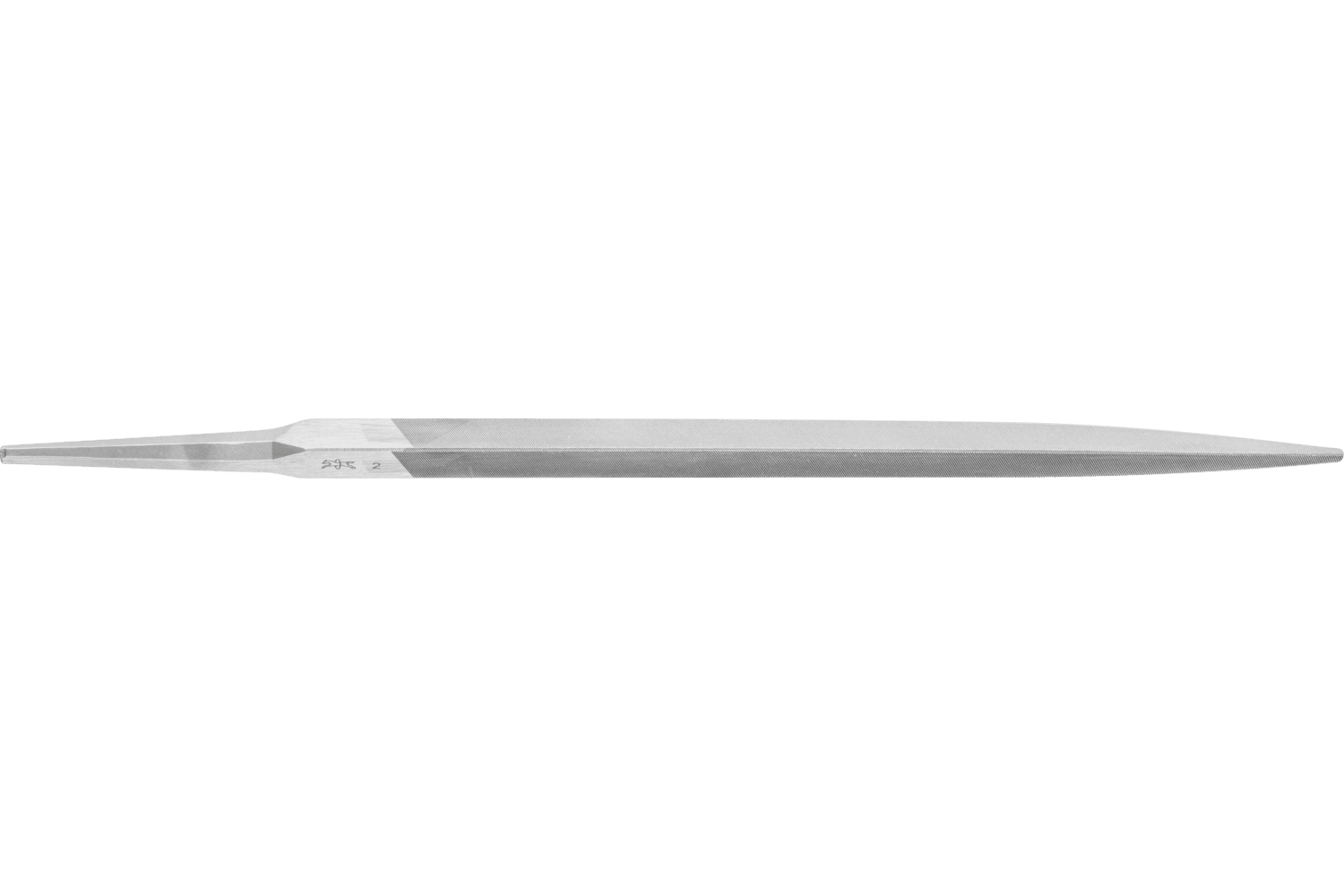

Tang files three square
Technical informationPFERD Three Square File 6" Swiss Pattern Cut 2Item number19311154Cut2EDP no.12875Length6 InchPFERD TOOLS type855Width3/8 InchShapeThree squarePackaging unit12 EACHSmall, handy files for use on delicate components. Swiss cut 2 for medium-fine precision work.Special featuresCompact, handy design.Designed for small and delicate workpieces.Workpiece materialsSteels up to 370 HV (< 38 HRC)ApplicationsChamferingDeburringFinishingRoundingSurface workWorking on edges (chamfering, rounding)Compatible power toolsManual application
