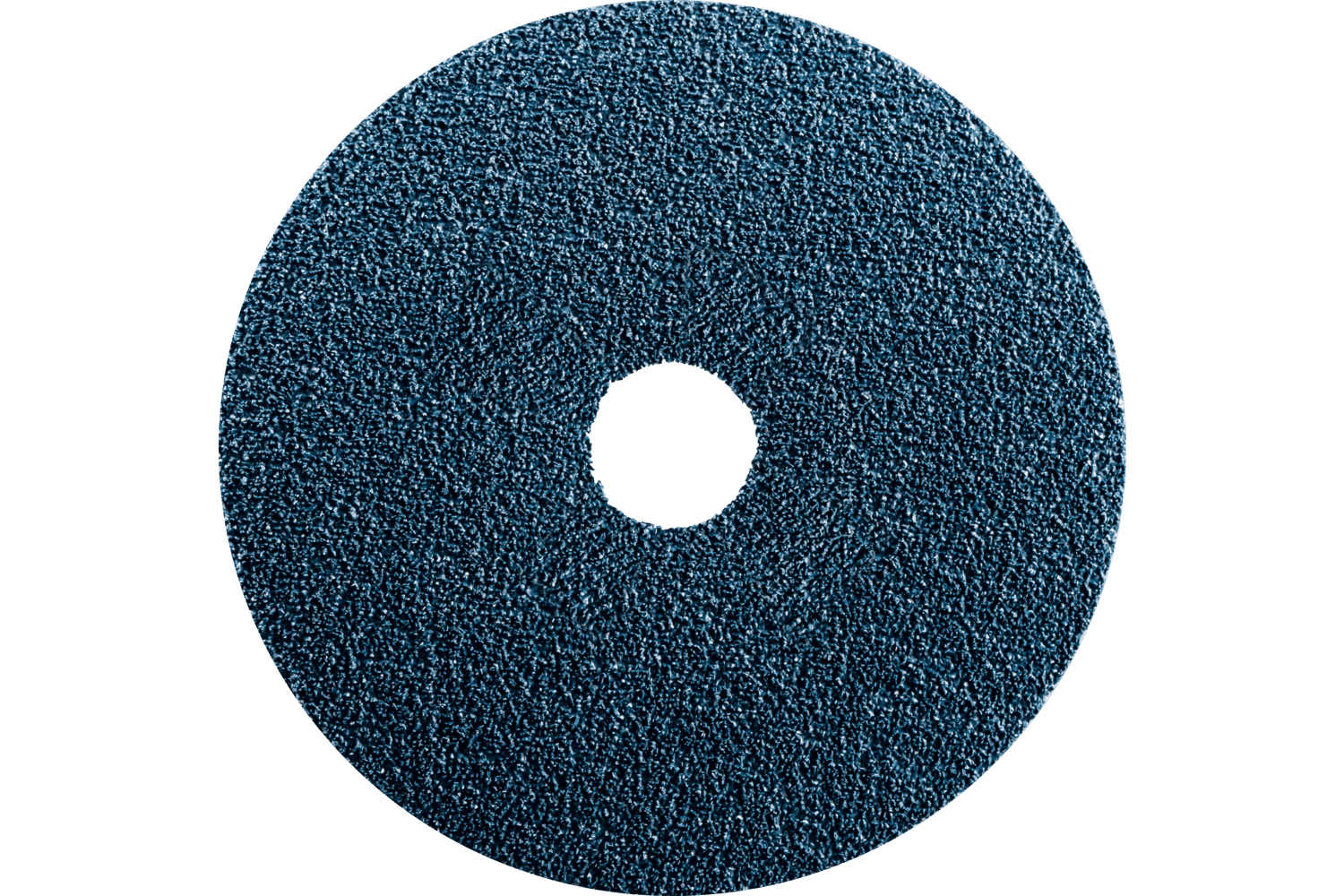

Fiber Disc, 5" Dia, 60 Grit, 69401663
$0.00
Product information "Fiber Disc, 5" Dia, 60 Grit, 69401663"
Technical information
5" Dia, 60 Grit
| Dia. External | 5 in |
| Grit | 60 |
| Max. RPM | 12200 |
| Pack qty | 25 |
PFERD fiber discs are manufactured in accordance with ISO 16057 in shape A2 version F under the designation "vulcanized fiber disc". For maximum aggressive grinding with an extremely long tool life and an outstanding stock removal rate on steel and hard materials. Outstanding, constant high performance due to the VICTOGRAIN abrasive grain. Each VICTOGRAIN abrasive grain triangle is firmly fixed on one of its sides to the backing material. Due to the slim design, VICTOGRAIN offers an extremely large chip space for maximum cutting efficiency. The structure of the triangular VICTOGRAIN is specially engineered to maximize results. The very fine crystalline structure ensures optimal wear characteristics as sharp cutting edges are always exposed, with the minimum amount of abrasive breaking off from the triangle. By combining all these properties together, users benefit from optimal, consistent performance, cool grinding and an extremely long service life with uniform workpiece surface roughness.
Special features
- VICTOGRAIN abrasive grain allows for high productivity due to long service life, very high stock removal rate, less heat build-up in the workpiece, and a lower power output required for the power tool.
- High productivity due to long service life and very high stock removal rate.
- Consistent surface finish resulting from high-quality abrasives.
- Conforms to contours due to high flexibility.
Applications
- Deburring
- Leveling
- Surface work
- Work on weld seams
- Working on edges
Materials that can be worked
- Steel
- Steel, cast steel
- Steels up to 370 HV (< 38 HRC)
- Cast steel
- Hard non-ferrous metal
- Hardened, heat-treated steels over 370 HV (38 HRC)
- Nickel-based alloys (e.g. Inconell and Hastelloy)
Recommendations for use
- Use fiber disc in accordance with ISO 15636 with backing pad on commercially available angle grinders.
- Use the appropriate grinding oil for the material to significantly increase the service life and the abrasive performance of the discs.
Safety
- Warning: Cancer -- www.P65Warnings.ca.gov
- The maximum permitted peripheral speed is 15,800 SFPM.
- For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
| Pack Qty: | 25 |
|---|
